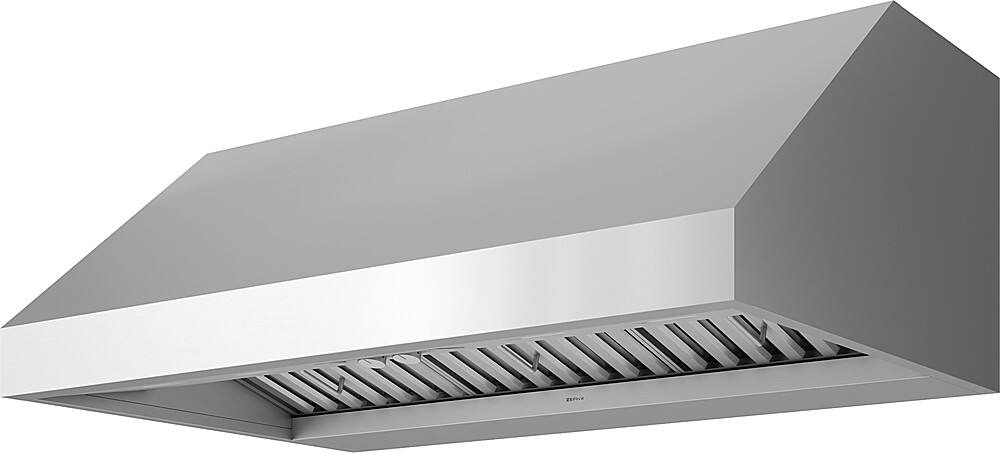

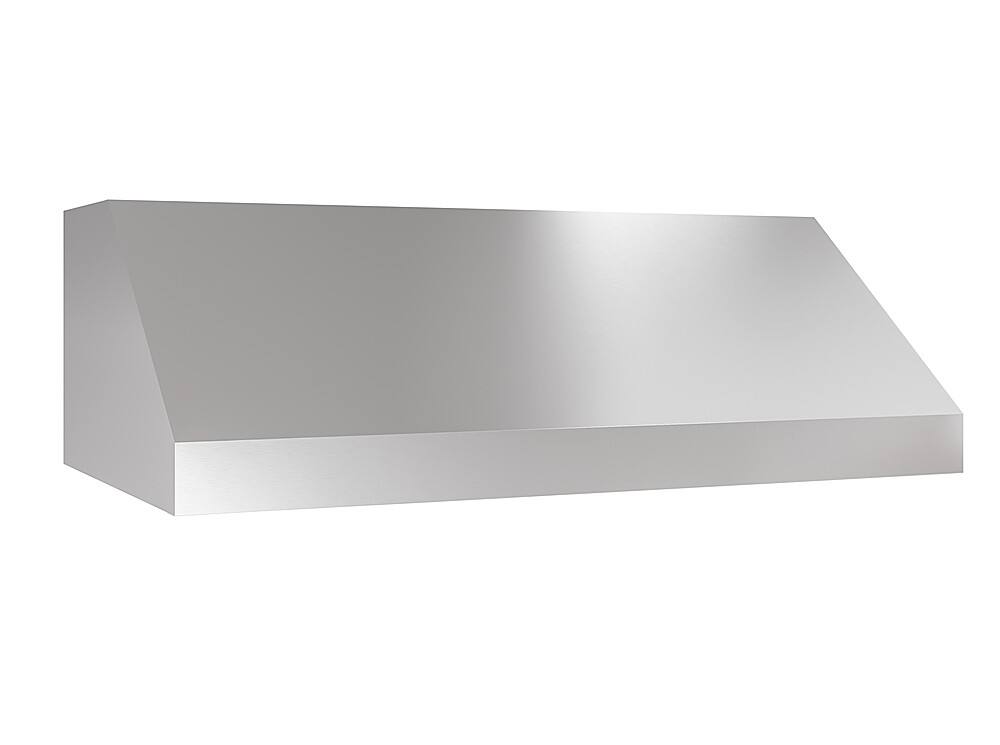

Zephyr - 48 inches - Externally Vented - Wall Range Hood - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Product Height18 inchesProduct Width47 7/8 inchesProduct Depth32 inchesExhaust Vent LocationTop/RearVent TypeDuctedVent StyleExternal
- Key Specs
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Zephyr
- Model Number: AK7848CS
- Product Name: Cypress 48 in. 1200 CFM Wall Mount Range Hood with LED Light
- Color: Stainless Steel
- Dimensions
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 32 inches
- Maximum Installation Height Above Cooktop: 42 inches
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 98.9 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 10 inches
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Switch
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 4
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 1200 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 450 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Filter Material: Stainless Steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 4
- Electrical Specification
- Amperage: 9 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328010606
Cypress features a seamlessly contoured, fully welded and polished exterior, along with a corrosion resistant, 304–grade stainless steel canopy that houses high-performance professional stainless steel baffle filters that enhance airflow and are dishwasher safe. Three-speed metallic knob controls withstand extreme heat and moisture. Available with dual-level LumiLight LED lighting and an extended 32” depth for even more capture. An optional 12” duct cover and telescopic duct cover for 10’ to 12’ ceilings available.
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (Part # 50210031)
- Welded and Polished Body: A welded and polished body ensures a high quality, seamless appearance.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-0178)
- Professional Baffle Filters: High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance. (Part # 50210031)
- Welded and Polished Body: A welded and polished body ensures a high quality, seamless appearance.
- Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back.
- Optional Extension Duct Cover Kit: Extension duct cover kit to accommodate ceiling heights up to 12 ft. (see spec sheets for more details). (Part # Z1C-0178)
Q: What type of filters does this range hood use and are they dishwasher safe?
A: This range hood uses professional baffle filters made of stainless steel. These filters are designed to enhance airflow and are conveniently dishwasher safe, ensuring easy maintenance and exceptional performance.
Q: Can this range hood be ducted either vertically or horizontally?
A: Yes, this range hood can be ducted either vertically or horizontally. The product features section mentions "Vertical or Horizontal Ducting: This hood has the ability to vent either out the top or out the back."
Q: Does this range hood have a delay shut-off feature?
A: Yes, the Cypress 48 in. 1200 CFM Wall Mount Range Hood with LED Light from Zephyr does have a delay shut-off feature. This feature allows you to set the range hood to turn off automatically after a specified amount of time, ensuring that your kitchen stays well-ventilated even after you've finished cooking.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity of the Cypress 48 in. 1200 CFM Wall Mount Range Hood with LED Light by Zephyr is 1200 cubic feet per minute (CFM). This information can be found in the product specifications section of the provided context.
Q: What is the voltage and amperage requirement for this range hood?
A: The voltage requirement for the Cypress 48 in. 1200 CFM Wall Mount Range Hood with LED Light is 120 volts, and the amperage requirement is 9 amperes.
Q: What is the color finish of this range hood?
A: The color finish of the Cypress 48 in. 1200 CFM Wall Mount Range Hood with LED Light by Zephyr is stainless steel. The product specifications clearly state "Color Finish: Stainless steel".
Q: What is the part number for the professional baffle filters?
A: The part number for the professional baffle filters for the Cypress 48 in. 1200 CFM Wall Mount Range Hood with LED Light by Zephyr is 50210031.
Q: What is the minimum and maximum installation height above the cooktop?
A: The minimum installation height above the cooktop for this range hood is 30 inches, while the maximum installation height is 36 inches.
Compare similar products
Cypress features a seamlessly contoured, fully welded and polished exterior, along with a corrosion resistant, 304–grade stainless steel canopy that houses high-performance professional stainless steel baffle filters that enhance airflow and are dishwasher safe. Three-speed metallic knob controls withstand extreme heat and moisture. Available with dual-level LumiLight LED lighting and an extended 32” depth for even more capture. An optional 12” duct cover and telescopic duct cover for 10’ to 12’ ceilings available.
Titan challenges the definition of pro-style hoods with its impressive size, powerful blower, and stunning good looks. Featuring Zephyr’s PowerWave technology, Titan features a 750-CFM blower with the option to combine two blowers together to achieve 1,300 CFM. Its unique aerodynamic blades improve efficiency with unparalleled quiet operation. The ultimate workhorse in the kitchen, Titan is available up to 60-inches and features pro baffle filters and LumiLight LED lighting.
Complete your outdoor kitchen setup and host barbecues using this Coyote deep chimney ventilation hood. The stainless steel material creates a clean, sleek appearance while providing the durability to withstand years of use. This Coyote deep chimney ventilation hood has a baffle filter, creating optimal airflow and helping capture grease.
Eliminate unpleasant air in the kitchen with this 36-inch Fisher & Paykel dual-blower wall hood. Four speed settings provide up to 1200 cfm of ventilation for powerful extraction of tough odors, excess heat and airborne grease. Adjust the fan and lighting easily with the precise controls on this professional-style Fisher & Paykel dual-blower wall hood.
