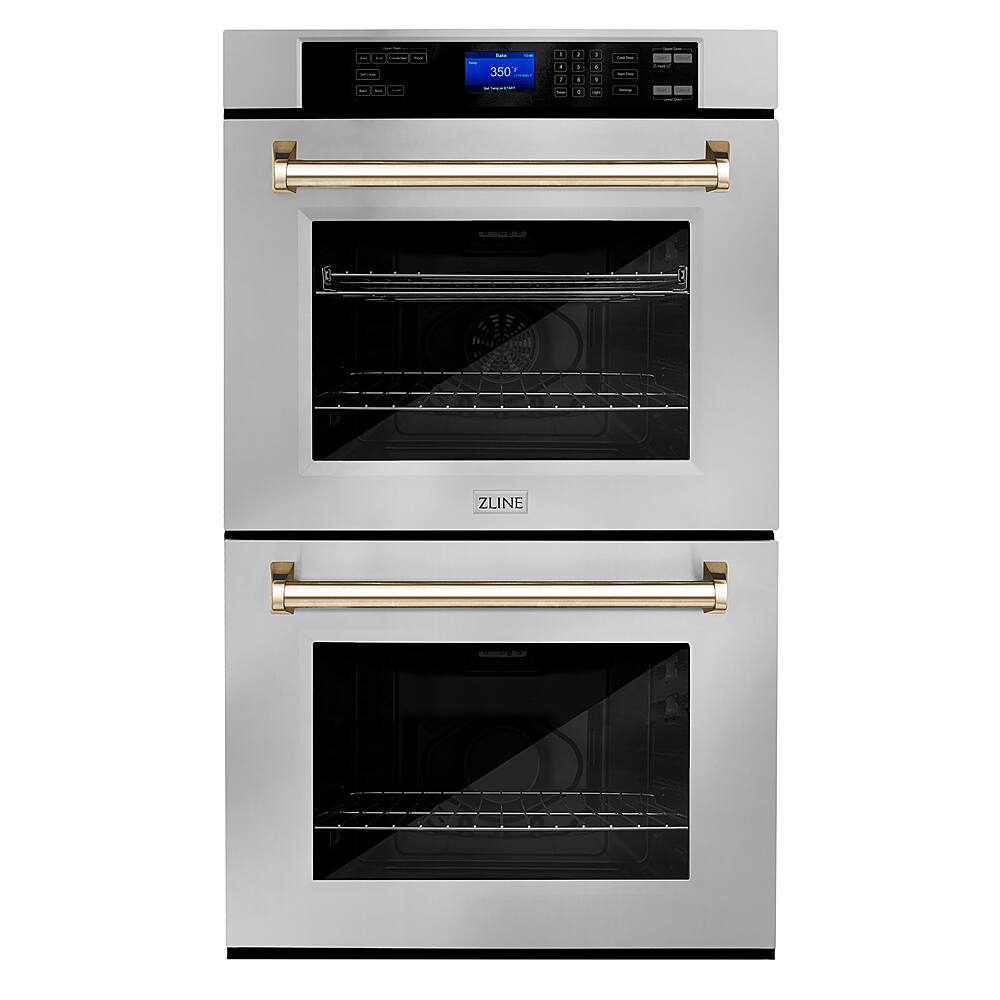

ZLINE - 30" Autograph Edition Double Wall Oven with Self Clean and True Convection in Stainless Steel and Polished Gold - Multicolor
- Key Specs
- Product Height: 51 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- General
- Brand: ZLINE
- Model Number: AWDZ-30-G
- Product Name: 30" Autograph Edition Double Wall Oven with Self Clean and True Convection in Stainless Steel and Polished Gold
- Color: Multicolor
- Dimensions
- Product Height: 51 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 290 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 3/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 29 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5 cubic feet
- Oven 2 Capacity: 5 cubic feet
- Features
- Oven Type: Double wall oven
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Certifications Listings & Approvals
- Chemical Disclosures: nickel (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 195948126599
Luxury isn't meant to be desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 30" Autograph Edition Double Wall Oven with Self Clean and True Convection in Stainless Steel and Polished Gold (AWDZ-30-G) provides a professional culinary experience by pairing unmatched performance with timeless style. Achieve ZLINE Attainable Luxury excellence with innovative features designed to enhance your kitchen's capability.
- Accents: Polished Gold handle matches all ZLINE Autograph Edition products with Polished Gold Accents
- Professional Convection: Professional Convection Cooking with multiple modes on the upper oven including: Convection Bake, Convection Roast, Convection Broil and Proof Mode
- Lower Oven: Lower Oven is equipped with Standard Bake, Broil, and Warming Mode
- Halogen Lights: Halogen oven light for an illuminated oven space
- Cleaning feature: Delay cleaning feature to ensure the oven begins self-cleaning on your schedule
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
Product Manuals
Q: Does the oven have a built-in timer?
A: Yes, the oven does have a built-in timer. The timer can be set in hours or minutes up to 12 hours. To set the timer, press the "Timer" button, use the number keypad to enter the desired time, and then press the "Timer" button again to start the countdown.
Q: Does the oven come with any pre-set cooking modes or options?
A: Yes, the oven comes with pre-set cooking modes and options. The upper oven features Convection Bake, Convection Roast, Convection Broil, and Proof Mode. The lower oven offers Standard Bake, Broil, and Warming Mode. Additionally, the oven has a Convection Conversion function that automatically converts conventional cooking settings to convection cooking settings.
Q: What is the warranty period for parts and labor?
A: The warranty period for both parts and labor is one year from the original purchase date for the original purchaser of the product. This warranty covers all parts for necessary repairs if any part of the product proves to be defective in materials or workmanship.
Q: What is the difference between the upper and lower oven?
A: The upper oven offers Convection Bake, Convection Roast, Convection Broil, and Proof Mode, while the lower oven provides Standard Bake, Broil, and Warming Mode. Additionally, the upper oven has a halogen light for better illumination.
Q: Does the oven have a temperature probe?
A: Yes, the oven does have a temperature probe. The context mentions "Using the Temperature Probe" and provides instructions on how to use it. It also states that the temperature probe will work with all oven modes except for Warm/Proof, Sabbath, and Self-Clean modes.
Q: What is the total capacity of both ovens combined?
A: The total capacity of the upper oven is 5 cubic feet and the lower oven is also 5 cubic feet. Therefore, the total capacity of both ovens combined is 10 cubic feet.
Q: Is the oven equipped with a child safety lock?
A: Yes, the oven is equipped with a child safety lock feature. The control panel can be locked to avoid unintended use of the oven by pressing and holding the "START/HOLD" button for 3 seconds. The "lock" symbol will appear on the display to indicate that the control panel is locked.
Q: How many racks does each oven have?
A: Each oven has six racks that can be placed in any of the six height positions. The racks can be used for baking, broiling, and warming food.
