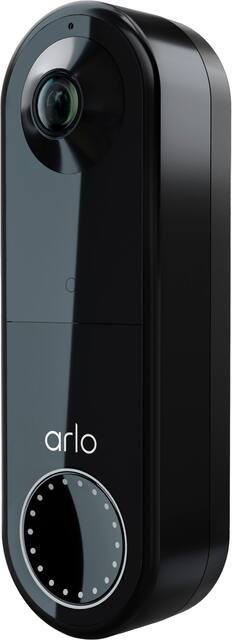

Arlo - Essential Wi-Fi Smart Video Doorbell - Wired or Battery Operated - Black
- Key Specs
- Camera Resolution: 1536 x 1536 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 180 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Storage Type: Cloud
- Minimum Operating Temperature: -4.0 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 113 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Audio Communication: 2-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- General
- Brand: Arlo
- Model Number: AVD2001B-100NAS
- Product Name: Essential Wi-Fi Smart Video Doorbell - Wired or Battery Operated
- Color: Black
- Color Finish: Black
- Camera
- Camera Resolution: 1536 x 1536 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 180 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 25 feet
- Night Vision Image: Black and white
- Camera Movement: Fixed
- Zoom Mode: Digital
- Power
- Power Source: Battery-powered
- Rechargeable Battery: true
- Voltage: 16 volts (Amount of power needed to support an electrical current.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Operating System Compatibility: Apple iOS, Android
- Works With: Amazon Alexa, Google Home, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Connectivity
- Camera Connectivity: Wireless (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Network Connectivity: None (The manner in which a device sends data to another device over a long distance using a cellular network.)
- Maximum Wireless Range: 300 feet
- Minimum Upload Speed: 2 megabits per second (The minimum connection speed necessary to upload or stream content from the device.)
- Wireless Networking Standard: Wi-Fi 4 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Chime: None
- Frequency Band: 2.4 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Recording & Playback
- Streaming Video: true (The ability to transmit a live video feed from the product.)
- Video Recording Capability: true
- Records Audio: true
- Subscription: Optional but not included
- Storage
- Storage Type: Cloud
- Performance
- Protective Qualities: Weather resistant
- Minimum Operating Temperature: -4.0 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 113 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio Communication: 2-way (1-way communication devices allow a user to hear detected audio, while 2-way communication adds the ability for a user to talk back through the device.)
- Mobile Notifications: true
- Dimensions
- Product Height: 5 3/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.15 pounds (The out of box weight of the item.)
- Sensor
- Sensors: Motion sensor, Sound sensor (Detects stimuli such as heat, light, sound, motion, or pressure and responds accordingly by operating a control or initiating a function of the device.)
- Motion Detection Range: 25 feet
- Included
- Installation Hardware Included: true
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year
- Other
- UPC: 193108142120
A better way to see the complete picture at your door. Arlo Essential Video Doorbell Wire-Free can be powered by a rechargeable battery or hardwired. Connect directly to Wi-Fi for easy setup. When motion is detected, receive notifications and view live video from your phone. See what's at the door, from head to toe or a package on the ground during the day or in low light with night vision, without opening your door. Speak to visitors with two-way audio or use pre-recorded quick reply messages when you're busy. With an included trial of Arlo Secure, personalize notifications when your Video Doorbell spots people, vehicles, animals or packages, and store recorded video clips.¹ Get added peace of mind knowing that Arlo will replace your doorbell if it gets stolen through the Arlo Theft Replacement program.²
- See more at your front door: See a person from head to toe or a package on the ground with a 180 degree diagonal viewing angle optimized for the front door.
- Security in the palm of your hand: Receive notifications when motion is detected and watch live streaming video from your smartphone or tablet.
- More ways to answer: See and speak to visitors with clear two-way audio, or respond with pre-recorded quick reply messages when you’re busy. Receive a video call when your doorbell is pressed and never miss a visitor.
- Night Vision: See who’s at your door at night, even without a light on.
- Brave the elements: Certified to withstand heat, cold, rain or sun.
- Multiple powering options: Install without wires using the rechargeable battery, or hardwire to existing wiring for continuous power.
- Notifications that matter: Get alerts when your Video Doorbell spots people, vehicles, animals or a package with included trial of Arlo Secure¹.
- Built-in smart siren: Trigger your siren automatically, or manually from the Arlo app.
- Visitor Messaging: Guests can leave you a voice message if you’re unable to answer the door, and you can listen remotely at your convenience.
- Direct to Wi-Fi: Connects directly to Wi-Fi for simple setup.
- Arlo Theft Replacement Program²: We’ve got you covered if your doorbell is stolen.
- Complete connected security: Works with Amazon Alexa, Google Assistant and Samsung SmartThings.
- Arlo Secure¹: Includes trial of Arlo Secure for 30-day cloud recording, advanced object detection, rich notifications, cloud activity zones and more.
Whats Included
- Arlo Essential Video Doorbell Wire-Free
- (1) Arlo Video Doorbell - Wire-Free
- (1) Rechargeable Battery
- (1) Flat Mounting Plate
- (1) Angled Mounting Plate
- (1) Screw Kit
- (1) Release Pin
- (1) Wire Extensions
- (1) Quick Start Guide
- (1) MicroUSB Cable
Product Manuals
A: While you can use an adhesive strip on the door, I don't think it would be recommended as it would be easily to be removed/stolen. However, you can do on the side of the door on the wall and mount it with anchors/screws (included). That being said, if installed properly ARLO will replace any stolen equipment.
Q: Does this doorbell require a subscription?
A: During the free, 3 month, trial period your doorbell videos are stored in your account in the Arlo Cloud for 30 days. As each video ages out it is automatically deleted. At anytime during the 30 days you can download and save videos to your computer. At the end of the 3 month trial period if you decline the $9.99 a month subscription, your videos are only stored for 7 days. At any time during those 7 days you can download and save the videos to your computer.
A: Depending on which base station or SmartHub you're using, the only way to view local recordings may be to eject the storage device and view from a PC. If you have a VMB4540 or VMB5000 SmartHub, you can utilize Direct Storage Access as detailed here: https://kb.arlo.com/000062337/What-is-Direct-Storage-Access-and-how-do-I-use-it
A: The Arlo Essential Video Doorbell Wire-Free comes with a rechargeable Li-ion battery. The expected battery life for the Arlo Essential Video Doorbell (wire-free version) is 6 months. Battery life is based on usage of 4000 seconds motion streaming per month, 30 seconds per two-way call daily, and day/night event splits 2:1. This will vary with device settings, use, activity captured and environmental factors.
A: Two users can receive calls when the Arlo Video Doorbell camera is pressed. ^RM
Q: can you purchase a second battery for arlo essential video doorbell
A: Additional batteries available from Arlo, and most stores that sell the doorbell, for $49.99.
A: I forgot to say, the existing transformer could be broken, test it with a multimeter to see if it's giving out power or check if it's on it's own fuse if the electrics are old. You can also test the wiring with a multimeter. It would work out much cheaper to simply buy a new transformer.
