GE - 36" Built-In Electric Cooktop - Stainless Steel on Black
- Key Specs
- Product Height: 3 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 5
- Color Finish: Stainless steel
- General
- Product Name: 36" Built-In Electric Cooktop
- Brand: GE
- Model Number: JP3536SJSS
- Color: Stainless Steel on Black
- Color Finish: Stainless steel
- Dimensions
- Product Height: 3 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 46 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 33 7/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Power-On Indicator Light(s): true
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Portable: false
- Cooktop Features
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 5
- Number of Elements: 5
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): false
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Cooktop Power Source: Electric
- Electrical Specification
- Amperage: 39.6 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 084691809142

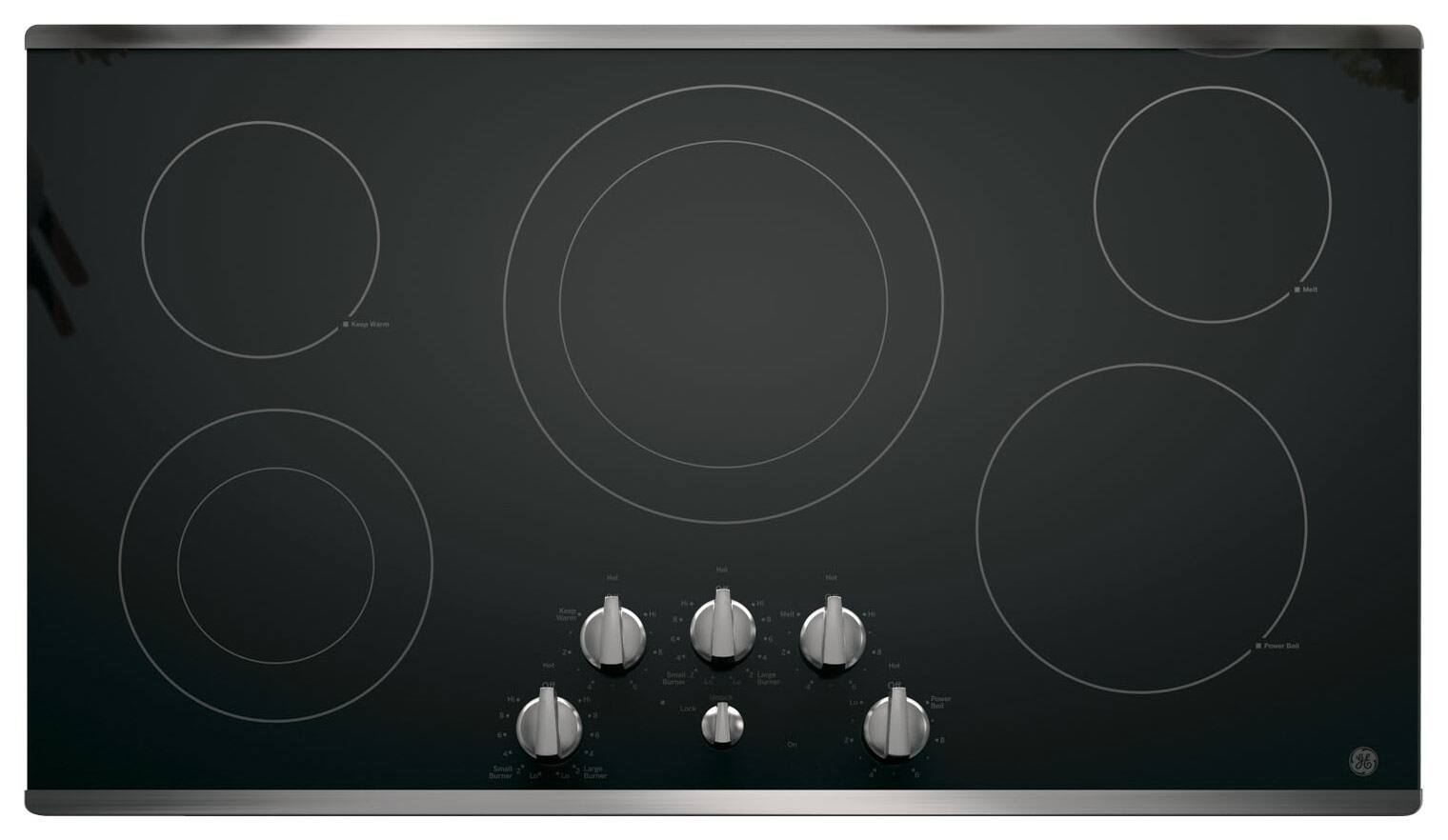

GE electric cooktop: Cook up tasty meals for your loved ones using this built-in electric cooktop, which features 5 radiant cooktop elements that deliver between 1200W and 2500W of heat for versatility. An 8" Power Boil element allows you to quickly prepare food, and a 12"/9" dual element accommodates cookware of different sizes.
- Fit Guarantee: Replacing a similar cooktop from GE or another brand? GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details
- Five radiant cooking elements: Cook foods quickly and evenly on this sleek, glass surface
- 12"/9" dual element: Use different pan sizes on this single, 2,700-watt flexible element
- 8" Power Boil element: Get rapid heat from this powerful 2,500-watt element
- Keep Warm setting: Keep food warm with GE’s lowest heat setting or boil water in minutes with this fully functional 6” element
- Melt setting: Gently melt delicate foods without burning or scorching
- Control lock capability: Protects against unintended activation
- Hot surface indicator lights: Know when elements are too hot to touch with a quick glance
- Cooktop "On" indicator light: A light lets you know when an element is active
- Stainless steel trim: Complement other stainless steel appliances in the kitchen with this touch of elegance
Product Manuals
Q: will a 30 amp breaker work for this cook top
A: Hello dan, Thanks so much for reaching out. We're happy to answer your question! The amps required is dependant upon the KW rating of the cooktop. The KW rating can be found on the nameplate of the cooktop. Please check page 2 for more information. https://files.bbystatic.com/XK9Rw%2FMcSyKqXHnvFitQ%2FQ%3D%3D/480f5b03-7301-456e-a2d0-d62860160fe0.pdf. Stay in touch. Mike@GEA
Q: What are the dimensions of each element
A: Hello Ga1926 - We are always happy to share more about our appliances. The burners on this model are: Left Front 8"/5" 1900W Dual - Left Rear 6" 1200W - Right Front 8" 2500W Power Boil - Right Rear 6" 1200W - Center 12"/9" 2700W dual. We hope this helps. Please let us know if you have any more questions. - John@GEA
A: Hi Monica - Thanks for viewing GE! The stainless knobs (WB03X29631; Lock Knob WB03X29624) and trim (WB07X27420) on Model JP3536SJSS can be purchased online at GEApplianceparts.com or call our GE Appliances Parts Team for assistance at 1-877-959-8688, Mon–Fri 8am–7pm, Sat 8:30am–5pm ET. Keep in touch! Sue
Q: In what size countertop cut out will this fit?
A: Hi Gunner- We are excited to hear of your interest in our GE® 36" Built-In Electric Cooktop JP3536TJWW! Cutout Dimensions are: (WxD) (in.) 33-7/8 x 19-1/8. We encourage you to view the Quick Specs at the following link for more details: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=JP3536DJ_TJ_c2.pdf - You can also view the Installation Instructions online: http://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=31-11025-1.pdf - We hope it fits. Keep in touch! SUEatGEA
