Description

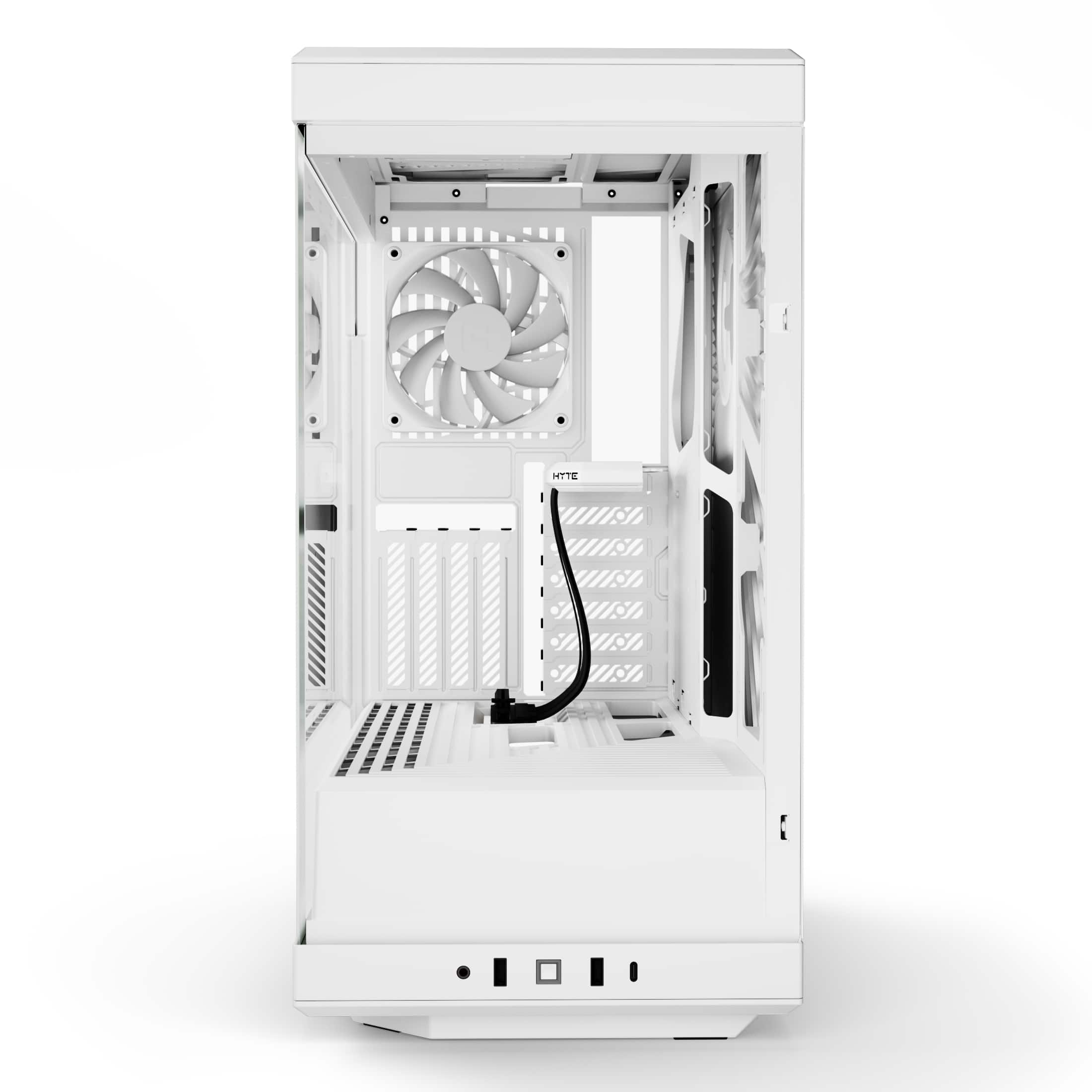

The HYTE Y40 computer chassis has a smooth, harmonic design with precisely beveled edges and 2-piece panoramic glass that showcases your unique PC build. With a focus on the future, the HYTE Y40 has a clean aesthetic and delivers upgraded performance capabilities and compatibility with future PC parts. The included PCIe 4.0 riser supports the latest and greatest graphics cards, and the Y40 has 4 full slots for GPU support as well as space for additional airflow for high intensity processing. Build the perfect gaming desktop with the HYTE Y40’s ample space and high performance capabilities.
Features
Enormous vertical graphics support
Y40 delivers upgraded performance, compatibility, and aesthetics that expand on Y60’s exclusive vertical graphics card architecture
Included PCIE40 4.0 luxury riser cable
Supports the latest and greatest graphics cards and its canopy is color-matched with your Y40 color choice
Stack your expansion cards
Y40 includes support up to 6 half-height expansion cards behind the primary graphics card. Capture cards, PCIE SSDs, sound cards and other PCIE expansion cards are compatible as long as they’re available in half-height form factor
Get even cooler
Y40’s top mount can fit up to a 360mm radiator for a dual radiator set up. Y40 also brings support for large air coolers over 180mm in height—allowing for almost every CPU air cooler available on the market.
Cable management
HYTE’s new “cable shelf” design is deployed within the power supply shroud cavity and allows cable management to sit further back in the case and away from vital airflow zones that impact GPU cooling.
Specifications
Key Specs
Motherboard Form Factor
ATX
Maximum GPU Length
422 millimeters
Product Height
18.6 inches
Product Width
9.5 inches
Product Depth
13.4 inches
Window Panel(s)
Front, Left side, Right side
Case Material
Tempered glass, Steel
General
Product Name
Y40 ATX Mid-Tower PC Case
Brand
HYTE
Case Material
Tempered glass, Steel
Assembly Required
No
Model Number
CS-HYTE-Y40-WW
Color
Snow White
Compatibility
Motherboard Form Factor
ATX
Maximum Power Supply Length
224 millimeters
Maximum GPU Length
422 millimeters
Number of Expansion Slots
10
Ports
USB Port Location
Front
Number of USB Ports (Total)
3
USB Ports
2 x USB-A 3.0, 1 x USB-C 3.2
Headphone Jack
true
Microphone Input
true
Bays
Number Of Internal 2.5" Bays
2
Number Of Internal 3.5" Bays
1
Number Of External 2.5" Expansion Bays
0
Number Of External 3.5" Expansion Bays
0
Dimensions
Product Height
18.6 inches
Product Width
9.5 inches
Product Depth
13.4 inches
Product Weight
339.2 ounces
Features
Enclosure Type
Mid tower
Window Panel(s)
Front, Left side, Right side
Customizable Case Lighting
false
Lighting Type
None
Cooling
Maximum CPU Cooler Height
183 millimeters
Number of Fans Supported
6
Cooling System
Not included
Cooling Support
Yes
Number of Fans Included
7
Radiator Support
Side: 120, 140, 240, 280mm up to 120mm thick. Top: 120, 240, 360mm. Rear: 120mmTop: 120, 240, 360mm
Customers praise the Y40 ATX Mid-Tower PC Case for its cable management options and overall beautiful design. Many customers also appreciate the vertical GPU mount feature.
This summary was generated by AI based on customer reviews.
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Page 1 Showing 1-8 of 38 reviews
Pros mentioned:
Cable management, Design, Vertical gpu mount
Rated 5 out of 5 stars
S Tier Case
|
Posted . Owned for 3 weeks when reviewed.
This reviewer received promo considerations or sweepstakes entry for writing a review.
Perfect for a build. Easy S tier for aesthetics. Super easy to build upon, as well. Plenty of space for cable management and components. Would highly recommend. Also huge win for vertical GPU mount
This review is from HYTE - Y40 ATX Mid-Tower PC Case - Black
I would recommend this to a friend
Cons mentioned:
Fans
Rated 3 out of 5 stars
Loud fans, problematic riser card, shallow rear
|
|
Posted . Owned for 3 weeks when reviewed.
This reviewer received promo considerations or sweepstakes entry for writing a review.
I wanted to redesign and upgrade my secondary PC which my daughter uses for gaming so I decided to build out an all AMD rig with a vertical mount so she could play Hogwarts at max settings at 1440p.
After much research, I settled on the Hyte Y40. It has turned out to be a decent case but with a few problems.
Material quality is definitely a step above average and the case itself is very sturdy.
Building in it is pretty easy and straight forward and I love that the front, top and back just pop off and on.
One thing I noticed is the exhaust fan was very loud. No matter what I did outside of slowing it down greatly, it was audibly louder than all the other fans. I ended up removing it and the lower intake fan and replacing the case fan with an aRGB 120mm and the intake with an aRGB 140mm.
Another issue is one many case makers make and that is a lack of depth in the rear of the case for thicker cables to lay down easily and snap the back on especially if you have longer/thicker cables, hubs, accessories or more. It's crazy what even another inch would do overall.
Lastly, and the biggest problem, was the riser card. This was installed with an Asus B650 Prime motherboard and no matter what I did the card would not sit fully in the PCIe slot because it didn't have enough depth before the screw down slat was flush with the rear screw bracket and bottom latch. I ended up having to detach it and readjust it and let it float a bit to fit in properly and now the screw down portion is about 1/4" above the screw hole instead of flush.
Doing some searches shows I'm not alone in this problem with the riser implementation and most likely it is a seating issue with the PCI card->motherboard. Some have also had issues with the actual GPU mounting too.
Now that everything is up and running, I DO like the looks and visuals of the case very much and it turned out exactly like I thought it would but the loud fan(s), poor QC on the PCIe riser and yet again lack of cable depth in the back for easier runs has me on the fence overall with this case.
No, I would not recommend this to a friend
Pros mentioned:
Space
Rated 5 out of 5 stars
Amazing case
|
|
Posted . Owned for 1 month when reviewed.
This reviewer received promo considerations or sweepstakes entry for writing a review.
Great case not as roomy as y60 but still plenty of room for an easy build pure white really pops.
I would recommend this to a friend
Pros mentioned:
Design
Rated 5 out of 5 stars
Beautiful Case with a Free Riser Cable!
|
|
Posted . Owned for less than 1 week when reviewed.
This reviewer received promo considerations or sweepstakes entry for writing a review.
My HYTE Y40 case is fantastic! It looks so clean and has intricate designs across the sides.
The cost might seem a little high but it's honestly worth it here. It comes with a free riser cable, usually $50 for a good one.
I was worried about shipping problems because of all the tempered glass but everything is packaged VERY securely from HYTE. Can't wait to build my PC in this case!
This review is from HYTE - Y40 ATX Mid-Tower PC Case - White
I would recommend this to a friend
Pros mentioned:
Vertical gpu mount
Rated 5 out of 5 stars
Y40 for the win!
|
|
Posted . Owned for 1 month when reviewed.
This reviewer received promo considerations or sweepstakes entry for writing a review.
best case for vertical mounted GPU, plentiful space for even the biggest cards to breath, second time using this case for a build and probably won’t be the last so long as they are available, a breeze to build in and looks amazing!
This review is from HYTE - Y40 ATX Mid-Tower PC Case - Black
I would recommend this to a friend
Rated 5 out of 5 stars
Great smaller ATX fish tank case
|
|
Posted . Owned for 1 month when reviewed.
This reviewer received promo considerations or sweepstakes entry for writing a review.
Its a great cade to work with that has plenty of cable management space for your build. Best thing to do will be to replace the fans it comes with since they are 3 pin and will be a little noisy.
