Specifications
- Product Height33 5/8 inchesProduct Width23 7/8 inchesProduct Depth26 3/4 inchesOperating Sound Level44 decibels adjustedNumber Of Racks3Tub FinishStainless steel
- Key Specs
- Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General

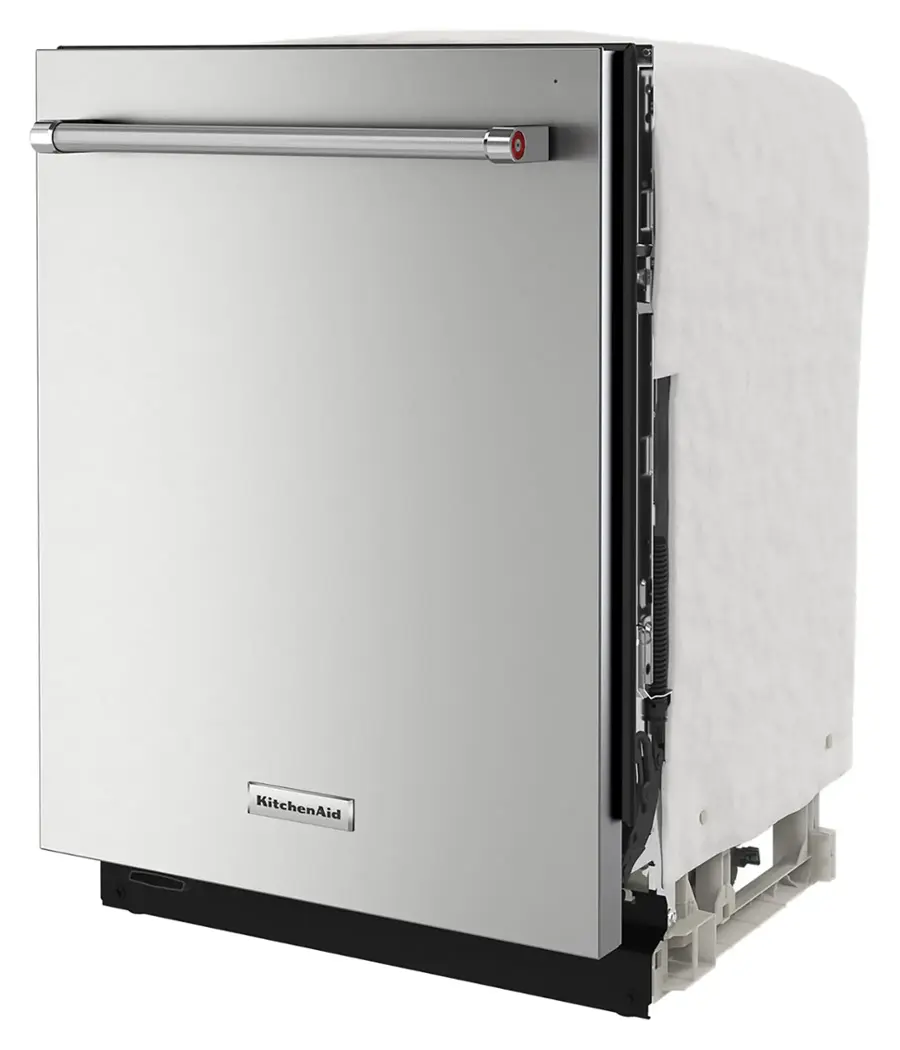

- Product Name: 24" Top Control Built-In Stainless Steel Tub Dishwasher with 3rd Rack, FreeFlex and LED Interior Lighting, 44 dBA
- Brand: KitchenAid
- Model Number: KDTM804KPS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 33 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 26 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 51 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 105 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Express Wash, Normal, ProWash, Rinse, Tough
- Options and Programs: Top 2 Racks, Extended ProDry, 1-24 Hour Delay, Hi Temp Wash, ProDry, Sani Rinse
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 2.4 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Glide rail, Removable (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Adjustable tines, Removable, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Silverware basket, Utility basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Display Type: LED
- Handle Type: Bar handle
- Fingerprint Resistant: true
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Electrical Specification
- Estimated Annual Electricity Use: 270 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Other
- UPC: 883049532820

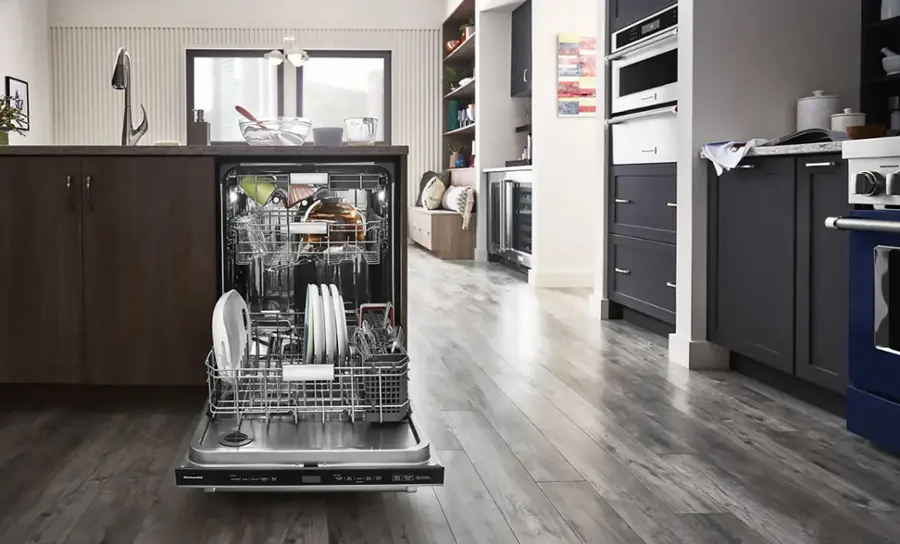

Master the mess of making with this dishwasher's three racks of versatile loading possibilities and complete wash coverage. The FreeFlex third rack fits glasses, mugs, bowls, silverware and cooking tools, freeing up room below for pots, plates, and mixing bowls. The advanced clean water wash system circulates clean water to dishes in all three racks. The LED interior lighting illuminates inside for easy loading and unloading.

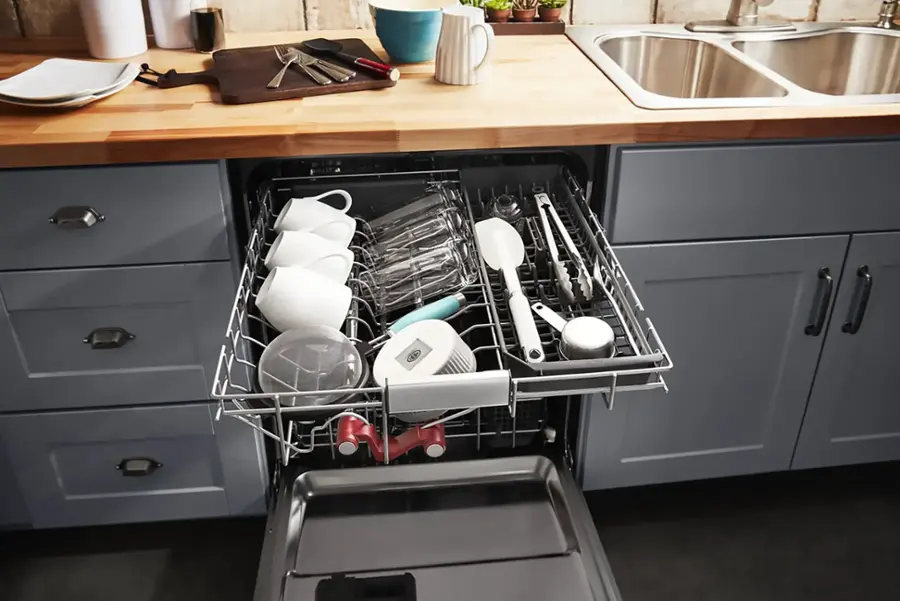

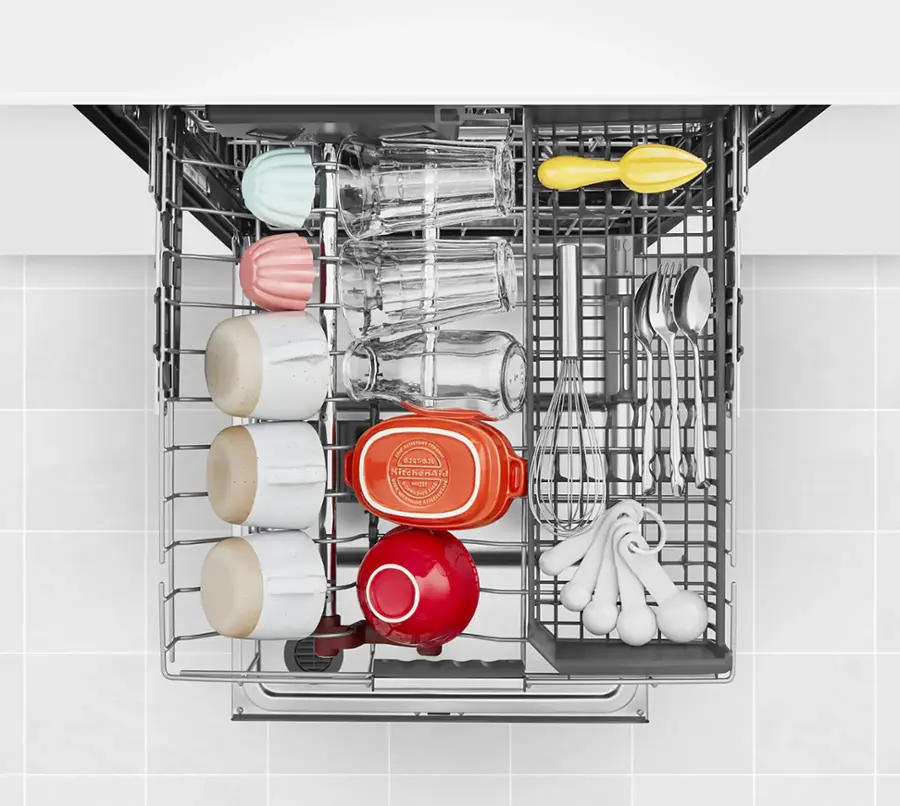

- FreeFlex third rack: The third rack has a deep, angled design that fits 6" glasses, mugs, and bowls.
- 44dBA: Provides quiet cleaning without compromising performance, so there's no need to wait to run a wash cycle while entertaining and enjoying meals, even in open-concept kitchens.

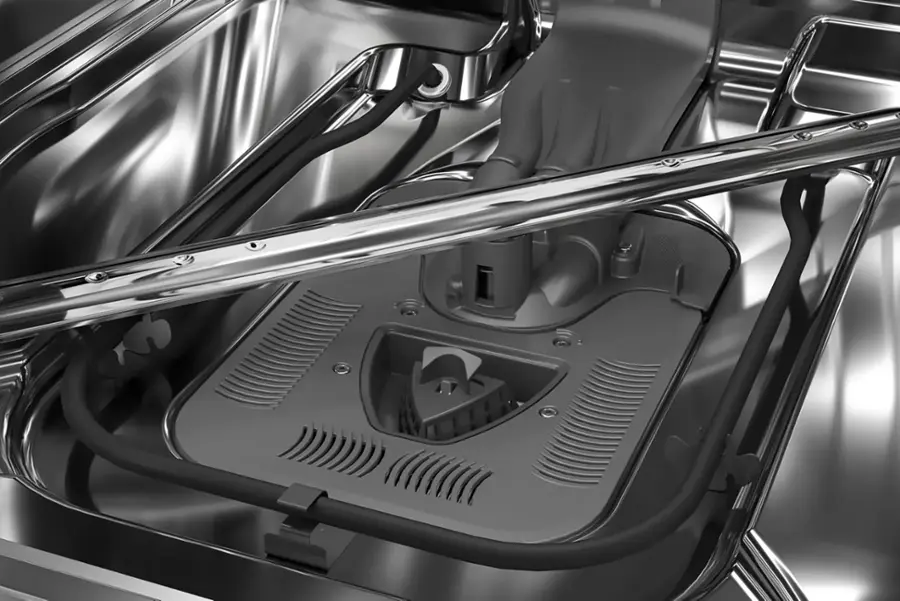

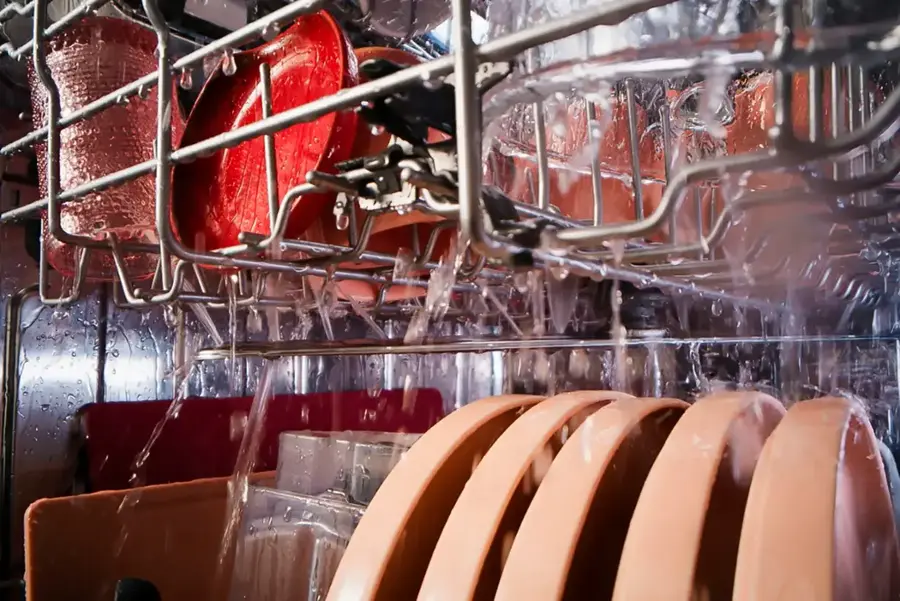

- Advanced clean water wash system: Uses microfiltration to continuously remove food particles during the wash and rinse cycles, and circulates clean water to dishes in all three racks.
- Fan enabled ProDry system: Combines a heating element and fan for optimal drying performance. It circulates hot air around dishes after the wash cycle to give them a thorough dry.
- ProWash cycle: Uses sensors to measure soil levels throughout the cycle and adapts wash time and water temperature as needed for tough mess or lighter loads.
- LED interior lighting: Illuminates inside the dishwasher when the door is open, allowing clearer visibility for easy loading and unloading.
- PrintShield finish: Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up the kitchen.
- Adjustable middle rack: Adds flexibility to fit tall items such as a stand mixer bowl. Lower the rack to place large dishes inside, or raise it to make room for platters, pitchers, blender jars and more in the rack below.
- Extended ProDry option: Extends the ProDry cycle time by 15 minutes for loads that need extra drying time.

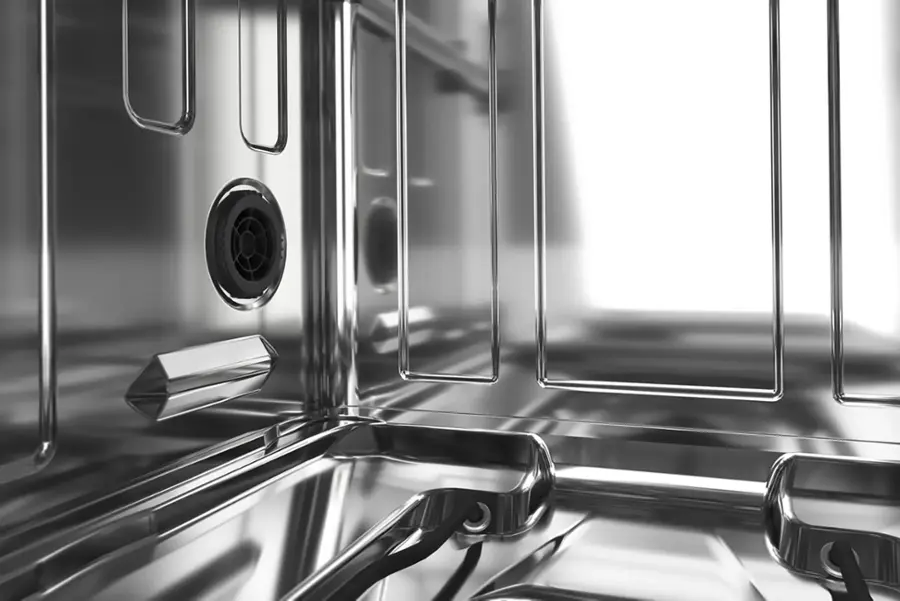

- Durable stainless steel interior: Offers the beauty and benefits of stainless steel inside the dishwasher. It resists streaks, stains, and odors while retaining heat to help improve drying.
- SatinGlide max rails in third and middle racks: Allow racks to move effortlessly, even when fully loaded.
- Adjustable rows in middle and lower racks: Fold down to make room for dishes in a variety of shapes and sizes, such as roasting pans, serving bowls, colanders, and Dutch ovens.

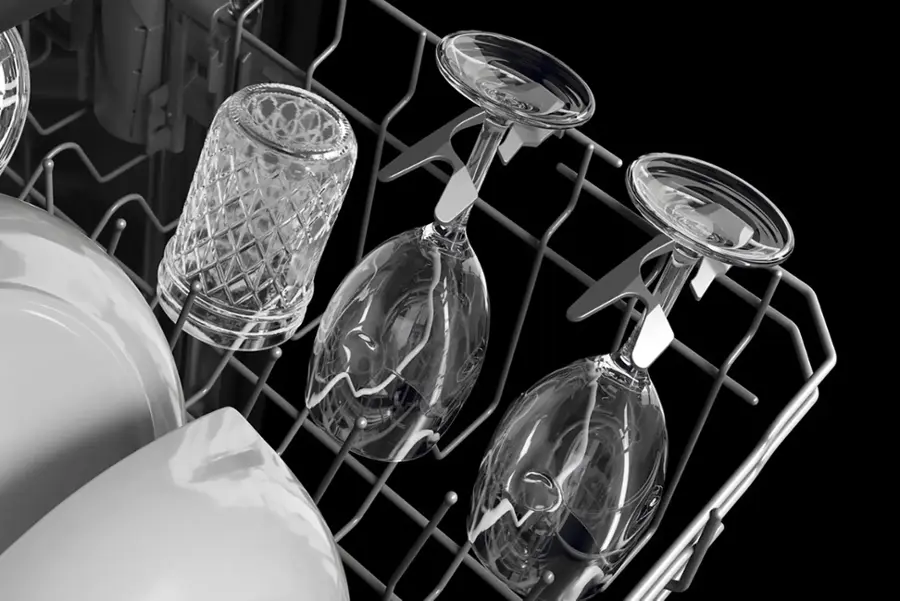

- Six stemware holders in middle rack: Secure wine glasses along the side of the rack to prevent them from moving around during the wash cycle.
- Express Wash cycle: Cleans in less time, so you always have the dishes you need while prepping, cooking, and entertaining.

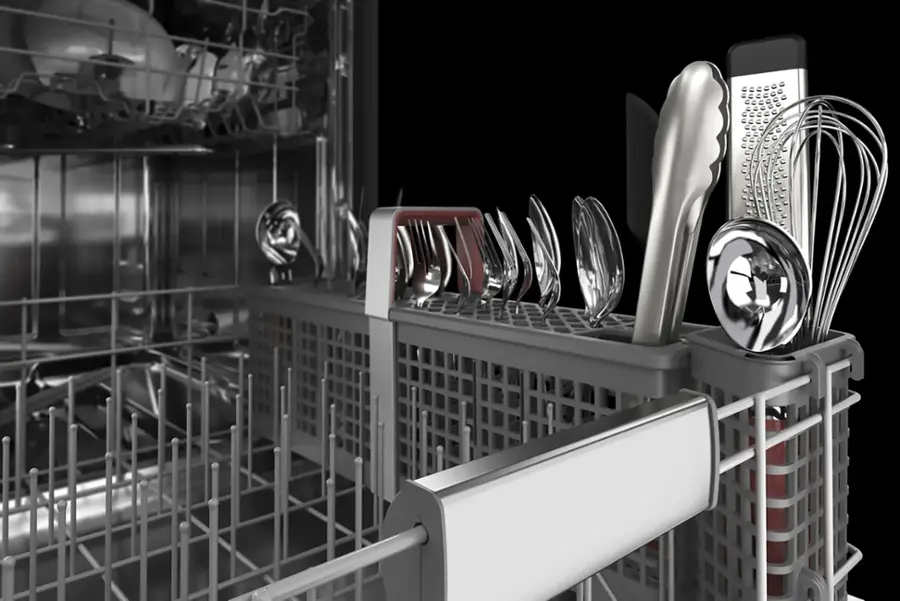

- Culinary Caddy utensil basket: Provides convenient space in the lower rack for tall utensils, such as whisks, spatulas, overflow silverware, and small items that need to be secured for cleaning and drying.
- Sani-Rinse option: Eliminates most of food soil bacteria.

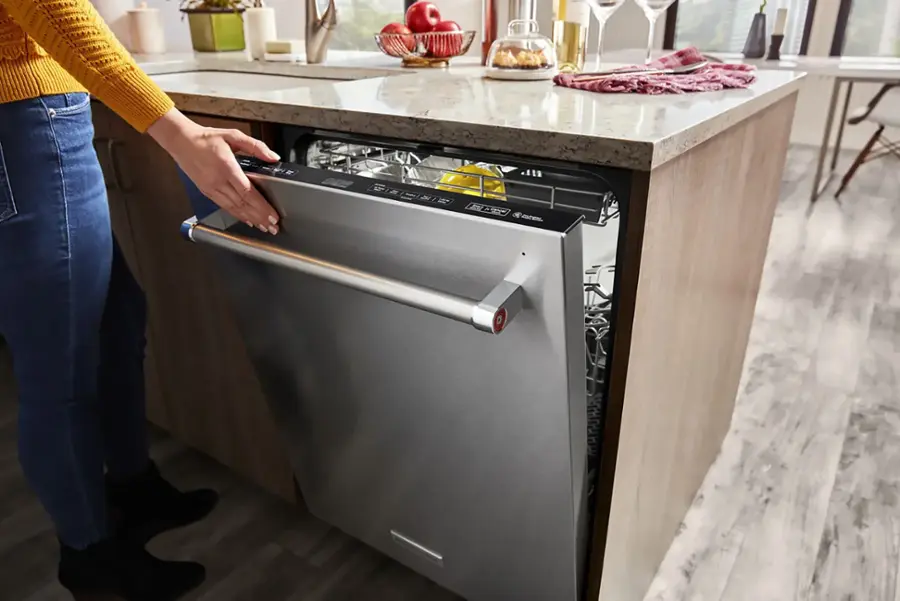

- Top controls: Tucked away on top of the dishwasher door for a clean look to match your kitchen style. An indicator light on the front of the door changes colors to subtly display cycle progress.
- Required for installation:: All dishwasher purchases require a dishwasher hookup kit be purchased from Best Buy. Without a hookup kit, your installation will not be completed. Find a hookup kit in the accessories section on this page.
Whats Included
- KitchenAid 24" Top Control Built-In Stainless Steel Tub Dishwasher with 3rd Rack, FreeFlex and LED Interior Lighting, 44 dBA
- Dishwasher hookup kit is not included
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: Does the kitchen aid 804 dishwasher have a larger capacity than the 604
A: Hello, for the 804/604 it is the same capacity. They are both 16.
Q: Does any KitchenAid dishwasher need salt for water softening?
A: I have a water softening system for my entire home, so all water coming through is softened. Growing up in my state hardwater was always causing rust or shortened lifespan of appliances. In my opinion having a water softening system would be a HUGE benefit if you want LESS or No calcification on your dishes, in your water lines, and appliances.
A: Pineapple, this Dishwasher does not have a food grinder. Hopefully, this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid Appliances!
