Specifications
Product Height51 1/4 inchesProduct Width30 inchesProduct Depth26 7/8 inchesDepth Without Handle24 1/2 inchesOven 1 ConvectionYesOven 2 ConvectionYes
Key Specs
Product Height51 1/4 inchesProduct Width30 inchesProduct Depth26 7/8 inchesDepth Without Handle24 1/2 inchesOven 1 ConvectionYesOven 2 ConvectionYesApp CompatibleNoColor FinishStainless steel
General
Product Name30" Built-In Double Electric Convection Wall OvenBrandKitchenAidModel NumberKODE500ESSColorStainless SteelColor FinishStainless steel
Dimension
Product Height51 1/4 inchesProduct Width30 inchesProduct Depth26 7/8 inchesStandardized Width30 inchesDepth Without Handle24 1/2 inchesDepth With Door 90 Degrees Open46 3/4 inchesProduct Weight256 pounds
Cut-Out Dimensions
Cut-Out Height50 1/4 inchesCut-Out Width28 1/2 inchesCut-Out Depth24 inches
Capacity
Oven 1 Capacity5 cubic feetOven 2 Capacity5 cubic feet
Features
Oven TypeDouble wall ovenOven Power SourceElectricFingerprint ResistantNoAuto Shut-OffYesControl TypeTouchpadClock DisplayYesOven LightYesWireless ConnectivityNone
Design
Display TypeNone
Function
Sabbath ModeYesDelay Clean OptionNoHidden Bake ElementYesKeep Warm SettingYesVariable BroilYesTimerYesTime BakeYesRapid PreheatNoDehydration SettingsNo
Oven 1 Specification
Oven 1 LocationUpperOven 1 Interior Height18 inchesOven 1 Interior Width25 inchesOven 1 Interior Depth19 inchesOven 1 Cavity MaterialPorcelainOven 1 ConvectionYesOven 1 WindowYesOven 1 Cleaning MethodSelf-High Heat CleaningNumber of Oven 1 Rack Positions6Number of Oven 1 Racks3Oven 1 Bake Element2800 wattsOven 1 Broil Element4000 watts
Oven 2 Specification
Oven 2 LocationLowerOven 2 Interior Height18 inchesOven 2 Interior Width25 inchesOven 2 Interior Depth19 inchesOven 2 Cavity MaterialPorcelainOven 2 ConvectionYesOven 2 WindowYesOven 2 Cleaning MethodSelf-High Heat CleaningNumber of Oven 2 Rack Positions6Number of Oven 2 Racks3Oven 2 Bake Element2800 wattsOven 2 Broil Element4000 watts
Electrical Specification
Amperage40 amperesVoltage240 voltsWattage3200 wattsAmperage At 208 VoltsYesAmperage At 240 VoltsYesKilowatt Rating At 208 VoltsYesKilowatt Rating At 240 VoltsYes
Included
Power Cord IncludedYes
Certifications Listings & Approvals
ADA CompliantNoChemical DisclosuresThis product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.]
Warranty
Manufacturer's Warranty - Parts1 year limitedManufacturer's Warranty - Labor1 Year Limited
Compatibility
App CompatibleNo
Other
UPC883049327327
KitchenAid wall oven: Cook on your schedule with this wall oven, which features delay-start and timed bake options for flexibility. The control lock helps prevent accidental use, and the oven shuts off automatically after a timed bake cycle ends to ensure safe use.

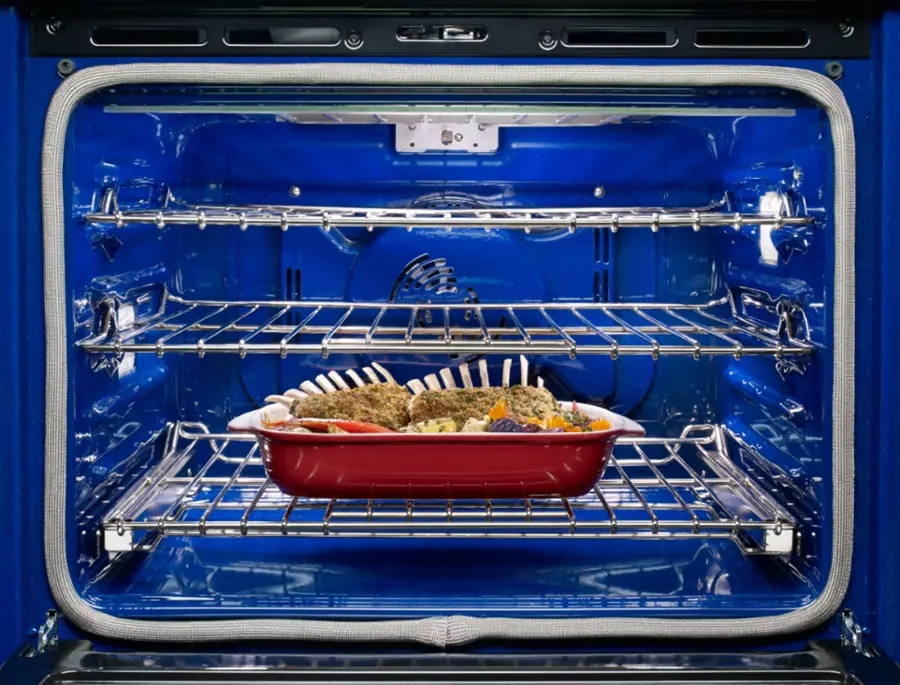

Circulates air evenly throughout the oven
Even-Heat convection provides consistent heating throughout the oven for reliable results.
Self-cleaning cycle
Does the hard work for you.

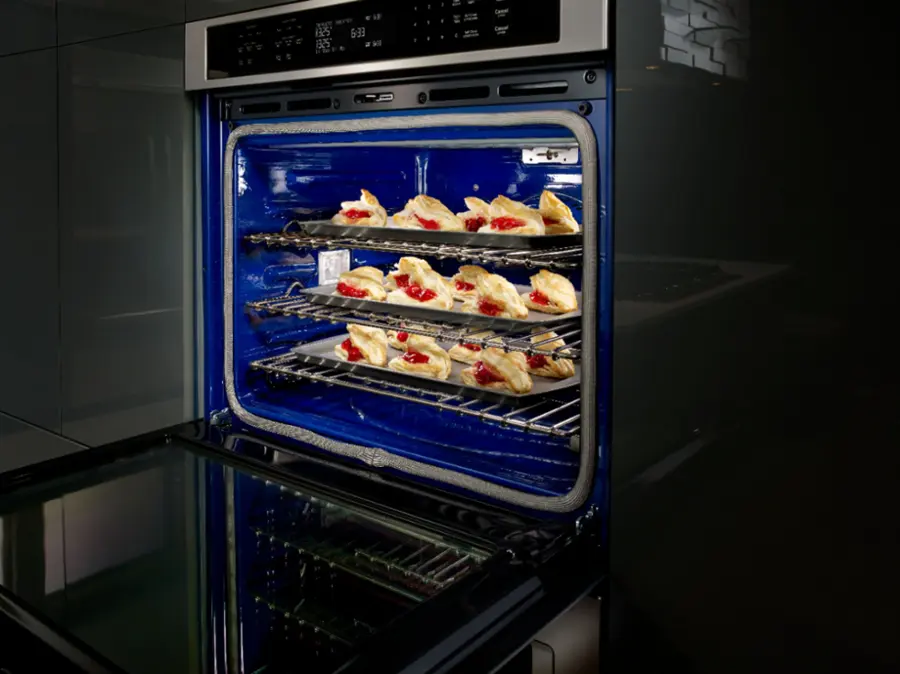

Accommodates multiple dishes at once
Two 5.0 cu. ft. capacity ovens allow you to cook dinner and dessert simultaneously.
Arrive home to a freshly baked meal
Delay-start option lets you begin dinner on your schedule.
Auto shutoff
Timed bake turns the oven off after the cycle finishes for ease of use.
Control lock
Helps prevent unintended or unsupervised use.
Provides accurate cooking times
EasyConvect conversion helps ensure your dishes are delicious by converting thermal cook times to convection cook times.

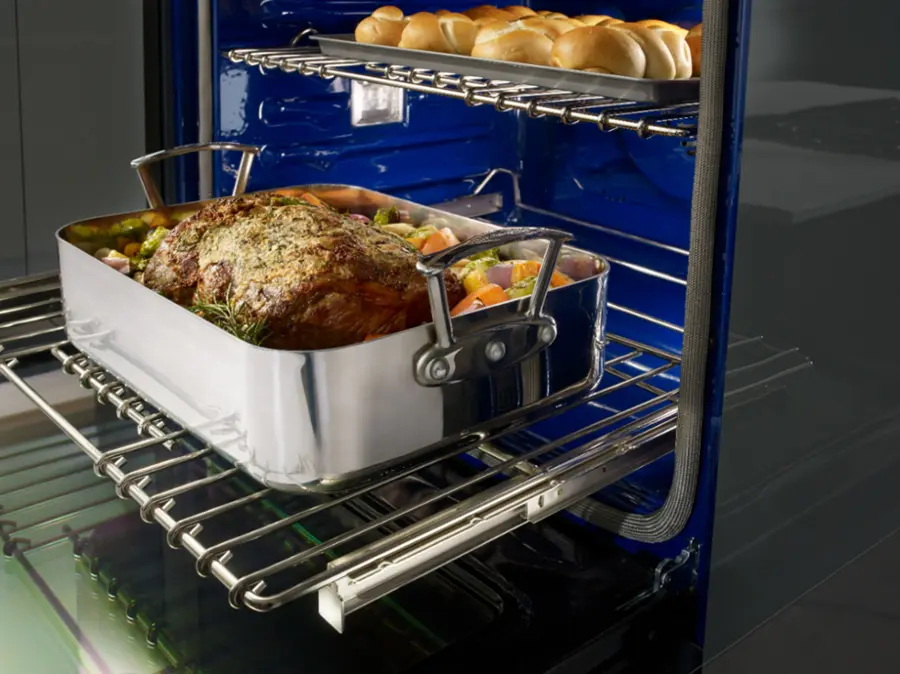

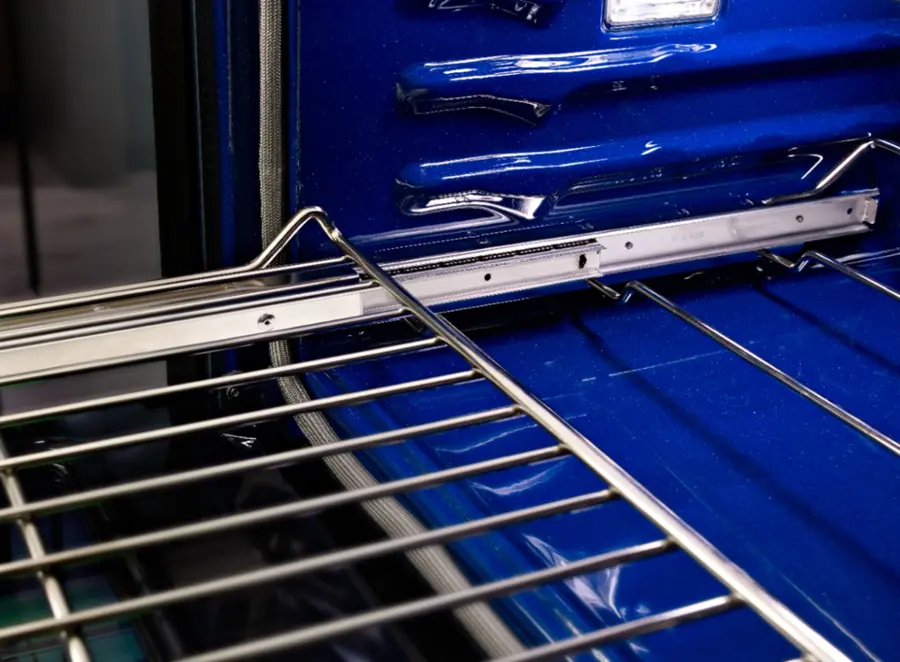

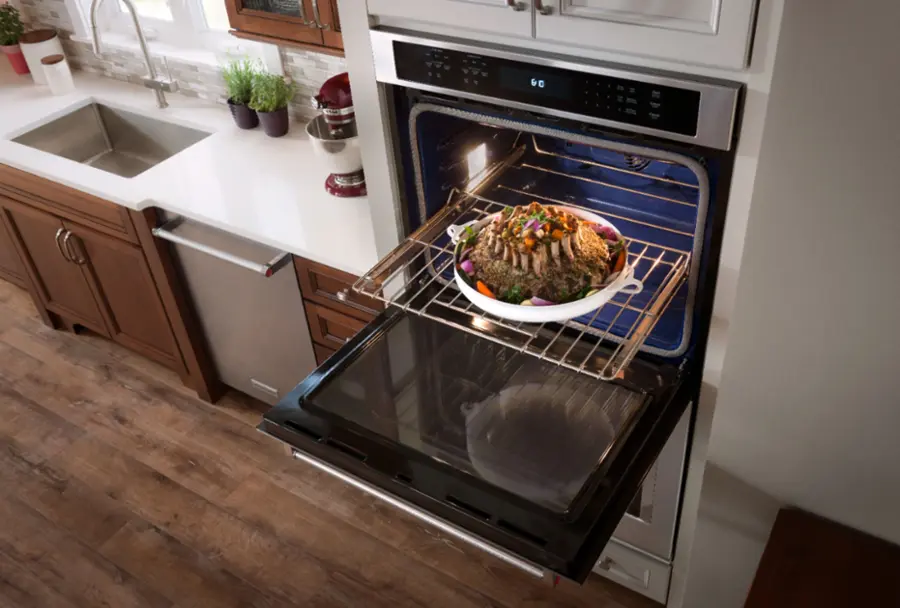

Load the oven with peace of mind
SatinGlide roll-out extension rack features an easy-grip handle for simple loading and unloading with heavy dishes.
What's Included
30" Built-In Double Electric Convection Wall Oven
Owner's manual
Manuals & Guides
Quick Start Guide (PDF)
User Manual
Product Datasheet/Brochure
Warranty Manual
Search
Q: Questionhow do you use the self clean feature(3 answers)
A: AnswerNever use the self-clean feature on these ovens. There are a couple things that can and often go wrong with self clean. Mine got permanently locked and I had to pay a technician $200 to fix it. He advised to never use self clean again. I recently had the ovens serviced for a issue not related to self clean and the technician felt the overwhelming need to tell me all the bad things that often go wrong with self clean. Most of the negative reviews are associated with self clean.Answered by Austin03
Q: QuestionWhat are the cut out dimensions(2 answers)
A: AnswerThe cutout dimensions are 24 inches deep by 50.25 inches tall by 28.5 inches wide.Answered by CommunityAnswer
- A: AnswerOurs is located in a cabinet above the double wall oven
Answered by Bakingmom
- A: AnswerHint. This is the time.of the year they change out floor models. I picked mine up for less than 1700 as an open box sale.
Answered by Frank
Q: Questionwhat are the differences between model #kode300ess and model #kode500ess?(1 answer)
A: AnswerHello Reggae, Please see the link for the differences on these two models. https://bit.ly/3ahwgrh, KODE300ESS- Even-Heat™ True Convection Oven (upper oven), SatinGlide™ Roll-Out Extension Rack (upper oven), Temperature Probe (upper oven), Standard Racks, Number of Lower Oven Racks 2 lower, KODE500ESS- Even-Heat™ True Convection Oven (both ovens), SatinGlide™ Roll-Out Extension Rack (both ovens), Temperature Probe (both ovens), Heavy Duty Racks, Number of Lower Oven Racks 3 lower.Answered by KitchenAidTeam
- A: AnswerAustin7547, touch clock/tools button, select 8 keypad for language. Change the language from French to English.
Answered by KitchenAidTeam
- A: AnswerYes they open flat
Answered by Montana
Q: QuestionWe looked at this oven but could not tell does it have two timers one for each oven?(2 answers)
A: AnswerKipper- Yes, there is an independent timer for both ovens.Answered by KitchenAidTeam
