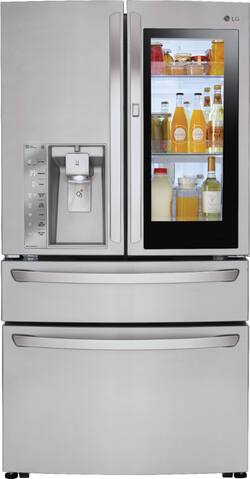

LG - 29.7 Cu. Ft. 4-Door French InstaView Door-in-Door Smart Wi-Fi Enabled Refrigerator - Stainless Steel
Model: LMXS30796S
SKU: 5736201
This item is no longer available in new condition. See similar items below
- Key Specs
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Product Height: 70 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 36 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 39 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 29.7 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: 29.7 Cu. Ft. 4-Door French InstaView Door-in-Door Smart Wi-Fi Enabled Refrigerator
- Brand: LG
- Model Number: LMXS30796S
- Color: Stainless Steel
- Color Finish: Stainless steel
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Dimensions
- Product Height: 70 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 39 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 36 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 39 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 31 3/4 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 51 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 404.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 71 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 41 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 29.7 cubic feet
- Refrigerator Capacity: 17.1 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 8.8 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 3.8 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: French Door
- Fingerprint Resistant: false
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Range: 29° - 42° F
- Convertible Temperature Zone Location: Middle
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Refrigerator
- Daily Ice Production: 3.8 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Dispensed Water Type: Cold Water
- Dispenser Features: Dispenser light, Filtration replacement light
- Storage
- Number of External Doors/Drawers: 4
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Fixed, Folding, Removable, Spill proof
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT1000P (The water filter model(s) recommended for use with the product.)
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: LT120F (The air filter model(s) recommended for use with the product.)
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 776 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 93 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Other
- UPC: 048231788854
Enjoy the high-tech features of this spacious 29.7 cu. ft. LG InstaView four-door refrigerator. Knocking on its glass panel automatically illuminates the interior, and the extra-slim ice maker provides more space for shelving and door bins. The Smart Cooling tech of this LG InstaView four-door refrigerator keeps food fresh longer than standard fridges.
- Super-Capacity, 30 cu. ft.: Super-Capacity means more room than ever.
- InstaView Door-in-Door: InstaView Door-in-Door refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
- LG ThinQ App Compatible: From making extra ice for tonight's dinner party to getting smartphone notifications when the door is left open, use the LG ThinQ app to control key features and get important notifications from anywhere.
- ColdSaver Panel: Door-in-Door with ColdSaver Panel reduces cold air loss to extend the freshness of food.
- CustomChill Drawer: Adapts to your needs by giving you additional refrigerator or soft freezer space when you most need it.
- Slim SpacePlus Ice System: The LG Slim SpacePlus Ice System provides the most shelf space.
- Smart Cooling Plus System: Smart Cooling Plus is designed to monitor and maintain conditions to help keep food fresh.
- 10-Year Manufacturer's Limited Warranty on Linear Compressor: The Linear Compressor uses fewer moving parts and operates more efficiently. LG confidently backs the Linear Compressor with a 10-year limited warranty.
- Glide N'Access Shelf: Effortlessly access hard to see and reach food items.
- Smart Pull Handle: Get in and out of the freezer easily with the Smart Pull Handle.
- Fresh Air Filter: Cleaner, fresher air thanks to the Fresh Air Filter.
- Tall Ice & Water Dispenser: Finally, an ice & water dispenser that can accommodate just about any container.
- ENERGY STAR Qualified: Save money and energy with this ENERGY STAR qualified LG refrigerator that exceeds energy standards.
- SmartDiagnosis: Troubleshoot quickly and efficiently with SmartDiagnosis.
- EasyReach Bins: Slide back the clear covers of these handy storage compartments and dig in!
Product Manuals
Documents
- Energy_Guide_PDF
A: Not an issue. When they deliver, all the front doors (Fridge and Freezer) are off. They assemble once inside. I was nervous about that, but they did a fantastic job!
Q: Hi, what is the middle draw for? Is it a freezer or fresh food?
A: Customizable you set to 29, 33, 37, or 42
A: Pretty cool. I got an email letting me know that one of the kids left the door open. The app shows temperatures as well.
A: Totally agree with you. I hope someone from LG sees your coment. A fridge of this price? Nonsense.
A: The fridge is almost 40" deep, the freezer when opened adds another 23", plus you have an inch or two behind the fridge for air circulation. Figure a minimum of 65" to open the largest compartment. The freezer drawer is further out from the fridge than the fridge doors when they are open.
Q: Does lg ice makers produce cylinder shaped ice, instead of crescent moon, as most ice makers do/
A: The ice maker in the LMXS30796S produces crescent shaped cubes. ^CP
A: Exchanged for a new one. New one was much faster to cool down and sustains it's temps better. Saw the front door bin get up to 45 late one night when no one was using the fridge, but it's possible left overs from dinner warmed up the fridge at that point before it cooled down again because by morning it was 38 and today it's between 33 and 35 which is perfect. Hoping it'll stay like this.
A: We had issues as well when we first received it, took several days just to get a couple batches. I read on LG's website where it says to turn the freezer down to -4 degrees, the factory setting is 0 degrees. Once we turned it down to -4 we have had plenty of ice for a family of 4 adults ever since.
