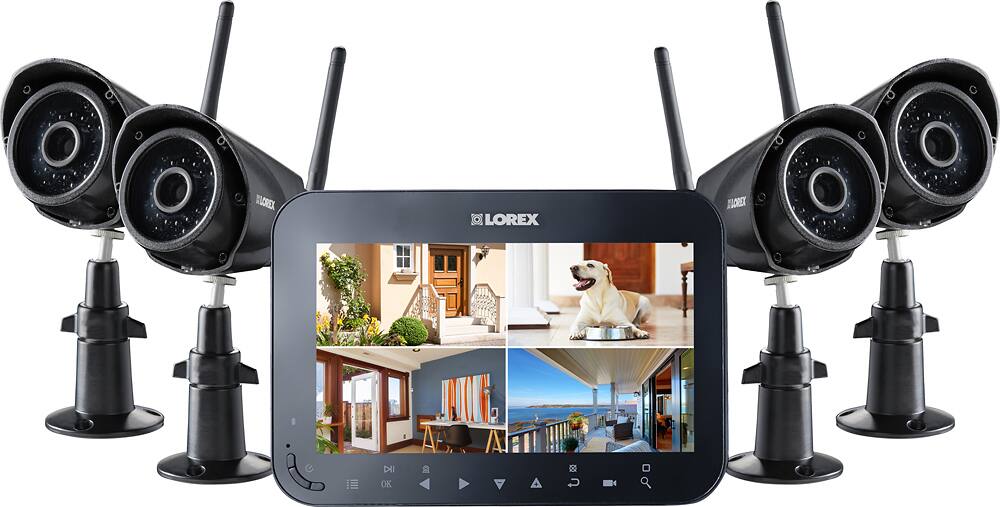

Lorex - 4-Channel, 4-Camera Indoor/Outdoor Wireless Surveillance System - Black
- Key Specs
- Camera Resolution: 640 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 69 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Number Of Cameras Included: 4
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- General
- Product Name: 4-Channel, 4-Camera Indoor/Outdoor Wireless Surveillance System
- Brand: Lorex
- Model Number: LW2744
- Camera
- Camera Resolution: 640 x 480 (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Field Of View: 69 degrees (The area of a target, measured as an angle from the location of viewing, that can be observed.)
- Night Vision: true
- Night Vision Distance: 70 feet
- Number Of Cameras Included: 4
- Number Of Cameras Supported: 4
- Day/Night Mode: true (Captures images/video with optimal clarity by automatically adjusting settings to various light levels.)
- IP Camera: No (An Internet Protocol (IP) camera is able to record and display image/video data via the internet, without need for a local recording device.)
- Minimum Required Illumination: 0 lux (Refers to the minimum amount of light needed to view objects. Generally, the lower the number, the better the camera can detect objects in little to no light.)
- Number of IR LEDs: 16 (Quantity of infrared (IR) LED lights for emitting IR light and allowing the camera to detect objects in low light.)
- Camera Iris: Fixed (The iris is the opening on a camera that controls how much light reaches its image sensor, which in turn affects image/video clarity. Fixed and manual irises are generally suited for locations with consistent levels of light. Automatic and "P" (precise) irises automatically adjust in response to changing levels of light and are suited for a wider variety of environments. "P" irises feature additional capabilities for improving footage clarity.)
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Compatibility
- Camera Compatibility: LW2740 series LW1741AC1 cameras
- Connectivity
- Camera Connectivity: Wireless (Security system cameras can be set up in several ways. Wired cameras require cables for power and footage transmission, while wire-free cameras don't need cables for either. Wireless cameras still require cables for receiving power but are able to transmit footage via a wireless network.)
- Recording & Playback
- Records Audio: true
- Monitor Type: Audio and video
- Performance
- Indoor Or Outdoor Use: Indoor, Outdoor (Indicates the appropriate environment product was designed to be used in.)
- Minimum Operating Temperature: 14 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 122 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Audio-Only Option: true
- 3-Axis Adjustable: true
- Auto-On Detection: Motion
- Dimensions
- Camera Height: 9.1 inches
- Camera Width: 3.1 inches
- Camera Depth: 5.4 inches
- Camera Weight: 0.9 pounds
- Monitor Depth: 4 inches
- Monitor Cord Length: 4 feet
- Output
- Monitor Output(s): None
- Display
- Color Display: true
- Camera Color Display: true
- Monitor Resolution: 640 x 480 (Screens come in a range of resolutions (measured in pixels, horizontal x vertical). The higher the resolution, the greater the picture quality.)
- Screen Size: 7 inches (Size of the screen, measured diagonally from corner to corner.)
- Included
- Camera(s) Included: true
- DVR Included: false
- Monitor Included: true
- Other
- UPC: 695529003337
Lorex Surveillance System: Protect your home against intruders with this system, which can be set to record manually, on motion detection or at scheduled intervals for flexibility. Night vision up to 70' lets you check in at all hours with ease.
- Monitor your property with 4 cameras: Includes four 640 x 480 resolution LW1741AC1 cameras for recording detailed video and audio.
- View and record from up to 4 channels: For simultaneous monitoring of several locations. The 7" wireless, rechargeable LCD monitor makes it easy to keep an eye on your property.
- Record manually, on motion detection or during scheduled intervals: Included 8GB microSD card offers simple storage of incident footage.
- Quality video recording: 640 x 480 resolution provides a detailed picture.
- Powerful night vision up to 70': 16 IR LEDs enable easy viewing at night.
- Viewing angle up to 69°: Captures a wide angle ideal for accurate monitoring.
- Mountable design: Provides optimal placement options.
Whats Included
- 4 cameras (LW1741AC1) with mounts, 7" LCD monitor
- 4-Channel, 4-Camera Surveillance System
- 5 power adapters, 8GB microSD card
- Mounting hardware
- Owner's manual
Q: Does the camera work on batteries, or does it require an electrical outlet?
A: Hello, The cameras come with a power adapter to plug into a regular wall outlet, and do not run on batteries. The distance between the monitor and the cameras will vary based on your specific installation environment, the number of walls the signal needs to pass through, and the building materials. Thanks, Lorex
Q: can I view the cameras from my phone while away from home on wifi.
A: Hello, This model does not include remote viewing, and cannot be viewed outside of your home. Thanks, Lorex
A: Hello, With an 8GB microSD card, you can record approximately 28 hours of footage straight. This system will support up to a 32GB microSD, which will let you record up to 112 hours. For our SD card-based systems, we always recommend you set the system only to record when motion is detected. This helps conserve storage space on units that don't support full-sized hard drives. Kind regards, Lorex
Q: A wireless system does not need to be plugged into a 110 outlet ???
A: Hello, The cameras transmit video data on the 2.4GHz frequency, without the need of running a long video cable between the camera and unit, but requires dedicated power to work (similar to how a wireless router needs to be plugged into power to work, but transmits data on a wireless signal). Thanks, Lorex
Q: I want my camera to watch driveway entrance 150 ft away. Can I run an extension cord to the camera ?
A: Hello, Yes, the camera can be plugged into power on a standard power extension cord. Thanks, Lorex
Q: Can you view at night with these cameras?
A: Yes, but the range is limited to 20-30 feet with the infrared.
Q: Can this be used in a home with no internet or wifi?
A: Yes, this system will operate without any external devices.
A: Hello, For a system with remote viewing capabilities that can be viewed from a smartphone or computer over the internet, please consider these Lorex models available at best buy (DVR with cameras - LH05041TC4W) or (IP Camera - LNC226X). Thanks, Lorex
