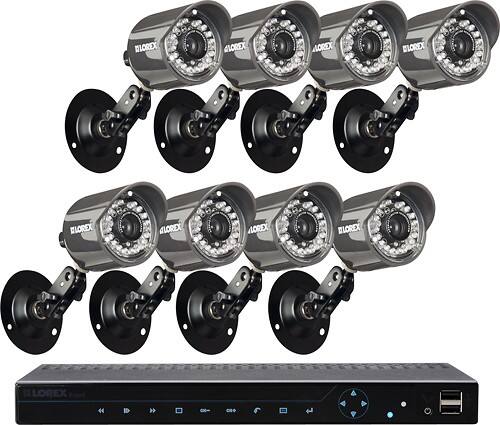

Lorex - Edge2 Series 16-Channel, 8-Camera Indoor/Outdoor Surveillance System

8 surveillance cameras

Each feature a 1/3" color image sensor with a 6.0mm lens (f/2.0) that produces sharp, clear video with 660 TV lines and 720 x 480 resolution. Also features a 1/60 - 1/25,000 sec. shutter speed.

18 IR LEDs

With BrightNight technology provide enhanced night vision up to 100'. Built-in IR cut filter and antiglare technology achieve accurate color and detail representation in varying lighting conditions.

50° diagonal field of view

For easy viewing.

Indoor or outdoor surveillance

Allows optimal placement.

16-channel DVR

Also supports 1-, 4- or 9-channel live viewing, so you can keep an eye on up to 4 different areas simultaneously.

1TB hard drive

Records H.264 video format for reviewing at a later time. Expandable up to 2TB.

Recording schedule options

Include by hour, day, recording mode and channel. Recording modes include continuous and motion-activated for customized use.

Pentaplex operation

Allows you to view, record, play back, back up and remotely control the system simultaneously.

Mounts to the rear of most LCD monitors

With VESA standard mounting holes and a stand (not included) for simple installation. VESA 75mm x 75mm, 100mm x 100mm and 200mm x 200mm compliant.

3 USB 2.0 ports

Provide an easy connection to your computer or peripherals, including a mouse and more. HDMI output for connection to an HDTV.

10/100Base-TX Ethernet LAN with an RJ-45 connector

For simple connectivity.

Lorex Dynamic Domain Name Service (DDNS)

For keeping you connected. Covert camera function allows you to monitor cameras while hiding them from regular users.

Mobile connectivity

Via your Apple® iPad®, iPhone® 4 and later, most mobile phones with an Android 2.1 operating system and BlackBerry 9000, 9700 and 9800 models.

E-mail alerts

With text, weblink and snapshot attachment keep you informed when events occur.

iPad is a trademark of Apple Inc., registered in the U.S. and other countries

Apple, the Apple logo and iTunes are trademarks of Apple Computer, Inc., registered in the U.S. and other countries. iPod is a trademark of Apple Computer, Inc.

8 indoor/outdoor surveillance cameras, DVR

Power adapter, two 4-in-1 camera power adapters, Ethernet cable, 2 octopus BNC connectors, 2 screws, eight 60' BNC/DC cables

8 camera stands, remote, Flex IR, mouse, software CD

Owner's manual
