Specifications
- Color FinishWhiteProduct Height68 7/8 inchesProduct Width35 5/8 inchesHeight To Top Of Refrigerator (Without Hinges)68 7/8 inchesHeight To Top Of Door Hinge70 1/8 inchesDepth Without Handle26 7/8 inches
- Key Specs
- Color Finish: White
- Product Height: 68 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 26 7/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 20 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Whirlpool
- Model Number: WRF540CWHW
- Product Name: 20 cu. ft. French Door Refrigerator with Counter Depth Design
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 68 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 5/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 26 7/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 3/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 1/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 43 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 345 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 70 5/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 30 3/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20 cubic feet
- Refrigerator Capacity: 14.38 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 5.62 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Fingerprint Resistant: true
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice and water
- Storage
- Number of External Doors/Drawers: 3
- Number of Refrigerator Shelves: 5
- Refrigerator Shelf Style: Adjustable, Fixed
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true

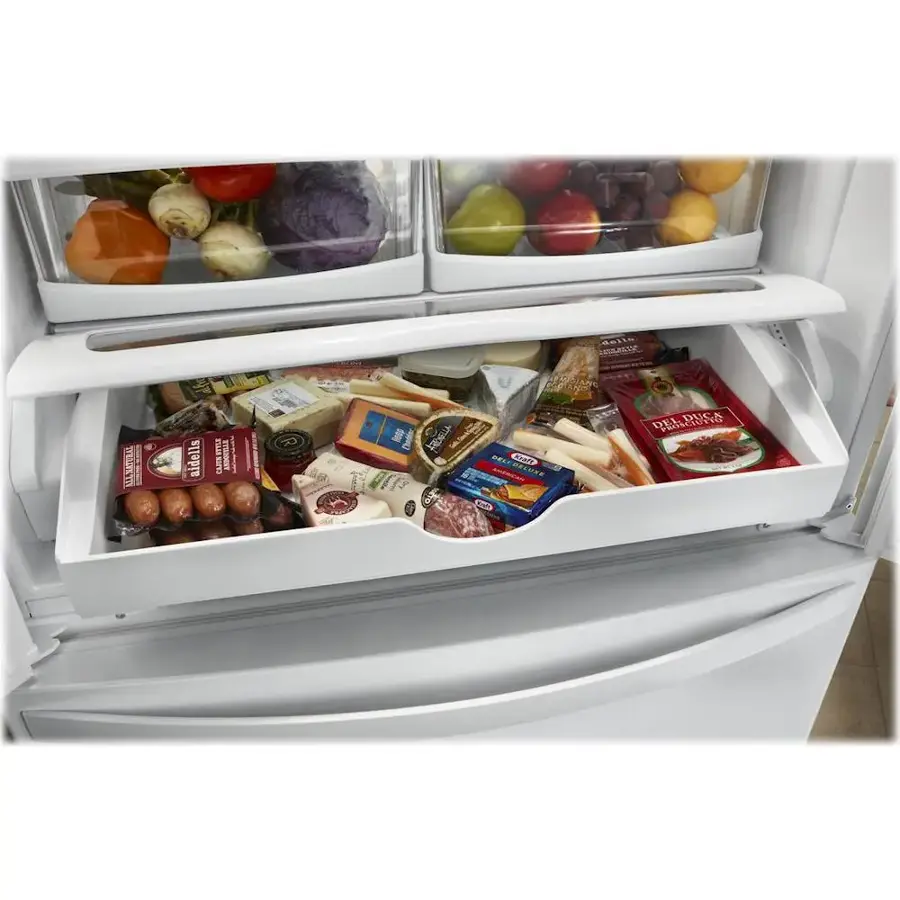

- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom

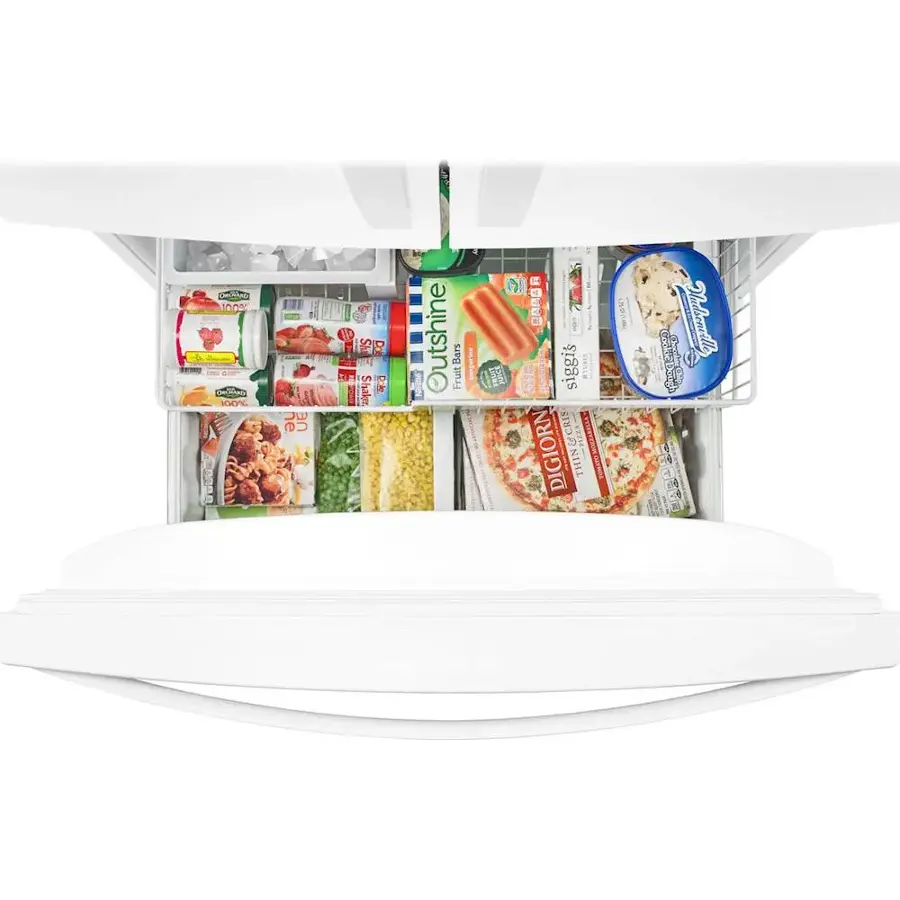

- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Glass
- Freezer Interior Light: true
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: WHR4RXD1 (The water filter model(s) recommended for use with the product.)
- Air Filter: false (A filter that works to remove odors and contaminants from the air within the appliance.)
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 563 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 68 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049449487
Add up to 6 inches of additional kitchen space with this counter depth refrigerator. This refrigerator with water dispenser gives you the storage you need with features like the crisper drawer to store fruits and veggies at the ideal temperature.

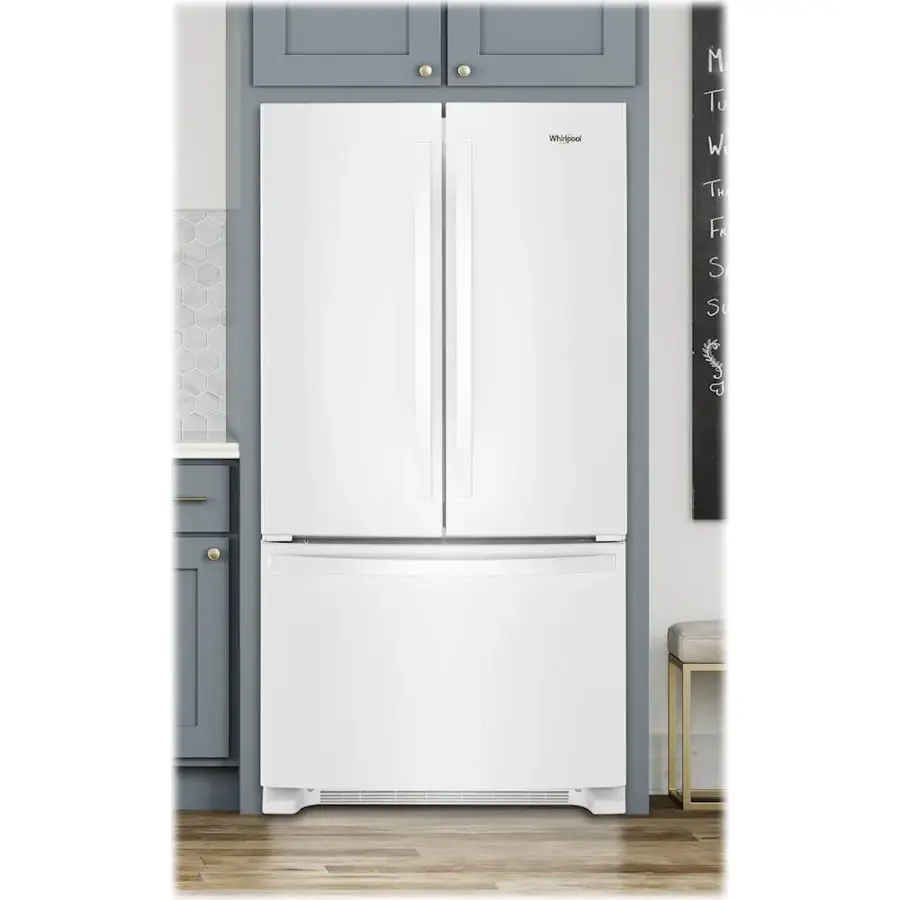

- Counter Depth Design: Add additional kitchen space with styling that fits virtually flush with the countertop.

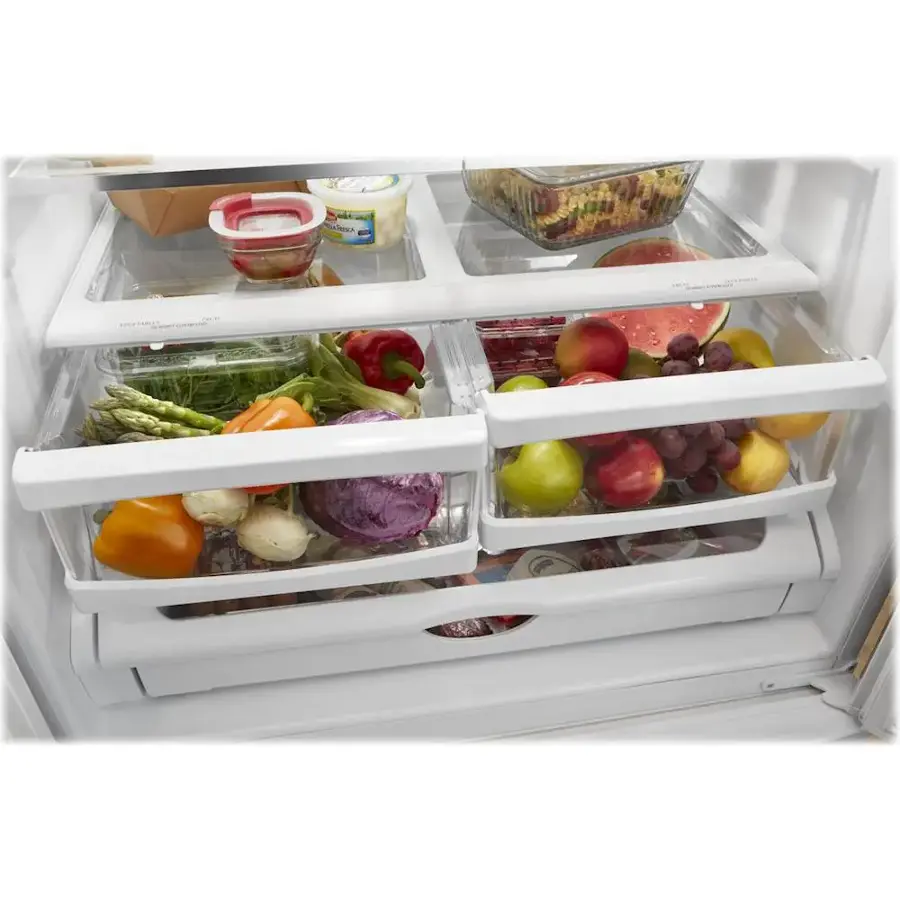

- Humidity-Controlled Double Crisper: Get the room you need to store fruits and vegetables in their ideal environment.

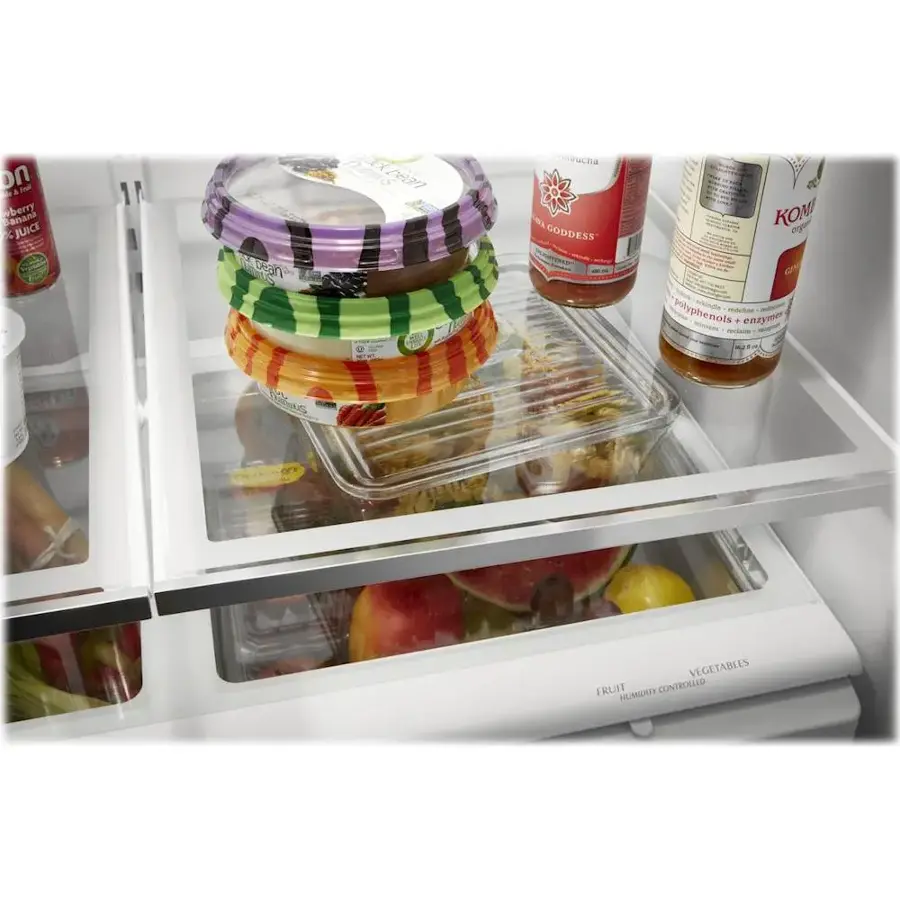

- Frameless Glass Shelves: Store more items on each shelf with wall-to-wall frameless glass shelves, which offer greater storage flexibility.

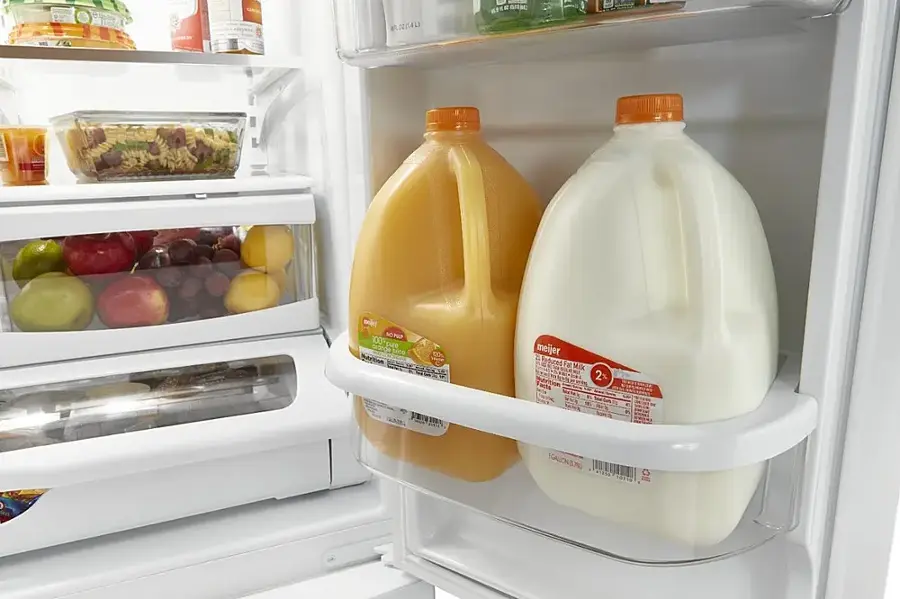

- Gallon Door Bins: Free up shelf space by storing gallons of milk and other containers in the door.
Whats Included
- Whirlpool 20 cu. ft. French Door Refrigerator with Counter Depth Design
- Warranty
- Owners Manual
Product Manuals
Documents
- Energy_Guide_PDF
A: Peggy, these are the two that most closely resemble your current unit. Look at the dimensions closely to see if they match.
A: I was worried about that because my old frig was up against a wall on the left and when I had my kitchen remodeled before the holidays, the contractor assured me that he could swap it with the cabinet on the right, but I didn't like that configuration. So one night after work before the appliances were to be delivered, I stopped by the store and asked with one of the sales guys. He showed me that Whirlpool makes the doors now so that you don't have to worry about that. When open, they are flush with the sides of the frig. Don't laugh, but when I saw your question, I immediately went into the kitchen and opened my frig doors to make sure! But...and this is really important, I would still leave a little room so that the motors get enough air circulating and don't overheat. That's what happened to an older refrigerator I had that was enclosed by cabinetry. It overheated and eventually burned a hole in my kitchen floor!
A: mitzi, this Whirlpool® Refrigerator has a textured look so it will not be glossy.
A: Hello JamesR, you should not run into any trouble fitting a standard sized sheet pan into this model.
A: jj, this Whirlpool® Refrigerator does have a water dispenser on the inside.
Q: Does this refrigerator dispense water?
A: Yes, the water dispenser is inside
A: Hello ES! Per the Use and Care Guide: To ensure proper ventilation for your refrigerator, allow for ¹⁄2" (1.25 cm) of space on each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave 2 ¹⁄2" (6.3 cm) minimum on the hinge side (some models require more) to allow for the door to swing open.
A: Hello Lee! We are providing a link to the Use and Care Guide for more information on the Installation of this unit. This should provide you with more directions on where to install your water line. https://www.whirlpool.com/content/dam/global/documents/201804/Use%20and%20Care-W10597601.pdf Thank you for your inquiry on our Whirlpool appliances.
