XFX - Mercury AMD Radeon RX 7900 XTX Magnetic Air 24GB GDDR6 PCI Express 4.0 Gaming Graphics Card - Black/Red
Specifications
GPU Base Clock Frequency1.855 gigahertzGPU Boost Clock Frequency2.615 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
Key Specs
GPU Base Clock Frequency1.855 gigahertzGPU Boost Clock Frequency2.615 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4Advanced Graphics Rendering Technique(s)Ray tracingGPU Video Memory (RAM)24 gigabytesGPU Video Memory Type (RAM)GDDR6Slot Size3.5-slotPCI Express VersionPCI Express 4.0Product Height345.44 millimetersProduct Width132.08 millimetersProduct Length68.08 millimetersGraphics Processing Unit (GPU)AMD Radeon RX 7900 XTX
General
Product NameMercury AMD Radeon RX 7900 XTX Magnetic Air 24GB GDDR6 PCI Express 4.0 Gaming Graphics CardBrandXFXGPU Chipset ManufacturerAMDGraphics Processing Unit (GPU)AMD Radeon RX 7900 XTXModel NumberRX-79XMAIRB9Year of Release2024ColorBlack/Red
Performance
GPU Base Clock Frequency1.855 gigahertzGPU Boost Clock Frequency2.615 gigahertzCooling SystemFan
Connectivity
DisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Power Connector1x 8pin
Display
Maximum Resolution8K (4320p)Maximum Number of Displays Supported4Advanced Graphics Rendering Technique(s)Ray tracing
Memory
GPU Video Memory (RAM)24 gigabytesGPU Video Memory Type (RAM)GDDR6GPU Video Memory Base Clock Frequency (RAM)20 gigahertz
Compatibility
Slot Size3.5-slotSystem RequirementsWindows 10, Windows 11, Linux, PCI-E x16 capable motherboard.PCI Express VersionPCI Express 4.0Operating System CompatibilityWindows, Linux
Features
Multi-GPU SupportNoneTechnology SupportDirect X 12, Vulkan, Open GL, Open CLIncluded SoftwareAMD Adrenalin 2024 Software Download
Power
Total Graphics Power327 wattsRecommended Power Supply850 watts
Dimensions
Product Height345.44 millimetersProduct Width132.08 millimetersProduct Length68.08 millimetersProduct Weight1.9 pounds
Warranty
Manufacturer's Warranty - Parts3 yearsManufacturer's Warranty - Labor3 years
Other
UPC840191501371
AMD Radeon RX 7900 Series graphics cards, featuring the groundbreaking AMD RDNA 3 architecture, deliver ultra-high frame rates for your favorite games at 4K max settings. The XFX Magnetic Air Fans allows for extremely quick swapping of the magnetic fans, making servicing your graphics card easy and simple.
GDDR6 Memory for advanced gaming
Equipped with 24GB of advanced GDDR6 memory to provide high bandwidth performance, enabling 1080p performance for today's most demanding games.

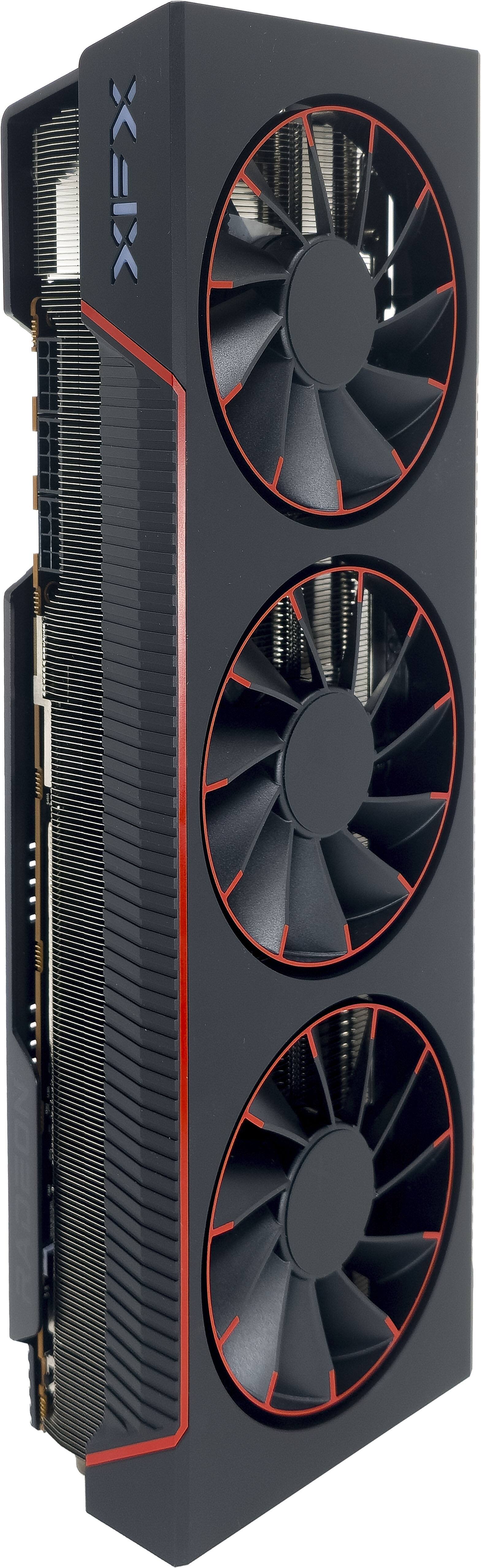

XFX Magnetic Air Fans
Our magnets are composed of Neodymium Iron Boron(NdFeb). With a magnetic strength of 4000GS, the Magnetic Air magnets are capable of holding up to 1kg of weight! These magnets will not lose their power over time.
11 Bladed Fans
Highly efficient, our 11 blade fans can run up to 3200 RPM, have a max airflow of 70.08 CFM, and max air pressure of 4.88 mmAq.
Vapor Chamber and Thermal Pads
The nickel plated copper vapor chamber is utilized for both GPU and DDR modules. XFX utilizes a thorough placement of thermal pads across all GDDR, VRM, and other key components including backside of the PCB. With the use Honeywell PTM7950 the amount of time between servicing requirements of the TIM is greatly reduced.
AMD Infinity Cache
High-performance bandwidth. AMD Infinity Cache enables high bandwidth performance at low power, and low latency when gaming.
PCI Express 4.0 interface
The AMD Radeon RX 7900 Series graphics cards feature PCIe 4.0, with a throughput of 16GT/s which enables two times the bandwidth when compared to PCIe 3.0.
Windows and Linux Compatible
Enables next-generation gaming.
AMD RDNA 3 architecture
With up to 60 enhanced compute units delivery powerhouse performance, 1080p gaming is easily possible at smooth framerates and maximum visual settings.
Virtual reality ready
Provides a powerful next-generation platform for the ultimate immersive virtual reality experience.
Direct X 12, Vulkan, Open GL, Open CL
Enhances gameplay by delivering ultrarealistic images, detail and texture and improved lighting effects that create lifelike interactivity.
AMD Smart Access memory
Get more performance through new levels of communication between AMD Ryzen desktop processors and AMD Radeon graphics cards over PCI Express.
HDMI and DisplayPort outputs
Enable flexible connectivity.
Search
Q: QuestionWhat type of memory does this graphics card use?(1 answer)
A: AnswerThis graphics card uses GDDR6 memory.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the maximum resolution supported by this graphics card?(1 answer)
A: AnswerThe maximum resolution supported is 8K (4320p).This question and answer was generated by AI based on customer and product data.Q: QuestionHow many fans does this graphics card have?(1 answer)
A: AnswerThis graphics card has 11 fans.This question and answer was generated by AI based on customer and product data.Q: QuestionHow much RAM does this graphics card have?(1 answer)
A: AnswerThis graphics card has 24 GB of RAM.This question and answer was generated by AI based on customer and product data.Q: QuestionWhat is the total graphics power of this graphics card?(1 answer)
A: AnswerThe total graphics power is 327 watts.This question and answer was generated by AI based on customer and product data.Q: QuestionDoes this graphics card support virtual reality?(1 answer)
A: AnswerYes, this graphics card is virtual reality ready.This question and answer was generated by AI based on customer and product data.- A: AnswerI don't have this specific card, but have the XFX 7800XT, and the logo is a static white LED backlight. It is not addressable and can not turn it off without pulling the shroud and physically unplugging the LED. I suspect this card will be the same. I initially want sure if I'd like it, but it's grown on me. Of course that's just my subjective opinion.
Answered by Mooncatt
Reviews
Rating 4.6 out of 5 stars with 23 reviews
4.6Rating by feature
- 4.5Value
Rating 4.5 out of 5 stars
- 4.7Quality
Rating 4.7 out of 5 stars
- 4.7Ease of Use
Rating 4.7 out of 5 stars
Customers are saying
Customers have good things to say about the Mercury AMD Radeon RX 7900 XTX Magnetic Air 24GB GDDR6 PCI Express 4.0 Gaming Graphics Card. Customers are impressed with its 4K gaming performance, saying it runs 4K games with ease and can achieve high frame rates even with demanding titles. It is also noted to handle 1440p gaming effortlessly.
This summary was generated by AI based on customer reviews.
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
Rated 5 out of 5 stars
XFX is the AIB to buy for RX7000 Series!
Great GPU. Build quality like no other. I've owned other premium cards in my own and my customer builds. By far, this XFX Mercury RX 7900 XTX Magair card has the best quality of all cards i've tried. I love the removable fans, I just dont know what is the use if they go bad. There are no replacements for them yet. This card is not for the fancy RGB or style. For me, it looks very basic but is built like a tank basically, kind of a performance over looks card. I've done a pretty decent undervolt/overclock as shown below: Min Clock: 2400mhz Max Clock: 2900mhz (to save on psu draw) Voltage: 1050mV VRAM: 2664mhz (most stable) Power Limit: +15% with a custom fan curve that doesnt reach above 60%. Max Power Draw on the GPU is 390w with a total draw of about 500W using a 7800x3d. I am on a 4k OLED and I have no issues running any game so far in 4K 120hz with everything cranked up and limited RT. GPU is a beast. You should buy if you can find a good rate. Like I did. Only buy the Sapphire Nitro or this XFX Mercury Magair they OC and UV very well
Posted by Chrisunlmtd
Rated 5 out of 5 stars
Beast of a GPU smashes Nvidia
This was my choice on building my gaming PC rig. This one is just under a 4090 Nvidia card and for half the cost you can’t go wrong with AMD. This runs 4K between 150 to 185 frames on ultra settings for call of duty black ops six.
Posted by Kenny
Rated 5 out of 5 stars
AMD Radeon FTW!
Recently upgraded/changed my Nvidia 3070 Ti to the Radeon 7900 XTX. What a DIFFERENCE! I didn’t think I’d ever own an AMD graphics card, but that’s what I’m recommending to anyone on the edge of making the jump. Yes, I agree, It was a pretty big jump but you can’t go wrong for the price. The card doesn’t have much RGB but it doesn’t need it to stand out. Performance and Temperatures are great and 4k gaming is crazy compared to the 1440p gaming I had been doing. No regrets here, Highly recommend this product and the soon to be released products coming up. Happy Gaming Everyone!
Posted by JMendoza
