Zephyr -
- Key Specs
- Product Height: 11.30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.90 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Color Finish: Stainless steel
- General
- Product Name: Core Collection Pisa 24" Convertible Range Hood
- Brand: Zephyr
- Model Number: ZPI-E24AG
- Color Finish: Stainless steel
- Dimensions
- Product Height: 11.30 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.90 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 9/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Convertible
- Number of Fan Speeds: 3
- Integrated Light(s): true
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 100 watts
- Filter Info
- Filter Material: Other
- Electrical Specification
- Amperage: 3.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Other
- UPC: 646328006470

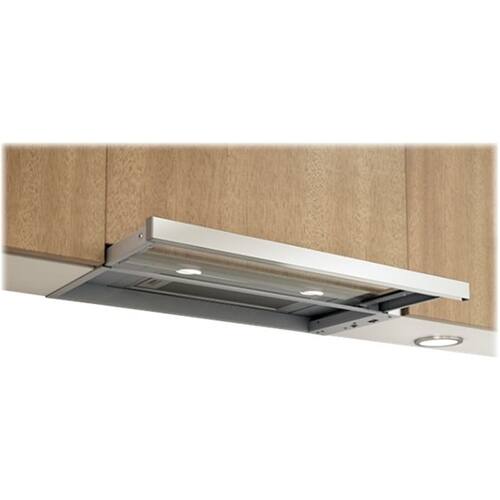

Freshen up your kitchen with this Zephyr Pisa under-cabinet range hood. Its value-driven, minimalist design features a 500-CFM blower, powerful enough to rid your kitchen of steam and odors. This 24-inch Zephyr Pisa under-cabinet range hood has a retractable visor that helps capture air flow and hides away when not in use.
- 500 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 3 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Mechanical controls: Offer simple operation.
- Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
Whats Included
- Zephyr Core Collection Pisa 24" Convertible Range Hood
Product Manuals
Q: How effective is the 290 cfm blower in eliminating smoke and odors from the kitchen?
A: The 290 cfm blower in the Zephyr Pisa under-cabinet range hood is effective in eliminating smoke and odors from the kitchen. It quickly removes grease and steam, keeping the kitchen free of unwanted fumes. The hood also features a retractable visor that stays hidden when not in use, providing a discreet alternative to traditional under-cabinet range designs.
Q: How many speed settings does the fan on this range hood have?
A: The fan on this Zephyr Core Collection Pisa 24" Convertible Range Hood has three speed settings. The speed settings are low, medium, and high.
Q: What type of bulbs does this range hood require?
A: This range hood requires GU-10 halogen bulbs. The recommended wattage for the bulbs is 50W (MR16). For Zephyr part numbers, please refer to page 20 of the manual.
Q: What is the range of heights at which this range hood can be installed above the cooktop?
A: The Zephyr Core Collection Pisa 24" Convertible Range Hood can be installed at a minimum height of 24 inches and a maximum height of 32 inches above the cooktop.
Q: Where is the exhaust vent located on this range hood?
A: The exhaust vent on the Core Collection Pisa 24" Convertible Range Hood by Zephyr can be located either at the top or the rear of the hood, providing installation flexibility.
Q: How does the retractable visor on this range hood work and what are its advantages?
A: The retractable visor on the Zephyr Pisa range hood stays hidden when not in use, providing a discreet alternative to traditional under-cabinet range designs. When extended, it effectively captures smoke, grease, and odors, enhancing ventilation and keeping the kitchen clean and fresh.
Q: What is the voltage requirement for operating this range hood?
A: The voltage requirement for operating the Core Collection Pisa 24" Convertible Range Hood by Zephyr is 120 volts. It must be connected to an individual, properly grounded branch circuit protected by a 15 or 20-ampere circuit breaker or time-delay fuse.
Q: Does this range hood come with any additional features or accessories?
A: Yes, this range hood comes with additional features and accessories. It includes two halogen lights, a mesh filter, three wire nuts, a suction cup, a 6-inch round damper (pre-installed), and a hardware package containing two M4 x 1” screws, four M3 screws, and a filler panel. However, it does not include ducting, conduit, installation tools, a cable connector (if required by local codes), or a recirculation kit.
