Eaton Tripp Lite Series 40/100Gb Singlemode Fiber Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber - Unknown
Related Item
Highlights
- General
- Brand: Tripp Lite
- Product Name: Eaton Tripp Lite Series 40/100Gb Singlemode Fiber Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb, (x3) 8-Fiber
- Color: Unknown
- Security
- Firewall Type: None (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Network
- Ethernet Standard: 10/100/1000/2500/5000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Frequency Band: Not Applicable (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Integrated Modem: false
- Wireless: false
- Ports
- Port Type(s): Fiber-Optic (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Lifetime
- Warranty - Labor: Lifetime
- Other
- UPC: 037332205759

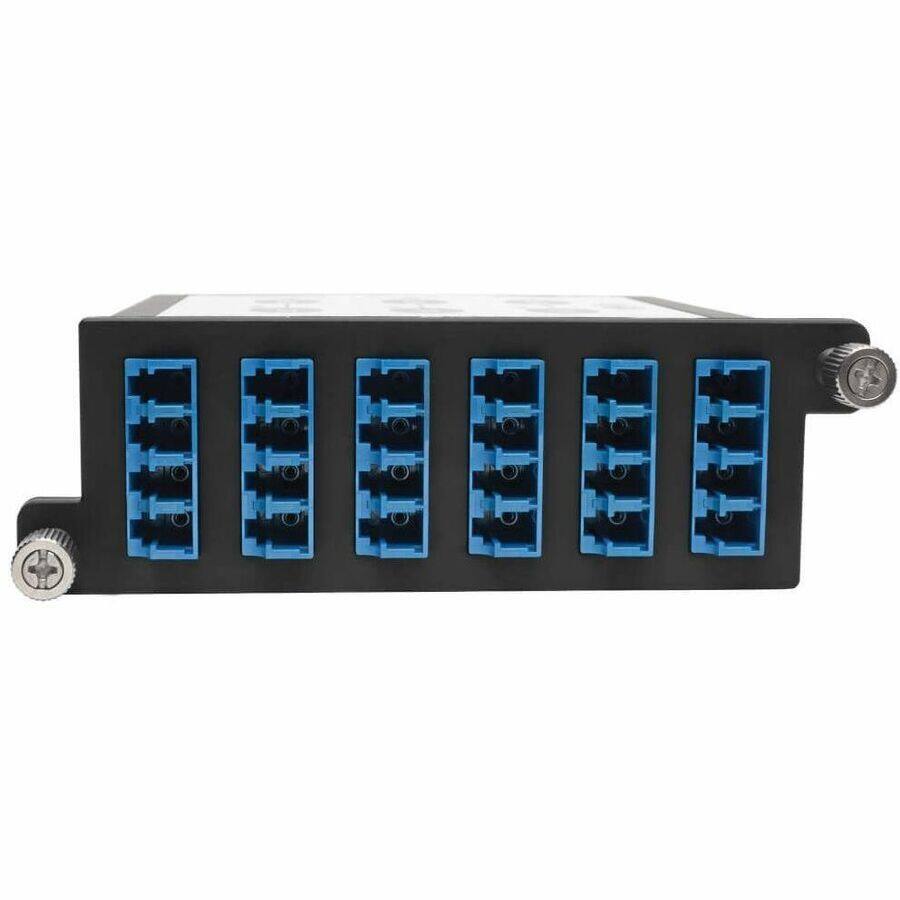

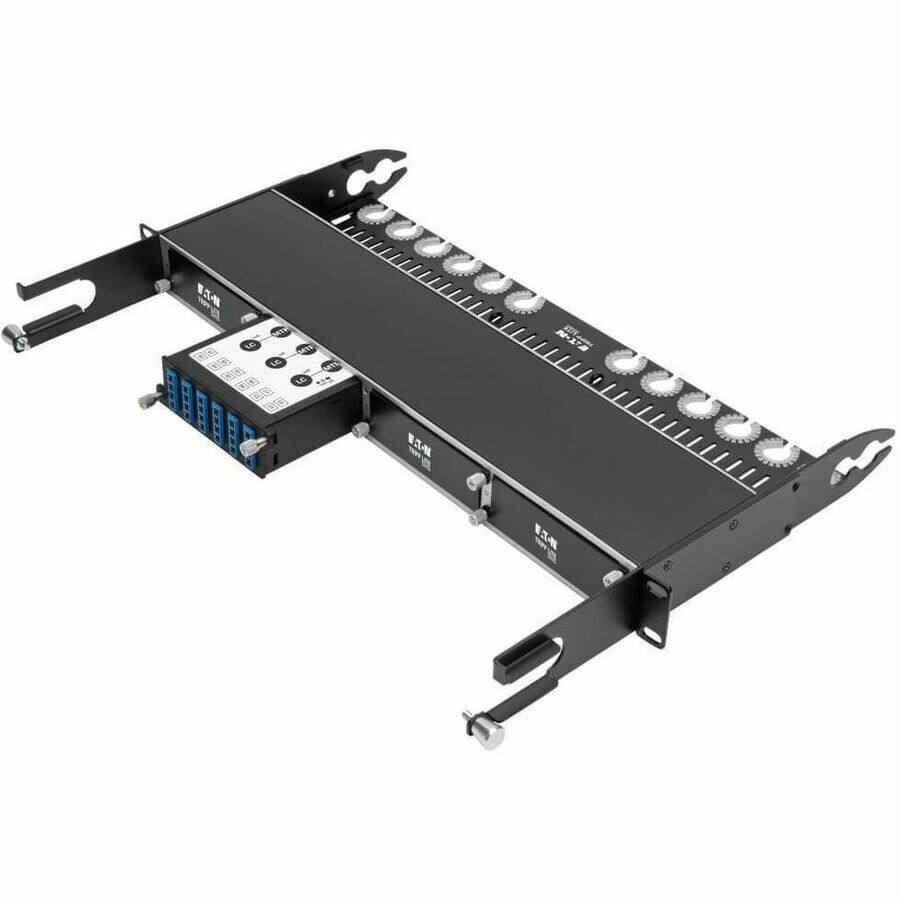

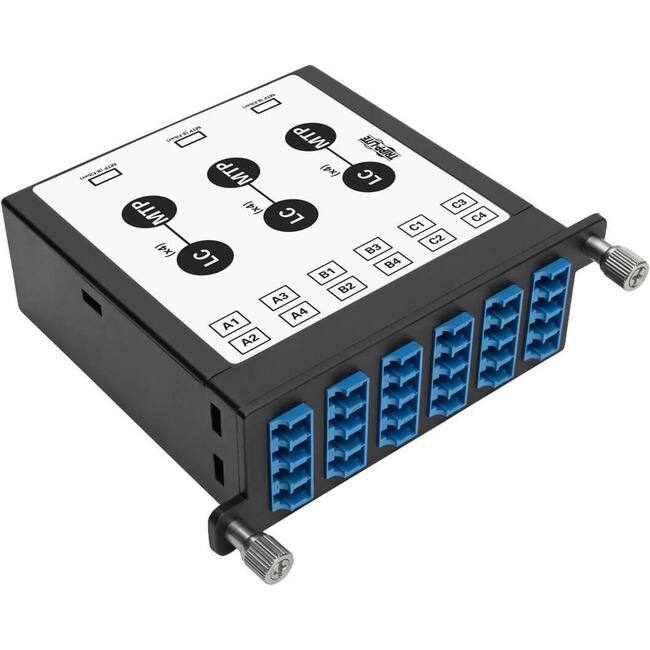

The N484-3M8L12S 8.3/125 Singlemode Fiber Optic 40/100 Gb to 10 Gb Breakout Cassette works in tandem with Tripp Lite's N484-01U or N484-00U chassis to join 12 duplex LC fiber cables with three 8-fiber MTP/MPO connections. Ideal for interconnecting any combination of 10 Gb, 40 Gb and 100 Gb network equipment in a simple, elegant and highly flexible way, it's compatible with recommended Tripp Lite cabling, including the N370- and N390-Seriess. Its 8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity. The fiber optic cassette installs easily in the N484-01U and N484-00U chassis with no tools required. Just insert the cassette into the chassis, and tighten its retention clips to secure it. Plug LC patch cables, such as Tripp Lite's N370- and N390-Series cables, into the cassette using the cables' convenient push/pull tabs. Up to four cassettes fit into the N484-01U 1U enclosure panel, and one cassette fits into the N484-00U 0U sleeve. Dust tabs protect unused ports from potential damage. The modular design makes it easy to modify, upgrade or expand your infrastructure as your needs grow. If you need to change out a single cassette, you can do so without replacing the panel or removing other cassettes. Because this system supports devices of varying speeds, you can mix and match 10 Gb, 40 Gb and 100 Gb network equipment. The fiber cassette supports 40/100 GbE internally using singlemode fiber optic cables and is ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40/100 Gb. The N484-3M8L12S complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of

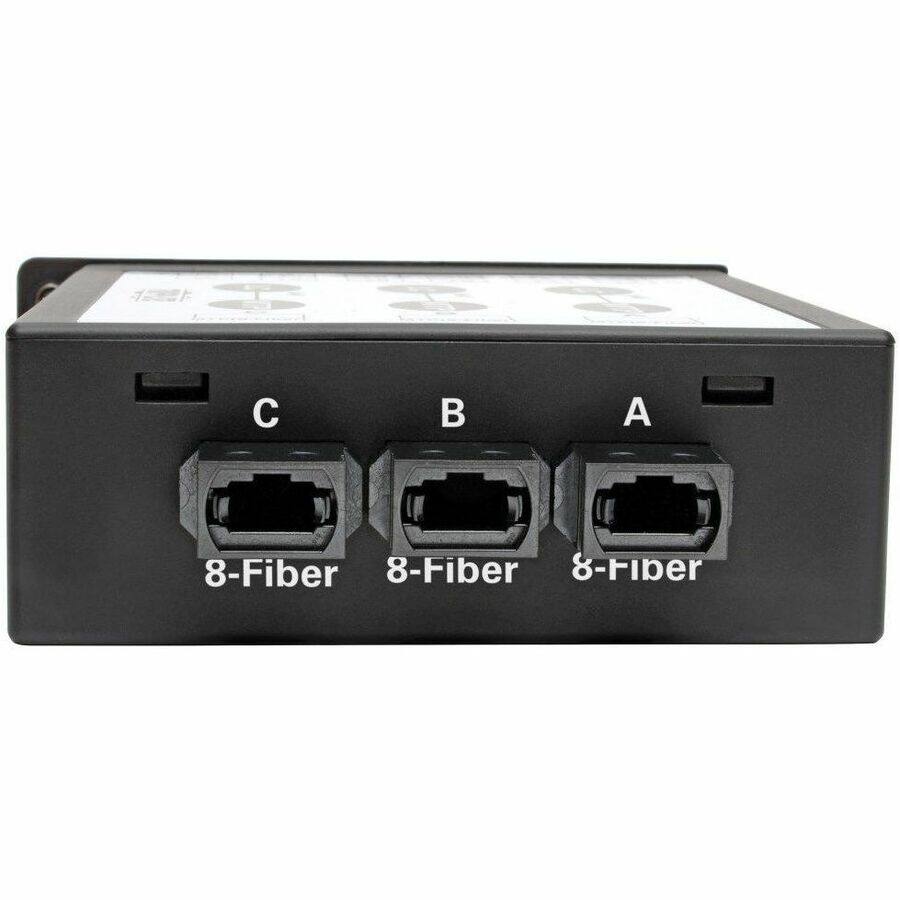

- Elegant, Simple Solution for 40/100 Gb to 10 Gb LC Cable ...: High-density singlemode fiber cassette for use with Tripp Lite N484-01U and N484-00U fiber enclosure panels. Breaks out three 8-fiber MTP/MPO connections into 12 duplex LC fiber cables. Perfect for use with QSFP fabric switches to support 4 lanes parallel to 40 Gb. Supports 40/100 GbE internally using singlemode fiber optic cable.8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity
- Designed Specifically for Use with Tripp Lite Cabling: Guaranteed compatibility with recommended Tripp Lite cables, including N370- and N390-Series

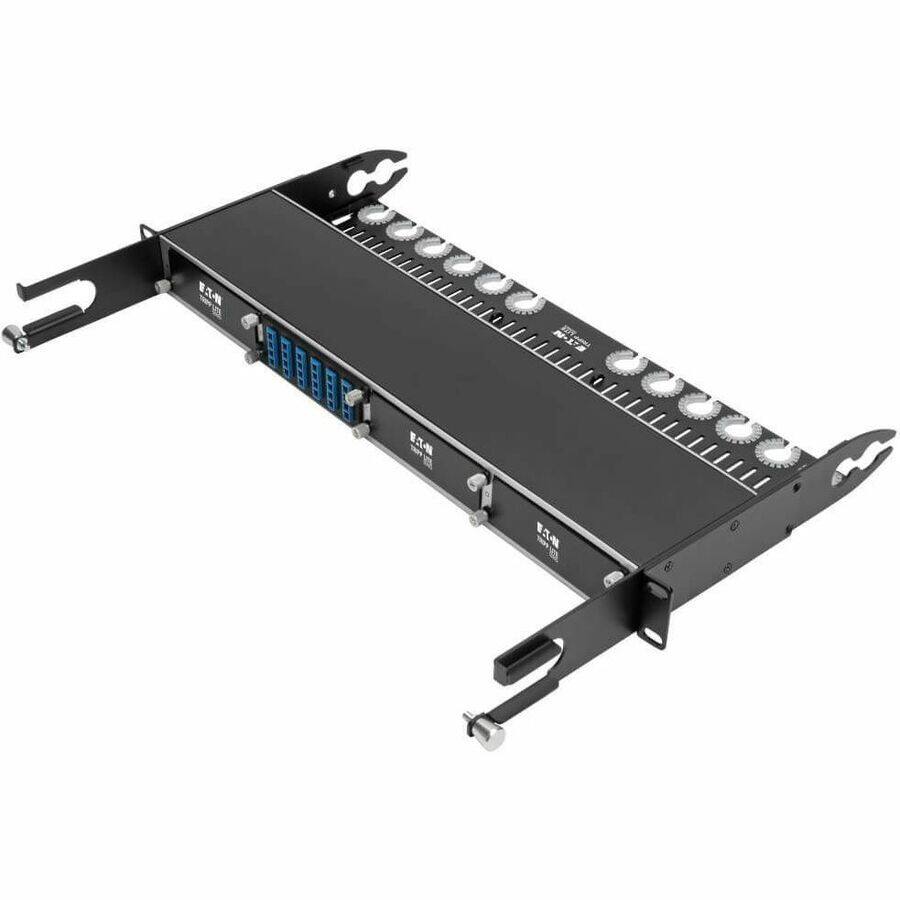

- Simple Fiber Installations Save Time and Money: Easy installation with no tools required. Installs neatly in N484-00U 0U chassis. Install up to 4 cassettes in N484-01U 1U enclosure panel. Supports devices of varying speeds, including 10 Gb, 40 Gb and 100 Gb network equipment

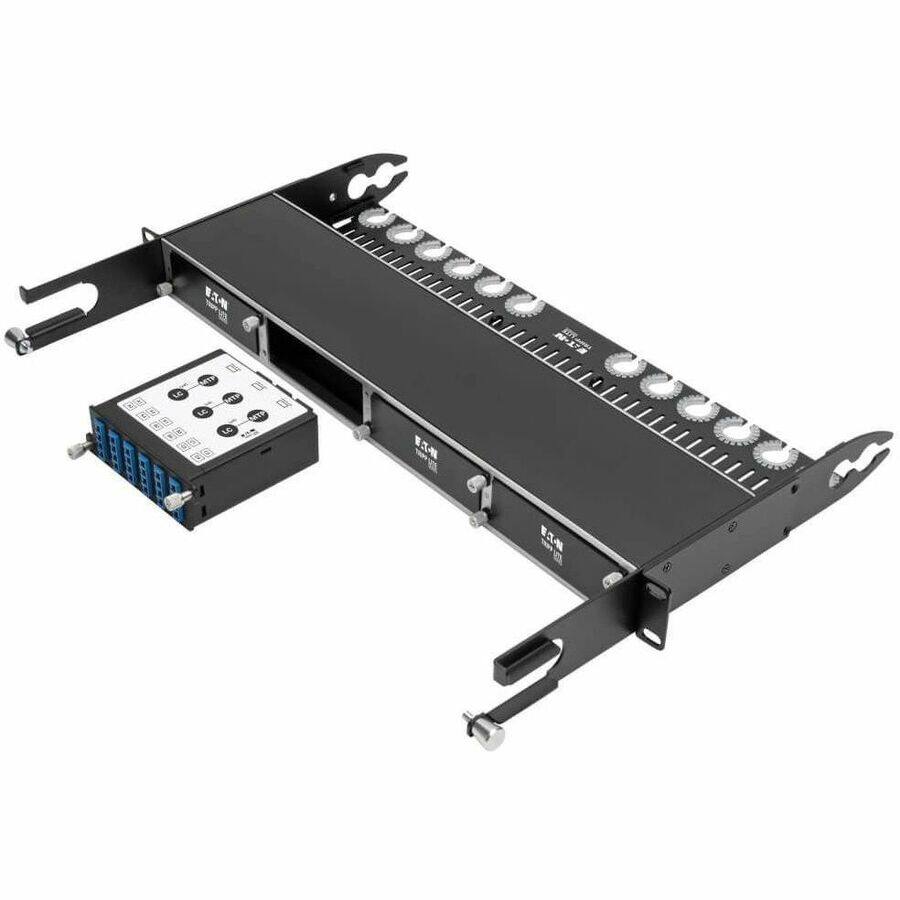

- Easy to Modify, Upgrade or Expand Fiber Infrastructure By...: Futureproof-friendly modular design allows removal of cassette without replacing panel or removing other cassettes. Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements.0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of
- Premium Construction for Optimal Performance: Durable plastic construction. Factory-terminated connectors reduce installation time and labor costs. Dust caps protect unused ports
- Elegant, Simple Solution for 40/100 Gb to 10 Gb LC Cable ...: High-density singlemode fiber cassette for use with Tripp Lite N484-01U and N484-00U fiber enclosure panels. Breaks out three 8-fiber MTP/MPO connections into 12 duplex LC fiber cables. Perfect for use with QSFP fabric switches to support 4 lanes parallel to 40 Gb. Supports 40/100 GbE internally using singlemode fiber optic cable.8-fiber MTP ports are Polarity B, optimized for parallel optics and Base-8 connectivity
- Designed Specifically for Use with Tripp Lite Cabling: Guaranteed compatibility with recommended Tripp Lite cables, including N370- and N390-Series
- Simple Fiber Installations Save Time and Money: Easy installation with no tools required. Installs neatly in N484-00U 0U chassis. Install up to 4 cassettes in N484-01U 1U enclosure panel. Supports devices of varying speeds, including 10 Gb, 40 Gb and 100 Gb network equipment
- Easy to Modify, Upgrade or Expand Fiber Infrastructure By...: Futureproof-friendly modular design allows removal of cassette without replacing panel or removing other cassettes. Complies with IEEE 802.3ae (10 GbE) and ANSI T11.2 (Fibre Channel) requirements.0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of
- Premium Construction for Optimal Performance: Durable plastic construction. Factory-terminated connectors reduce installation time and labor costs. Dust caps protect unused ports
Whats Included
- N484-3M8L12S 8.3/125 Singlemode Fiber Optic 40/100 Gb to 10 Gb Breakout Cassette Quick Start Guide
- N484-3M8L12S 8.3/125 Singlemode Fiber Optic 40/100 Gb to 10 Gb Breakout Cassette Quick Start Guide
