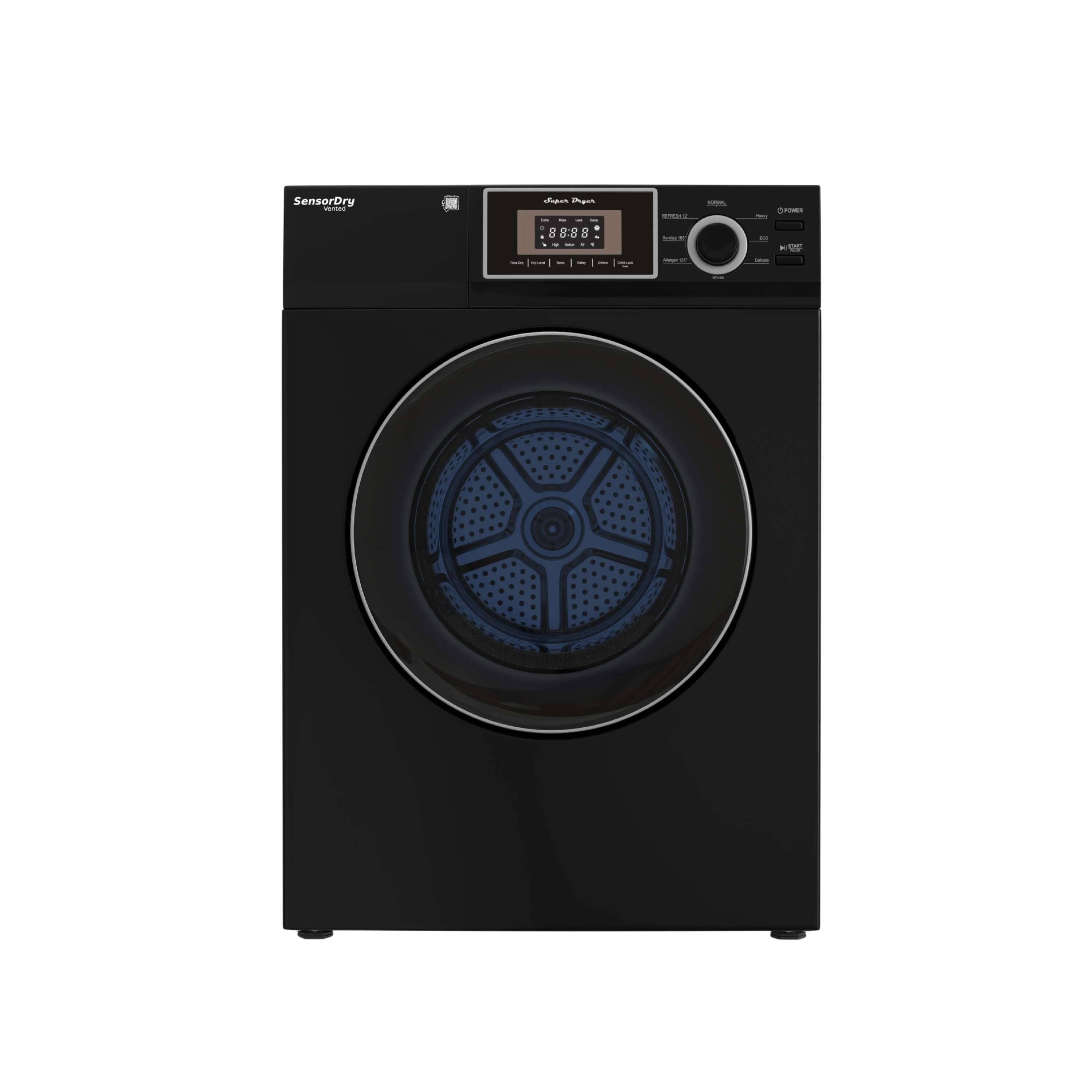

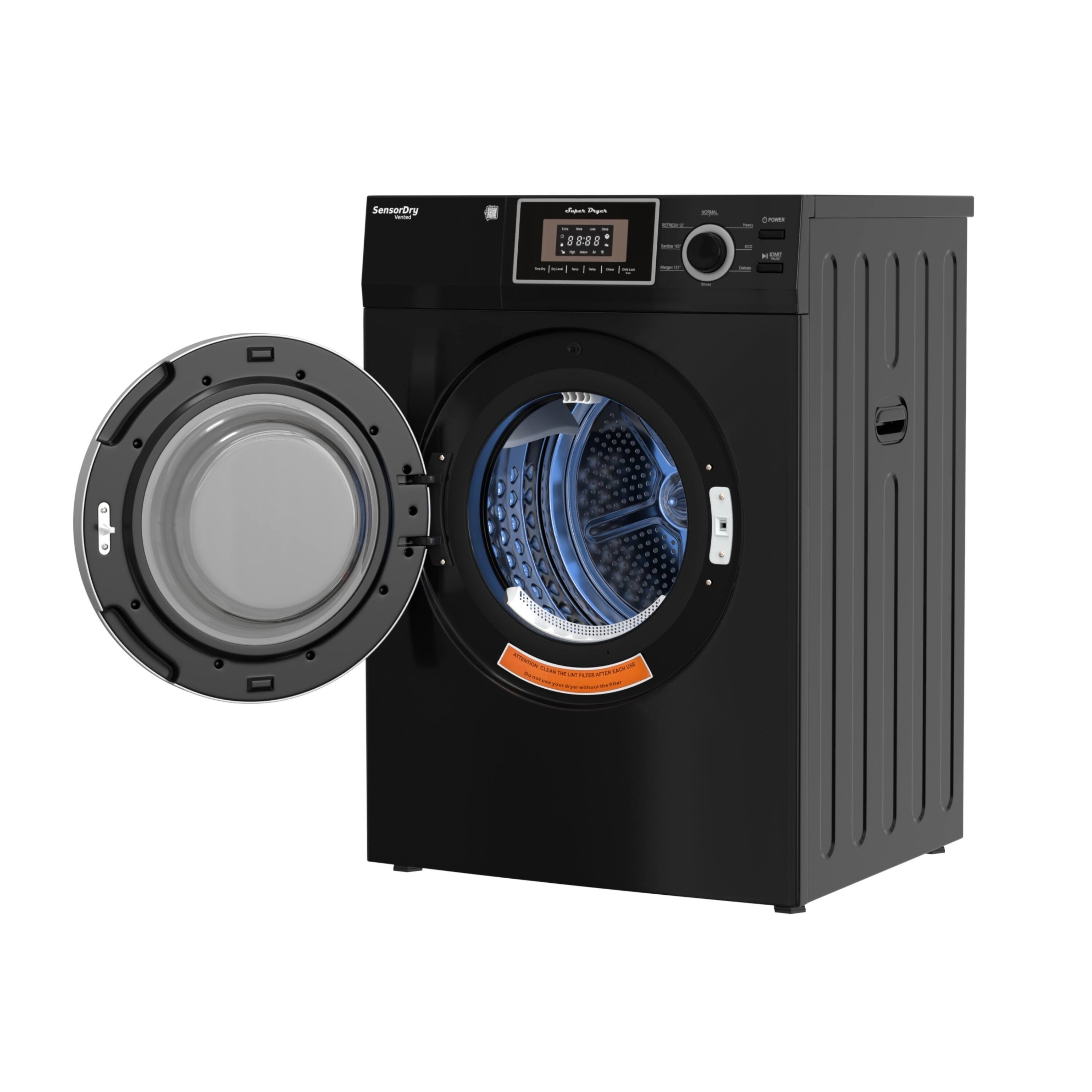

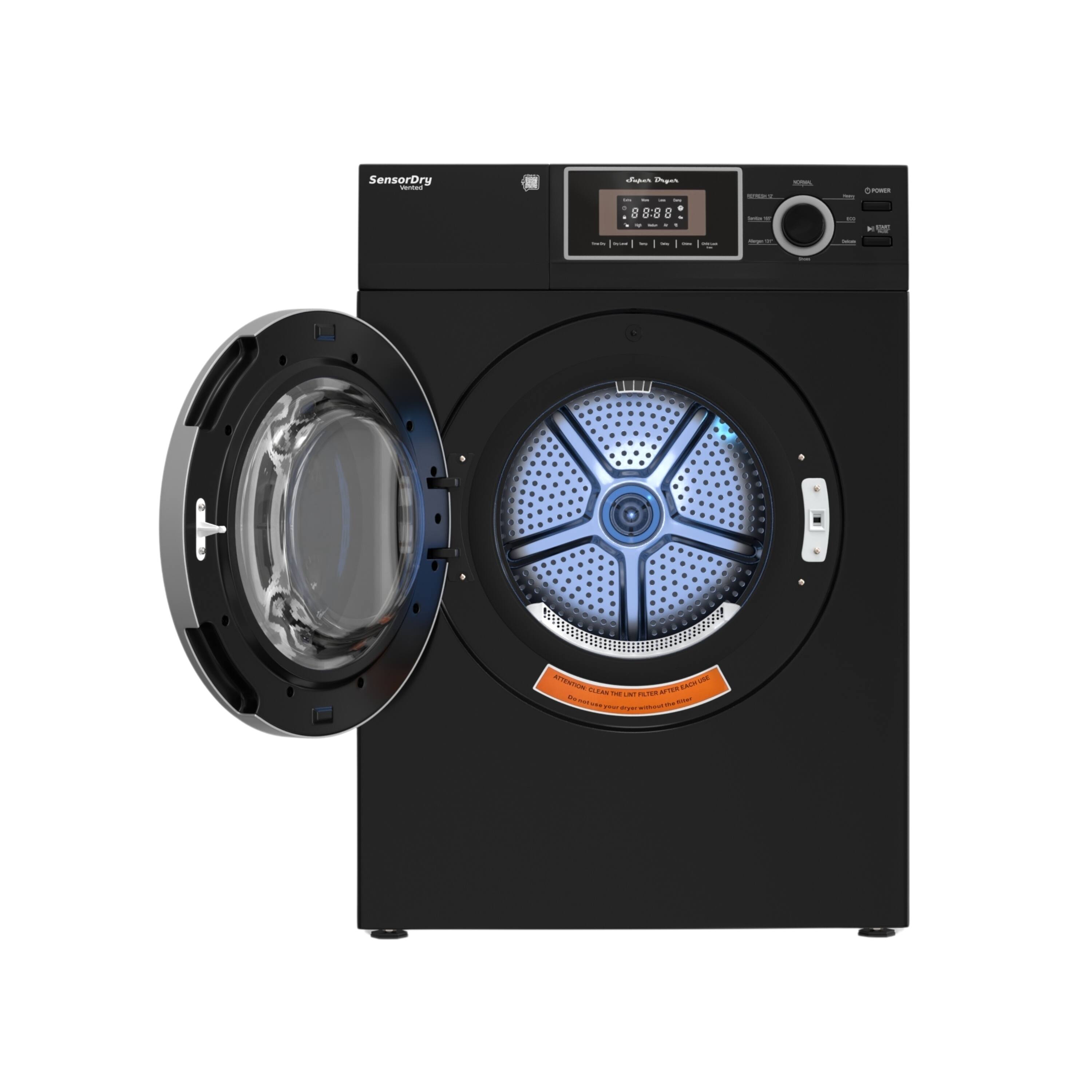

Equator - ED 866 DL 24 in Deluxe Vented Dryer 4 Cu Ft 18 lbs Sanitize Washer Direct Line Socket Stackable 220V - Black
Color
BlackRelated Item
Specifications
- Color FinishBlackProduct Height33.5 inchesProduct Width23.6 inchesProduct Depth22 inchesDepth With Door Open39 inchesCapacity3.1 cubic feet
- Key Specs
- Color Finish: Black
- Product Height: 33.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 39 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 3.1 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Matching Washer Model Number: EW 822, EW 826
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)

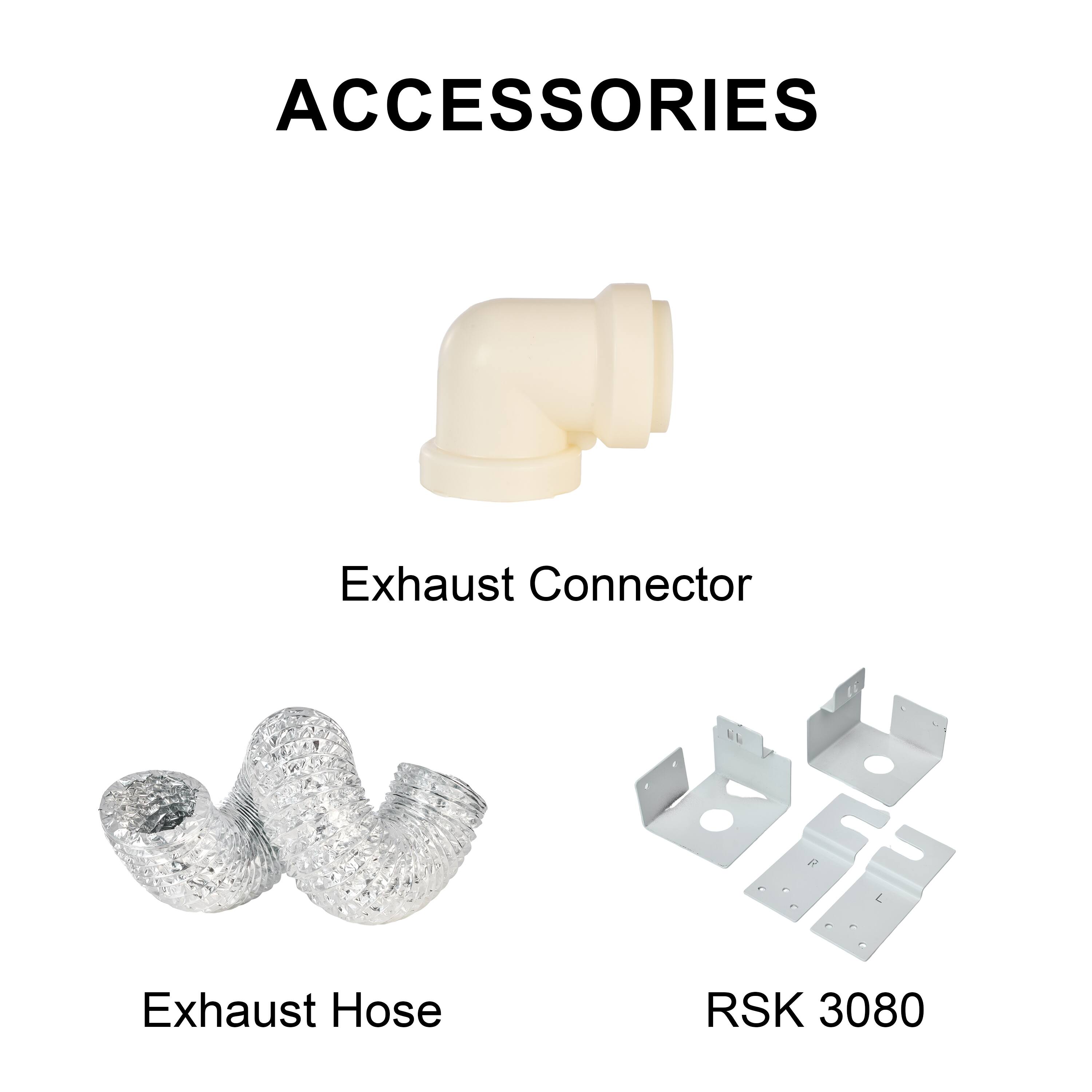

- Stacking Kit Model Compatibility: RSK 3080
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Equator
- Model Number: ED 866 DL B
- Product Name: Equator ED 866 DL 24 in Deluxe Vented Dryer 4 Cu Ft 18 lbs Sanitize Washer Direct Line Socket Stackable 220V
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 33.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 39 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 75 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 3.1 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): true
- Drying Type: Vented (Vented dryers take in room temperature air, heat it to dry clothing, then exhaust the resulting moisture-laden air outside through a duct, and typically have shorter trying times than ventless dryers. Ventless dryers (condenser and heat pump) do not require external ventilation. Instead, condensers cool the warm air and drain or store the resulting water. Heat pump systems reheat the cooled air for another cycle. Overall, ventless dryers are more energy efficient than vented.)
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Rear
- 4-Way Venting: true (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Touchscreen, Touchpad
- Control Location: Front panel
- Display Type: LED
- Compact Design: true
- Drum Material: Stainless steel
- Window: true
- Cycle
- Number Of Drying Cycles: 8

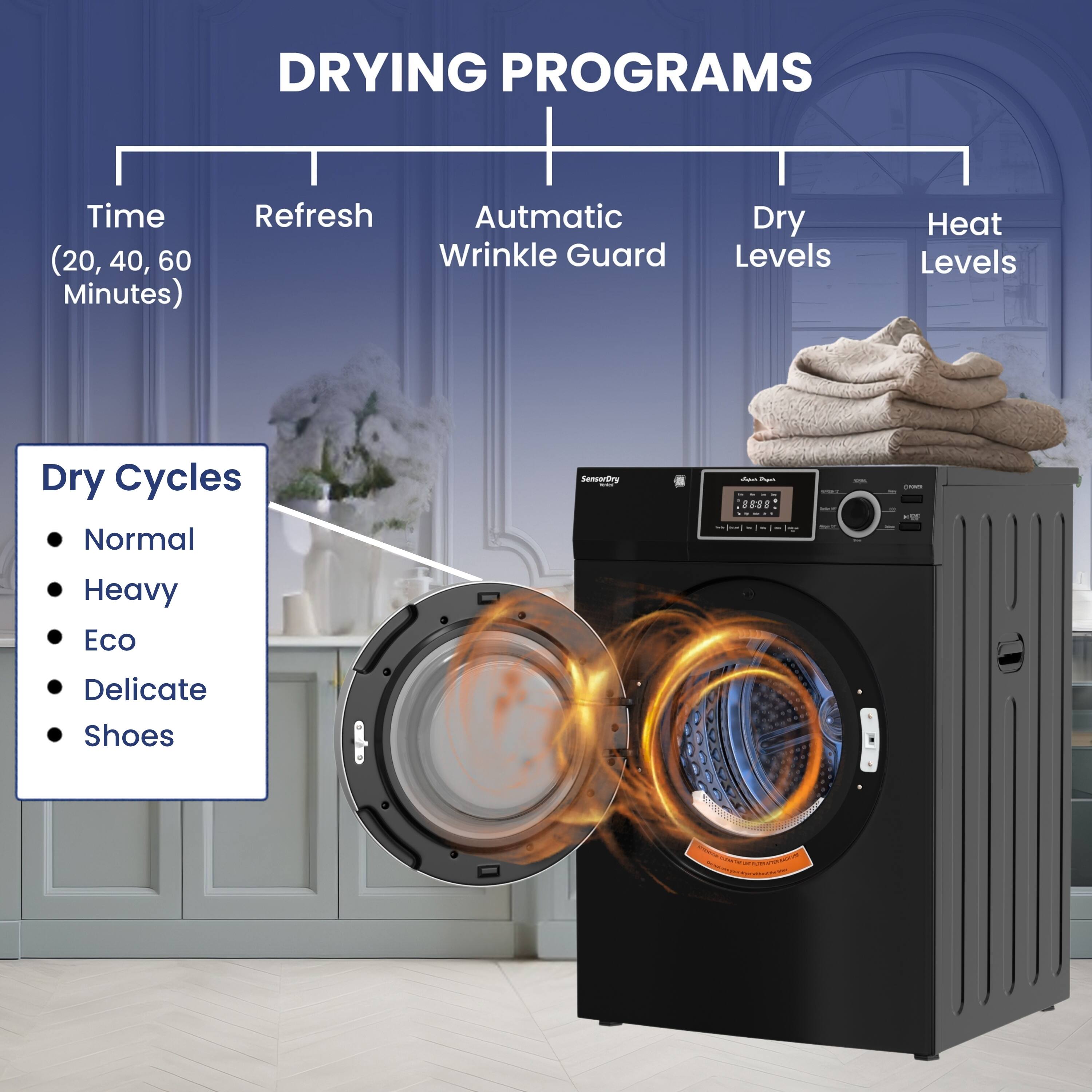

- Drying Cycles: Normal Heavy Eco Delicate Shoes Allergen (131°) Sanitize (165 °) Refresh (12 " ) (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Programs: Sensor Dry Time Dry (20, 40, 60 Minutes) Automatic Wrinkle Guard Settings/Options: Automatic Temperature Control Delay Start Chime ON/Off
- Number of Temperature Settings: 7
- Temperature Settings: Dry Levels: Extra, More, Less, Damp - Heat Levels: High, Medium, Air
- Compatibility
- Matching Washer Available: true
- Matching Washer Type: Front load
- Matching Washer Model Number: EW 822, EW 826
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Included: true
- Stacking Kit Model Compatibility: RSK 3080
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Filter Info
- Lint Filter Full Indicator: true
- Electrical
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 110 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- NSF Listed: true (Meets the National Sanitation Foundation's standards for public health protection.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 747037910390

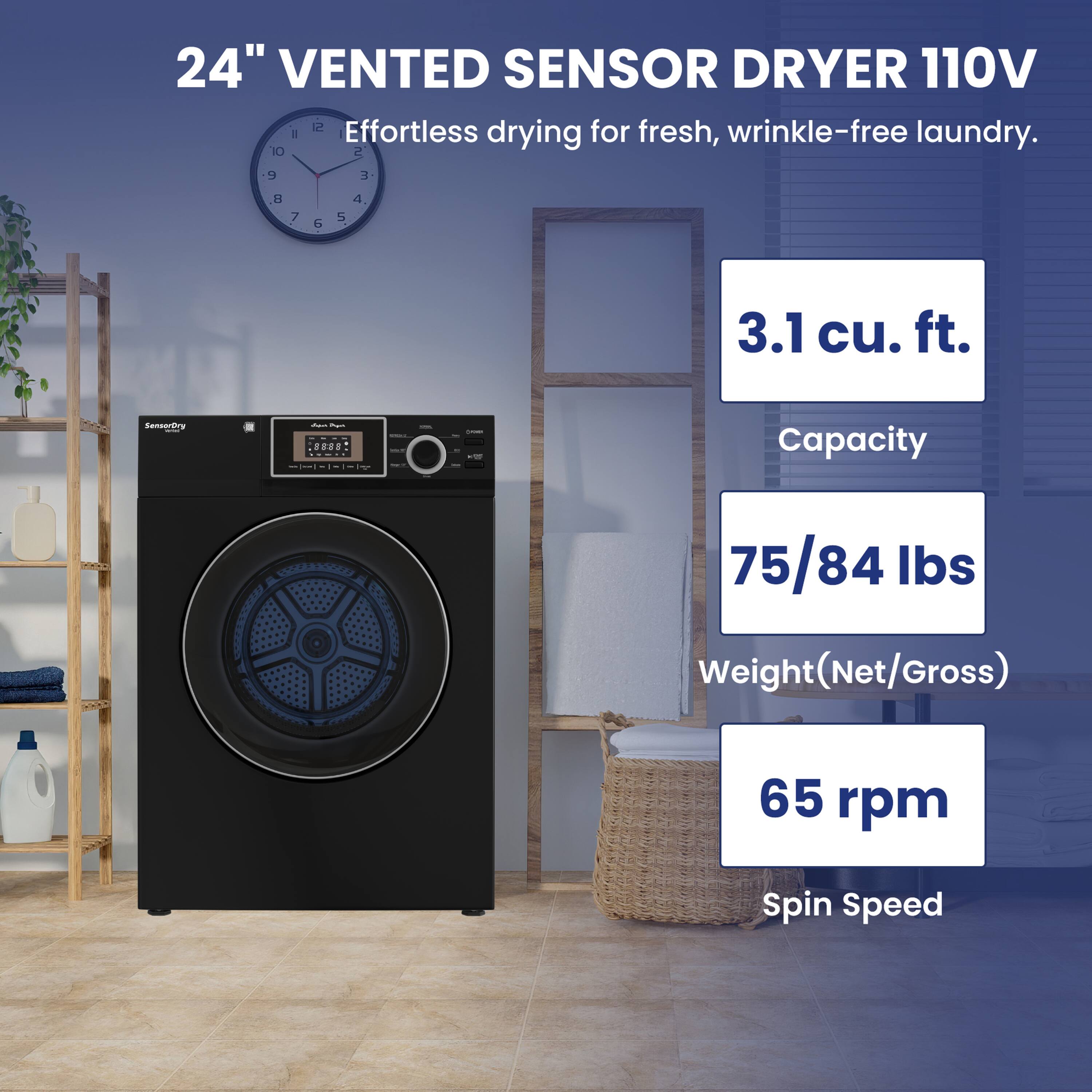

The Equator ED 866 DL is an intuitive, vented dryer that treats garment preservation as an art form, utilizing advanced sensor technology to ensure everything from heavy towels to delicate sneakers receives perfectly calibrated care. This compact powerhouse features 15 specialized programs—including sanitize, allergen, and refresh cycles—designed to eliminate wrinkles and protect fabric integrity while efficiently drying loads up to 13 lbs. With thoughtful design elements like a reversible door for flexible installation and an LED-lit drum for total visibility, the machine seamlessly blends high-performance precision with user-centric grace, transforming a standard household chore into a sophisticated, effortless experience.

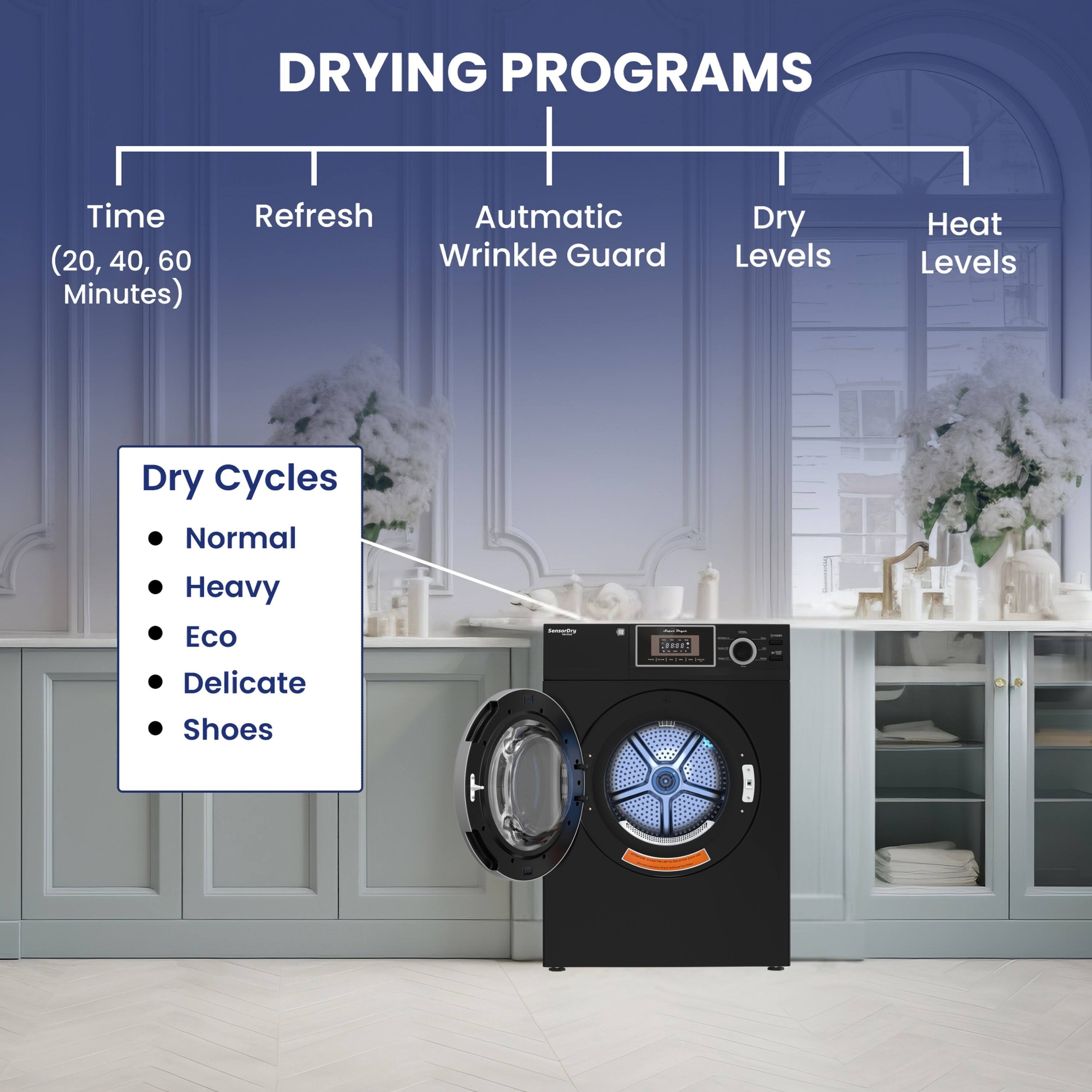

- 15 Specialized Programs with Smart Sensors: This machine offers a comprehensive suite of cycles—including Normal, Heavy, ECO, Delicate, and Time Dry—alongside advanced health and maintenance options like Sanitize (165°F), Allergen (131°F), Shoes, and Refresh, all of which work in tandem with Sensor Dry Technology to automatically detect moisture levels for perfectly dried, protected fabrics every time.

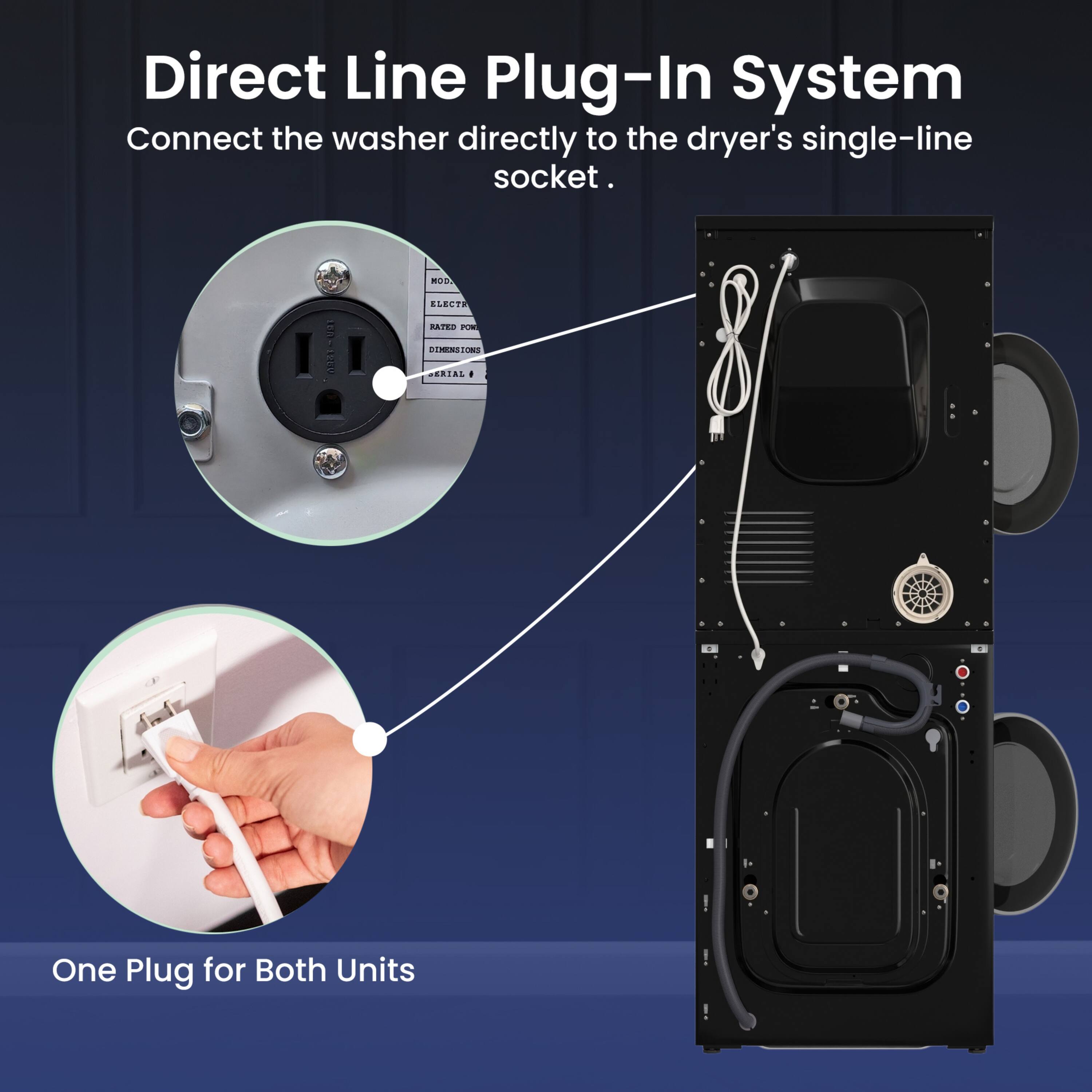

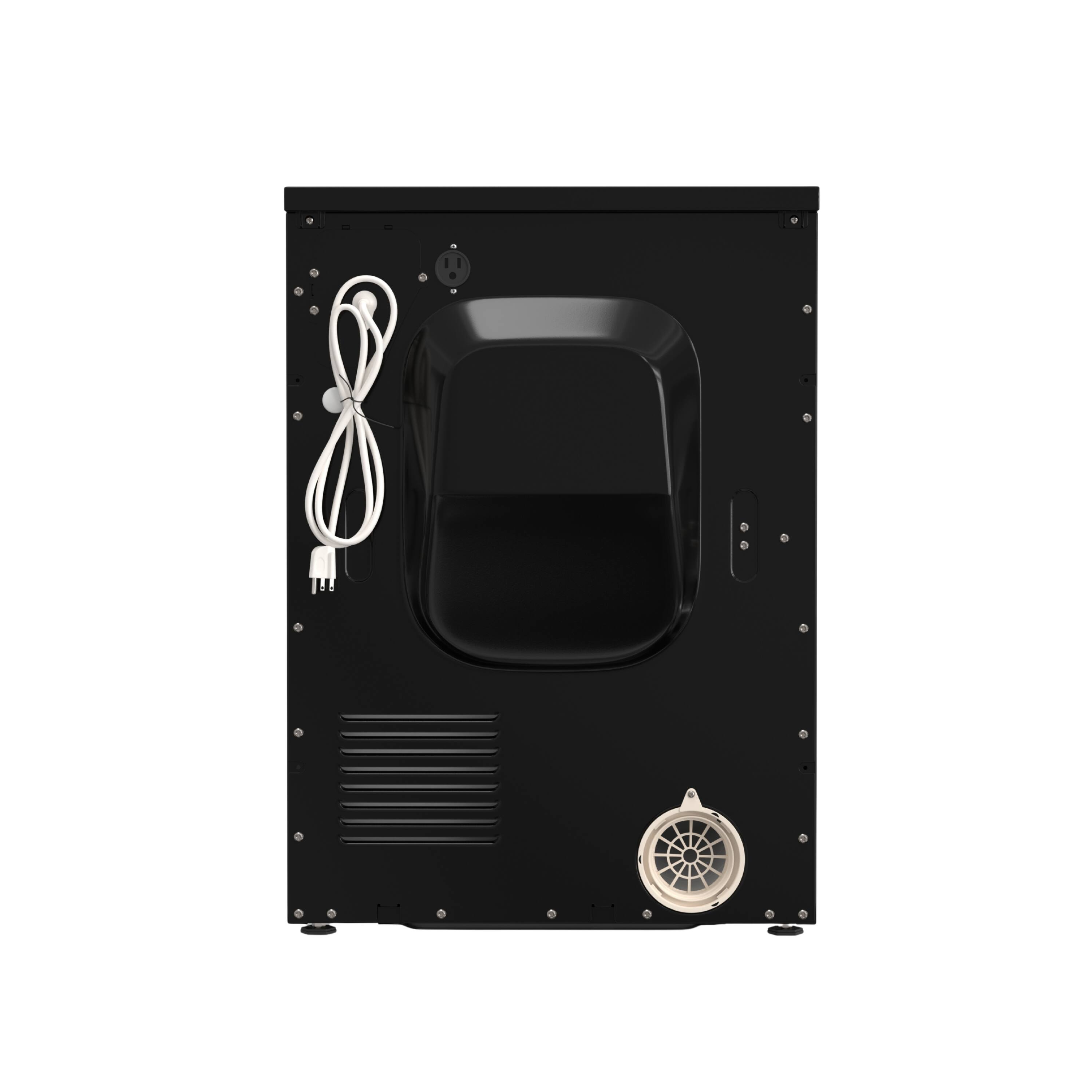

- Single-Plug Direct Line System: Simplify your installation and improve safety with the Direct Line system. This unique feature allows you to connect your washer directly into the dryer’s single-line socket, powering both units from a single 110V/1200W plug. This reduces cord clutter and ensures a safer, more streamlined electrical setup for small spaces.
- Deep Hygiene: Sanitize & Allergen Cycles: Protect your home with high-heat cycles. The Sanitize cycle (165°F) provides deep disinfection for baby items, while the Allergen cycle (131°F) targets dust mites. Use the included drying rack for delicate items or footwear.

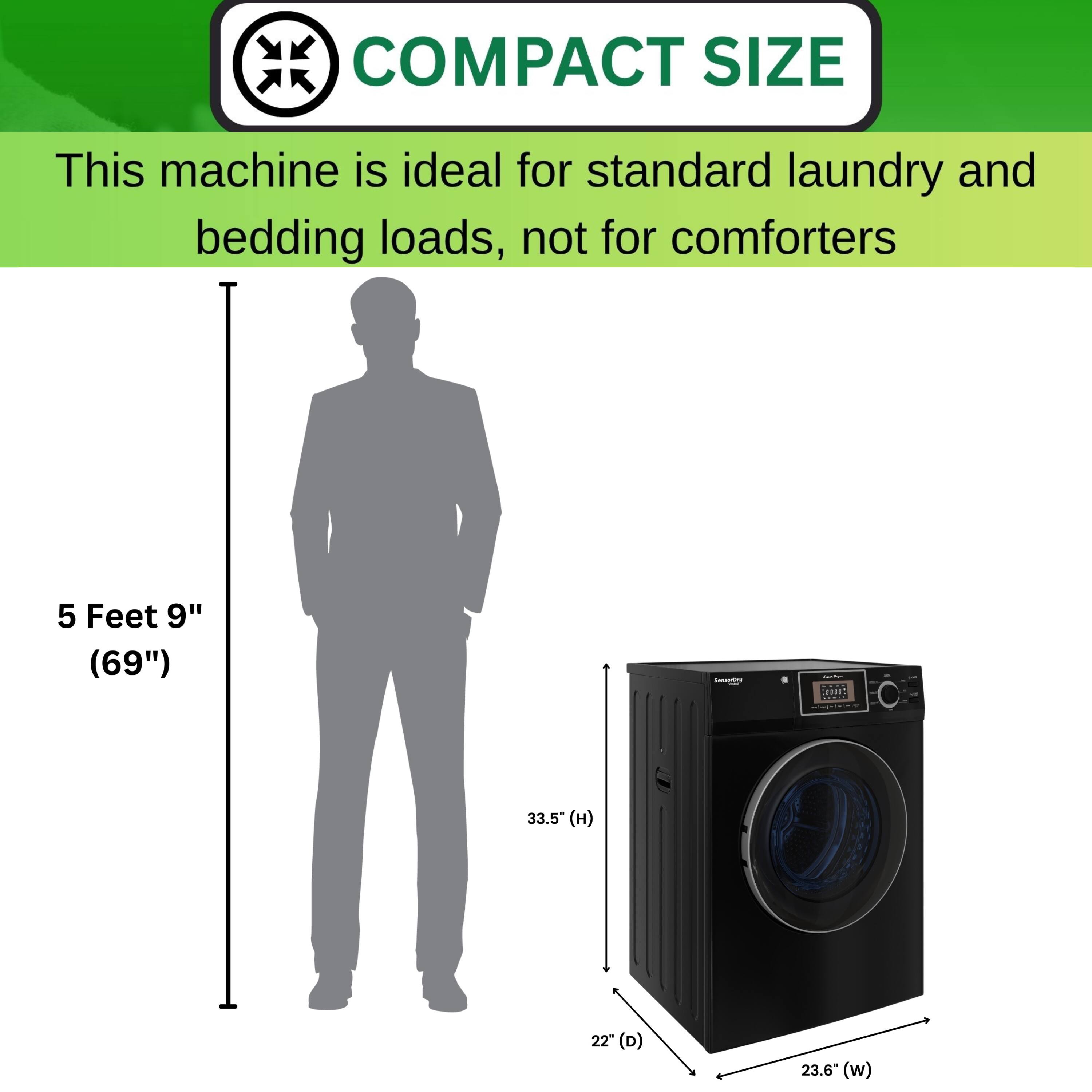

- Flexible, Space-Saving Design: At 33.5 x 23.6 x 22 inches, this 3.1 cu. ft. (13 lbs) dryer fits anywhere. Features a Reversible Door for custom layouts and Adjustable Feet for a perfectly level, secure installation in mobile environments like RVs.

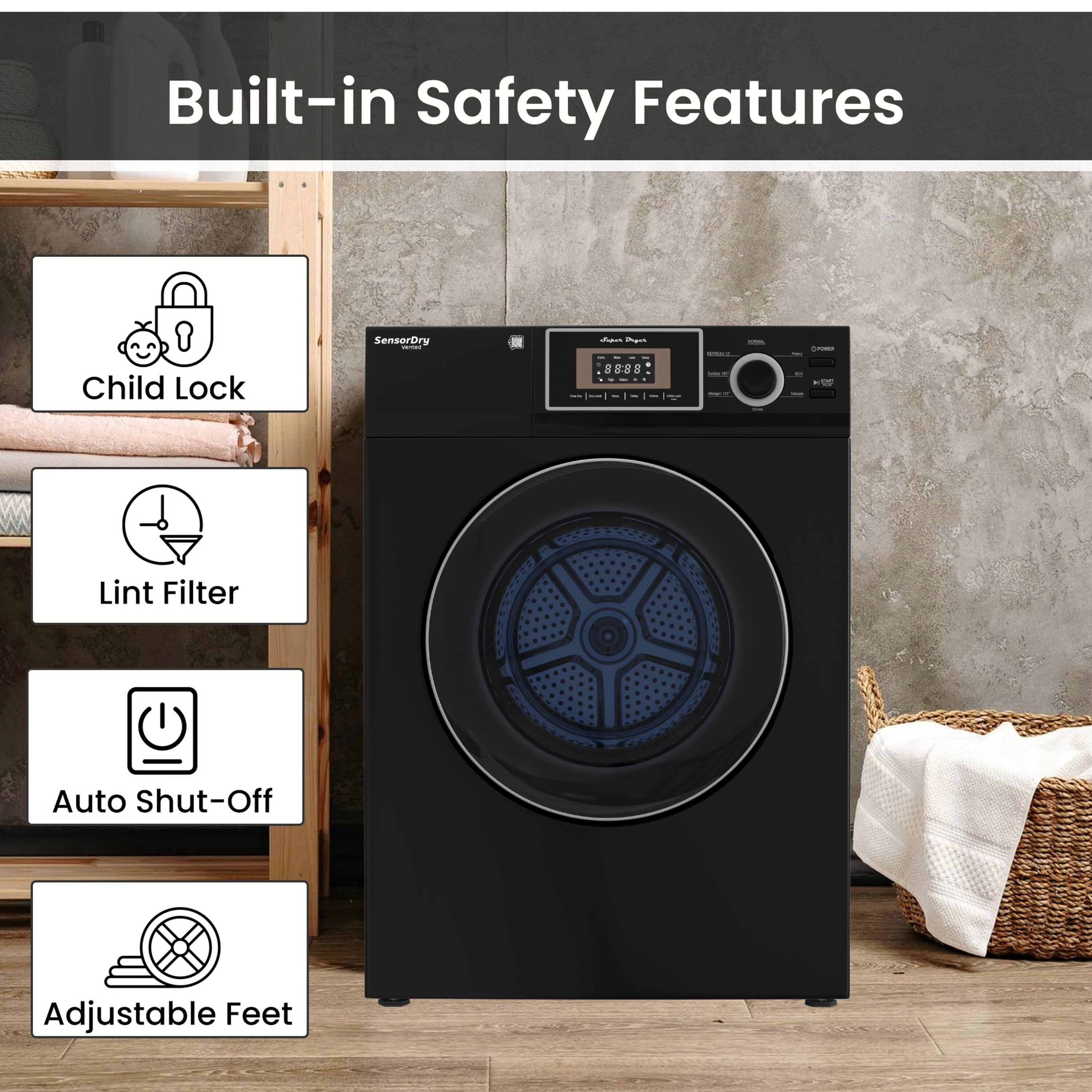

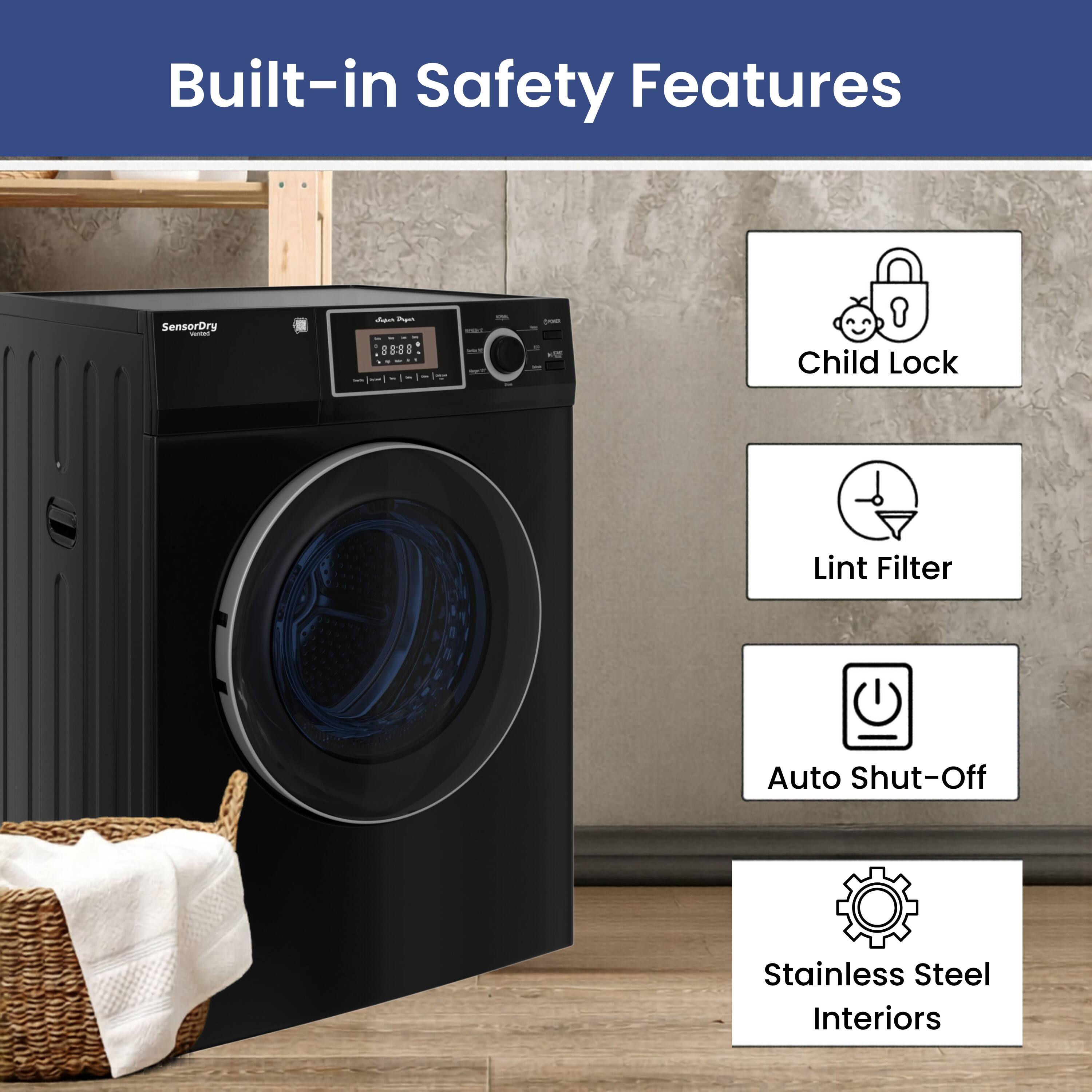

- Modern Convenience & Enhanced Safety Suite: Stay informed with an LED Display, Interior Drum Light, and Onboard Diagnostics. Safety is built-in with a Child Lock, Lint Filter Reminder, Auto Shut-Off, and a complete installation kit (exhaust hose and elbow).
