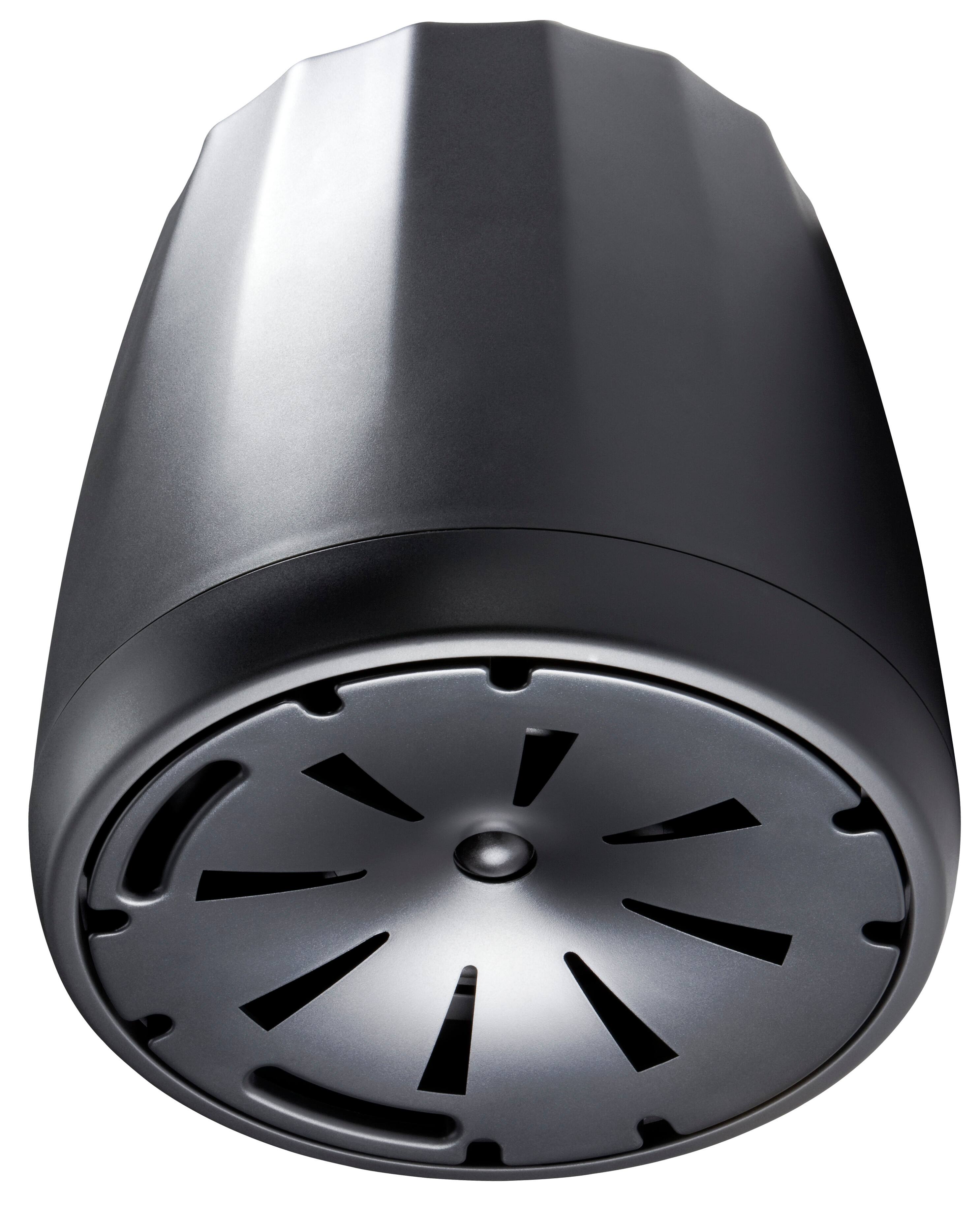

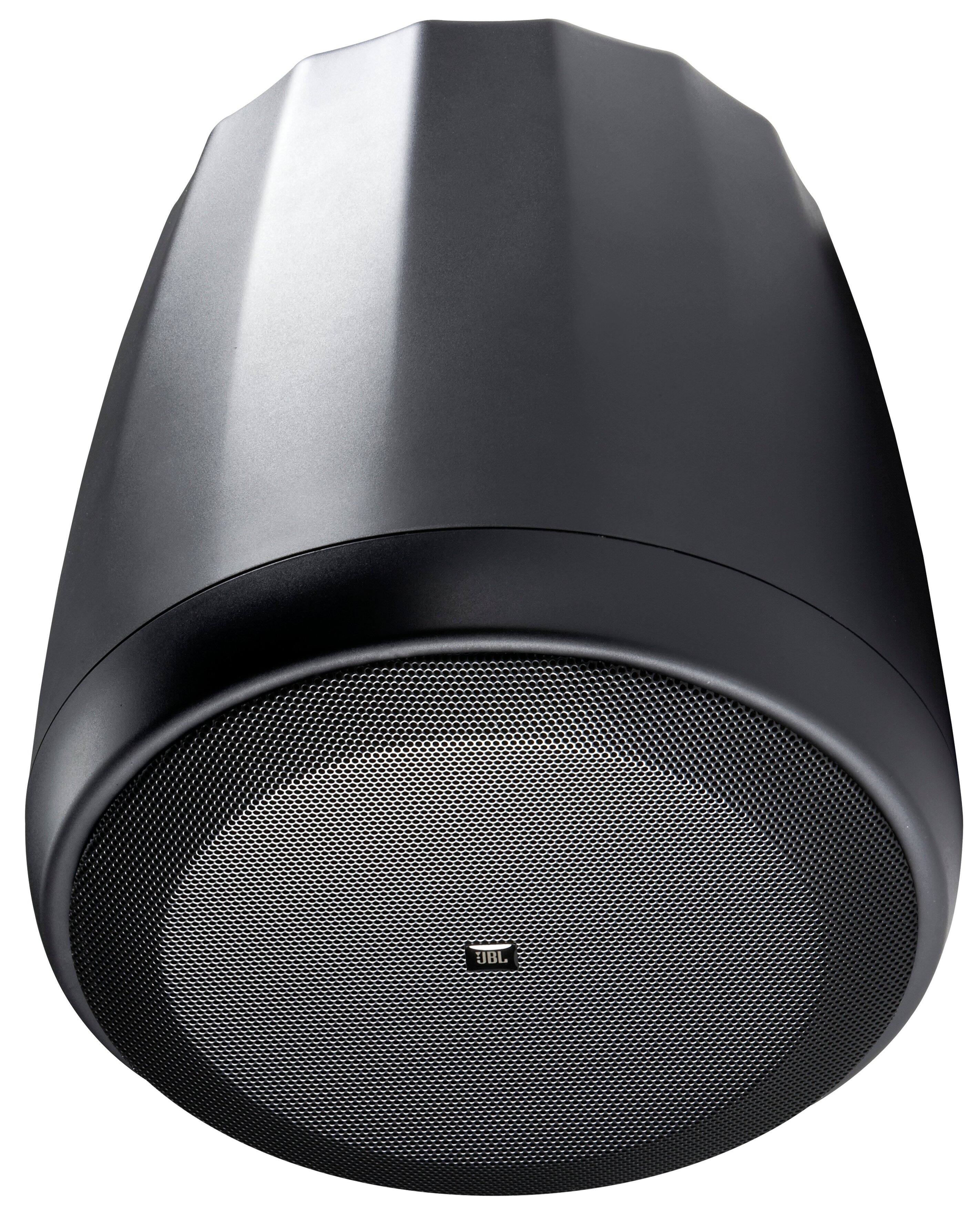

JBL - Control C67P/T 6.5" 150W 8 Ohm and 70V/100V Full-Range Pendant Speaker-Pair - Black
Specifications
- Speaker TypeIn-Ceiling, LandscapeRMS Power150 watts
- Key Specs
- Speaker Type: In-Ceiling, Landscape
- RMS Power: 150 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: C67P/T
- Product Name: Control C67P/T 6.5" 150W 8 Ohm and 70V/100V Full-Range Pendant Speaker-Pair
- Color: Black
- Audio
- Speaker Type: In-Ceiling, Landscape
- Enclosure Type: Bass reflex
- RMS Power: 150 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 300 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 58 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 18 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 90 decibels
- Tweeter Type: Dome
- Woofer Type: Cone
- Number of Speakers: 2
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Woofers: 1
- Woofer Size: 6.5 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Banana Jack/Screw Terminals
- Features
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 13.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 12.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 11.5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 050036903899
The Control 67P/T is a high output, full-range, two-way pendant-type loudspeaker that provides superb sound reproduction and very consistent, wide coverage for rooms with open architecture ceilings and other locations where a pendant form factor is desired. JBL’s patent-pending Radiation Boundary Integrator(RBI) technology, adapted from the groundbreaking VERTEC Series of line array loudspeakers, delivers consistent coverage of the listening area. Combining an extra-large 280 mm (11 in) diameter waveguide with low-frequency projection apertures, the two coaxially-mounted drivers provide a seamless integration of coverage, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality. The wide 120°coverage pattern allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance. The Control 67P/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct operation.

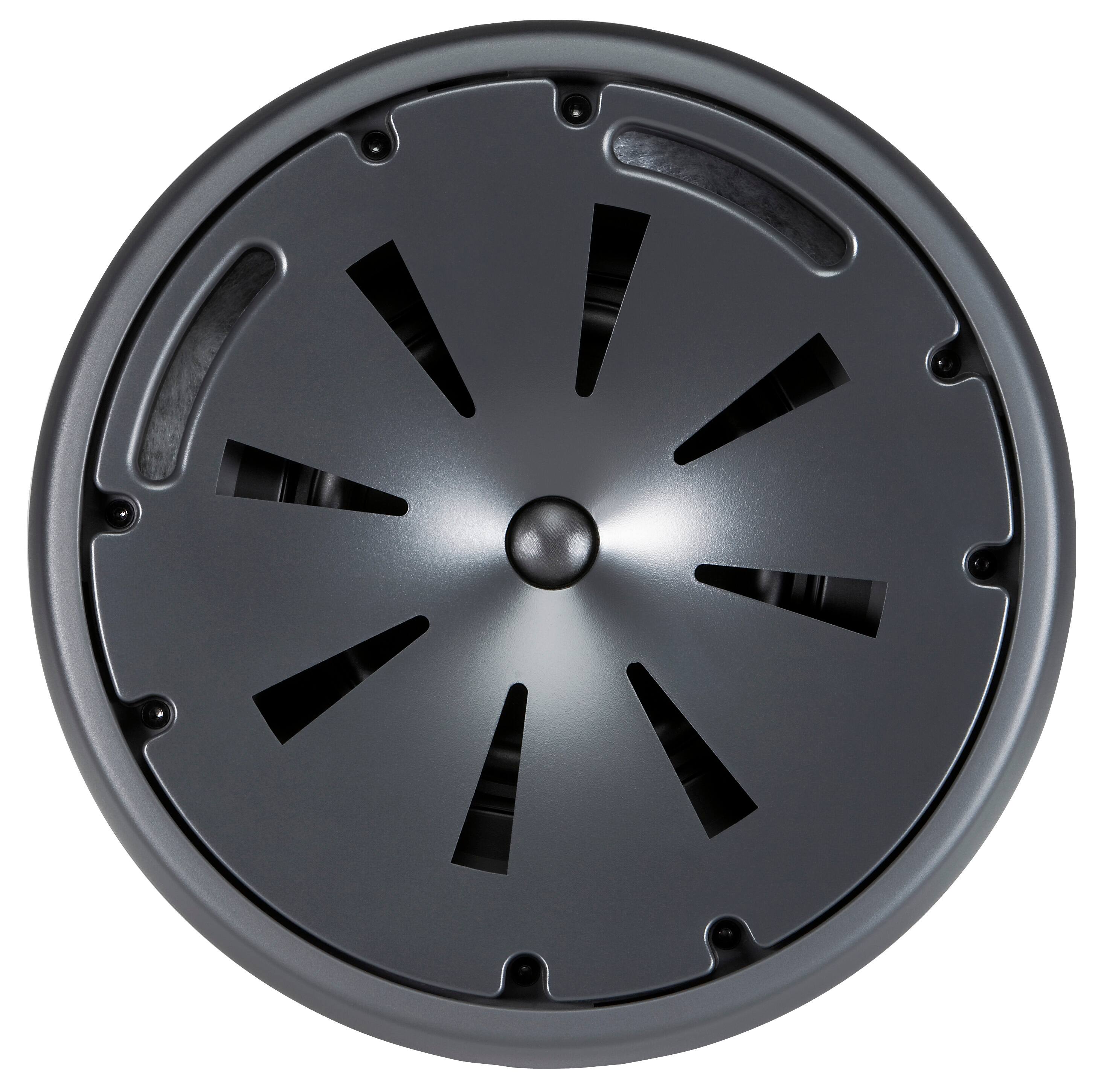

- RBI Radiation Boundary Integrator Technology: JBL’s exclusive conical Radiation Boundary Integrator (RBI) technology provides consistent and wide 120° coverage of the listening area.
- Power Capacity: 150 Watts Continuous Program Power; 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
- Coaxial design: Coaxial design featuring 165 mm (6½ in) woofer and 25 mm (1 in) soft-dome tweeter.
- 8 ohm and 70V/100V operation: The Control 67P/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct operation.
- IP44 Environmental rating: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating
- Suspension Hardware: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips
- SPL Rating @ 1M: 109 dB continuous pink noise, 115 dB peak
- Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
- RBI Radiation Boundary Integrator Technology: JBL’s exclusive conical Radiation Boundary Integrator (RBI) technology provides consistent and wide 120° coverage of the listening area.
- Power Capacity: 150 Watts Continuous Program Power; 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)
- Coaxial design: Coaxial design featuring 165 mm (6½ in) woofer and 25 mm (1 in) soft-dome tweeter.
- 8 ohm and 70V/100V operation: The Control 67P/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct operation.
- IP44 Environmental rating: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating
- Suspension Hardware: Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips
- SPL Rating @ 1M: 109 dB continuous pink noise, 115 dB peak
- Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Whats Included
- 2 Speakers
- 2 Suspension Cables
- 2 Locking Pins
- 2 Rubber Covers for Locking Pins
- 2 Speakers
- 2 Suspension Cables
- 2 Locking Pins
- 2 Rubber Covers for Locking Pins
Q: What is the weight of the speaker?
A: The product weight is 11.5 pounds.
Q: Why is the speaker suitable for rooms with open architecture ceilings?
A: The Control 67P/T speaker provides very consistent, wide coverage which makes it a suitable choice for rooms with open architecture ceilings.
Q: What is the speaker's dimension?
A: The speaker's dimensions are 12.3 inches in depth, 13.8 inches in height, and 12.3 inches in width.
Q: What is the maximum power handling capacity of the speaker?
A: The peak power handling capacity of the speaker is 300 watts.
Q: How does the Radiation Boundary Integrator® technology affect the sound quality?
A: JBL’s patent-pending Radiation Boundary Integrator®(RBI) technology delivers consistent coverage of the listening area, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality.
Q: Can the speaker be used for both 8-ohm and 70V/100V systems?
A: This speaker can be used with both 8-ohm and 70V/100V systems.
Q: What is the purpose of the multi-tap transformer in the speaker?
A: The purpose of the multi-tap transformer is for use on 70V/100V distributed loudspeaker lines, and it is switchable for 8-ohm voice-coil direct operation.
Compare similar products
The Control 67P/T is a high output, full-range, two-way pendant-type loudspeaker that provides superb sound reproduction and very consistent, wide coverage for rooms with open architecture ceilings and other locations where a pendant form factor is desired. JBL’s patent-pending Radiation Boundary Integrator(RBI) technology, adapted from the groundbreaking VERTEC Series of line array loudspeakers, delivers consistent coverage of the listening area. Combining an extra-large 280 mm (11 in) diameter waveguide with low-frequency projection apertures, the two coaxially-mounted drivers provide a seamless integration of coverage, resulting in extremely even pattern control and coverage where all listeners hear a consistent, high-fidelity sound quality. The wide 120°coverage pattern allows for the use of fewer speakers, reducing the cost of the installed system without sacrificing performance. The Control 67P/T contains a high-quality 60 Watt multi-tap transformer for use on 70V/100V distributed loudspeaker lines, and is switchable for 8-ohm voice-coil direct operation.

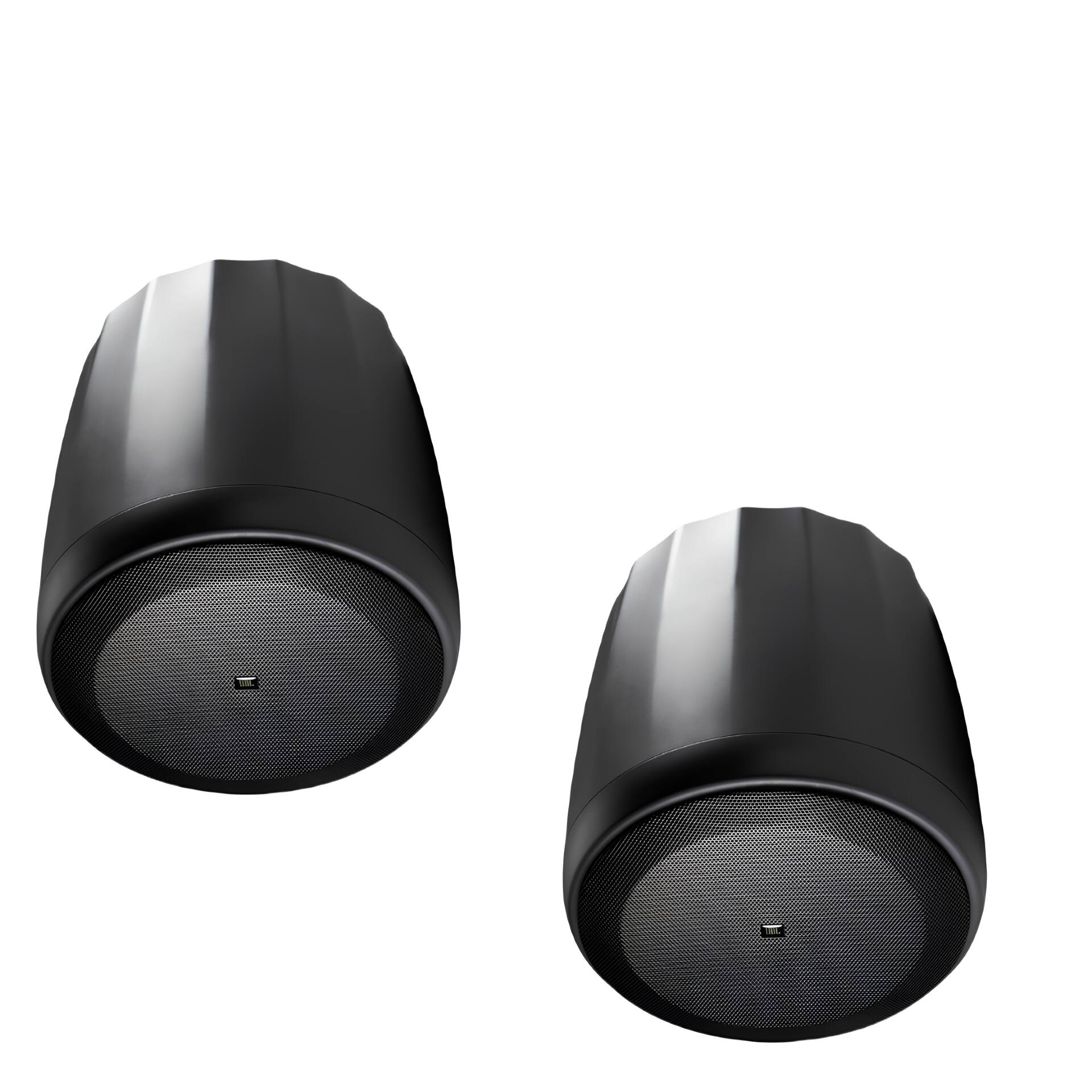

The Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, health clubs, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 200 mm (8 in) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 50 mm (2 in) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty cycle, working conditions. The Control 60PS/T may be driven by itself (or with other subwoofers) on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The included passive crossover also provides high passed satellite outputs for use with either two or four satellite loudspeakers (not for one or three satellite speakers), resulting in a full-range, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. A 100 Watt multi-tap, wide-bandwidth, low saturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system or as a direct low-impedance 8ohm speaker. A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems.
