Kanto - R600 Recessed In-Wall TV Mount for 65"- 90" TVs - Black
Related Item
About This Item
- General
- Brand: Kanto
- Model Number: R600
- Product Name: Kanto R600 Recessed In-Wall TV Mount for 65"- 90" TVs
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Flush (The view of the product when seen attached to a wall or surface.)
- Mount Style: Fixed
- Indoor or Outdoor Use: Indoor
- Mounts to: Wood (The material or substance the device can attach to.)
- Motorized: false
- Adjustable Height: false
- Cord Storage: true
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 135 pounds (The maximum load that can be supported by the product.)
- Compatibility: Kanto
- Mount Location: Wall
- Maximum Television Size: 90 inches
- Minimum Television Size: 65 inches
- VESA Wall Mount Standard: 800mm x 600mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 24.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 18.7 inches
- Product Weight: 45.2 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 0 inches (The minimum distance from the product to the wall as the product is mounted.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5 Year Limited Warranty
- Warranty - Labor: None
- Other
- UPC: 800152721668

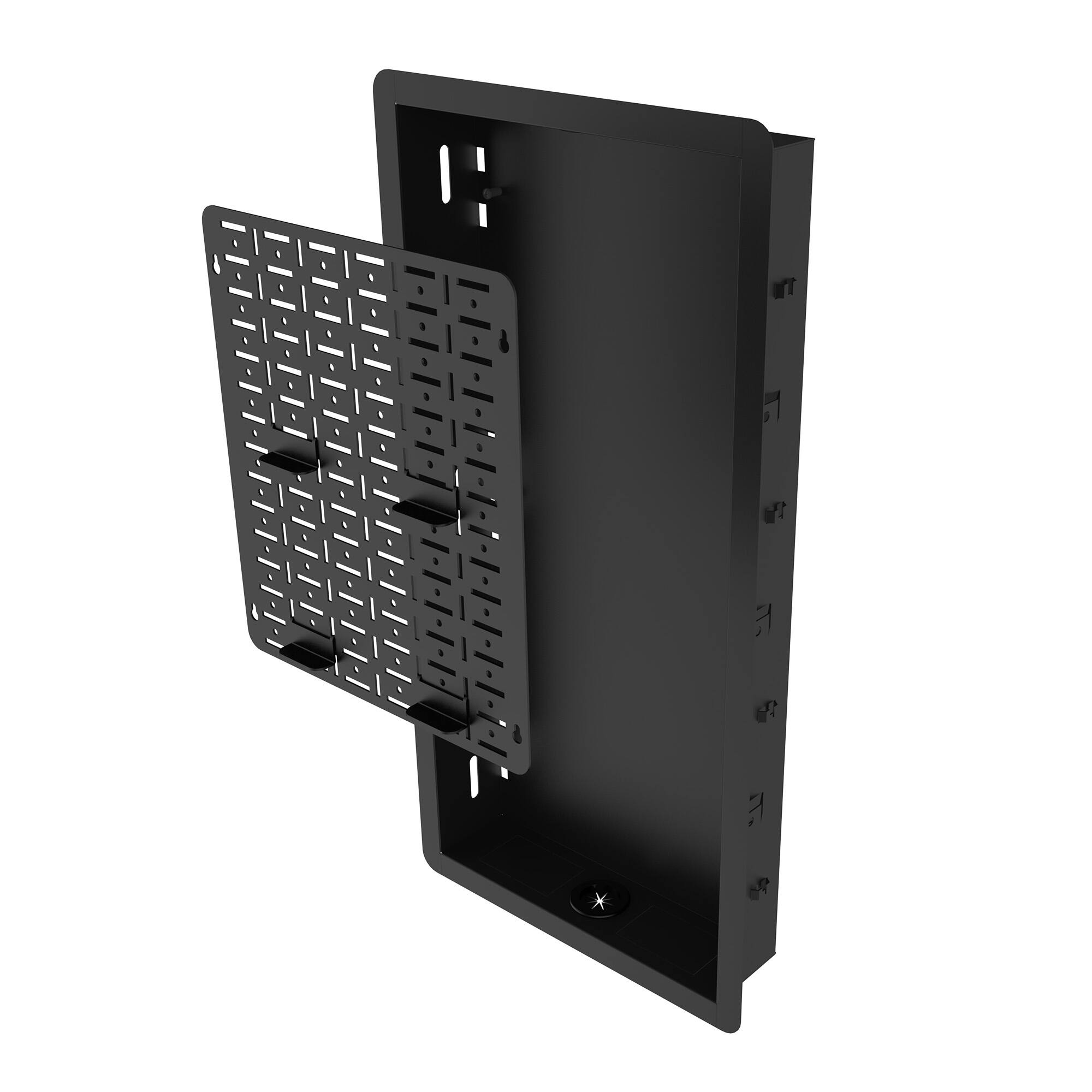

Effortless EleganceR600 features an oversized in-wall box that allows cable set-top boxes and TV breakout boxes to be stored in the wall on the included accessory plate. Two TV mounting interfaces are provided – one with a no gap profile for TVs with small VESA patterns and one with support for extra large panels. Metal knockouts allow you to easily run power into the box while rubber grommets handle all other cabling. Durable metal cable management clips and zip tie mounting points take care of messy cables. The game-changing foldable new-construction box allows contractors to run cabling and install drywall keeping the mount safe and scuff-free in its packaging until the job is complete.FeaturesFits TVs from 65" to 90" & Supports up to 135 lbs.Recessed DesignExtends Up To 18” From The WallTilt & SwivelIntegrated Cable ManagementPerfectly FlushR600 is a true zero gap TV mount that allows TVs with a VESA pattern of 300×300 or less to sit directly against the wall for a completely flush look.800 × 600 VESA800 × 600 VESA patterns are supported with provided large VESA interface. Using this increases the profile to 1.1″ (2.8 cm) from the wall.Out of SightA removable accessory plate allows easy attachment of TV breakout boxes or other accessories. Simply connect them to the plate then place the entire unit within the spacious in-wall box for complete concealment behind your TV.Contractor FriendlyA foldable in-wall template for new construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed.Power Where You WantMetal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall.Clean CablingMetal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess.What&r
- Premium Audio & Video Accessory: Flush in-wall design allows TVs with a VESA pattern of 300×300 or smaller to sit directly against the wall for a completely flush look
- PERFECT PLACEMENT: Get your TV perfectly flush against the wall with the included 300x300 VESA plate, or dial in the perfect height and horizontal offset of your TV with the larger 800x600 interface
- CONTRACTOR FRIENDLY: A foldable, in-wall template for new-construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed
- POWER WHERE YOU WANT: Metal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall
- CLEAN CABLING: Metal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess
- Premium Audio & Video Accessory: Flush in-wall design allows TVs with a VESA pattern of 300×300 or smaller to sit directly against the wall for a completely flush look
- PERFECT PLACEMENT: Get your TV perfectly flush against the wall with the included 300x300 VESA plate, or dial in the perfect height and horizontal offset of your TV with the larger 800x600 interface
- CONTRACTOR FRIENDLY: A foldable, in-wall template for new-construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed
- POWER WHERE YOU WANT: Metal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall
- CLEAN CABLING: Metal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess
Whats Included
- Kanto R600 with product manual
- Kanto R600 with product manual
Reviews
This product doesn't have any reviews yet.
Compare similar products
Effortless EleganceR600 features an oversized in-wall box that allows cable set-top boxes and TV breakout boxes to be stored in the wall on the included accessory plate. Two TV mounting interfaces are provided – one with a no gap profile for TVs with small VESA patterns and one with support for extra large panels. Metal knockouts allow you to easily run power into the box while rubber grommets handle all other cabling. Durable metal cable management clips and zip tie mounting points take care of messy cables. The game-changing foldable new-construction box allows contractors to run cabling and install drywall keeping the mount safe and scuff-free in its packaging until the job is complete.FeaturesFits TVs from 65" to 90" & Supports up to 135 lbs.Recessed DesignExtends Up To 18” From The WallTilt & SwivelIntegrated Cable ManagementPerfectly FlushR600 is a true zero gap TV mount that allows TVs with a VESA pattern of 300×300 or less to sit directly against the wall for a completely flush look.800 × 600 VESA800 × 600 VESA patterns are supported with provided large VESA interface. Using this increases the profile to 1.1″ (2.8 cm) from the wall.Out of SightA removable accessory plate allows easy attachment of TV breakout boxes or other accessories. Simply connect them to the plate then place the entire unit within the spacious in-wall box for complete concealment behind your TV.Contractor FriendlyA foldable in-wall template for new construction can be temporarily placed between studs letting contractors plan cabling and drywall while the mount sits safely in its packaging until needed.Power Where You WantMetal knock-outs allow for the installation of power outlets inside the box so you can keep everything needed to power your equipment within the wall.Clean CablingMetal cable management clips run along the length of the articulating arm while rubber grommets within the box help you to route your cabling without any mess.What&r
A TV wall mount with both full motion capabilities and an ultra low-profile design. The recessed wall mount fits between standard 16" studs and safely and securely mounts to the inside of the studs. It can safely extend up to 26.8" for a perfect view from anywhere in the room. Utilize the tilt and swivel functionalities to create the ultimate viewing experience.
Attach your television to the wall with this MantelMount Pro pull-down TV mount. The heavy-duty 3mm steel construction with enhanced stabilization features supports larger televisions up to 90 inches or 115 lbs. This MantelMount Pro pull-down TV mount has a 60-degree swivel and 29-inch vertical adjustment to let you optimize the viewing angle.
The VIWLF128-B2 Large In-Wall Full Motion mount provides the optimal viewing experience with space for AV components built in. This full motion mount extends 28" with up to 67° of swivel left and right and sits just .5" from the wall when recessed. Mount arms fold into a 20" enclosure that can double as AV storage for streaming devices switches and more. With knockouts to add power (not included) and cable management The VIWLF128 offers a stylish industrial design that achieves the ultimate all-in-one AV experience.FeaturesFor TVs 42"-85"fits between two 16" on center studsVirtual Axis™ finger-tip tilt to reduce glareSwivels up to 67° left and right (with 65” TV)28" of extension and sits just 0.5” from the wall when recessedSix components attachment slots with included VelcroClick-lock mechanismWhat's in the BoxVIWLF128 Premium Large In-Wall Full Motion TV Mount for 42"-85" TVsInstallation HardwareManualSpecificationsModel Code: VIWLF128UPC Code: 793795538741Product Width: 24.90"Product Height: 20.80"Product Depth: 28.00"TV Size Range: 42" - 85"Maximum TV Weight: 135lbsUniversal Mounting: Yes (100 x 100 through 600 x 400)Tilt: 4° / -10° (with 65” TV)Swivel: 67° / -67° (with 65” TV)Required Tools1/4" Drill Bit1/2" Socket WrenchAllen WrenchDrywall SawElectric DrillLevelPencilStud FinderTape Measure
