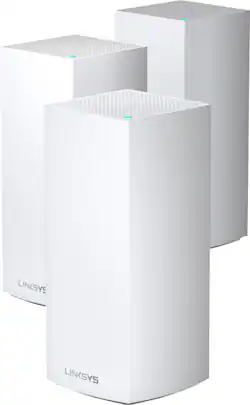

Linksys - Velop AX4200 Wifi 6 System - 3 pack
- Key Specs
- Wi-Fi Range: 8100 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 3 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 4.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Works With: Amazon Alexa, Apple HomeKit (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Linksys
- Model Number: MX12600
- Product Name: Velop AX4200 Wifi 6 System - 3 pack
- Security
- Data Encryption: true
- Encryption Type: WPA2-Personal, WPA3-Personal (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 5
- Frequency Band: 2.4 GHz, 5.0 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX, AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 8100 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Number of 2.4Ghz Streams: 2 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 6 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 3 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 3 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Linksys Mobile App
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): USB, RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 4.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Works With: Amazon Alexa, Apple HomeKit (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 9.61 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.49 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.49 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.105 pounds (The out of box weight of the item.)
- Other
- UPC: 745883809844
Linksys Velop WiFi 6 Whole Home Mesh System MX12600 is a router that delivers next-level streaming and gaming to more than 120 devices on your network. It offers a reliable connection for everyone to stream, game, and video chat without interruption. Intelligent Mesh™ Technology offers whole home coverage that’s easily expandable by adding additional nodes. With easy set up, advanced security and parental controls, MX12600 is an essential upgrade to any home.
- Powerful WiFi 6 Mesh Coverage : Intelligent MeshTM technology, combined with WiFi 6, is designed to deliver gigabit WiFi speeds to cover every corner of your home, including the backyard and outdoor smart home devices.
- Connect More Devices Than Ever Before : WiFi 6 sends and receives multiple streams of data simultaneously, providing up to 4x* more WiFi capacity to handle more mobile, streaming, gaming, and smart home devices.
- Next-Generation Speed : Faster WiFi performance for lag-free online gaming and HD streaming to any device, providing 3.5x* more capacity compared to WiFI 5.
- Built for Reliability : Linksys is a pioneer in home networking, with over 30 years of innovation going into every WiFi solution. Enjoy a worry-free connection with a 3-year warranty and outstanding tech support when you need it.
- Easy Set Up and Control : The free Linksys app makes it simple to set up, lets you access your network from anywhere, and allows you to view or prioritize which connected devices are using the most WiFi.
- Smart Security : With automatic firmware updates, parental controls, and separate guest access, Velop provides a safe, secure and up-to-date home network.
- Customer Support 24/7 : Talk to Linksys support staff whenever you need them, online or by phone.
- Works with all Internet Providers : Works with all Internet Service Providers and is 100% backwards compatible with WiFi 5 and older devices.
- Disclaimers: *As compared from 802.11ac to 802.11ax. **As compared to 2x2 WiFi 5 router at 80 MHz
Whats Included
- MX12600 (3 Linksys MX4200 WiFi 6 Mesh Routers)
- Quick Start Guide
- Ethernet Cable
- 3x Power Adapters
- Regulatory and Warranty Documentation
Product Manuals
A: Yes, all 3 nodes are identical but have their own SSID/Password/Recovery Code sticker on the bottom just in case you and 2 friends want to split these nodes up to run them separately in your respective homes. By connecting one node to your internet modem and using it to set up a new network within the Linksys App, you are designating it to be the primary node. Any other nodes you add to it will become secondary nodes. Please note that you cannot daisy-chain secondary nodes. Each secondary node must have a good connection to the primary node.
A: Yes I have noticed DNS issues and I have to reboot every week at least once, otherwise it is a good system.
A: It does work with existing AC Velop. I suggest you make the AX4200 the primary node. I was in a similar sitiuation and chose to rebuild the Wi-Fi network using the same name and password, and remove the AC nodes since these are faster and with better range
A: Actually, you can use one pack, two packs or three packs. It all depends on the size of the home and how much area you need Wifi. I would begin with a two pack. Any of the units can be used as the router, which would be the one you connect to your gateway. The other unit(s) will serve as extensions to that pack. You can buy a two pack system now and if needed, you can extend it by obtaining an additional pack. Decide now which Wifi network you wish to install. Linksys has their network wifi mesh systems in either Wifi 5 or the newer Wifi 6 standard. Hope this helps.
A: Hi. The Velop MX4000 Series Wi-Fi 6 System will only broadcast one Wi-Fi name for the entire network but, you can customize the 2.4 GHz and 5 GHz band settings.
A: Hi, Rawkfist1501. Our Linksys MX4200 now works with Apple HomeKit to add an extra layer of security to your smart home. You may use the Home app to control which services and devices your HomeKit accessories can communicate with within your network and on the internet.
A: First, it will depend where you have placed your device. I have one placed on an outside wall as close to my outbuilding as I can get ( I have the 3 device mesh system). My outbuilding is about 65 ft from the closest device. For about 50 ft or so between the buildings I get a good signal. At the outbuilding I had limited signal - sometimes it would connect and sometimes it would not or drop. I already had range extenders from my previous wifi system and when I added a range extender on the house's second floor and one in the outbuilding, I got a good signal in the outbuilding. So I would expect you should have a good signal if you are only 10 ft between the two structures. But once again it depends upon where your wifi device is located in relation to the outbuilding.
A: Yes you can, buy another pod and pick the right place for it, remember it's an indoor product.
