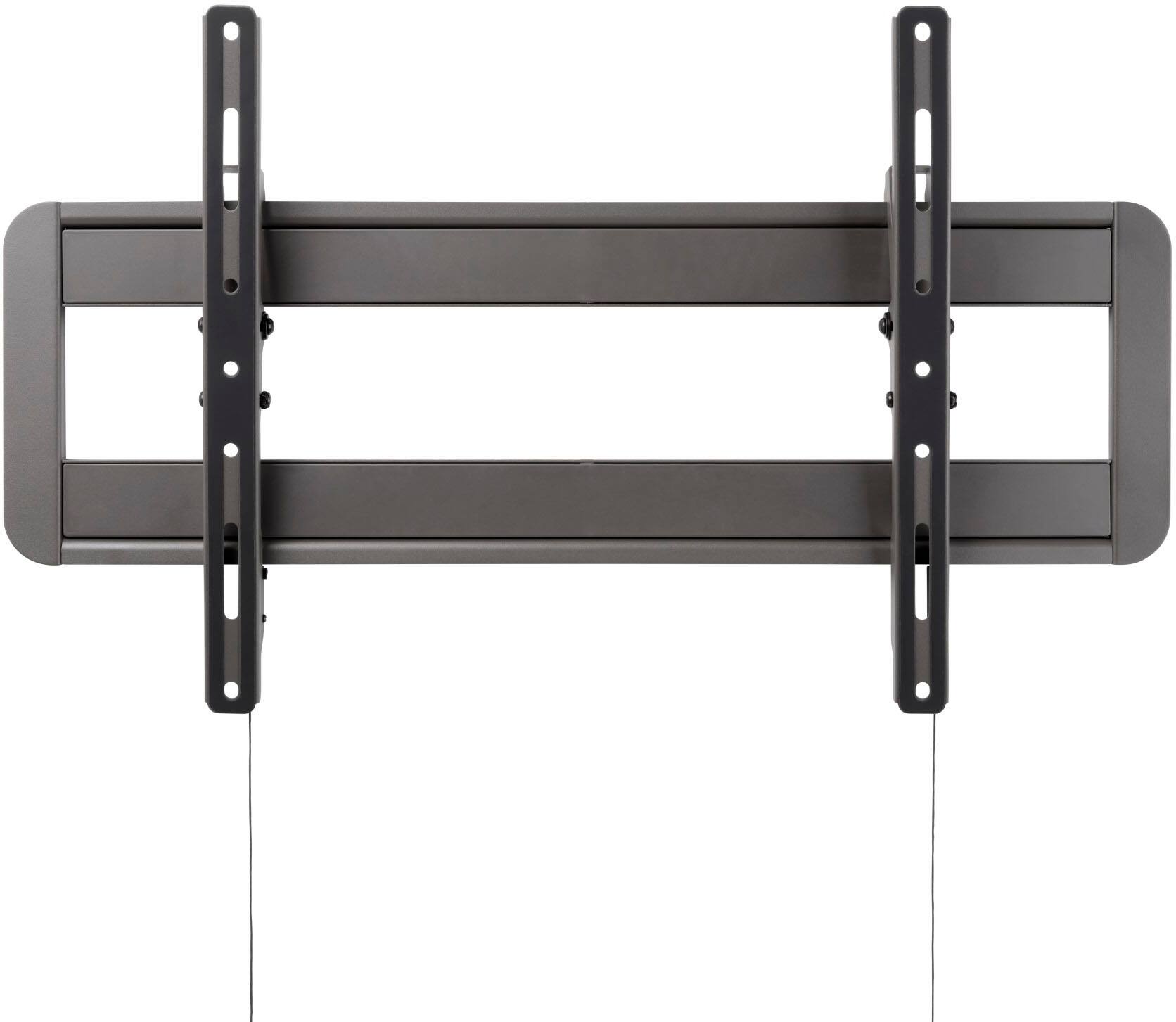

One for All - Ultra-Slim TV Wall Mount for most 42"-95" Flat Panel TVs - TILT - Black
- General
- Brand: One for All
- Model Number: WM5620
- Product Name: Ultra-Slim TV Wall Mount for most 42"-95" Flat Panel TVs - TILT
- Color: Black
- Assembly Required: No
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting
- Tilt: 15 Degree Vertical Tilt (Angles upward or downward for customized viewing and/or accessibility.)
- Compatibility
- Maximum Weight Capacity: 176 pounds (The maximum load that can be supported by the product.)

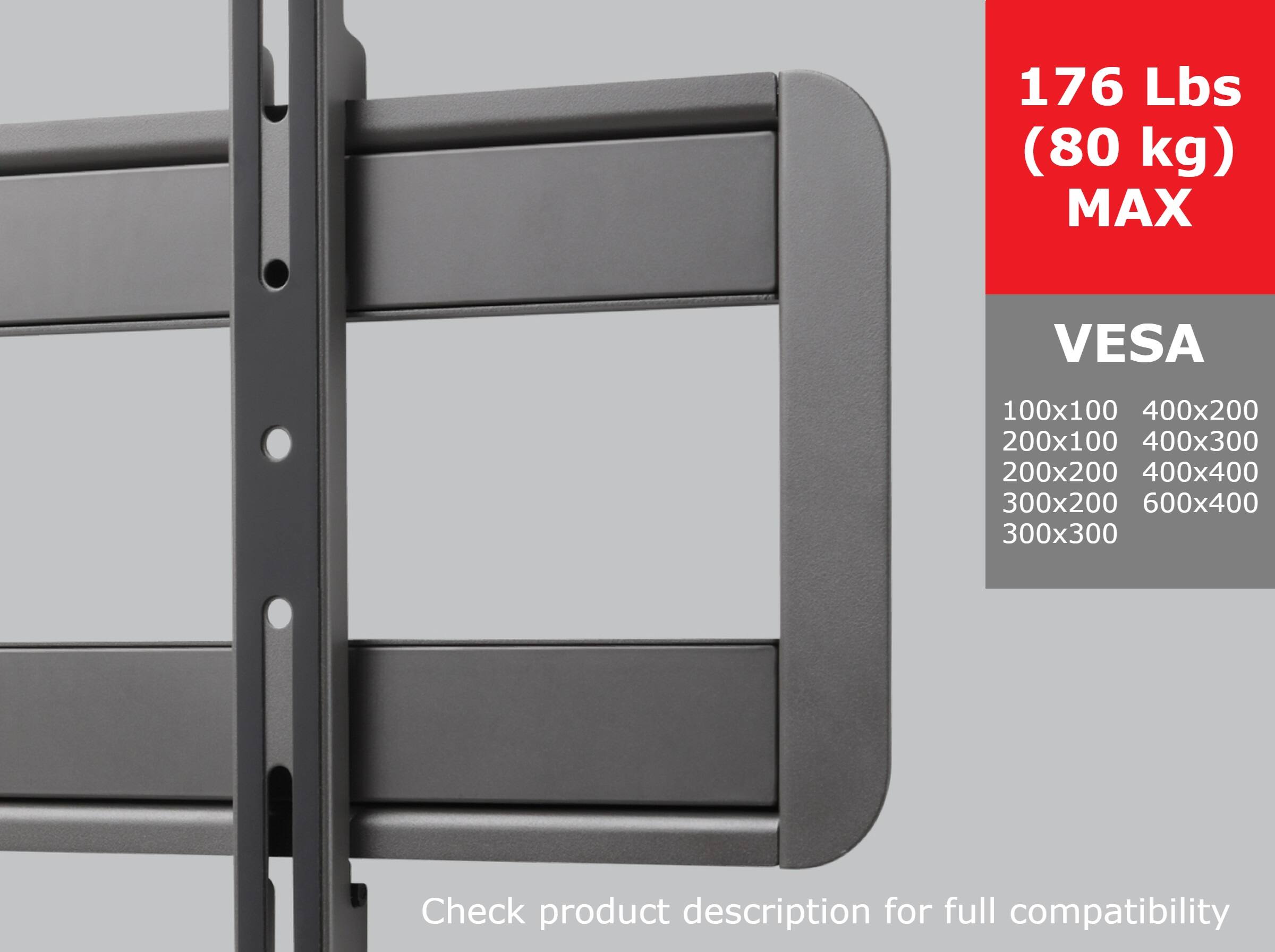

- Compatibility: Vesa 100, 200, 300, 400, 600 Compliant
- Mount Location: Wall
- Maximum Television Size: 95 inches
- Minimum Television Size: 42 inches
- VESA Wall Mount Standard: 100mm x 100mm, 200mm x 100mm, 200mm x 200mm, 300mm x 200mm, 300mm x 300mm, 400mm x 200mm, 400mm x 300mm, 400mm x 400mm, 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 28.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.5 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 1.1 inches (The minimum distance from the product to the wall as the product is mounted.)
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 810209031213
Hang your TV with confidence and ease with this One For All Tilt TV Mount. The UL listed mount supports most large TVs ranging from 42"-95", supports VESA Patterns up to 600 x 400 and supports up to 176 lbs! The locking mechanism secures the TV for your safety. This TV mount also comes with a 10 Year Warranty. *Please select a Wall Mount based on VESA and weight compatibility primarily and use the screen size as an indication.
- Tilt TV Mount: Ultra-Thin Tilt TV Mount 15 Degrees

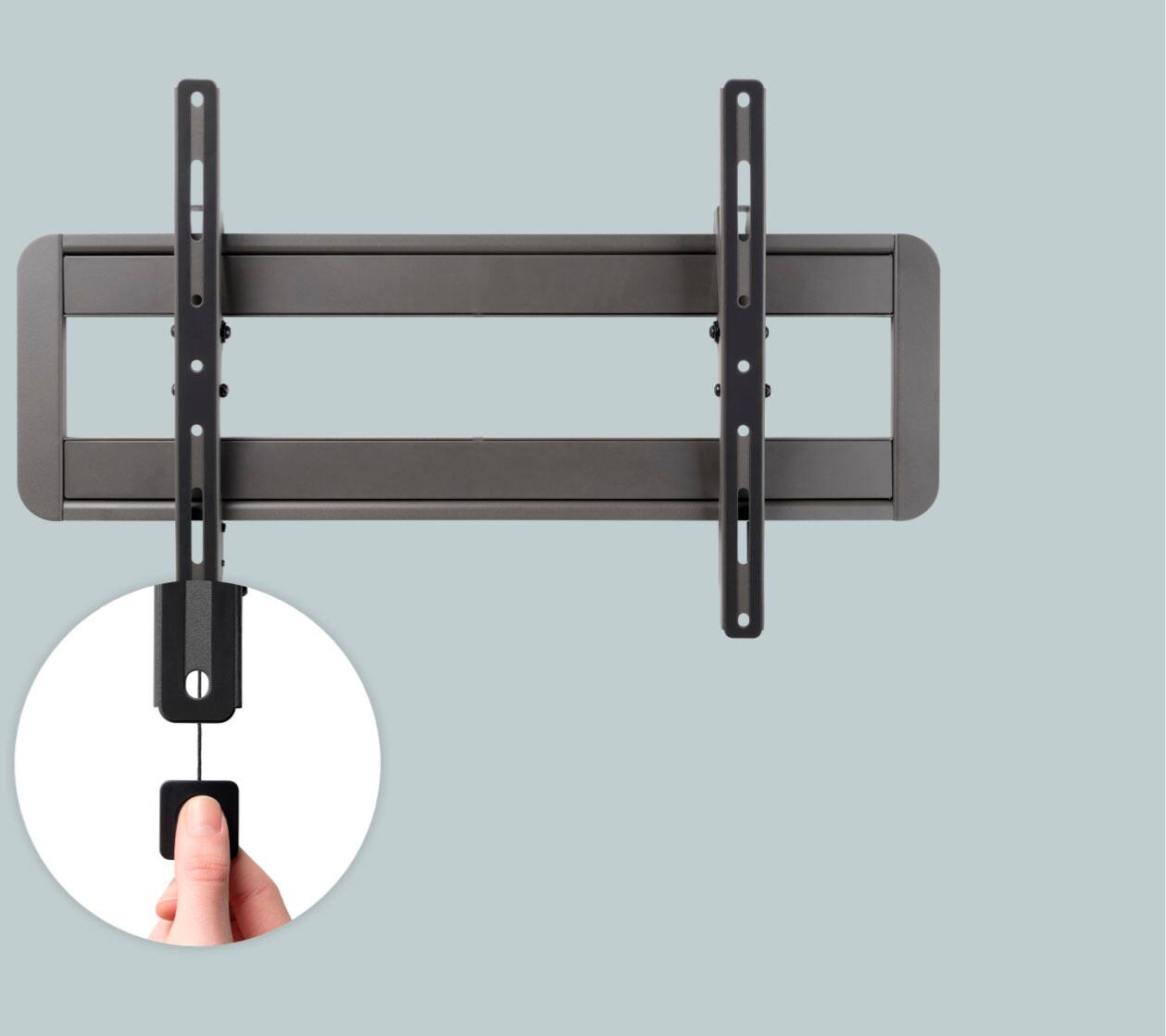

- Auto lock & easy release: Click your TV easily into the mount with the integrated lock and release mechanism. Should you have to remove your TV from the wall, just unlock and release
- Mounting Materials Included: All screws, bolts, washers, and anchors included for your convenience including level. All Vesa Compliant
- UL Listed: UL Listed guarantees claims of weights & TV size providing worry free protection
- Fit and Finish: Heavy High Quality Black Powder Coated with Rubber Bumper Protection for your TV.
- Tilt TV Mount: Ultra-Thin Tilt TV Mount 15 Degrees
- Auto lock & easy release: Click your TV easily into the mount with the integrated lock and release mechanism. Should you have to remove your TV from the wall, just unlock and release
- Mounting Materials Included: All screws, bolts, washers, and anchors included for your convenience including level. All Vesa Compliant
- UL Listed: UL Listed guarantees claims of weights & TV size providing worry free protection
- Fit and Finish: Heavy High Quality Black Powder Coated with Rubber Bumper Protection for your TV.
Whats Included
- All screws, bolts, washers, and anchors included for your convenience including level.
- All screws, bolts, washers, and anchors included for your convenience including level.
Product Manuals
Q: What is the maximum weight the One For All TV mount can support?
A: The maximum weight limit for this mount is 176 lbs.
Q: What is the degree of tilt this mount offers?
A: This One for All TV mount allows for a 15-degree vertical tilt.
Q: Does this TV mount come with all the necessary mounting hardware?
A: Yes, all screws, bolts, washers, and anchors needed for mounting are included.
Q: Is the One For All Tilt TV Mount UL certified?
A: Yes, this mount is UL listed, guaranteeing its weight capacity and TV size compatibility.
Q: How far from the wall will my TV be after installation with this mount?
A: Your TV will be positioned 1.1 inches from the wall with this mount.
Q: Will this TV mount work with an LG 82” Class UP8770 Series LED 4K UHD Smart webOS TV?
A: Yes - The LG UP8770 has a VESA pattern of 600mmx400mm and since the UL listed weight capacity (176 lbs.) you can confidently mount this TV with the One For All Tv Mount – WM5620. In addition, the inputs on the TV will not be obstructed by the mount! Enjoy!
A: No, it won't. You need this. VIVO Heavy Duty 60 to 120 inch which you can find on Amazon.
A: Dear Matthew, thank you for your interest in the WM5620. We are happy to be able to confirm the compatibility between the WM5620 and your Hisense 100U76N TV. The two determining factors here are the VESA size of your TV (600x400) and the weight of your TV (137.8 pounds with stand) which both fall into the WM5620's range. Additionally, the WM5620 is suitable for TVs up to 100". The WM5620 is 28,42" wide. Usually, it is possible to slide the TV left to right once mounted, however, since in your TV's VESA size equals the maximum VESA Size of the WM5620 (600x400), you will not be able to do so. If you should have any further questions or any doubts, feel free to contact us again via the following link: https://www.oneforall.com/en-us/webform or via Facebook messenger. Best regards, JS Your One For All team
