TP-Link - Deco XE75 Pro AXE5400 Tri-Band Wi-Fi 6E Whole Home Mesh System (3-Pack) - White
Related Item
Highlights
- Key Specs
- Wi-Fi Range: 7200 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 3 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 5.4 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: TP-Link
- Model Number: Deco XE75 Pro (3-Pack)
- Product Name: Deco XE75 Pro AXE5400 Tri-Band Wi-Fi 6E Whole Home Mesh System (3-Pack)
- Color: White
- Security
- Firewall Type: SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: Parental Controls, Guest Network, WPA3, HomeShield
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Quality Of Service (QoS) Traffic Prioritization: true (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000/2500 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 200
- Frequency Band: 6.0 GHz, 5.0 GHz, 2.4 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX, AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 7200 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 3 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 3 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: TP-Link Deco
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 2 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wi-Fi Speed: 5.4 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Compatibility
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8/8.1/10, MAC OS, NetWare, UNIX or Linux (The software that a product must have for it to be able to integrate with another product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Dimensions
- Product Height: 6.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.39 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2-Years
- Warranty - Labor: 2-Years
- Other
- UPC: 840030704994
Experience uninterrupted streaming, video calls, gaming and more with Wi-Fi 6E whole home tri-band mesh system. Routers previously operated on 2.4 GHz and 5 GHz bands, with Wi-Fi 6E, connected devices can now operate on the 6 GHz band resulting in faster speeds, greater capacity and expanded coverage throughout your home. Take full advantage of internet plans up to 2.5 Gbps using one 2.5 Gbps WAN/LAN port. Three Deco units work together to provide speeds up to 5400 Mbps and coverage up to 7,200 sq. ft. reaching every corner of your home.
- Wi-Fi 6E Tri-Band Mesh Wi-Fi: Cover up to 7,200 Sq. Ft. with next-gen seamless Wi-Fi and make dead zones and buffering a thing of the past.
- Beyond the speed of Gigabit: A 2.5 Gbps port and two Gigabit ports per unit allow you to take full advantage of your broadband speed (ideal for gigabit+ internet plans up to 2.5 Gbps). Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.
- Brand-new 6 GHz band: 6 GHz Wi-Fi band provides open and clear signal, eliminating interference from older devices.
- True Tri-Band speed: All three Wi-Fi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices (6 GHz: 2402 Mbps (HE160); 5 GHz: 2402 Mbps (HE160); 2.4 GHz: 574 Mbps)
- AI-Driven mesh: Deco intelligently customizes an ideal mesh Wi-Fi solution unique to your home by automatically learning the network environment and user behaviors.
- Easy setup and management: The Deco app helps you set up your network in minutes with clear visual guidance and keeps you in control even when you are not home.
- Connect more devices: Communicate with up to 200 devices simultaneously without slowing down.
- Works with all Deco models: All Deco products work together, add another Deco to expand your network.
- Seamless roaming: Create a single network name and password for all your Decos and receive the best possible connection as you walk from room to room.
- Total security: Protect your network and data with TP-Link HomeShield featuring IoT protection, cyber threat prevention, robust parental controls, and comprehensive reports.
- Works with Alexa and Google Assistant: Control your network with your voice. Turn on or off Guest Wi-Fi by simple voice commands and automatically trigger actions between smart home devices and applications.
- Warranty and support: 2-year warranty, 24/7 unlimited technical support by phone and email.
Whats Included
- 3 x Deco XE75 Pro Units
- 3 x Power adapters
- 1 x Ethernet Cable
- 1 x Quick Installation Guide
A: Both are the same 6E wireless protocol and speeds. The 5300 model has three 1-giga ports, while the 5400 model has two 1-giga port and one 2.5 giga port. If you are setting up a full wireless mesh, then really no difference. However, if you plan to link each mesh unit with ethernet wiring, the 2.5 giga port can give better speeds as the backhauling will be done on a 2.5 giga port vs 1 giga port connection.
Q: Will this system do my 2 story 1200 square house and my outside metal barn?
A: Your metal barn will kill all wireless signals going inside most likely think of it like talking on a cell phone when you get on a elevator. The call will probably drop once the doors close. As somebody had already mentioned running a cat6a Ethernet underground cable to your barn would be best and hooking one of the units into that cable for a Ethernet back haul would be best. There are still other factors that you need to consider before attempting. For instance If the cat6a cable length exceeds 100 meters it will not work. Your best bet is to YouTube what others have done to bring wifi service into a barn from their home as distance is going to play a huge factor into the equation. Best of luck.
Q: Can I add more APs to this? Where do I buy single unit?
A: Hi! Yes, you can expand your existing Deco Mesh Wi-Fi System conveniently by introducing additional Deco nodes. All of our Deco Mesh models are compatible with each other; however, to retain the Wi-Fi 6E and 2.5Gbps port (1x per node) features of the Deco XE75 Pro, we recommend building out your Deco XE75 Pro network with the same model.
Q: Can you use the ethernet wired connection on the satellite unit?
A: YES! And it does it automatically. Set all of them up with wireless first. Then simply connect whichever one is near an ethernet jack by wire and within a few moments it will automatically reconfigure to using that as the backchannel. You can mix and match (I have one with ethernet backchannel and one on the 6 GHz backchannel)
Q: Would anyone know if this TP-Link Deco XE75 will work with Spectrum modem?
A: Hi! Yes, simply connect the primary Deco node to the modem via Ethernet.
A: Hi! That depends on whether your Internet plan and modem support more than 1 Gbps. If your Internet speed is 1 Gbps or less, then you can use any of the 1 Gbps WAN/LAN ports for Internet input, and the 2.5 Gbps port for another device. However, if your Internet speed is greater than 1 Gbps, we recommend using the 2.5 Gbps port for Internet input to better utilize the bandwidth available from your ISP.
A: Yes. I have it set up with the T-Mobile home Internet now and it works fantastic!

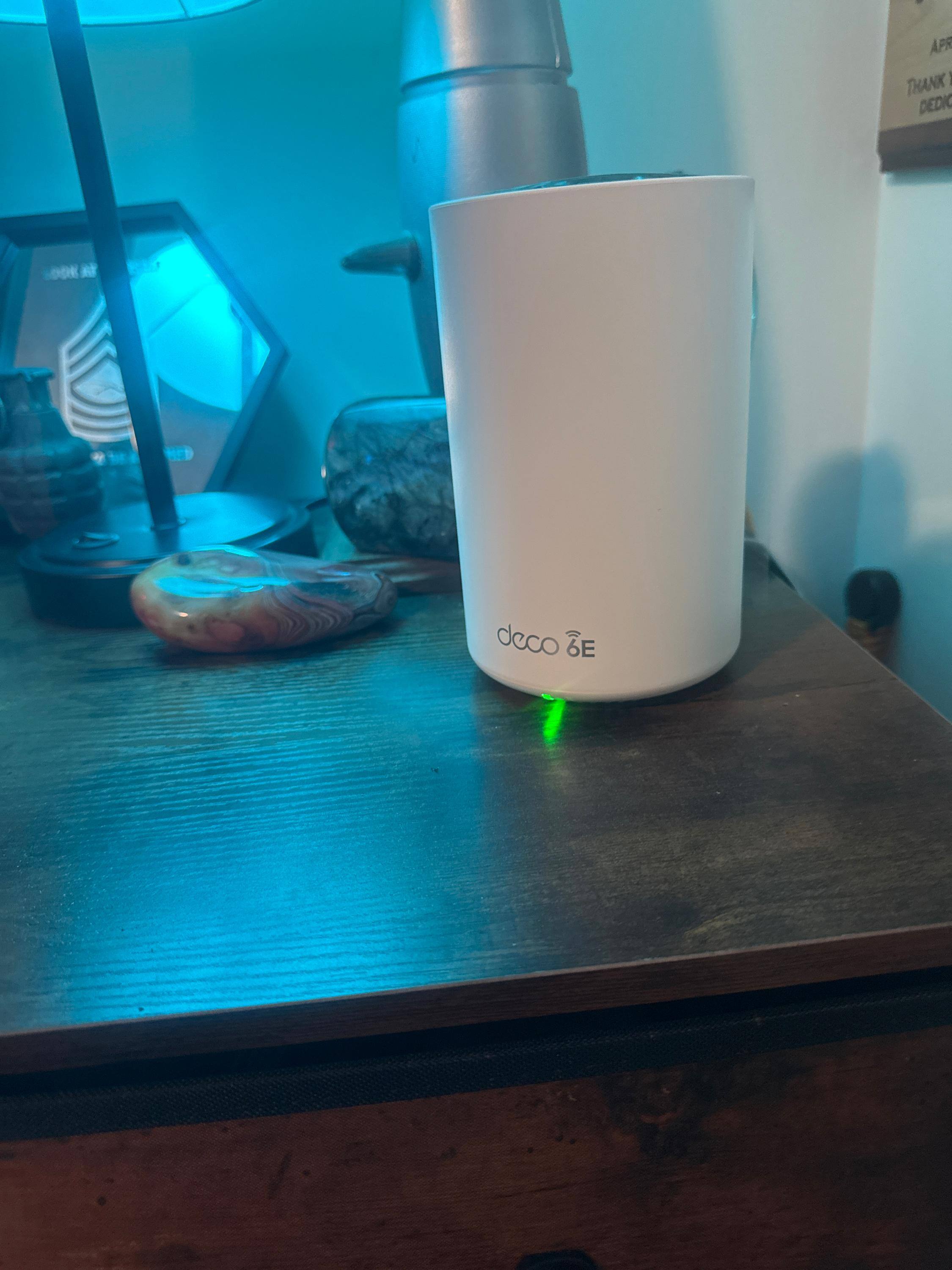

A: The power brick is a hard wired connection. See attached imaged.
