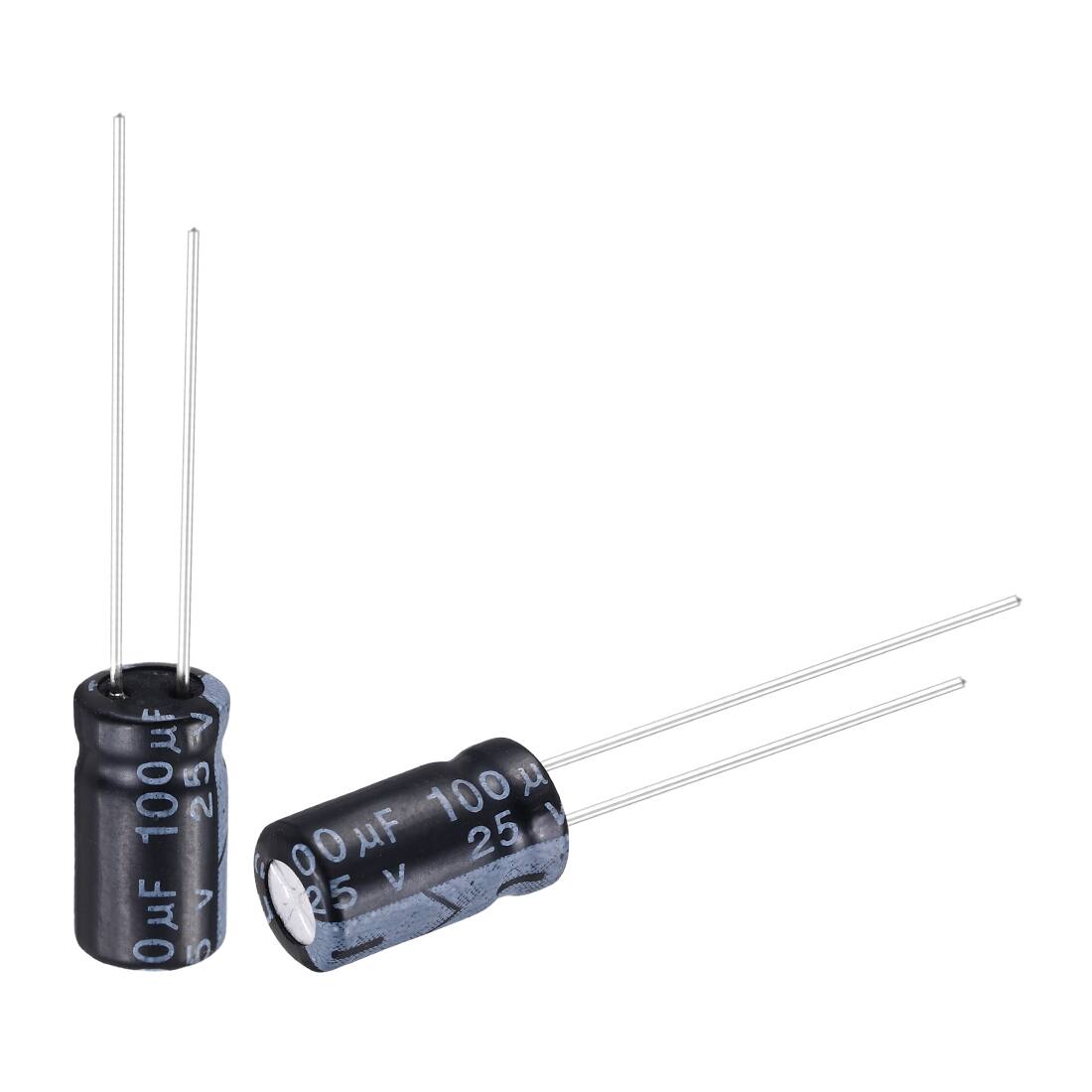

Unique Bargains - 100uF 25V 6x11mm Electrolytic Capacitor, Radial Leads Aluminum, 50pcs, 105C High Temp for TVs, LCD Monitor, VCD - Black
Model: s26061000ux3943
SKU: 12737286
Reviews coming soon
Reviews coming soon
Aluminum electrolytic capacitors are designed for use in all types of electronic equipment including power and replaceable energy, industrial, telecommunications and consumer electronics applications. These capacitors offer very long life in applications, with rated temperatures up to 105℃ for general-purpose applications. Aluminum electrolytic capacitors are used when a large capacitance is required and leakage current is not an important factor. For use in power supplies and computer motherboards.
Specification: Capacitance: 100uF; Rated Voltage: 25V; Capacitance Tolerance: +/-20% (at 120Hz, 20℃); Lead Type: Radial; Category Temperature Range: -40℃ to +105℃ (6.3~100V); Life Span: 2000-3000h; Body Size: 6 x 11mm; Lead Length: 20mm, 25mm; Lead Space: 5mm; Lead Diameter: 0.6mm; Package Content: 50 x Electrolytic Capacitors
DO NOT move the capacitor after soldering to PC board. DO NOT pick up the PC board by holding the soldered capacitor. DO NOT insert capacitor on the PC board with a hole space different to specified lead space. Take the position of the safety vent into consideration when designing the PC board layout.
Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics. Long lead is positive end and the shorter one is the negative end.
How to select the proper capacitor for your design? Step 1: Determine the capacitance required by the design. Step 2: Define the expected ambient operating temperature. Step 3: Define the DC operating voltage to be applied to the capacitor. Step 4: Bound the space available for the capacitor (if available space is a concern).
Widely used in TV, VCD, speaker, digital camera, dishwasher, washing machine, refrigerator, etc. Please take all its characteristics (required life, temperature, ripple current and physical size) into consideration before your purchasing
