Zmodo - 4-Channel, 4-Camera Indoor/Outdoor Security System

4 outdoor IR security cameras

Each feature a 1/4" Sony color CCD sensor and a 3.6mm lens that produce sharp, clear video with 420 TV lines.

24 PCS IR LEDs

Provide night vision up to 65', so you can capture black-and-white footage in low-light environments.

Weather-resistant design

Permits both indoor and outdoor use.

4-channel DVR

Allows you to keep an eye on up to 4 different areas simultaneously. Supports H.264 to simplify video compression.

1TB hard drive

Lets you record footage for reviewing at a later time. Expandable up to 2TB.

Selectable recording resolutions

Include 704 x 480 (NTSC, D1, 120 fps), 704 x 240 (NTSC, HD1), 352 x 240 (NTSC, CIF), 704 x 576 (PAL, D1, 100 fps), 704 x 288 (PAL, HD1) and 352 x 288 (PAL, CIF).

Display resolutions

Include 704 x 480 (NTSC, D1) and 704 x 576 (PAL, D1). Effective camera pixels include 512 x 492 (NTSC) and 512 x 582 (PAL).

Recording modes

Include continuous, time schedule and motion detection for versatility. Playback modes include normal play, fast forward, fast rewind and frame-by-frame.

Pentaplex operation

Lets you perform multiple commands simultaneously.

BNC 4-channel video input

Along with a BNC 1-channel video output, RCA 4-channel audio input, BNC 1-channel audio output and VGA video output enables flexible connectivity.

Wall-mountable design

Lets you place the cameras in areas that are well concealed.

10/100 Mbps Ethernet LAN with an RJ-45 connector

Allows remote viewing (requires a physical Internet connection).

Compatible with select devices

Featuring iOS 4.3 or later or Android 2.2 or later for wide-ranging use. Also supports Windows XP, Vista, 7 and 8.

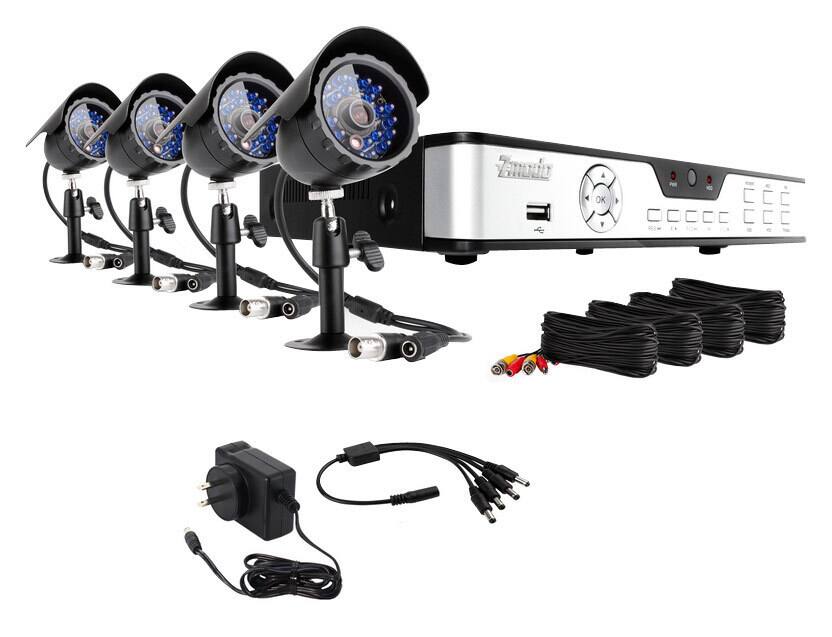

4 outdoor IR security cameras (ZMD-CNR-BBB23NM), 4-channel security DVR (ZMD-DD-SBN4)

Four 60' CCTV power and video cables, 1-4 splitter cables

12V/1500 mA security camera power supply, IR remote and mouse

Owner's manual
