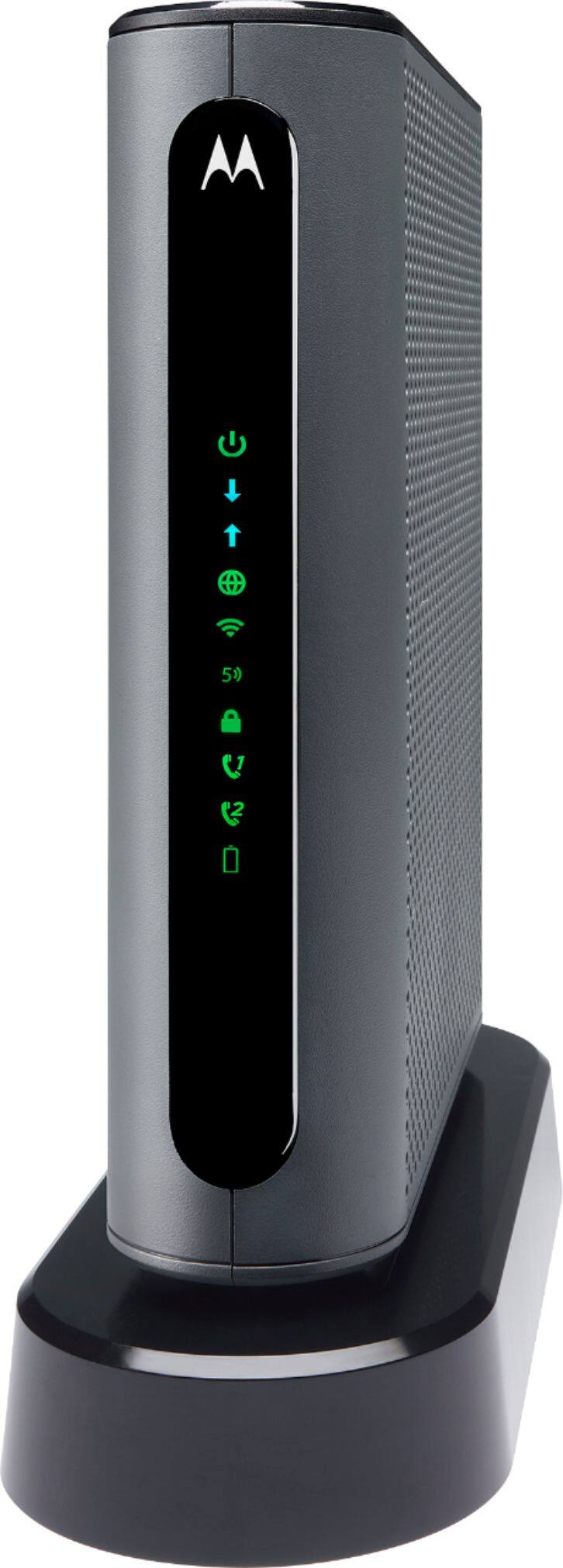

Motorola - MT7711 24x8 DOCSIS 3.0 Modem + AC1900 Router for Xfinity Internet & Voice - Black
- Key Specs
- Internet Service Provider (ISP) Compatibility: XFINITY from Comcast (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Downstream Data Speed: 1000 megabits per second (The maximum speed at which data is downloaded from the internet.)
- Upstream Data Speed: 246 megabits per second (The maximum speed at which data can be transferred from the client to the server, or the upload speed.)
- Channel Bonding: 24 x 8 (The process of combining adjacent channels within a given frequency band to deliver faster broadband speeds. Channel bonding combinations are indicated as "downstream x upstream" e.g. 16x4 (16 channels dedicated for downloading data and 4 channels for uploading). The more channels, the more network traffic the device can support.)
- Number of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- USB Ports: None (The number and type of USB ports the product has.)
- General
- Brand: Motorola
- Model Number: MT7711
- Product Name: MT7711 24x8 DOCSIS 3.0 Modem + AC1900 Router for Xfinity Internet & Voice
- Color: Black
- Network
- Quality Of Service (QoS) Traffic Prioritization: false (Allows a user to manage a device's network performance by configuring the types of traffic that receive top priority for transmission. High priority functions and applications receive maximum network performance, while low priority traffic receives minimum performance.)
- Input/Output Technology: MIMO (Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Certifications Listings & Approvals
- DOCSIS Compliant: true
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- Auto Connect: true
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Cable Internet service, AC power, PC (Windows, Mac, or Linux) or Smart device (iOS or Android) with web browser, Standard telephone for voice option (The software that a product must have for it to be able to integrate with another product.)
- Voice Assistant Built-in: Not Applicable, Not Applicable (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.9 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- Modem Type: High speed
- UPC: 855631006330
The Motorola MT7711 combines an ultra-fast DOCSIS 3.0 cable modem + AC1900 WiFi router + 2 phones lines for use with Xfinity Voice service only. Certified for Comcast Xfinity Internet and Voice service and recommended for cable internet plans with speeds up to 600 Mbps. Features 4 Gigabit Ethernet ports for wired connections. Delivers up to 1900 Mbps wireless speed. Power Boost, Range Boost, and AnyBeam WiFi beamforming enable quality streaming, gaming, and connecting throughout the home. Enjoy crystal-clear calling and enhanced features like caller ID, call forwarding, conference calling, and more. Save up to $168 per year on cable modem rental fees (savings described is for Comcast Xfinity service). Comes with a 2-year warranty and free support from our USA team of connectivity technicians. NOT compatible with Verizon, AT&T, CenturyLink, DSL providers, DirecTV, DISH and non-Xfinity voice services.
- Compatible with Xfinity Internet & Voice service: Certified by Comcast for Xfinity. Compatible with Xfinity Triple Play. NOT compatible with Verizon, AT&T, CenturyLink, DSL providers, DirecTV, DISH and non-Xfinity voice services.
- High-speed DOCSIS 3.0 cable modem: Features 4 Gigabit Ethernet ports for wired connections. Recommended by Comcast for Xfinity Internet service speeds up to 600 Mbps.
- Extreme cost savings: Save up to $168 per year on cable modem rental fees (savings described is for Comcast Xfinity service). Comes with a 2-year warranty and free support from our USA team of connectivity technicians.
- Powerful AC1900 router: Delivers up to 1900 Mbps wireless speed. Power Boost, Range Boost, and AnyBeam WiFi beamforming enable quality streaming, gaming, and connecting throughout the home.
- Comes with 2 phone lines: For use with Xfinity Voice service only. Enjoy crystal-clear calling and enhanced features like caller ID, call forwarding, conference calling, and more.
Whats Included
- Motorola 24 x 8 DOCSIS 3.0 Cable Modem with built-in AC1900 Router + Comcast Xfinity Voice Support
- AC Adapter
- Ethernet cable and tie
- Coax connection tool
- Quick Start Guide
- User's Manual
Product Manuals
A: Hi James, If you are an Xfinity customer, you'll need this Motorola Model MT7711 modem with router and phone jack. It's a wonderful device and it had functions for TV, Internet, and phone. I owned one, and I'm very happy with it. Good luck to you!
Q: Will this modem work with Comcast Xfinity, 200mps? Does it have a built in router and WIFI enable?
A: yes
Q: can this modem accommodate up to 1GB? Xfinity told me it will only go up to 600Mbps.
A: This Modem/router is a DOCSIS3.0 and will only handle up to about 625 MB. You have to get a modem/router that is DOCSIS3.1 for 1 GIG service.
A: There is one man unit on your cordless set . That’s the one that probably has an answering device with it. That the one that gets plugged into the modem. And either outlet should work. Phone 1 or 2. The only problem I have is Comcast setting up the phone through the modem. I’ve been trying sine end 12/2. So I hope you don’t have Comcast
A: They will NOT.
Q: will it work on spectrum cable ?? also have phone and fax
A: No, this unit does not work with Spectrum cable.
