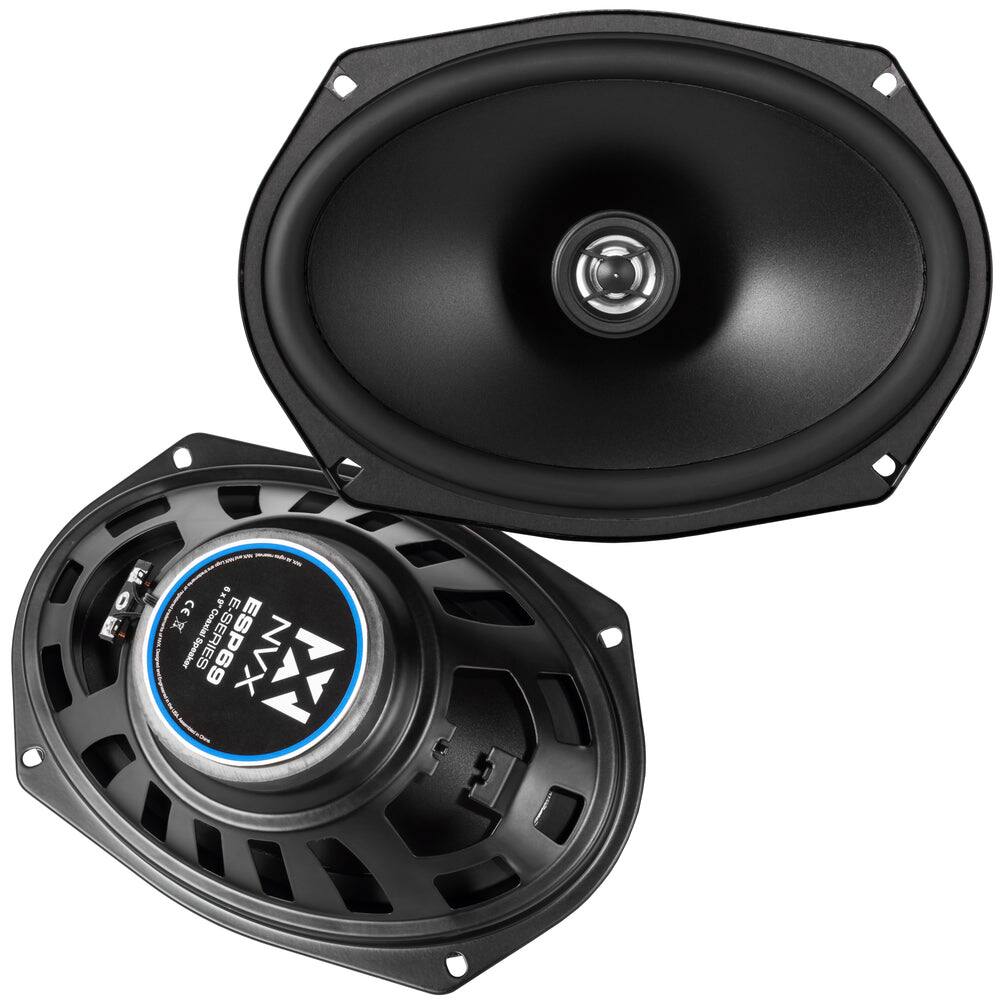

NVX - ESP69 480W Peak (160W RMS) 6x9in E-Series 2-Way Coaxial Speakers with 13mm PEI Dome Tweeters
NVX - ESP69 480W Peak (160W RMS) 6x9in E-Series 2-Way Coaxial Speakers with 13mm PEI Dome Tweeters
Related Item
Specifications
- RMS Power160 wattsPeak Power Handling480 wattsSensitivity91 decibelsSpeaker Size6" x 9"
- Key Specs
- RMS Power: 160 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 480 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 91 decibels
- Speaker Size: 6" x 9"
- General
- Brand: NVX
- Model Number: esp69
- Product Name: ESP69 480W Peak (160W RMS) 6x9in E-Series 2-Way Coaxial Speakers with 13mm PEI Dome Tweeters
- Number Of Speakers: 2
- Audio
- RMS Power: 160 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 480 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Sensitivity: 91 decibels
- Features
- Marine: false
- Grille Included: false
- Design
- Speaker Size: 6" x 9"
- Dimensions
- Product Height: 3.67 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10.67 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021845869
Product Details: 6" x 9" E-Series 2-way Coaxial Car Speakers. Power Handling: . Peak: 480 watts per pair / 240 watts each. RMS: 160 watts per pair / 80 watts each. CEA-2031 compliant. Polypropylene cone material. Rubber speaker surround. 1/2" PEI (Polyetherimide) Dome Tweeters. 1" Voice coil. Ferrite magnet motor structure. Top-mount Depth: 3". Cutout Dimensions: 6 x 8. 8. Impedance: 4 ohm. Frequency Response: 47 - 20, 000 Hz. Sensitivity: 91 dB. Authorized Internet Dealer. MFR #: ESP69. 1-year Manufacturer's Warranty. Priced Per Pair. NVX E-Series owner’s manual
- Impressive Power Handling: With a 480W peak power (240W per speaker) and 160W RMS (80W each), the NVX ESP69 coaxial speakers offer powerful sound performance, providing excellent bass and crisp highs for an enhanced listening experience.
- Premium Sound Quality: Featuring 1" PEI (Polyetherimide) dome tweeters, these speakers produce clear and detailed treble, ensuring balanced sound across all frequencies. The polypropylene cone and rubber surround enhance bass output, reducing distortion.
- CEA-2031 Compliant: CEA-2031 compliance ensures accurate power ratings for both RMS and peak output, allowing you to trust the performance and longevity of these speakers even under heavy usage.
- Broad Frequency Response: With a frequency range of 47Hz to 20,000Hz, the NVX ESP69 speakers capture deep lows and bright highs, making them ideal for a wide variety of music genres, from bass-heavy beats to vocal-driven tracks.
- Easy Installation & Versatile Fit: Designed with a top-mount depth of 3" and cutout dimensions of 6" x 8.8", these speakers fit many standard car applications and are ideal for upgrading factory speakers in a wide range of vehicles.
Whats Included
- 1
