NVX - NDA6004 1200W Peak (600W RMS) N-Series Class-D 4-Channel Amplifier
NVX - NDA6004 1200W Peak (600W RMS) N-Series Class-D 4-Channel Amplifier
FREE shipping to
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostNone
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: NVX
- Model Number: nda6004
- Product Name: NDA6004 1200W Peak (600W RMS) N-Series Class-D 4-Channel Amplifier
- Audio Power
- Total Power Handling RMS: 600 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Total Harmonic Distortion: 0.1 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 96 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Remote Control Included: No
- Marine: false
- Dimensions
- Product Height: 1.73 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.18 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.42 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 90-days Manufacturer's Warranty
- Other
- UPC: 810021845395
Introducing the NVX NDA6004 4-Channel Amplifier, designed to redefine your car audio experience with uncompromising power and precision. With a peak power of 1200 watts (600 watts RMS), this Class-D amplifier ensures robust performance that elevates every note and beat. Engineered for versatility and reliability, the NDA6004 features an RMS power rating of 100 watts x 4 channels at 4 ohms, 160 watts x 4 channels at 2 ohms, and 320 watts x 2 channels bridged at 4 ohms. Whether you're looking to power a full-range speaker setup or a high-performance component system, this amplifier delivers the clarity and punch your music deserves. Key features include LED Power/Protect indicators for at-a-glance status monitoring, and speaker-level inputs that enable seamless integration with factory audio systems (adapter like the Kicker KISL required). Advanced 4-way protection circuitry ensures reliable operation by safeguarding against thermal overload, speaker short protection, and DC offset. Achieve optimal sound customization with selectable crossover modes (FULL / HPF / LPF) and adjustable input sensitivity (0.2 - 10 volts), allowing you to fine-tune your audio setup to suit your preferences and vehicle acoustics. The amplifier also features variable high-pass and low-pass filters (40 - 400 Hz) for precise frequency control. With a frequency response of 20 - 20000 Hz and minimal Total Harmonic Distortion (THD) of less than 0.1%, the NVX NDA6004 delivers audiophile-grade sound quality with a Signal to Noise Ratio of 96 dB, ensuring every detail of your music is reproduced with clarity and accuracy. For installation, a 4 AWG gauge amplifier wiring kit is recommended to maximize performance. The amplifier's compact dimensions make it suitable for installation in a variety of vehicle types, enhancing both interior aesthetics and audio performance. Upgrade your car audio system with the NVX NDA6004 4-Channel Amplifier and experience the next level of audio excellence, where power meets precision for an immersive listening experience on every journey.
- Powerful Performance: Delivers 1200W peak power and 600W RMS output, ensuring clear and dynamic sound quality.
- Flexible Configuration: Flexible Configuration: Supports 4-channel operation with RMS ratings of 100W x 4 at 4 ohms and 160W x 4 at 2 ohms, plus 320W x 2 bridged at 4 ohms.
- Intelligent Design: Includes LED power/protect indicators for easy monitoring and 3-way protection circuitry against thermal, overload, and speaker short issues.

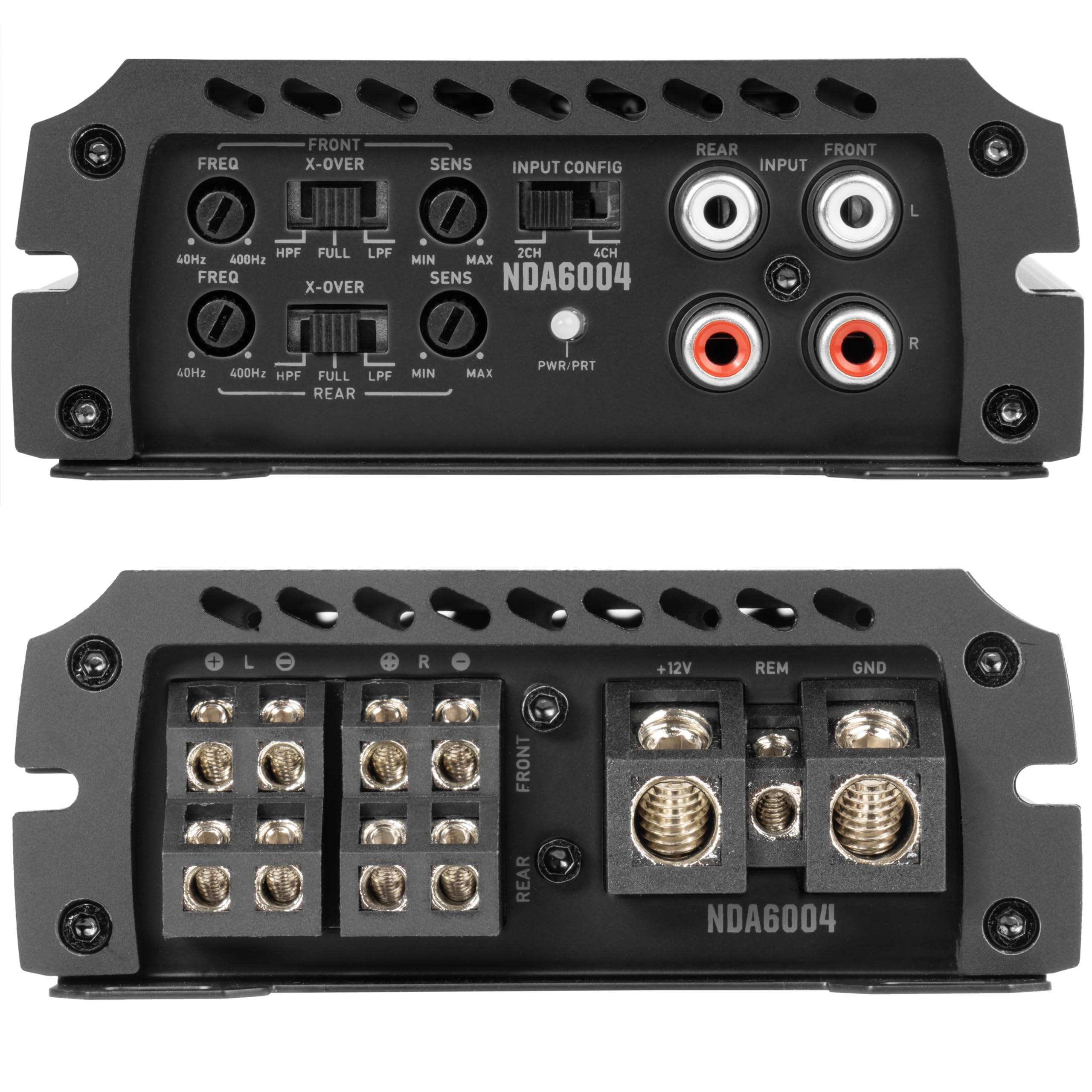

- Customizable Sound: Features selectable crossover modes (FULL / HPF / LPF) and variable filters (40 - 400 Hz) for precise audio tuning.

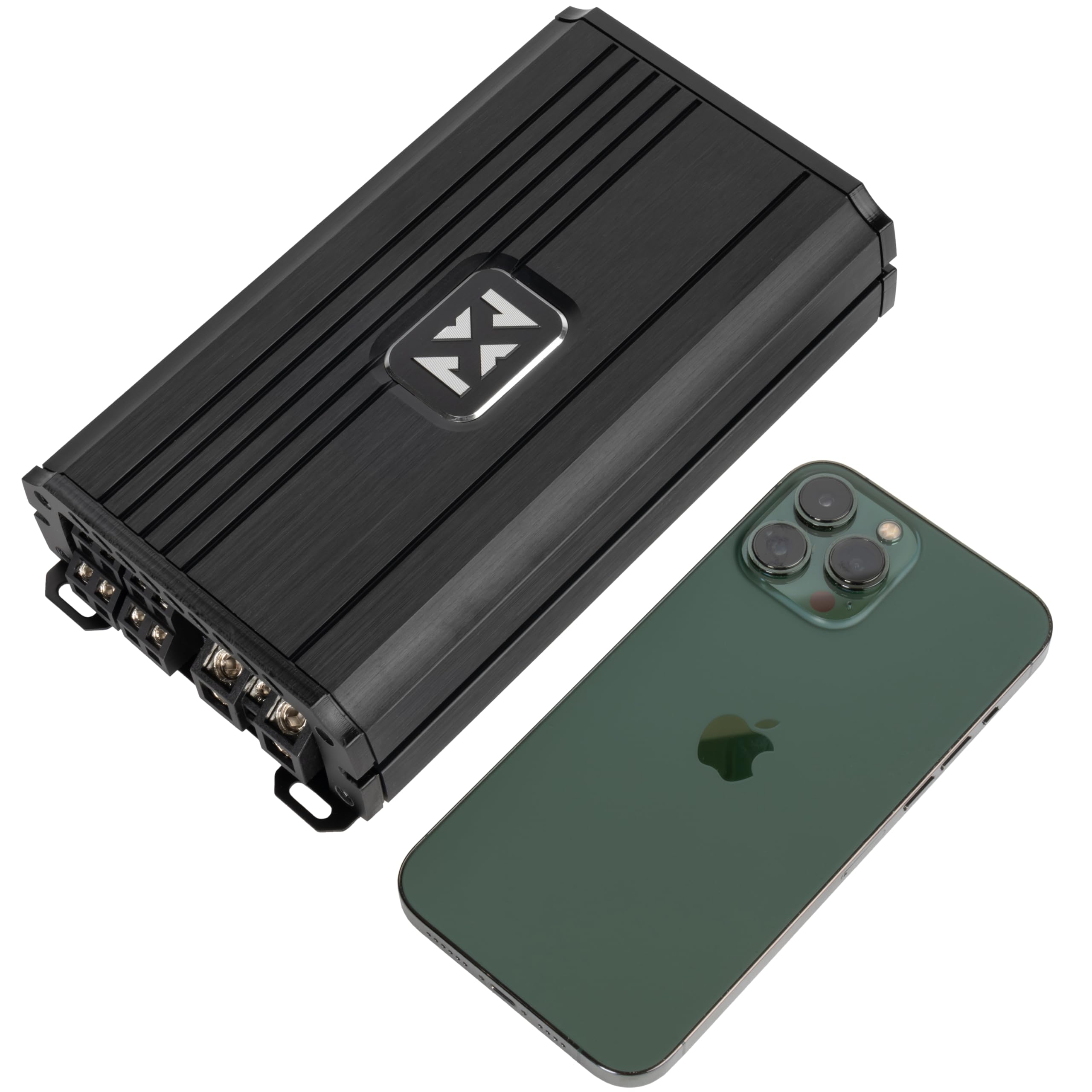

- Compact and Reliable: Compact dimensions (8.18" L x 4.42" W x 1.73" H) and recommended 4 AWG amplifier wiring kit ensure easy installation and optimal performance.

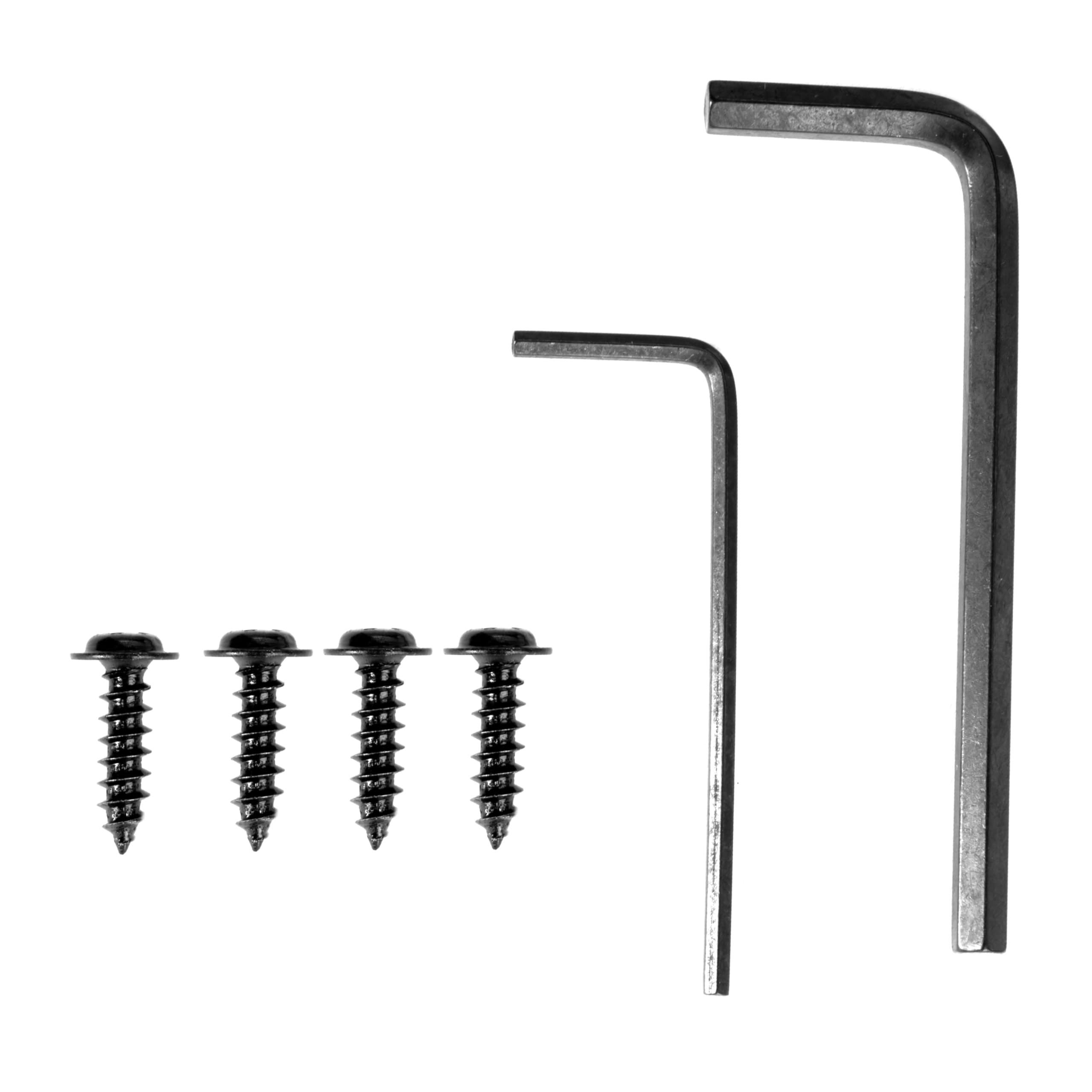

Whats Included
- 1
