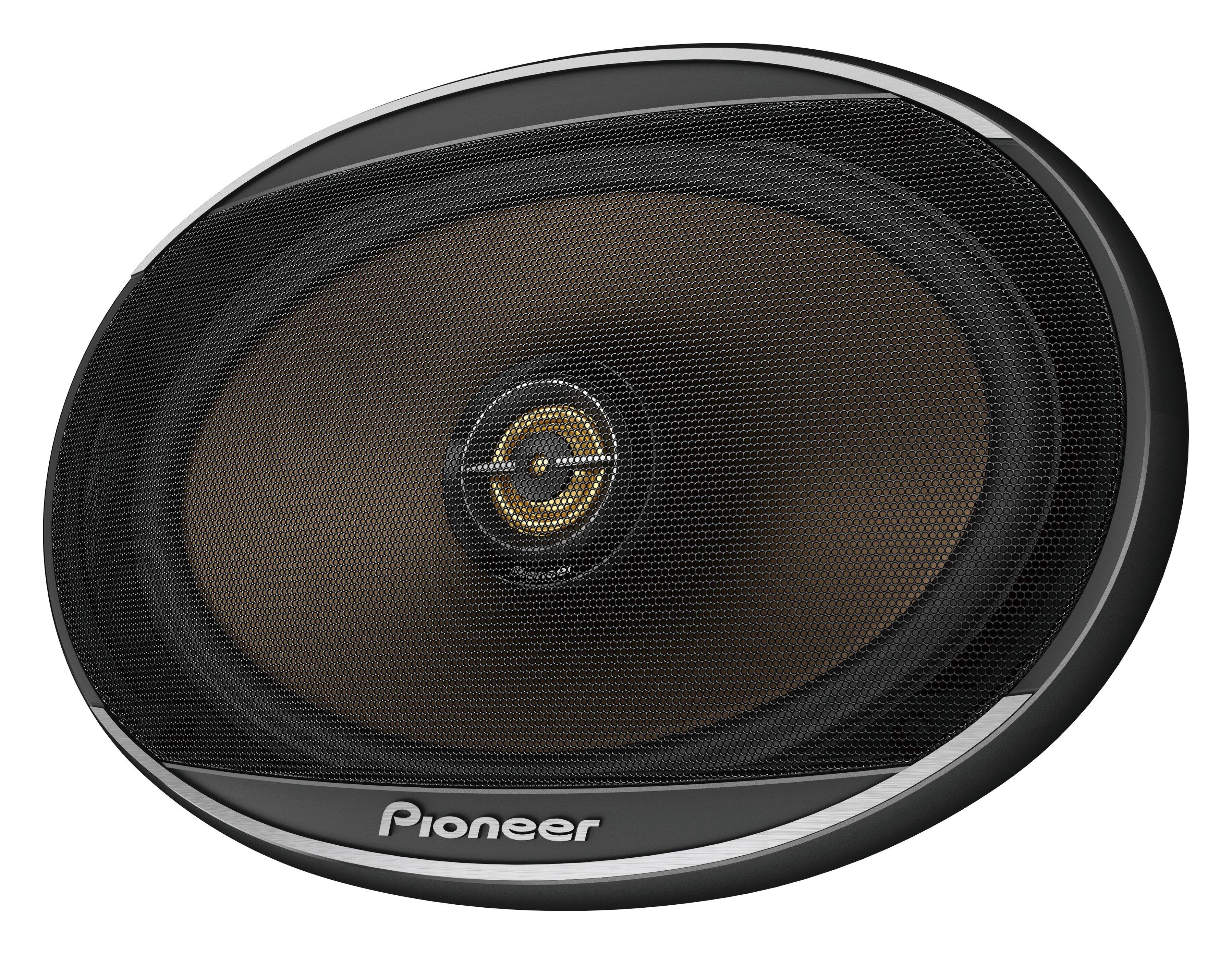

Pioneer - 6" x 9" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair) - Black
More Buying Options
Related Item
Specifications
- RMS Power95 wattsPeak Power Handling460 wattsSensitivity92 decibelsSpeaker Size6" x 9"Speaker TypeCoaxial, 2-wayWoofer Surround MaterialRubber
- Key Specs
- RMS Power: 95 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 460 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 92 decibels
- Speaker Size: 6" x 9"
- Speaker Type: Coaxial, 2-way
- Woofer Surround Material: Rubber
- General
- Brand: Pioneer
- Model Number: TS-A693FH
- Product Name: 6" x 9" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair)
- Color: Black
- Number Of Speakers: 2
- Audio
- RMS Power: 95 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 460 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 92 decibels
- Features
- Marine: false
- Grille Included: true
- Design
- Speaker Size: 6" x 9"
- Speaker Type: Coaxial, 2-way
- Woofer Surround Material: Rubber
- Dimensions
- Product Height: 4.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.88 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.76 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.26 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Warranty - Labor: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Other
- UPC: 884938509473

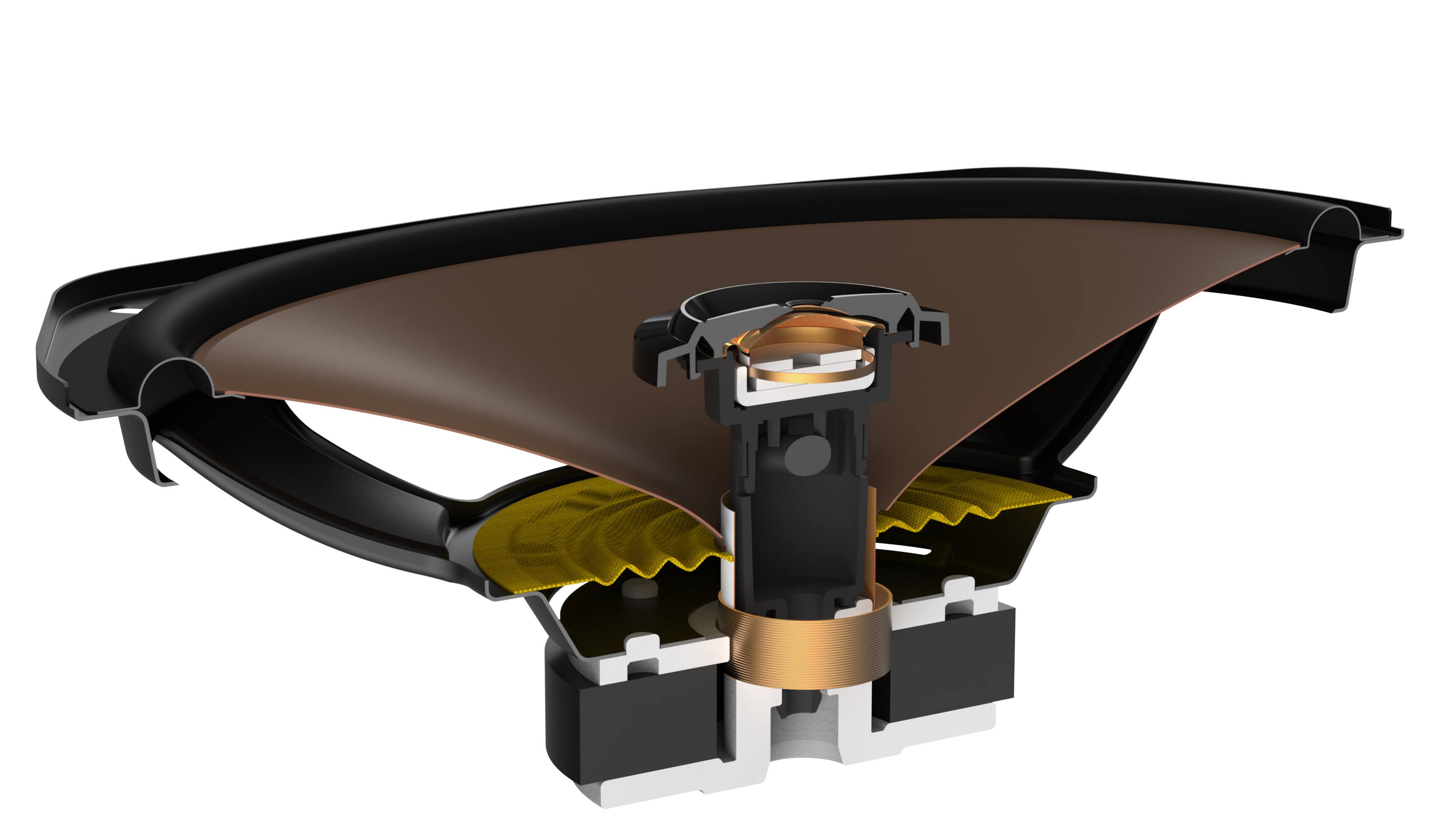

The Pioneer TS-A693FH 6" x 9" 2-way speakers can handle up to 460 W Max (95 W nominal). The woofer cone is made of Aramid Fiber reinforced polypropylene for rigidity, low-frequency responsiveness, and weather resistance. The 20mm dome tweeter adds in the high-frequency details to provide music enjoyment.
- CarSoundfit: Pioneer’s Car Sound Fit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades can offer for your vehicle.
- Installation 6 in x 9 in multi-fit: Included with the component system are 6"x9" multi-fit installation adapters to expand flexibility and improve acoustic performance and tweeter mounts for surface mounting, flush mounting and multi-fit adapters for mounting in original equipment tweeter locations.
- Open & smooth: This Pioneer sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
- A Series: Upgrade to high performance with Pioneer A-series sound. These speakers are acoustically matched to provide dynamic bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH provides a seamless transition between the midrange/tweeter drivers delivering uniform frequency response.
Whats Included
- (2) 2-way speakers
- (2) Grilles
- (2) Multi-application mounting brackets
- (2) 12" lengths of speaker wire
- (16) Various Mounting Screws
- 1 year Warranty Sheet
Product Manuals
Q: What is the sensitivity of these speakers?
A: These speakers have a sensitivity of 92 decibels.
Q: Are these speakers marine grade?
A: No, these speakers are not marine grade.
Q: What is the woofer cone material?
A: The woofer cone is made of Aramid Fiber reinforced polypropylene.
Q: Does this speaker system include installation adapters?
A: Yes, this speaker system includes 6"x9" multi-fit installation adapters.
Q: What is the benefit of the carbon mica material used in the speaker cones?
A: Carbon mica provides good detailed expression in sound and is suitable for a variety of music genres, resulting in a quicker reaction and perfect handling of low to high-frequency sounds.
Q: What is the peak power handling of these Pioneer speakers?
A: These Pioneer speakers can handle up to 460 watts of peak power.
Q: Do these have a built in crossover. Do the sound good running off 2 ohms?
A: Yes, the TS-A693FH has a built-in crossover, to separate the high frequencies to the tweeter. The TS-A693FH are 4 ohm speakers. If you are going to connect two in parallel, you would need to make sure the amplifier can support the impedance and not send too much power. You do not want to exceed the nominal power rating of the speakers, 95 watts.
Q: Can speakers be installed in doors?
A: Please consult with your local Best Buy Geek Squad. They will take your vehicle information and verify the fit of the speakers in your door.
Compare similar products
The Pioneer TS-A693FH 6" x 9" 2-way speakers can handle up to 460 W Max (95 W nominal). The woofer cone is made of Aramid Fiber reinforced polypropylene for rigidity, low-frequency responsiveness, and weather resistance. The 20mm dome tweeter adds in the high-frequency details to provide music enjoyment.
The Pioneer TS-A693CH 6" x 9" speakers component system can handle power up to 460 W Max (105 W RMS). The woofer cone is made of Aramid Fiber reinforced polypropylene for rigidity, low-frequency responsiveness, and weather resistance. The woofer comes with adjustable woofer brackets to use in all kinds of makes and models. Install the separate 20mm tweeters with the included tweeter mounts in an area high in your vehicle for better sound.
Unleash powerful performance with the Pioneer TS-R690 3-way speaker, delivering up to 400 W of max power and engineered for rich, detailed sound. Featuring a bold full mesh cover with a striking red flange, a multilayer Mica matrix cone, and a shallow basket design. The TS-R690 is built for style, strength, and seamless installation.
The TS-A653F 6-1/2" 2-way coaxial speaker sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music. Included with the speaker are 6-1/2"multi-fit installation adapters that expand flexibility and improve acoustic performance.
| Pros for Pioneer - 6" x 9" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair) - Black | |||
|---|---|---|---|
| Sound Quality, Magnet Size | Sound Quality | Sound Quality | Sound Quality, Price, Installation |
| Cons for Pioneer - 6" x 9" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair) - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Bass |
Specs
Reviews
Customers are saying
Customers have good things to say about the sound quality of the 6" x 9" 2-way Car Speakers. They describe the sound as clear, crisp, and having a great bass. Many customers also mentioned that the price of the speakers is reasonable and a great value for the quality.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great speakers with the mounting brackets included
Really good!! Pioneer never disappoint, these speakers already includes the mounting brackets for Subaru and Toyota in case you need them, so you don't have to buy the brackets separately!! I've installed them in the front doors on a Subaru Forester 2023. I'm attaching a picture that shows the difference in magnet size with the OEM speaker.
Posted by OscarR
- Rated 5 out of 5 stars
King
I really like the bass that these speakers put out.
Posted by KingBass
- Rated 5 out of 5 stars
Great speakers
I like how they sound with my new stereo. I had a set of Sonys in the car before and these Pioneers have more depth and breadth. I didn’t use an amp and they are still worth it. Don’t forget to get front speakers too, it’s the combination that makes the best sound. They come with universal adapters but I recommend getting application specific and wiring adapters too, I wish I had, would have made it a breeze instead of a sweaty mess.
Posted by TDIBill
