VEVOR - PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester - Gray

Name: VEVOR - PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester - Gray
Brand: VEVOR
SKU: 12338168
Price: 82.9 USD
Availability: InStock
Rating: 0 (0 reviews)

Model: SP-HL-S252310-15A

SKU: 12338168

$82.90

Save $10.00

$92.99

Availability

Pickup

Unavailable from this seller

Shipping

Get it by

Tue, Apr 7

FREE shipping to

Sold & shipped by

VEVOR Distribution Store

(393)

Return & Exchange Policy

About This Item

Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.

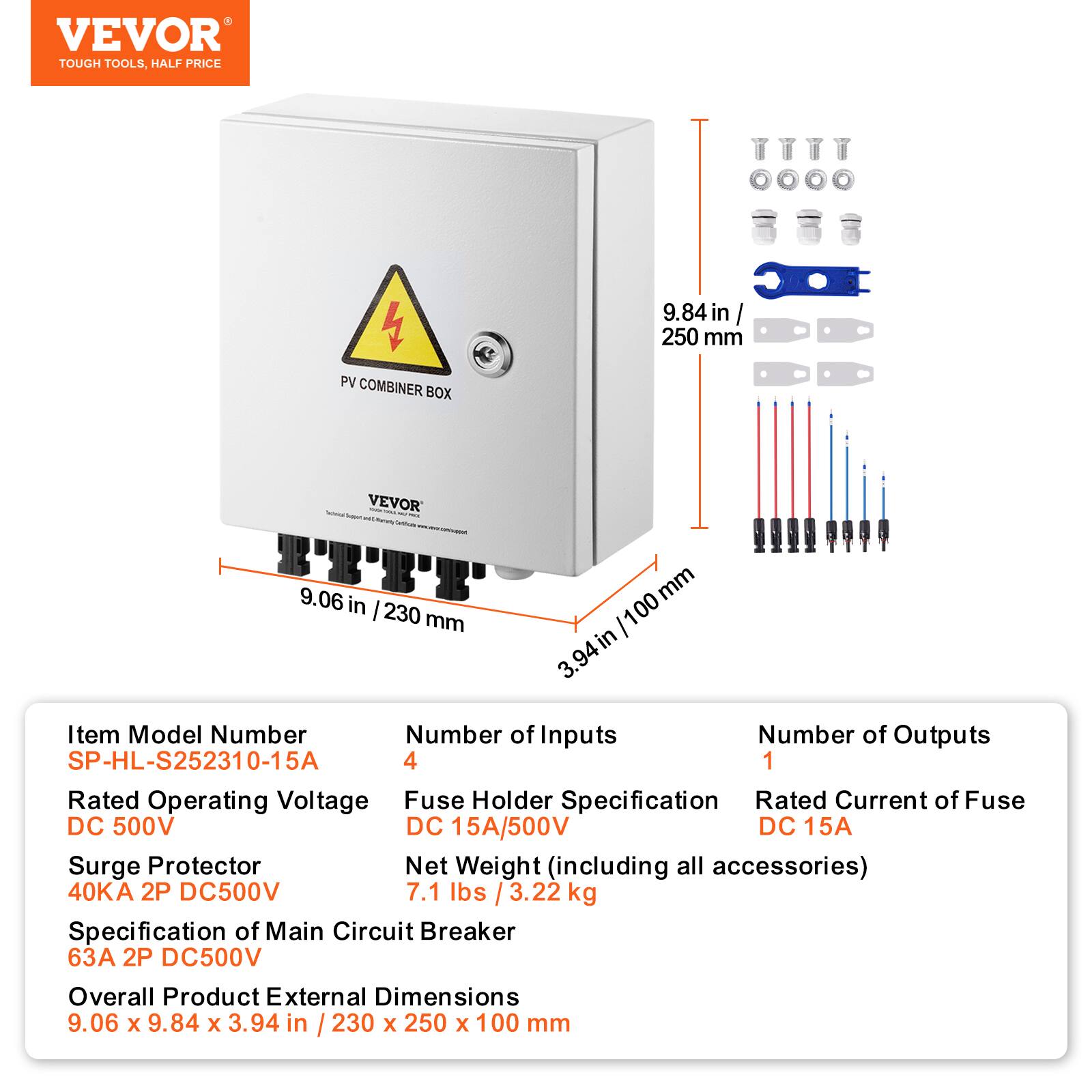

General
- Brand: VEVOR
- Model Number: SP-HL-S252310-15A
- Product Name: PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester
- Color: Gray
Power
- Voltage: 500 volts (Amount of power needed to support an electrical current.)
- Integrated Surge Protection: true
- Continuous Power: 3000 watts
Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
Connectivity
- USB Port(s): false
Dimensions
- Product Height: 5.12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.84 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 10.63 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 8.38 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 1 Year warranty
- Warranty - Labor: 1 Year warranty
Other
- UPC: 199412423092

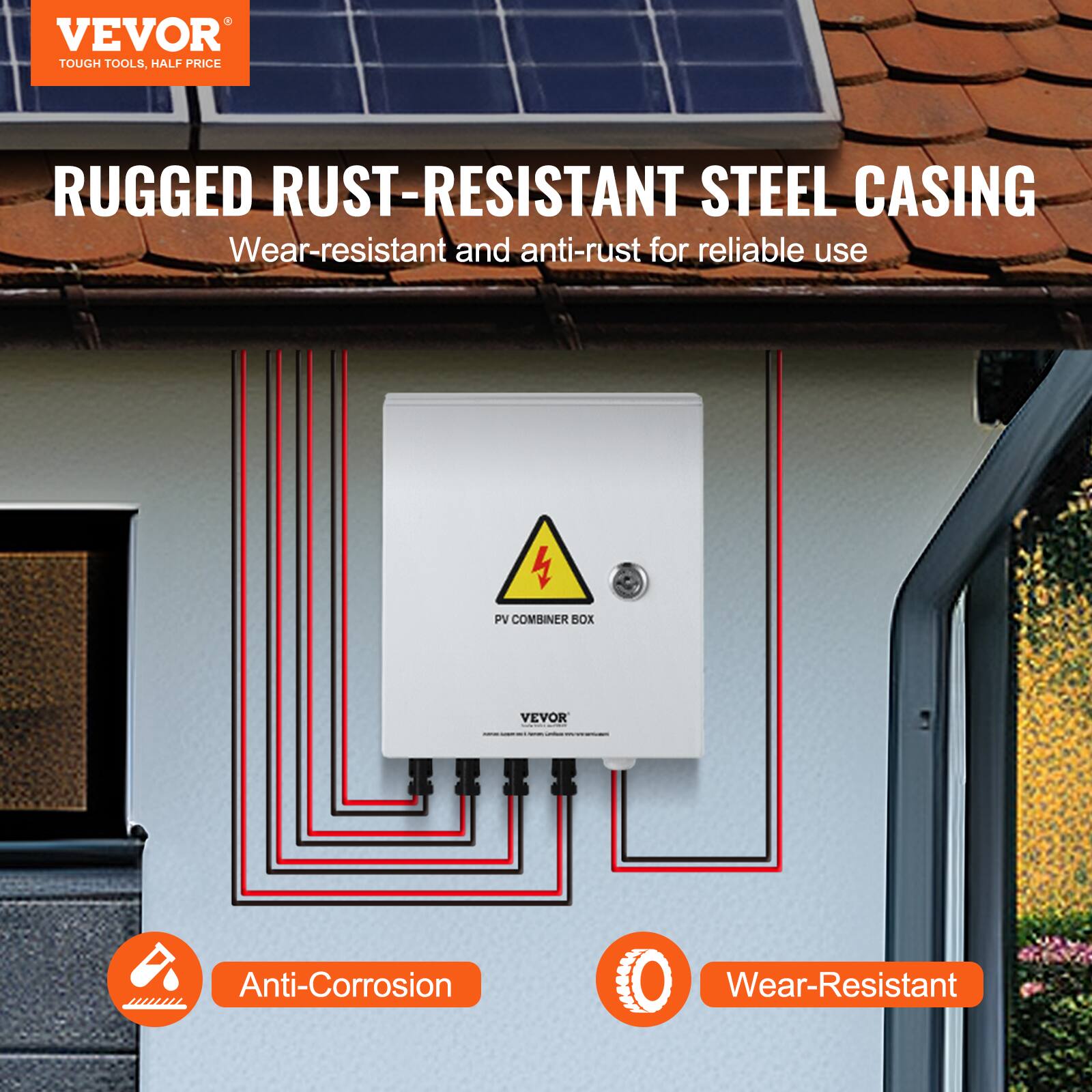

Durability Meets Reliability: Crafted from rugged steel, our PV combiner box exterior ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, its exceptional impact resistance and high fracture toughness offer optimal performance even in challenging environments. Elevate your solar setup with our solar combiner box!

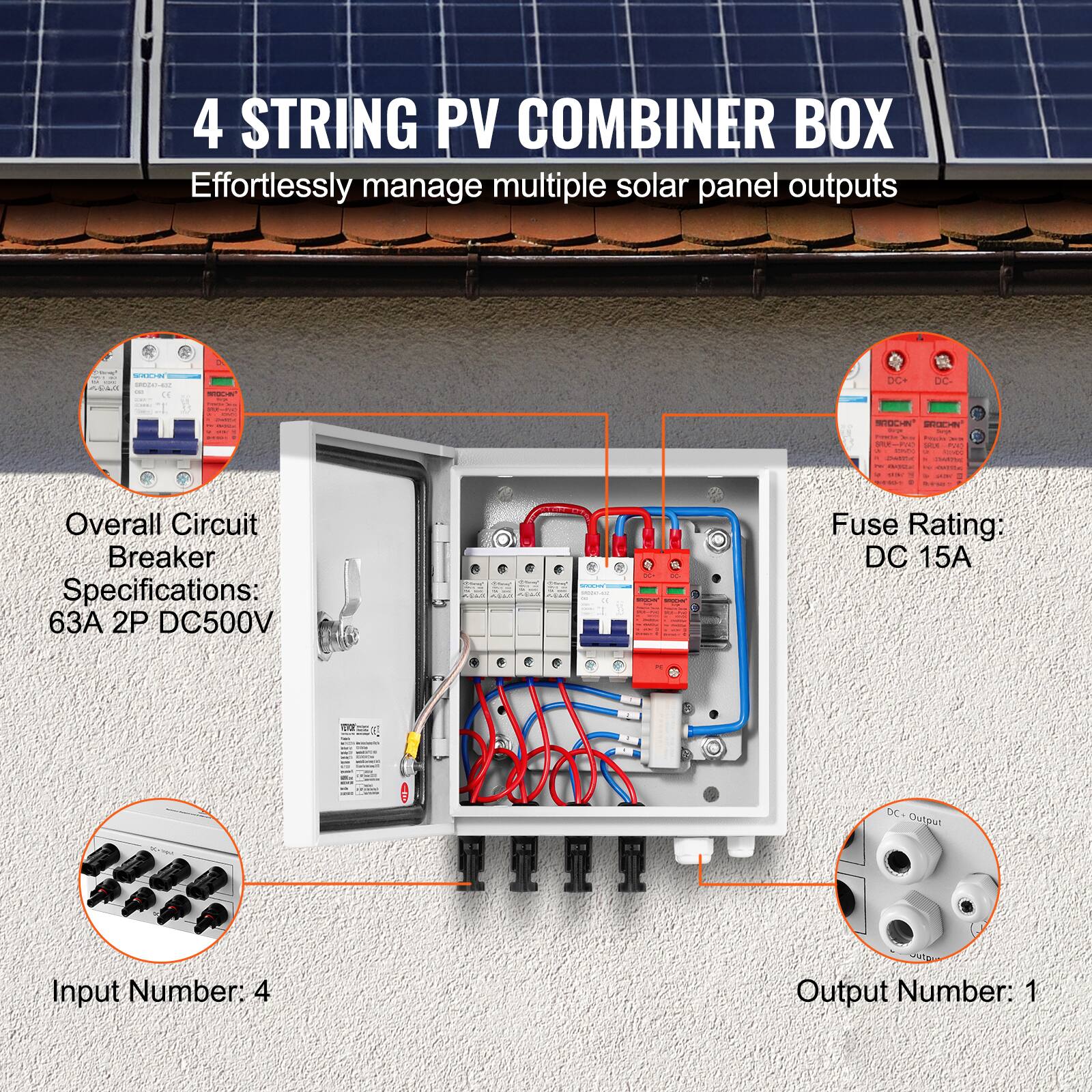

Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.

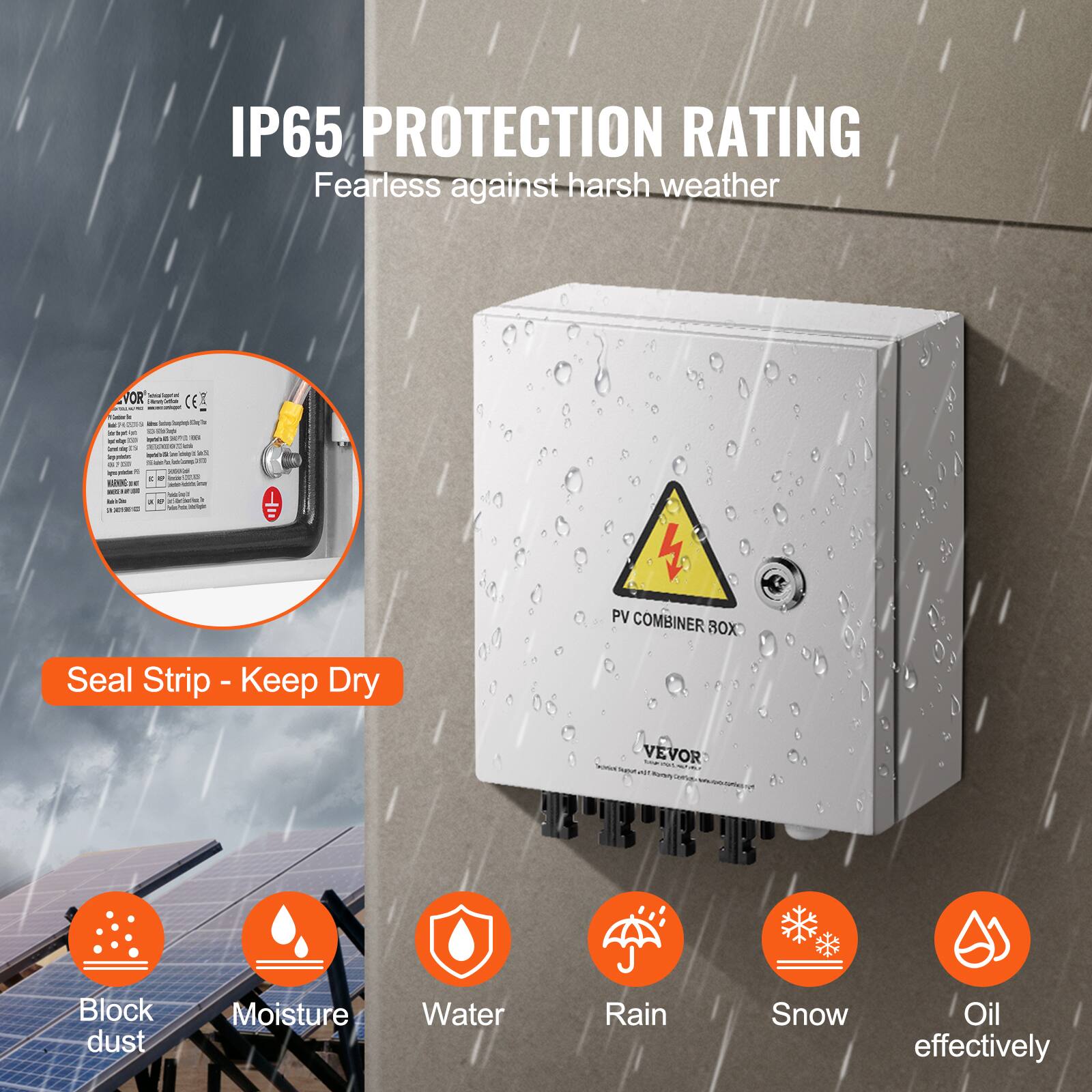

IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!

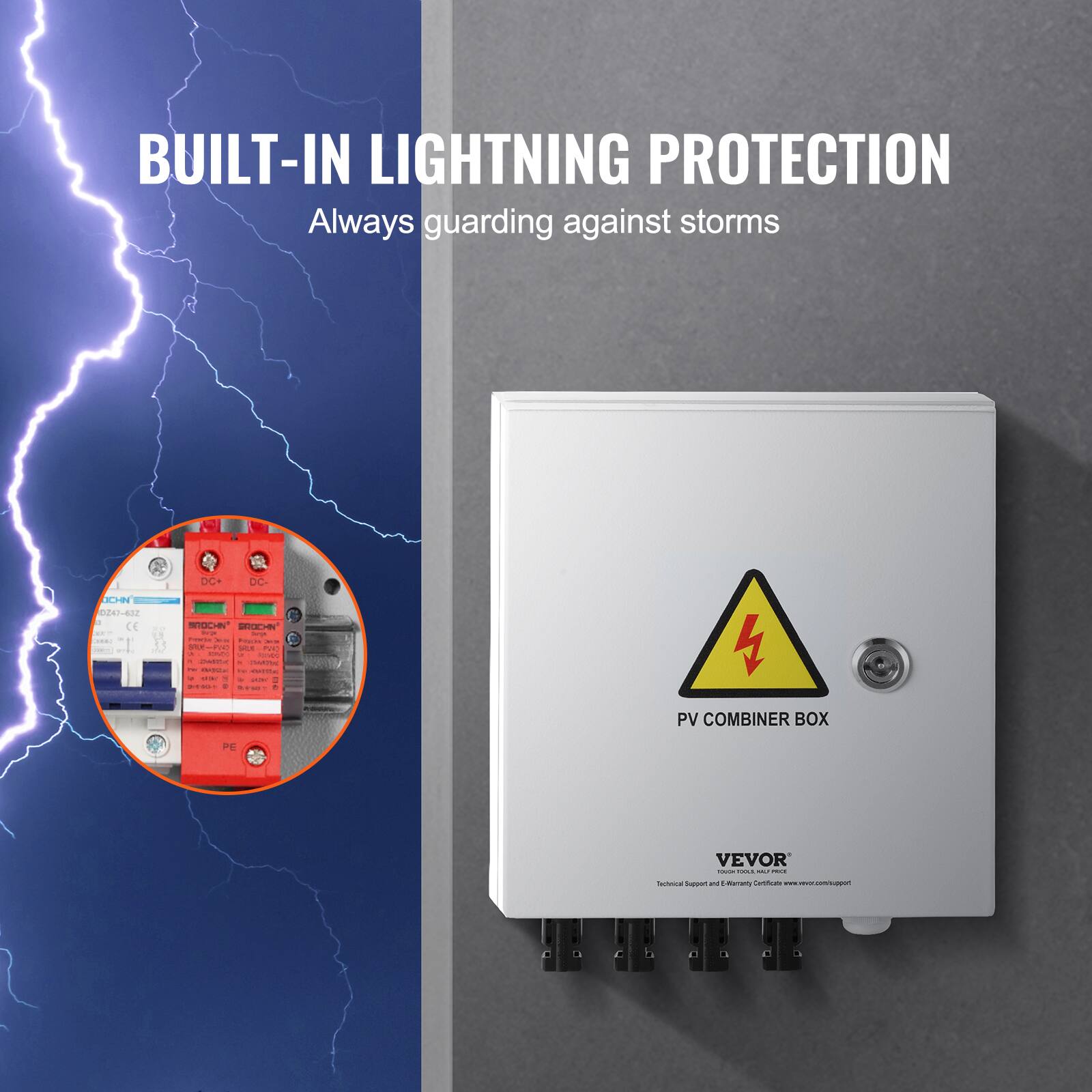

24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.

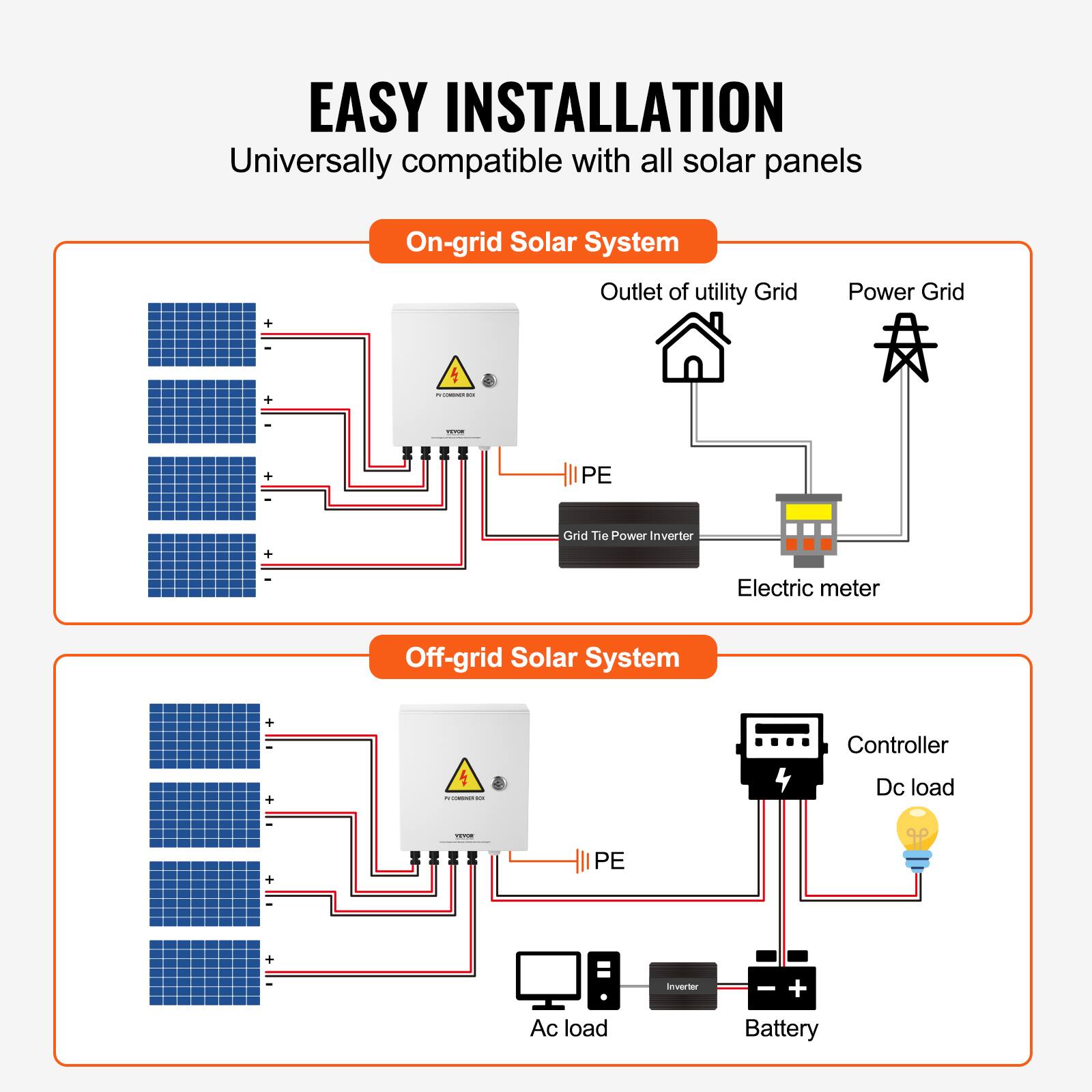

Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!
Durability Meets Reliability: Crafted from rugged steel, our PV combiner box exterior ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, its exceptional impact resistance and high fracture toughness offer optimal performance even in challenging environments. Elevate your solar setup with our solar combiner box!
Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.
IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!
24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.
Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!

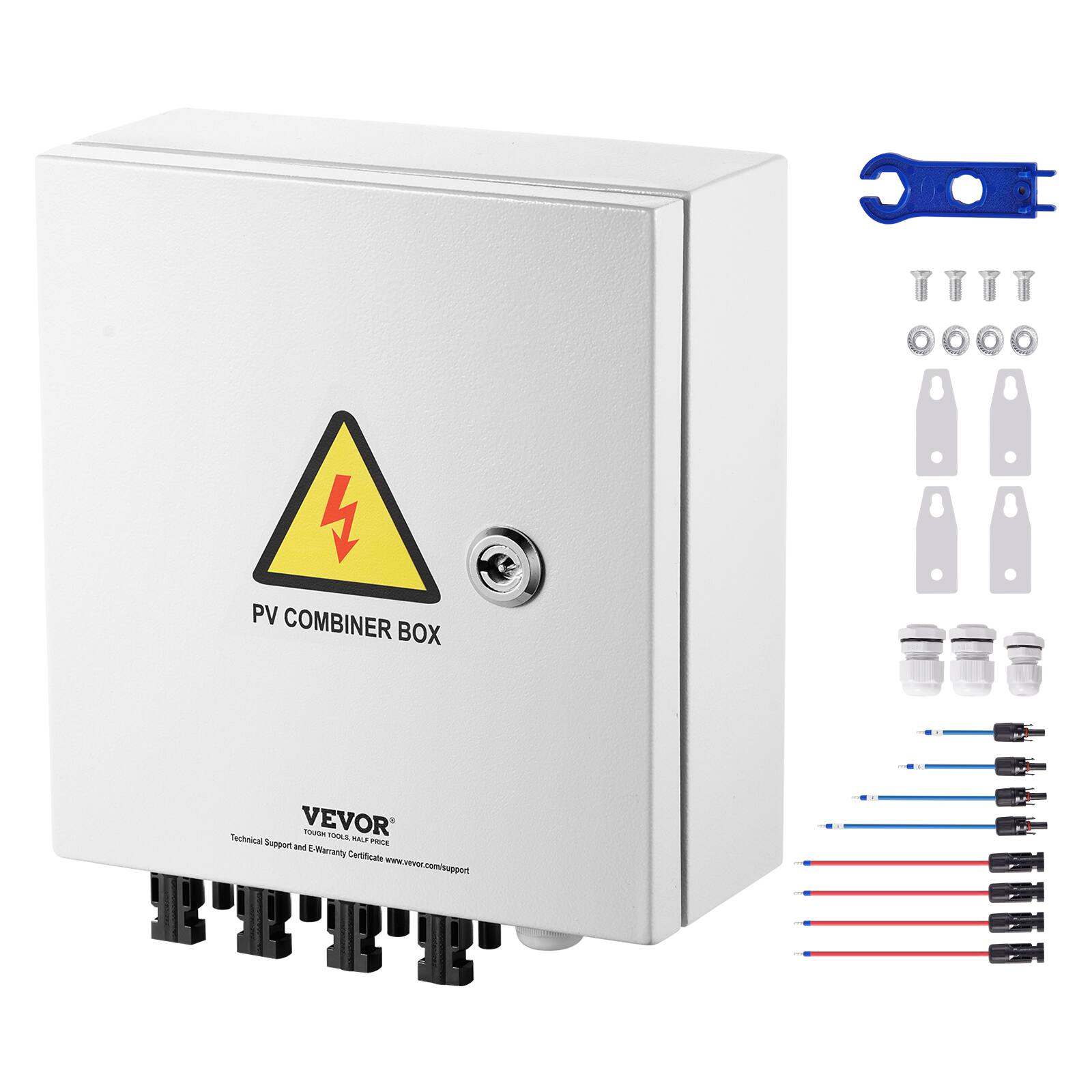

Whats Included

4 x MCB Female Connectors with Red Wire (2.5 mm²);4 x MCB Male Connectors with Blue Wire (2.5 mm²);2 x PG13.5 Plastic Waterproof Glands
4 x MCB Female Connectors with Red Wire (2.5 mm²);4 x MCB Male Connectors with Blue Wire (2.5 mm²);2 x PG13.5 Plastic Waterproof Glands
