Specifications
- Continuous Watts x Channel @ Ohms50 @ 6 ohmsMaximum Watts x Channel @ Ohms300 @ 2 ohmsAmplifier ClassDNumber Of Channels8Bass BoostNoneHigh-Pass CrossoverFixed
- Key Specs
- Continuous Watts x Channel @ Ohms: 50 @ 6 ohms
- Maximum Watts x Channel @ Ohms: 300 @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 8
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- High-Pass Crossover: Fixed (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Alpine
- Model Number: PXE-C80-88

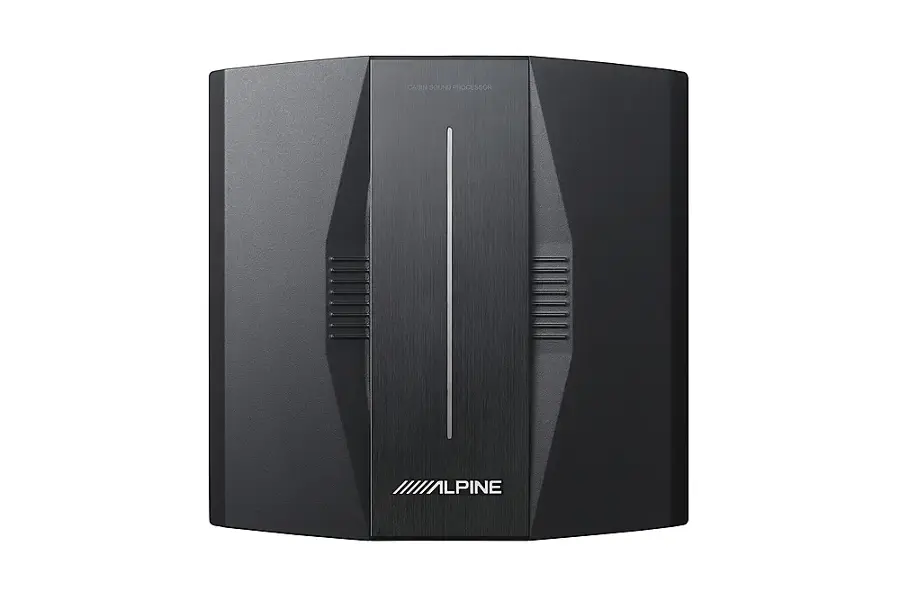

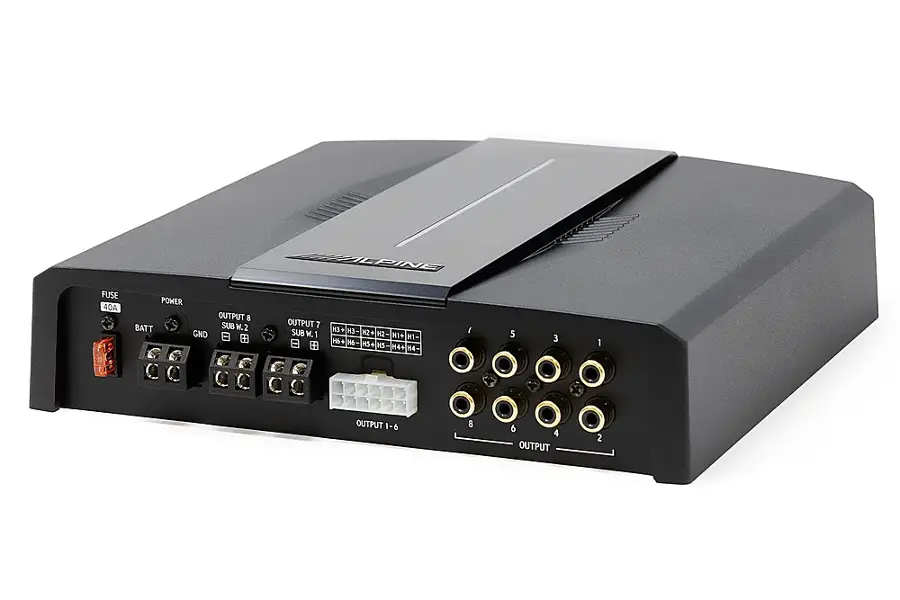

- Product Name: OPTIM 8 8-Channel Sound Processor and Amplifier with Automatic Sound Tuning
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 50 @ 6 ohms
- Total Power Handling RMS: 600 watts
- Watts Per Channel RMS: 50 watts
- Maximum Watts x Channel @ Ohms: 300 @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Watts Per Channel Maximum: 50 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 8
- Signal-to-Noise Ratio (SNR): 95 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- High-Pass Crossover: Fixed (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: Wired
- Fan Cooled: false
- Input

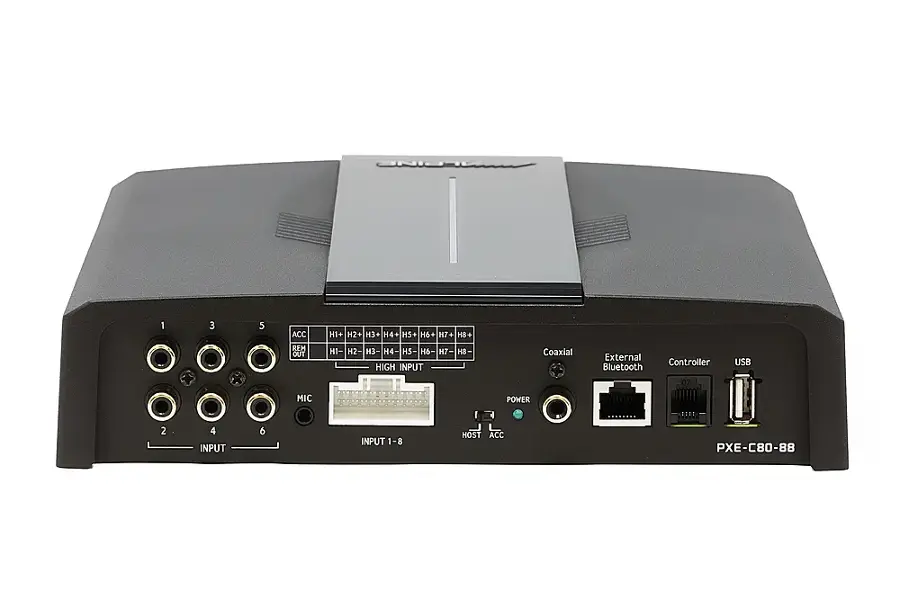

- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: true
- Dimensions
- Product Height: 2.1875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.4375 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 793276085207
Enhance your factory or aftermarket radio and sound system with the Alpine OPTIM 8. Featuring a built-in 8-channel amplifier with Hi-Res Audio playback up to 96kHz/24Bit, the OPTIM 8 is the all-in-one sound solution to amplify and effortlessly sound-tune your system in minutes.
- Built-in 8-channel amplifier with Hi-Res Audio playback up to 96kHz/24Bit: The OPTIM 8 is the all-in-one sound solution to amplify and effortlessly sound-tune your system in minutes.

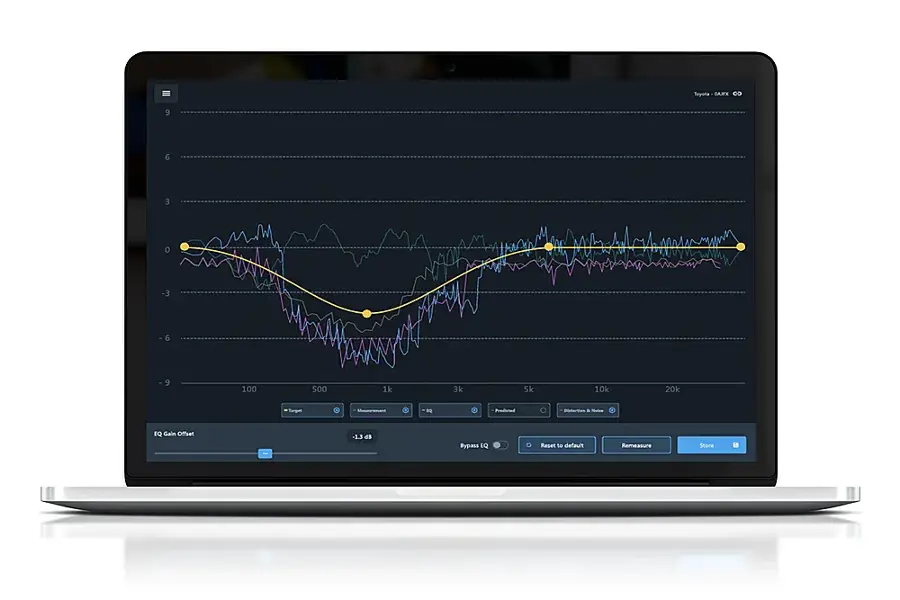

- Tune your entire sound system in under five minutes with the innovative auto-tuning capabilities of the Alpine OPTIM 8: Using the PC App and a mic kit (sold separately) or the IOS App and built-in microphone on an iPhone 10 or newer

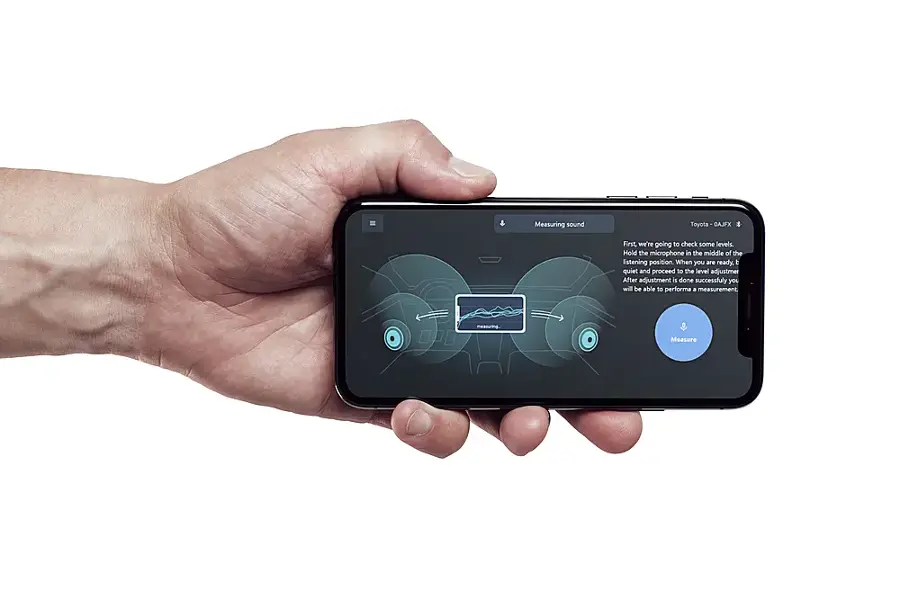

- Guided motions and clear instructions for microphone or iPhone placement: Quickly and effectively measure your entire vehicle interior for the most accurate results. The Auto-EQ software analyzes the vehicle’s acoustic response, accounting for any anomalies to create a base for tuning.
- Flexibility to use your factory radio & sound system or tie in an aftermarket system: The built-in amplifier boasts 50W x 6 @ 4Ω + 150W x 2 @4Ω or 50W x 6 @2Ω + 300W x 2@ 2Ω, for a solution that’s able to power a full sound system. Or stream music directly to your head unit using Bluetooth
- Create an experience that’s tailored to your ideal listening position or music genre preference: Tune your system in real-time using any of the six included presets to save your favorite tuning adjustments and access on the fly using the included OPTIM 8 controller.

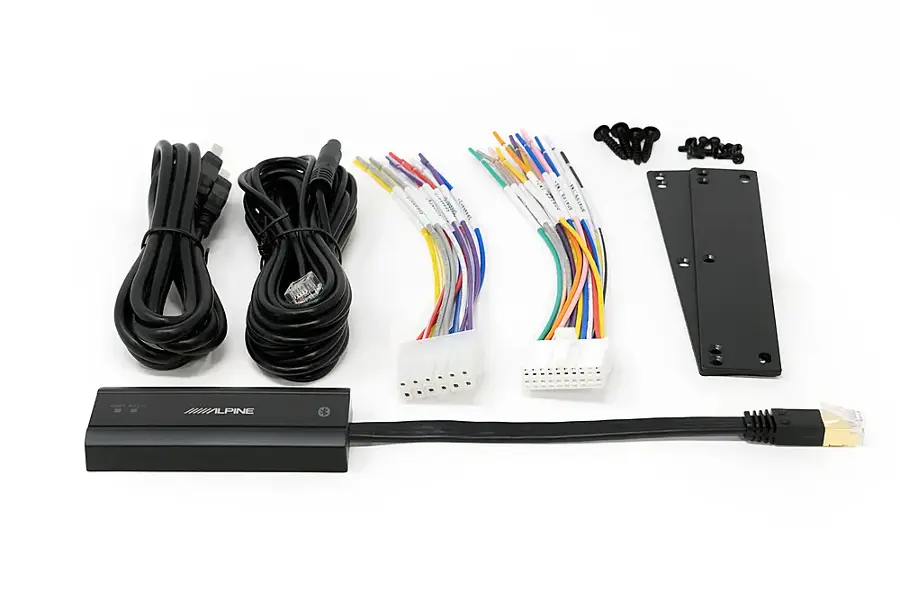

Whats Included

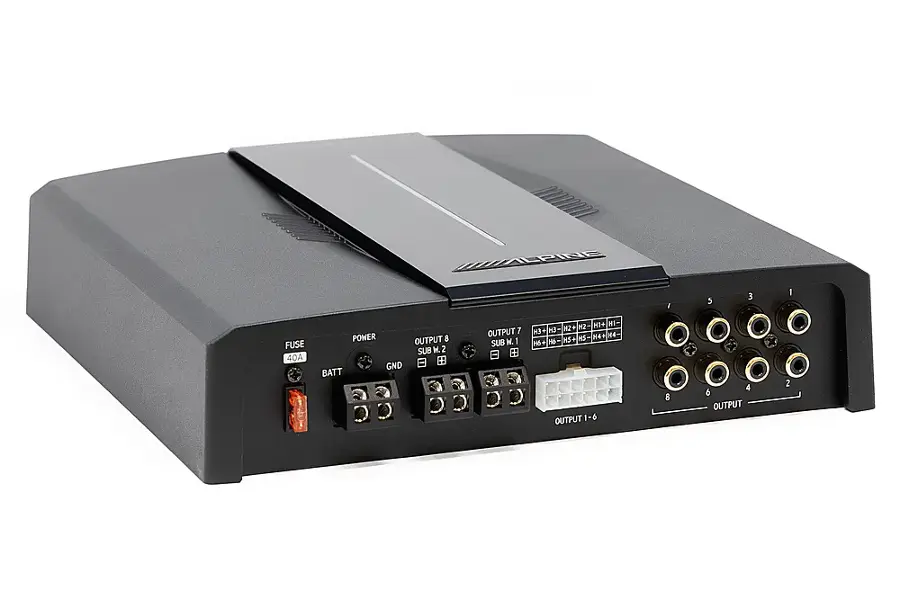

- 8-Channel processor/amplifier (installed 40A mini-ATO fuse)
- CSP Controller (attached 16" cable with 4-pin connector)
- 16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)

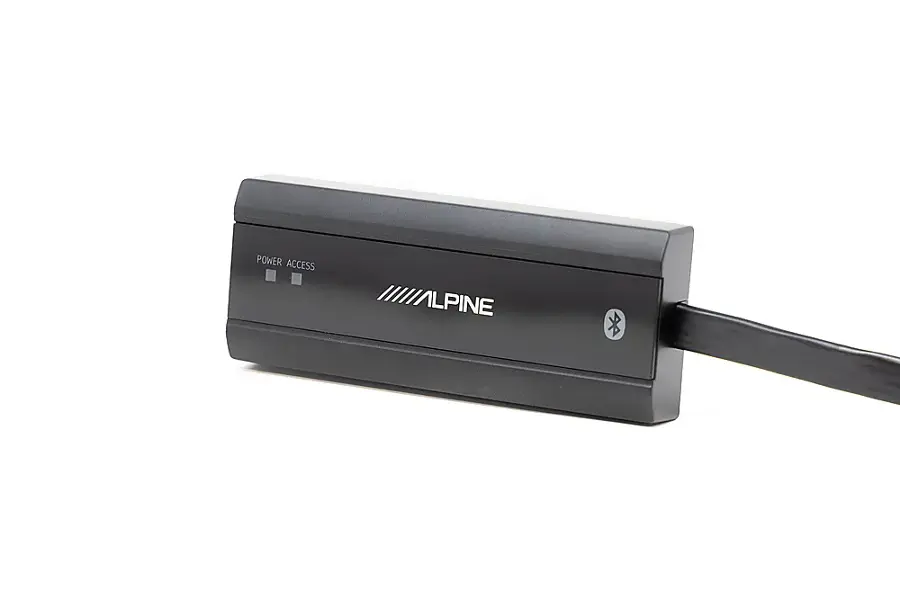

- KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
- 5' USB-A cable (2.0)
- 6" 20-Pin input harness
- 6" 12-Pin output harness
- 2 Mounting plates
- Four 3/4" pan-head screws & Four 3/4" pan-head screws
- Quickstart guide, Warranty information, product registration information, Quickstart addendum
Product Manuals
Q: What is the signal-to-noise ratio (SNR) of this Alpine sound processor?
A: The signal-to-noise ratio (SNR) of the Alpine OPTIM 8 is 95 decibels.
Q: Does the Alpine OPTIM 8 come with a remote control?
A: Yes, the OPTIM 8 includes a wired remote control.
Q: What is the total power handling (RMS) of this Alpine sound processor and amplifier?
A: The total power handling (RMS) of the Alpine OPTIM 8 is 600 watts.
Q: How long does it take to tune the sound system using the auto-tuning feature?
A: The auto-tuning feature can tune your sound system in approximately 3 to 5 minutes.
Q: Does this Alpine sound processor have a built-in amplifier?
A: Yes, the Alpine OPTIM 8 has a built-in 8-channel amplifier.
Q: Can I use the Alpine OPTIM 8 with my factory radio and speakers?
A: Yes, the OPTIM 8 offers flexibility and can be used with your factory radio and sound system or an aftermarket system.
A: Continuous: 50 Watts per Channel @ 6 Ohms
