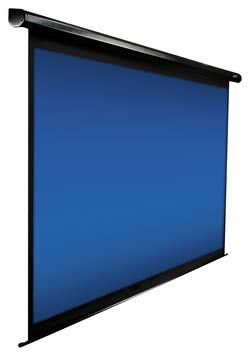

Elite Screens - Spectrum Series 125" Motorized Projector Screen - Black
- Key Specs
- Product Weight: 30.9 pounds (The out of box weight of the item.)
- Maximum Screen Size (Diagonal): 125 inches
- Aspect Ratio: 16:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Operation: Motorized
- Screen Surface: Lightly Textured (The proprietary technology and/or material(s) of the screen.)
- General
- Product Name: Spectrum Series 125" Motorized Projector Screen
- Brand: Elite Screens
- Mount Type: Ceiling, Wall
- Model Number: ELECTRIC125H
- Dimensions
- Product Height: 72.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 30.9 pounds (The out of box weight of the item.)
- Viewing
- Maximum Screen Size (Diagonal): 125 inches
- Aspect Ratio: 16:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Viewing Area Height: 61.3 inches
- Viewing Area Width: 109 inches
- Features
- Operation: Motorized
- Remote Control Included: true
- Material
- Screen Surface: Lightly Textured (The proprietary technology and/or material(s) of the screen.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years
- Manufacturer's Warranty - Labor: 2 years
- Other
- UPC: 876818005717
Transform your living room into a home theater with this Elite Screens Spectrum Series ELECTRIC125H 125" motorized projector screen that features a 16:9 aspect ratio for a large, clear picture. The infrared remote allows for simple operation.
- 125" diagonal screen: With a 61.3"H x 109"W viewing area and a 16:9 aspect ratio allows viewers to enjoy the show from around the room.
- 160° viewing angle: Offers a clear picture from multiple vantage points.
- Synchronized motor: Allows nearly silent operation and low power consumption.
- Black masking: Enhances picture contrast, so your favorite films and home movies appear crisp and clear.
- MaxWhite 1.1-gain screen material: With black backing helps prevent light from muddying the colors on the screen, so you can enjoy vibrant images.
- All-steel casing: Provides durable housing for your screen when not in use.
- 5-12V trigger port: With a standard RJ-45 connection allows you to synchronize the drop/rise operation with the projector's power cycle.
- Infrared remote: Provides you with the freedom to operate your projector from multiple locations.
- Detachable 3-way wall switch: Offers a simple method of operation.
- Ceiling- and wall-mountable: With included bubble leveler for multiple placement options.
A: Yes I have this screen hanging in my church. I have a drop paneled ceiling. I put "S" hooks on each end of the screen and attached a chain on each end of the screen; then I attached the chain around the tie beam in the ceiling. I am in a commercial building.
Q: What is the actual screen color
A: The screen is white with black borders. The case is black.
Q: is this screen good for Optoma short throw projectors
A: No Short throw projectors need an extremely flat surface and there are small waves in the fabric A flat wall is better
Q: Does it connect to a wall outlet?
A: Yes it does. There are no batteries for the screen itself, only for the remote used for raising/lowering remotely. (There is a hard-wired attachment you can use to raise/lower the screen without a remote, too.) The supplied power cord is also pretty short, so make sure to put it somewhere there is power near the ceiling or be ready to use an extension cord.
Q: Is there a way to set a stop with this screen so when it powers on it stops at a desired length?
A: Yes There are 2 adjusting screws inside the case at the cord end that allow adjustments in 1/2 inch increments The manufacturer no longer posts instructions because too many people screwed it up though They do include a tool for doing it but a 5/32 Allen wrench works too
A: Of course I cant see why not if it were done by a true professional
Q: How far down can you lower the screen? I.e. how much black is available above the projection area?
A: The screen has 8” of black fabric above the actual screen This is the factory adjusted maximum. It can be decreased but the manufacturer does not give clear instructions about how to do it and the You-tube videos are not helpful either
A: Hello. This model is 16x9.
