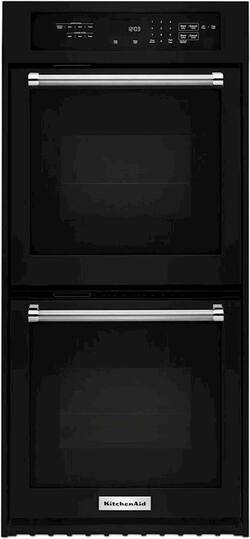

KitchenAid - 24" Built-In Double Electric Convection Wall Oven
- Key Specs
- Product Height: 51 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Color Finish: Black
- General
- Product Name: 24" Built-In Double Electric Convection Wall Oven
- Brand: KitchenAid
- Model Number: KODC304EBL
- Color Finish: Black
- Dimensions
- Product Height: 51 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Handle: 25 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 43 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 66 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 49 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 22 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/4 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 3.1 cubic feet
- Oven 2 Capacity: 3.1 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: false
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Interior Height: 16 inches
- Oven 1 Interior Width: 19 inches
- Oven 1 Interior Depth: 17 5/8 inches
- Oven 1 Cavity Material: Porcelain
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 1 Bake Element: 2000 watts
- Oven 1 Broil Element: 3600 watts
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 16 inches
- Oven 2 Interior Width: 19 inches
- Oven 2 Interior Depth: 17 5/8 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: false (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection Type: Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2000 watts
- Oven 2 Broil Element: 3600 watts
- Electrical Specification
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 208 volts (Amount of power needed to support an electrical current.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Other
- UPC: 883049355856
KitchenAid double wall oven: Enjoy delicious dinners when you use this electric double wall oven, which features True Convection (upper oven only) and Even-Heat preheat technologies to ensure temperatures remain consistent throughout the oven.
- Circulates air evenly throughout the oven: True Convection uses a fan to ensure even heating.
- Flexible cooking space for tall, wide and bulky cookware: Dual 3.1 cu. ft. capacity ovens provide the space you need.
- Cook several dishes in each oven simultaneously: With 5 oven racks (3 upper and 2 lower).
- Arrive home to freshly baked foods: Delay-start lets you begin cooking dinner when it is best for you, even if you aren't at home.
Whats Included
- 24" Built-In Double Electric Convection Wall Oven
- Trim, bottom vent with trim, screws
- Owner's manual
A: Well you can hear them. I have never really payed attention. I am usually to busy grumbling about the heat that it blows out to my kitchen. Whoever came up with the idea of venting back into the kitchen must have been an idiot.
A: The manufacturer's requirements are very specific. You will likely have to remove the drawer section and have a contractor rebuild the structure to support the oven or you will need to try to shift the oven upwards. If upwards is not an option, remodeling or a different option for wall oven may be necessary. Personally I had to recut the opening on the top end because I could not go lower into the lower drawer section of the cabinet.
Q: Does this model have a proof setting?
A: Hello Grapevine, this Double Oven does have a Proof Setting. Hopefully this information is beneficial to you. Thank you for your inquiry regarding our KitchenAid appliances!
Q: The fan is loud and you can hear it long after the oven is turned off. Is this normal?
A: Noisy, the fan will run until the internal temperature has cooled to a safe temperature.
A: My former oven made my kitchen (my kitchen is large) so hot that I could barely stand it. This new oven is remarkable. The air is cool and my kitchen doesn’t heat up at all.
A: You can change from gas to electric. The drawback is that changing will require capping the gas line to the old oven which requires a certified plumber, then you will have to hire an electrician to not only run the correct electrical lines to the location, but also expand your electrical panel as well. It can be done, likely less than the price you have quoted so far, however it is not a cheap process switching from gas to electric.
A: The interior on the 24" model is dark gray, same as the Whirlpool model. Only the larger sizes (27"+) have the blue interior.
A: Hello cillms, the Proof feature can be used when proofing bread for baking. We hope this helps.
