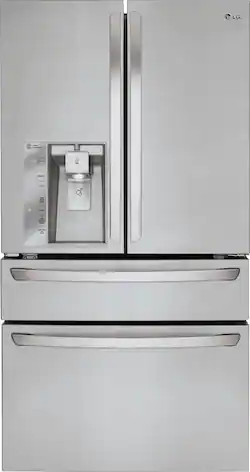

LG - 22.7 Cu. Ft. Counter-Depth 4-Door French Door Refrigerator with Thru-the-Door Ice and Water
- Key Specs
- Product Height: 70 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 29 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 32 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.7 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: 22.7 Cu. Ft. Counter-Depth 4-Door French Door Refrigerator with Thru-the-Door Ice and Water
- Brand: LG
- Model Number: LMXC23746S
- Color Finish: Stainless steel
- Dimensions
- Product Height: 70 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32 1/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 1/4 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 29 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 32 1/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 3/4 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 44 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 300 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 71 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 34 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 22.7 cubic feet
- Refrigerator Capacity: 13.5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6.4 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 2.8 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: French Door
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Range: 29° - 42° F
- Convertible Temperature Zone Location: Bottom left
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Daily Ice Production: 3.5 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Storage
- Number of External Doors/Drawers: 4
- Number of Refrigerator Shelves: 6
- Refrigerator Shelf Style: Adjustable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT800P (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 048231786225
The latest technology in a seamless design. Use every inch of this LG refrigerator and fit more food for parties, holidays, or everyday storage. The counter-depth design gives you more room in the kitchen and provides a built-in, custom look youll love. Plus, you can adjust the temperature to freeze, defrost, or chill in the CustomChill ® Drawer.
- Large Capacity, 23 cu ft.: Great size in a feature-packed refrigerator.
- Counter Depth: Create seamless, built-in look with this counter-depth refrigerator.
- CustomChill™ Drawer: Adapts to your needs by giving you additional refrigerator or soft freezer space when you most need it.
- Slim SpacePlus® Ice System: The LG Slim SpacePlus® Ice System provides the most shelf space.
- EasyReach™ Bins: Slide back the clear covers of these handy storage compartments…and dig in!
- Smart Cooling Plus® System: Smart Cooling Plus® is designed to monitor and maintain conditions to help keep food fresh.
- Fresh Air Filter: Cleaner, fresher air thanks to the Fresh Air Filter.
- 3-Tier Organization™ Freezer: Keep your freezer organized with the 3-Tier Organization™ Freezer system.
- ENERGY STAR® Qualified: Save money and energy with this ENERGY STAR® qualified LG refrigerator that exceeds energy standards.
- Tall Ice & Water Dispenser®: Finally, an ice & water dispenser that can accommodate just about any container.
- SmartDiagnosis™: Troubleshoot quickly and efficiently with SmartDiagnosis™.
Product Manuals
Documents
- Energy_Guide_PDF
Q: How does the black stainless steel compare to regular stainless as far as showing fingerprints?
A: Truthfully, the black stainless will smudge, too, but I love the look of the black stainless and I usually take a clean cloth and wipe away any smudges. I'm very happy with the black stainless.
Q: What are the dimensions of this refrigerator. I am restricted to a 36 in wide appliance .
A: I have a 36" cubby and the fridge fit just fine. About 1/16 of an inch on each side. BTW, the fridge is great so far.
A: Although this does not directly answer your inquiry about having the LG - 22.7 Cu. Ft. Counter-Depth 4-Door French Door Refrigerator with Thru-the-Door Ice and Water - Black Stainless Steel, Model # LMXC23746D mixed with regular Stainless Steel appliances, it may help to know that The Balck Stainless Steel is a few shades darker than regular Stainless Steel and that the Black Diamond finish is more glossy than shiny, and more reflective than Stainless Steel. It actually has a base of stainless steel that is coated with the darker hue, then topped with a nanoceramic coating that makes the surfaces of the appliances more smudge-resistant and easier to clean...^IFV
Q: Red the vegetable drawers really too small and cumbersome? Thanks.
A: The drawers are smaller than you would typically find in many refrigerators (even smaller ones - we had a side by side that had a two drawers that were stacked, not side by side and they were much bigger). I think in this French door refrigerator the vegetable drawers were a design trade-off. If they had put in two drawers rather than three (two "wider"; one "narrower" middle drawer) you would have to open both French doors to use the drawers. As designed, you can open one door and get to one drawer. There are drawbacks to this - for example we buy the big containers of spinach common in many groceries and it will not fit in any of the drawers. Nevertheless, we love this refrigerator.
Q: Does the ice maker use filtered water to make ice cubes?
A: It has a filter that you will need to change every 3-6 months, so the water and ice are filtered by the fridge. If you already filter your water the filter can be bypassed
A: In the event that you need assistance we have 24/7 dedicated support. We also have a social media team that is available for assistance too. Our social media team is available via Twitter @LGUSSupport, Facebook https://www.facebook.com/LGUSA/ or you can give our customer service team a call at 800-243-0000. ^CP
Q: Is the front of the fridge magnetic?
A: No it is not
Q: Are the hinges hidden or exposed? Can someone add a photo?
A: If you really look you can barely see it on the bottom of the door, but you really have to look. If you're concerned about them standing out, don't be.
