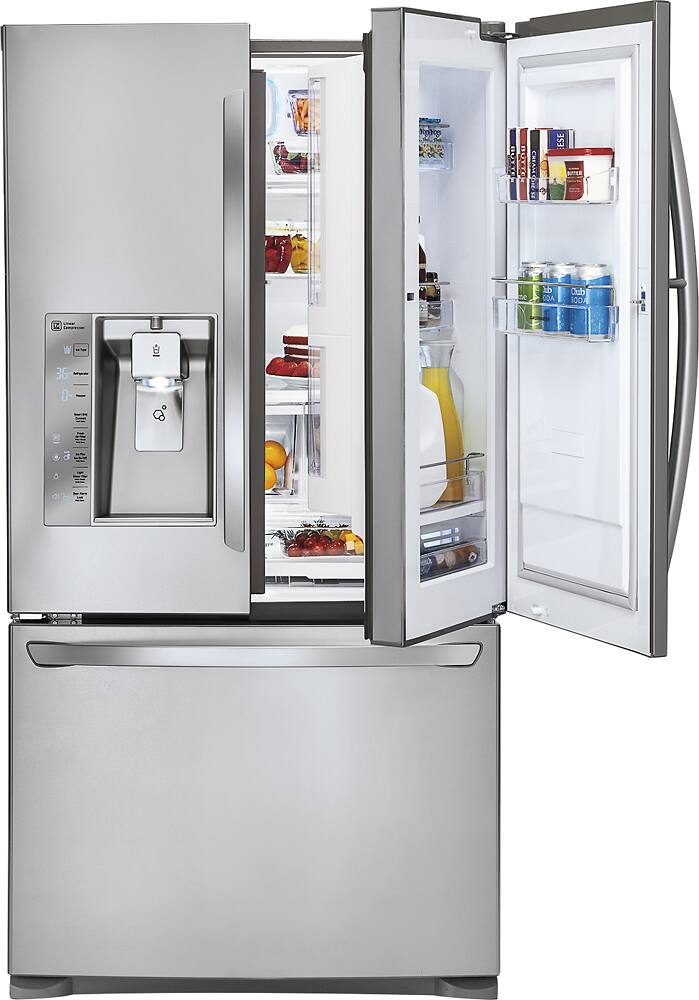

LG - Door-in-Door 28.6 Cu. Ft. French Door Refrigerator with Thru-the-Door Ice and Water - Stainless Steel
- Key Specs
- Product Height: 70.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68.875 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70.25 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 33.75 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 36.25 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 28.6 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: Door-in-Door 28.6 Cu. Ft. French Door Refrigerator with Thru-the-Door Ice and Water
- Brand: LG
- Model Number: LFXS29766S
- Color Finish: Stainless steel
- Dimension
- Product Height: 70.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 36.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68.875 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70.25 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 33.75 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 36.25 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 29.5 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 48.125 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 342 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 71.25 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36.25 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 38.25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 28.6 cubic feet
- Refrigerator Capacity: 18.7 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 9.9 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Manual (Frost free appliances regulate temperature to prevent ice build-up. Automatic and adaptive defrost systems prevent and remove ice build-up by circulating heat as needed; automatic systems typically run on a timer while adaptive systems use sensors to determine when to circulate the heat.)
- Lighting Type: LED
- Ice and Water
- Ice Maker: Yes
- Daily Ice Production: 6.8 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Storage
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Plastic
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT700P (The water filter model(s) recommended for use with the product.)
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: LT120F (The air filter model(s) recommended for use with the product.)
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 736 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 88 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year limited; 7 years: sealed system; 10 years; linear compressor
- Manufacturer's Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 048231786423
LG Door-in-Door 28.6 Cu. Ft. French Door Refrigerator with Thru-the-Door Ice and Water: It's easy to keep groceries organized and fresh in this spacious, intelligently designed LG refrigerator. With convenient features like a water and ice dispenser and door-in-door bin access, there's no need to constantly open the door just to grab a few frequently used items. This ensures other foods remain cool and keeps the refrigerator energy-efficient.
- Smart Cooling Plus technology helps keep food fresher, longer: The Linear Compressor and Dual Evaporators react quickly to humidity and temperature levels, maintaining optimal conditions within the refrigerator.
- Humidity-controlled crispers keep food fresh: 2 crispers help keep fruits and vegetables at their best. The temperature-controlled Glide N' Serve drawer is ideal for storing party platters, deli meats and cheeses.
- Door-in-Door feature provides easy access to beverages and snacks: Designed for grabbing snacks on the go.
- Organize contents with ease: 4 half-width, spill-proof, tempered-glass shelves help contain small spills to simplify cleanup. A folding shelf accommodates tall, oversize items.
- 9 door bins help use space efficiently: Including 2 gallon-size, 5 half-width and 1 mini bin for flexible storage options.
- Plenty of space to organize frozen food: Freezer includes a top drawer with ice bin and a divided bottom drawer for easy access and organization.
- Access filtered water and cubed or crushed ice with the push of a button: Thru-the-door ice and water dispenser with filtration that removes impurities, so you don't have to buy bottled water to ensure a fresh taste.
- Tall dispenser opening for hassle-free filling of pitchers: Designed for spill-free pouring into tall glasses and containers.
- Control settings from the dispenser's LED display: Enable the Child Lock to prevent unwanted access.
- Locate items you need in any lighting condition: High-efficiency LED lighting emits minimal heat, helps conserve energy, and offers a space-saving design.
- Auto pull-out freezer drawer: Smart Pull handle lets you access the freezer drawer simply by giving the handle a quick lift.
- Door alarm: Helps to save energy by alerting you when the refrigerator door is accidentally left open.
- Slim SpacePlus Ice system opens up more shelf space: The ice maker's in-door location allows for an extra shelf inside, and produces up to 7.3 lbs. of ice per day, storing up to 7.0 lbs.
Whats Included
- Door-in-Door 28.6 Cu. Ft. French Door Refrigerator with Thru-the-Door Ice and Water
- Owner's manual
- Ice bin
- Drawer divider
Product Manuals
Q: How do I turn off the ice maker in the freezer drawer?
A: THERE IS A SEPARATE SWITCH LOCATED IN THE FREEZER COMPARTMENT, RIGHT ABOVE THE PLASTIC STORAGE ICE CONTAINER. YOU PROBABLY WILL HAVE TO BEND DOWN TO SEE & LOCATE THIS SWITCH WHICH IS EITHER ON OR OFF. WE NORMALLY LEAVE OURS OFF, EXCEPT WHEN WE EXPECT COMPANY, THEN WE TURN IT ON 48 HOURS IN ADVANCE TO MAKE ADDITIONAL ICE. WHEN THE SWITCH IS OFF, WE EMPTY THE ICE STORAGE CONTAINER, BUT LEAVE IT IN PLACE & USE THE CONTAINER ITSELF FOR FOR EXTRA FREEZER STORAGE SPACE.
A: Yes, it does. One is in the door and the other is located in the upper left of the freezer section. I have read a lot of reviews about other LG in door ice makers that do not produce enough ice on a daily basis. However, we're a family of four and would say we use an average amount of ice each day. We have not yet run out of ice using the ice maker through the door. But is it nice having the large ice tray in the lower freezer for entertaining. Hope this helps. LG 28.6 Cu. Ft. French Door Refrigerator with Thru the Door Ice and Water Silver LFXS29766S SKU: 8267205
Q: Would this model fit through 30" doorway?
A: What size whirlpool refrigerator would fit through my 30 inch door way?
Q: Noise?
A: I just completed my review in which I commented on noise. Actually it would be more accurate to talk about the LACK of noise. It is so, so quiet. Cannot even hear it running. Only sound is a VERY muffled sound when the ice empties, and then by the 5 sec sound of water filling the trays.
A: We had this problem. Even after a month our refrigerator water tasted awful. It was the plastic or electrical taste. After reading the article below we found the filter was not seated properly. Be sure to turn the filter clockwise PAST the first stop. Just keep twisting it. Then run another 2.5 gallons of water through it. Don’t forget to throw out the old unfiltered ice! https://lgcommunity.us.com/discussion/2747/water-filter-bad-taste
Q: LG WEB SITE say this refrigerator is NOT DUAL Evaporation? Cooling System Plus is DUAL Evaporation.
A: I wish it more clear about the number of evaporators on this refridgerator. However, I cannot find a reference on the LG website that says this is a single evaporator refridgerator. In fact, it clearly states on the French door refrigerator product overview page that all LG French door refrigerators are Smart Cooling Plus (http://www.lg.com/us/kitchen/french-doors.jsp). Smart Cooling Plus has dual evaporators. However, the specs for this model say it has Smart Cooling, not Smart Cooling Plus. I have been unable to find a specification for Smart Cooling on LG's website (they do have a definition for Smart Cooling Plus). Best Buy, Home Depot, and Consumer Reports all list this model as having dual evaporators. So, the confusion persists. It would be so much easier if Dual Evaporators was a clearly listed feature in the specs. This is an important feature and should be clearly spelled out so consumers can make an informed decision (LG Marketing are you listening?).
A: I am having this same issue. The bottom ice tastes fine. The water tastes fine. The top ice maker tastes so weird! I might try to change out the water supply line from the new plastic one they made me buy, to the old copper one we had before. I read online that could solve it.
Q: Does the ice maker dispense both cube and crushed ice ?
A: Yes the in-door ice dispenser has both cubed and crushed ice however the extra ice maker in the freezer drawer only does cubed ice. However be forewarned the upper doors do not open all the way so the interior drawers are difficult to slide out and almost impossible to get out for cleaning. Also it is not easy to access the interior as the doors don't open all the way.
