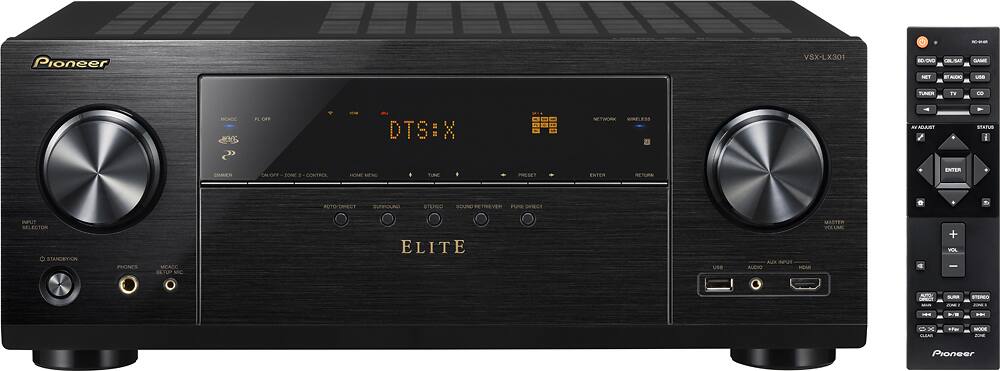

Pioneer - 1190W 7.2-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver - Black
- Key Specs
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- General
- Product Name: 1190W 7.2-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Brand: Pioneer
- Model Number: VSXLX301
- Audio
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: DTS Neo:X, DTS-HD, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby TrueHD (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: true (Allows a user to select between one of two sets of primary speakers.)
- Outputs
- Speaker Connection Type: Binding posts
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.2 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Dimensions
- Product Height: 6.8125 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.5625 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 3 years
- Manufacturer's Warranty - Labor: 3 years
- Other
- UPC: 889951000068
Anchor your home theater system with this Pioneer 7.2-channel receiver. Dolby Atmos and DTS:X Ready technology deliver a rich listening experience, and the Ultra HD pass-through provides crisp video quality. With its Bluetooth, Wi-Fi and Google Cast features, this Pioneer 7.2-channel receiver lets you stream movies, TV shows and music effortlessly.
- 1190W total power: 170W x 7 @ 6 ohms, 1kHz for powerful sound.
- Surround sound decoders: Include Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, DTS:X, DTS Neo:X , DTS Neural:X and DTS-HD Master Audio.
- Multiroom capability: Allows you to make 2 zone which is independently controllable through IR commands.
- Speaker A/B switching: Lets you connect and switch 2 amplified audio sources to a single set of speakers.
- Icon-based Graphical User Interface: Walk you through the entire setup process for ease of use.
- Pioneer-exclusive MCACC (Multi-Channel Acoustic Calibration): An outboard microphone optimizes receiver output for room acoustics, checking and adjusting for speaker connections, distances from listening position and sound pressure levels.
- AM/FM digital tuner: 40 station presets lets you program your favorites for simple one-touch recall.
Whats Included
- Pioneer 1190W 7.2-Ch. Network-Ready 4K Ultra HD and 3D Pass-Through A/V Home Theater Receiver
- Remote controller
- 2 x AAA Batteries
- Indoor FM antenna
- AM loop antenna
- Speaker setup microphone
- Power cord
- Owner's manual
A: Short Answer: Yes you can, but it won't be as good. Long Answer: I would say that technically no matter what type of speaker it is, the receiver will use it however you program it to use it. You have complete control over how it uses you setup. However, I think you would definitely not get anywhere near the same quality surround experience if you use height speakers for any purpose other than height speaker usage (Dolby Atmos)
Q: Can this receiver be used as a 2 channel unit for just stereo?
A: Yes. This receiver can also take advantage of using the Bi-Amp feature if your speakers have the connectors.
Q: Does this receiver support two subwoofers?.
A: YES IT DOES.
Q: I've read comments that this receiver is Bluetooth ready. Does it transmit to Bluetooth speakers?
A: Yes it does.
A: (inches) 17-7/8W x 6-13/16H x 14-9/16D Weight 22 lbs.
Q: Does this receiver works as pre amp too ? Can I connect or ad a powerful amp on it?
A: Yes, I am using it as a pre-out to feed two amps for my whole house system.
A: Yes it can play pandora, apple airplay and a few other services.
