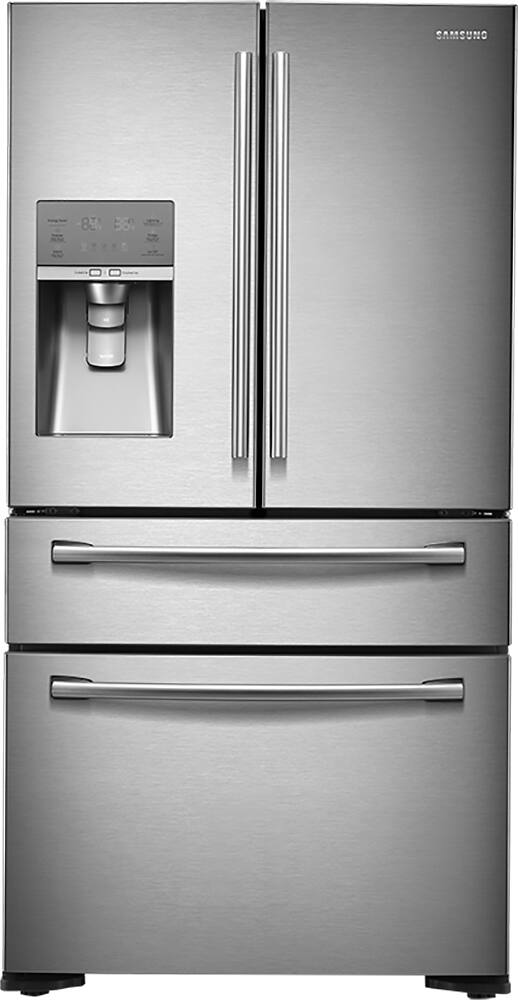

Samsung - 22.6 Cu. Ft. Counter-Depth 4-Door French Door Refrigerator with Thru-the-Door Ice and Water - Stainless Steel
- Key Specs
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 28 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.6 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: 22.6 Cu. Ft. Counter-Depth 4-Door French Door Refrigerator with Thru-the-Door Ice and Water
- Brand: Samsung
- Model Number: RF24FSEDBSR
- Color Finish: Stainless steel
- Dimensions
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 28 5/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 1/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 42 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 346.1 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 22.6 cubic feet
- Refrigerator Capacity: 13 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6.5 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Digital
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Daily Ice Production: 5.2 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Storage
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: false (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Spill-proof glass
- Freezer Interior Light: true
- Quick Freeze: true (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: HAF-CIN (The water filter model(s) recommended for use with the product.)
- Air Filter: false (A filter that works to remove odors and contaminants from the air within the appliance.)
- Electrical Specification
- Amperage: 5.3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 474 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 50 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 887276023458
Samsung 22.6 Cu. Ft. 4-Door French Door Refrigerator: Store produce, meat, fish, beverages, deli meats and other items at the appropriate temperature for freshness with this Samsung refrigerator, which features a Twin Cooling Plus System, 2 humidity-controlled crispers and a FlexZone drawer with 4 temperature-controlled zones. The thru-the-door ice and water dispenser allows you to access filtered water and ice simply by pressing a button.
- Keep your groceries fresh: The Twin Cooling Plus System maintains a high level of humidity in the fresh-food compartment while promoting dry air in the freezer compartment to help prevent freezer burn.
- >Store your produce at optimal humidity levels: 2 humidity-controlled crispers help keep fruits and vegetables fresh.
- >Maintain an ideal temperature for meat, fish, beverages, deli meats, snacks, wine and party dishes: FlexZone drawer features 4 temperature-controlled zones with SmartDividers.
- >Contain spills to simplify cleanup: 5 spill-proof, tempered-glass shelves include 1 slide-in/flip-up shelf, 1 flip-up shelf, 1 full-width shelf and 2 fixed shelves.
- >Easily access gallon-size jugs and other large items: 6 clear door bins include 3 gallon-size bins to free up interior shelf space.
- >Store frozen foods: Large Guard freezer bin offers ample space.
- >Thru-the-door ice and water dispenser: Offers filtered water and clear, crisp ice at the touch of a button. The Ice Master icemaker helps you keep plenty of ice on hand.
- >Water filtration delivers clean, fresh-tasting water: Removes impurities. Filter indicator lets you know when the filter needs to be replaced.
- >High-efficiency LED lighting illuminates the fresh-food and freezer compartments: So you can easily locate food items. EZ-Open handles ensure smooth opening action for easy access.
- >Stainless-steel finish: Along with a stainless-look display and stainless-steel accents on interior shelving and door bins offers a sleek look. Door alarm alerts you when a door has been left ajar.
Whats Included
- Samsung 22.6 Cu. Ft. Counter-Depth 4-Door French Door Refrigerator with Thru-the-Door Ice and Water
- Owner's manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: RF24FSEDBSR is latest and greatest counter depth from Samsung?
A: Thanks for the follow up! The RF24FSEDBSR is Samsung's largest capacity counter depth French Door available, though the RSG257 counter depth side by side model can fit a bit more (24.1 cubic feet vs. 23.5 cu ft for the new French Door model). Released this month (May 2013), the RF24FSEDBSR is the only new counter depth-size model, though several other full size models have launched recently, as well. The finish is real stainless steel, which is considered a premium finish, and will be consistent with Samsung's full line-up of stainless steel appliances. The large capacity of this and other Samsung fridges is attributable, in part, to the thin wall construction and special insulation that was introduced with the RFG297 several years ago. Other than the features you mentioned and the counter depth size, the biggest difference between the RF24FSEDBSR and the RFG297HDRS is the middle Flex Zone Drawer, making the former a "4-Door" model compared to the "3-Door" design of the latter. Neither of these models has the Dual Ice feature, though the newer model does have the upgraded Ice Master ice maker which can produce up to 10 lbs of ice per day. The Cool Select Pantry is a feature in the RFG297HDRS and several other 3-Door French Door models. This independently-controlled drawer within the fridge compartment has 3 settings: Deli, Fresh and Chilled. The Flex Zone Drawer in the 4-Door model has 4 settings (Meat/Fish mode, Cold Drinks, Deli/Snack or Wine/Party Dishes), and can be accessed without having to open the fridge conserving energy and making it convenient for both adults and kids. I hope this answers all your questions. We appreciate your consideration! Ms. Samsung
A: The middle drawer has 4 settings to choose from: 42 degrees - Wine Party 37 degrees - Deli Snacks 33 degrees - Cold Drinks 29 degrees - Meat Fish We keep the temp at 37 degrees and store all of our cheese, sandwich meats and snacks in it. It is wonderful for our kids. There are 2 vegetable/fruit bins in the main compartment of the refrigerator with humidity bar settings on them. I also have the Rubbermaid vegetable keeper containers to keep things fresher longer. I hope this helps.
A: Thanks for the question. The letters after the "/" in the model number of Samsung appliances are part of the model code used for internal purposes, and doesn't indicate a difference in features or specifications. It's common for the "/AA", for example, to be left off the end of the model number in most cases. - Ms. Samsung
Q: Does this fit a standard 30" width and 70" height?
A: No. This fridge is 36" wide and exactly 70" tall. Also, the fridge is 24" deep but you need about 2" behind it to allow for a water line.
A: Thanks for the question. The interior of the RF24FSEDBSR counter depth 4-Door French Door refrigerator is 33" wide (wall-to-wall) by 16-1/4" deep (rear wall to front of shelf). The Flex Zone Drawer interior measures 28" wide by 14" deep. I hope you find these dimensions to be sufficient for storing your veggie trays and pizza boxes! We appreciate your interest in Samsung! Ms. Samsung
Q: SKU 8391062
A: Thanks for the question. There seems to be some misunderstanding. While the counter depth RF24FSEDBSR does not have the ability to dispense sparkling water, it does have a through-the-door ice and water dispenser that provides filtered still water. There are a number of photos of the RF24FSEDBSR (SKU #8391062) on this website, as well as on Samsung's site. At this point in time, the only model that has the ability to dispense sparkling water (in addition to ice and filtered still water) is the full-depth RF31FMESBSR (SKU #8391105). I've included links to both of these models, which I hope helps to clear up the confusion. We appreciate your interest! Ms. Samsung
Q: how deep is the middle drawer? Can you fit a can a soda standing up?
A: Yes, the interior drawer depth is 8.5''.
Q: Can the metal dividers in the Flex Zone drawer be removed?
A: Yes! I removed them and it has improved the drawer space immensely! 1. Empty contents of the drawer. 2. Open the drawer and lift up on each side to take out the white plastic insert - the “guts” of the drawer. 3. Set it upside down on a flat surface and you will see that the border around the top (which is now on the bottom as it is upside down) is clipped on. It needs to be removed so that you can pull out the annoying rods. So, I used several flat head screw drivers and very very carefully kept going around as there are many clips - carefully pry them until you can get that border piece separated. Once separates, place the top border piece aside and now you need a Phillips screw driver to unscrew the bolt in each corner that has the plastic track that the rods run on. Unscrew them, lift the track up and jimmy the rod pieces out. Replace the plastic track that goes all around and rescrew. Now get that top trim piece back and carefully coax it over the drawer again. ...you just have to be super careful with unclipping and reclipping the top trim of the drawer, so don’t rush it and use several flat head screw drivers. Very doable with some patience and very worth it.it might help if you let the drawer come to room temp as the plastic will be more malleable. I just loaded my stuff back into the drawer and it is way way better!!! Sorry, I don’t take any pics as I was doing it, I didn’t know of it would work, but when you pull the white bucket of the drawer out and turn it upside down I think it will make sense. Worth the effort.
