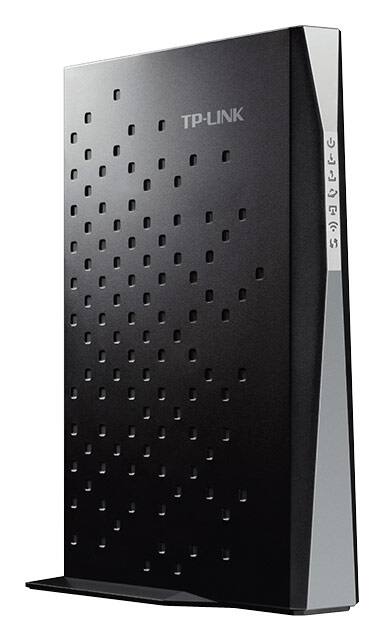

TP-Link - 802.11ac Wireless Gateway with DOCSIS 3.0 Cable Modem - Black
Model: Archer CR700
SKU: 4523298
This item is no longer available in new condition. See similar items below
- Key Specs
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1300 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Product Name: 802.11ac Wireless Gateway with DOCSIS 3.0 Cable Modem
- Brand: TP-Link
- Model Number: Archer CR700
- Security
- Data Encryption: true
- Encryption Type: WEP, WPA, WPA-PSK, WPA2, WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: NAT firewall, access control
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number of Antennas: 6
- Frequency Band: 2.4 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Standard: AC (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Mesh System: false (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Certifications Listings & Approvals
- DOCSIS Compliant: true
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: true
- Auto Connect: false
- Auto Detecting: false
- Wireless: true
- Ports
- Number Of WAN Ports: 0 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): Co-Axial, RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1300 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Auto Speed Sensing: false
- Compatibility
- System Requirements: PC: Windows XP, Vista, 7 or 8; Mac OS; Linux (The software that a product must have for it to be able to integrate with another product.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.3 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years limited
- Manufacturer's Warranty - Labor: 2 years limited
- Other
- UPC: 845973071462
Quickly and simply connect to the Internet with this TP-LINK ARCHERCR700 wireless gateway, which features four 10/100/1000 Ethernet ports for additional wired connectivity. Wireless-AC compliance allows data transfer speeds up to 1300 Mbps.
- Wireless-AC technology: Delivers quick data transfer and reliable connectivity.
- Simultaneous dual-band operation: For fast, efficient operation. Speeds up to 1300 Mbps on the 5.0GHz band and up to 450 Mbps on the 2.4GHz band.
- Beamforming technology: Delivers a targeted wireless signal for efficiency.
- 4 built-in 10/100/1000 Ethernet ports: Allow a wired connection for up to 4 computers.
- 2 USB ports: Enable easy storage and printer sharing, as well as simple access to other networked devices.
- NAT firewall and access control: Ensures that your information stays private.
- Integrated DOCSIS 3.0 technology: Backward compatible with DOCSIS 2.0, 1.1 and 1.0.
- Works with a variety of cable providers: Including XFINITY from Comcast, Time Warner Cable, Cablevision and Brighthouse networks.
- Cable download speeds up to 680 Mbps: For lag-free online gaming and seamless HD video and music streaming.
Whats Included
- 802.11ac Wireless Gateway with DOCSIS 3.0 Cable Modem
- RJ-45 Ethernet cable
- Power adapter
- Owner's manual
A: Yes, this is a cable modem + router combination device. Regards, TP-Link Support
Q: Does this work with Grande Services?
A: Our official website does not list Grande Services as a compatible ISP. However, we recommend contacting Grande to confirm Internet service compatibility with the Archer CR700. Regards, TP-Link Support
A: If the F-Type wall plate has an active Internet connection from your provider, yes, you can run a coaxial cable between it and the Archer CR700, then activate the gateway with your ISP. If your smart TV has WiFi connectivity, you can easily connect it to the Archer CR700 using the WiFi name and password you set during installation. Regards, TP-Link Support
Q: Is this compatible with Verizon Fios?
A: No, this is for use with cable Internet services, not fiber optic Internet. Regards, TP-Link Support
Q: Is this gateway compatible with Cox?
A: Yes, the Archer CR700 is compatible with Cox Internet service plans up to the Ultimate plan. Regards, TP-Link Support
Q: Does this have parental control?
A: Yes, it has parental control.
A: TP-Link CR1900 can definitely handle Comcast internet but not sure about your phone service. If however your phone number is a VOIP number (such as a free Google number like I have), you can simply run an Ethernet cable into a little Obitalk box. From there, you can run RJ11 cables to standard home phones. I connect mine to Vtech cordless phone system which transmits to other cordless handsets throughout my home. Been using it this way for almost 2 years so that I no longer pay for ANY landline phone services. Google phone service includes free voicemail and can forward calls to your cellular phone too.
