Zoom - DOCSIS 3.0 Cable Modem - Black
- Key Specs
- Internet Service Provider (ISP) Compatibility: Time Warner Cable, XFINITY from Comcast (The internet service provider(s) that the device is able to work with and/or connect to with minimal setup.)
- DOCSIS Certification: 3.0 (DOCSIS (Data over Cable Service Interface Specification) is a telecommunications standard that allows high-bandwidth data transfer via a coaxial cable for internet access. Each version updates the previous standard and is backwards compatible with other versions.)
- Downstream Data Speed: 343 megabits per second (The maximum speed at which data is downloaded from the internet.)
- Upstream Data Speed: 123 megabits per second (The maximum speed at which data can be transferred from the client to the server, or the upload speed.)
- General
- Product Name: DOCSIS 3.0 Cable Modem
- Brand: Zoom
- Model Number: 5345-00-03
- Color: Black
- Certifications Listings & Approvals
- DOCSIS Compliant: true
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: Ethernet port on Windows, Mac or Linux computer; WAN Ethernet port on wired or wireless router; connection to a cable modem service with DOCSIS 1.1, 2.0 or 3.0 (The software that a product must have for it to be able to integrate with another product.)
- Dimensions
- Product Height: 5.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.1 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Warranty
- Manufacturer's Warranty - Parts: 2 years limited
- Manufacturer's Warranty - Labor: None
- Other
- Modem Type: High speed
- UPC: 726947111998

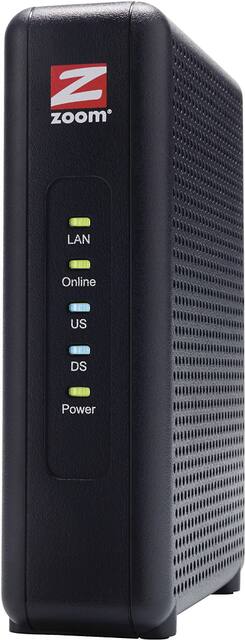

This Zoom 5345-00-03 cable modem features DOCSIS 3.0 technology and a 10/100/1000Base-T Ethernet, so you can enjoy a reliable high-speed Internet connection using your compatible computer. LED indicators offer at-a-glance status information.
- Ethernet connectivity: Offers versatile compatibility with most Windows, Mac and Linux computers, as well as a wide range of wired and wireless routers.
- 10/100/1000Base-T Ethernet: Enables rapid data transfer and lets you share high-speed service with a variety of devices.
- Downstream data speeds up to 343 Mbps and upstream data speeds up to 123 Mbps: Offer fast downloads and Web access. Full-Band Capture Digital Tuning ensures rapid, dependable performance.
- 5 LED indicator lights: Keep you apprised of LAN, online, upstream, downstream and power status.
- DOCSIS 3.0-compatible: Backward compatible with existing DOCSIS 2.0 and 1.1 systems for flexibility.
- SNMP management support: Includes MIB-II, Ethernet-like MIB, bridge MIB, cable device MIB, baseline privacy interface MIB and RF interface MIB.
Whats Included
- DOCSIS 3.0 High-Speed Cable Modem
- Power cube
- Ethernet cable
- Owner's manual
Q: Can I hook my phone up to this modem as well as my computer. I have comcast?
A: Item is cable modem. No telephone, no wifi.
Q: Is this zoom model compatible to connect with twc?
A: This modem is TWC approved right on the box and performs very well!
A: No. Need a router for wifi
Q: does itwork with windstream
A: No, Windstream is DSL, and this is a cable modem.
Q: Can this modem work with the linksys AC 1600 router
A: Yes, works great together
Q: Do you have infinity modems
A: undefined
A: undefined
Q: how does the two year warranty work
A: From their website: To return a product for repair or replacement, you must first obtain a Return Merchandise Authorization Number (RMA#). Items sent to our Repair facility without an RMA# will be refused at the sender's expense. To obtain an RMA#, you must contact our Customer Service offices using the e-mail or telephone contacts below. Please be sure include the following information: First and last name Product serial number (Where do I find my serial number?) Complete Shipping Address Telephone number Problem description We do recommend that you speak with one of our Technical Support representatives before you make a request to return your product. Click here for our Technical Support telephone numbers and hours of operation.
