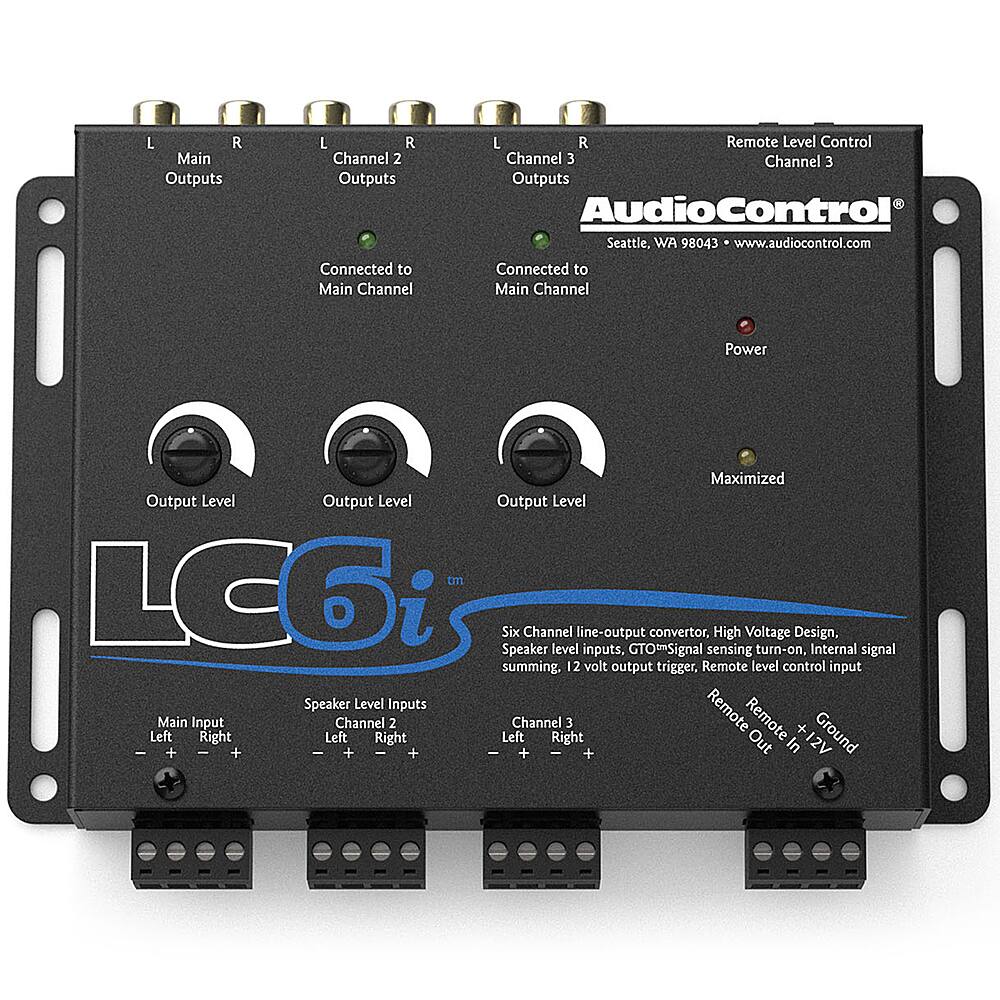

AudioControl - 6-Channel Active Line Output Converter with Summing - Black

Name: AudioControl - 6-Channel Active Line Output Converter with Summing - Black
Brand: AudioControl
SKU: 6482918
Rating: 5 (1 reviews)

Model: LC6i

SKU: 6482918

This item is no longer available in new condition. See similar items below

Key Specs
- Number of Channels: 6 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Audio Only Inputs: Unbalanced RCA
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
General
- Brand: AudioControl
- Model Number: LC6i
- Product Name: 6-Channel Active Line Output Converter with Summing
- Color: Black
Audio
- Number of Channels: 6 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Equalizer: false (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- High/Low Pass Filters: None
Inputs
- Audio Only Inputs: Unbalanced RCA
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): No network connectors
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 0
Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Number of Subwoofer Pre Outs: 0
- Number of HDMI Outputs (Total): 0
Features
- Remote Control Included: false
- Effect Type(s): None
Display
- On-Screen Display: false
Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
Other
- UPC: 855814005853

Easily add an aftermarket amplifier to your vehicle’s factory audio system with this 6-Channel Active Line Output Converter with Summing by AudioControl. The LC6i converts speaker-level (high-level) audio signals to RCA preamp (low-level) signals so you can install an aftermarket amplifier without replacing your factory radio. This six-channel line output converter can also be used to retain your vehicle’s OEM amplified audio system when replacing your factory radio.

Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs or when replacing your vehicle’s factory radio and retaining the factory amplified audio system.
6-channel interface: Features three sets of speaker-level inputs and three sets of line-level outputs for integration with your existing audio system.
Internal channel summing: Provides a full-range preamp signal for factory radios with built-in crossovers.
AutoMode inputs: Turns a 4-channel input into a 6-channel output for factory audio systems with limited output channels.
Independent level matching controls: Allows you to adjust the output signals from -12dB to +12dB to ensure proper level matching throughout the entire audio system.
400W (40V) peak power input per channel @ 4 ohms: For high-quality sound.
9.5V (RMS) maximum output voltage @ 14.4V: For efficient operation.
10Hz - 22kHz frequency response: Ensures faithful sound reproduction.
<0.01% Total Harmonic Distortion (THD): For clean sound.
Great Turn On (GTO) Signal Sense: Automatically powers the line output converter when the radio is turned on.
Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-3 sold separately).
5-year warranty: To protect against defects in materials and workmanship.
Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs or when replacing your vehicle’s factory radio and retaining the factory amplified audio system.
6-channel interface: Features three sets of speaker-level inputs and three sets of line-level outputs for integration with your existing audio system.
Internal channel summing: Provides a full-range preamp signal for factory radios with built-in crossovers.
AutoMode inputs: Turns a 4-channel input into a 6-channel output for factory audio systems with limited output channels.
Independent level matching controls: Allows you to adjust the output signals from -12dB to +12dB to ensure proper level matching throughout the entire audio system.
400W (40V) peak power input per channel @ 4 ohms: For high-quality sound.
9.5V (RMS) maximum output voltage @ 14.4V: For efficient operation.
10Hz - 22kHz frequency response: Ensures faithful sound reproduction.
<0.01% Total Harmonic Distortion (THD): For clean sound.
Great Turn On (GTO) Signal Sense: Automatically powers the line output converter when the radio is turned on.
Optional dash remote: Allows you to add a subwoofer with independent level control (ACR-3 sold separately).
5-year warranty: To protect against defects in materials and workmanship.

Whats Included

AudioControl 6-Channel Active Line Output Converter with Summing
Speaker connectors
Power connectors
User manual
AudioControl 6-Channel Active Line Output Converter with Summing
Speaker connectors
Power connectors
User manual

Product Manuals

Q: ...will I be able to get this installed by Best Buy if I purchase it from Best Buy?

A: undefined

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
Used in my Audi Sq5
The Audio Control LC6i is a line output converter that allows you to connect an aftermarket amplifier to a factory audio system. It is designed to improve the sound quality of your car's audio system by cleaning up the audio signal and providing more control over the sound. One of the standout features of the Audio Control LC6i is its ability to handle up to six channels of audio input. This allows you to connect multiple audio sources, such as a factory radio, aftermarket head unit, or a digital signal processor, to the converter. The LC6i then processes the audio signal to remove any noise or distortion and provides a clean, high-quality audio output. The LC6i also features an AccuBASS circuit, which automatically corrects for bass roll-off that is common in many factory audio systems. This circuit ensures that your music sounds clear and balanced, even at high volume levels. Another great feature of the Audio Control LC6i is its programmable output controls. The converter allows you to adjust the output level and crossover points for each channel, which gives you complete control over the sound in your car. This feature is particularly useful if you have a complex audio system with multiple speakers and subwoofers. However, there are a few downsides to consider. The Audio Control LC6i is a relatively expensive line output converter, which may be a barrier for some people. Additionally, the LC6i requires a basic understanding of car audio systems and installation, so it may not be suitable for novice users. Overall, the Audio Control LC6i is an excellent choice for people who want to improve the sound quality of their car's audio system. Its ability to handle multiple audio inputs, AccuBASS circuit, and programmable output controls make it a versatile and powerful tool for anyone looking to upgrade their car audio system.
Posted 2 years ago by FPSGamer
