what does the power cord plug look like is it the plug that has the blades straight across like this. _ _
. null

Question

what does the power cord plug look like is it the plug that has the blades straight across like this. _ _
 . null

FrigidaireSupport · Accepted Answer

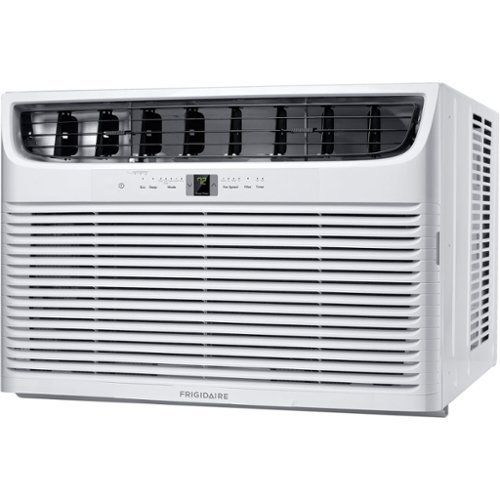

Hi there, Jason! The Frigidaire FHWE232WB2 uses a 6‑30P LCDI plug, designed for 208–230 V circuits. It's not a standard 120 V household plug. Instead:

The plug has two straight, flat parallel blades (hot lines) and one straight grounding pin, all in a straight-line arrangement (i.e., no L‑shaped blades).
This shape prevents it from fitting into any regular 120 V outlet—designed specifically for a 30 A, 230 V receptacle (NEMA 6‑30R).

So yes, it does have blades straight across, just like you described. If you're planning to install this unit, you'll need a matching 240 V NEMA 6‑30R receptacle to plug it in safely. - Maico

“what does the power cord plug look like is it the plug that has the blades straight across like this. _ _ .”
