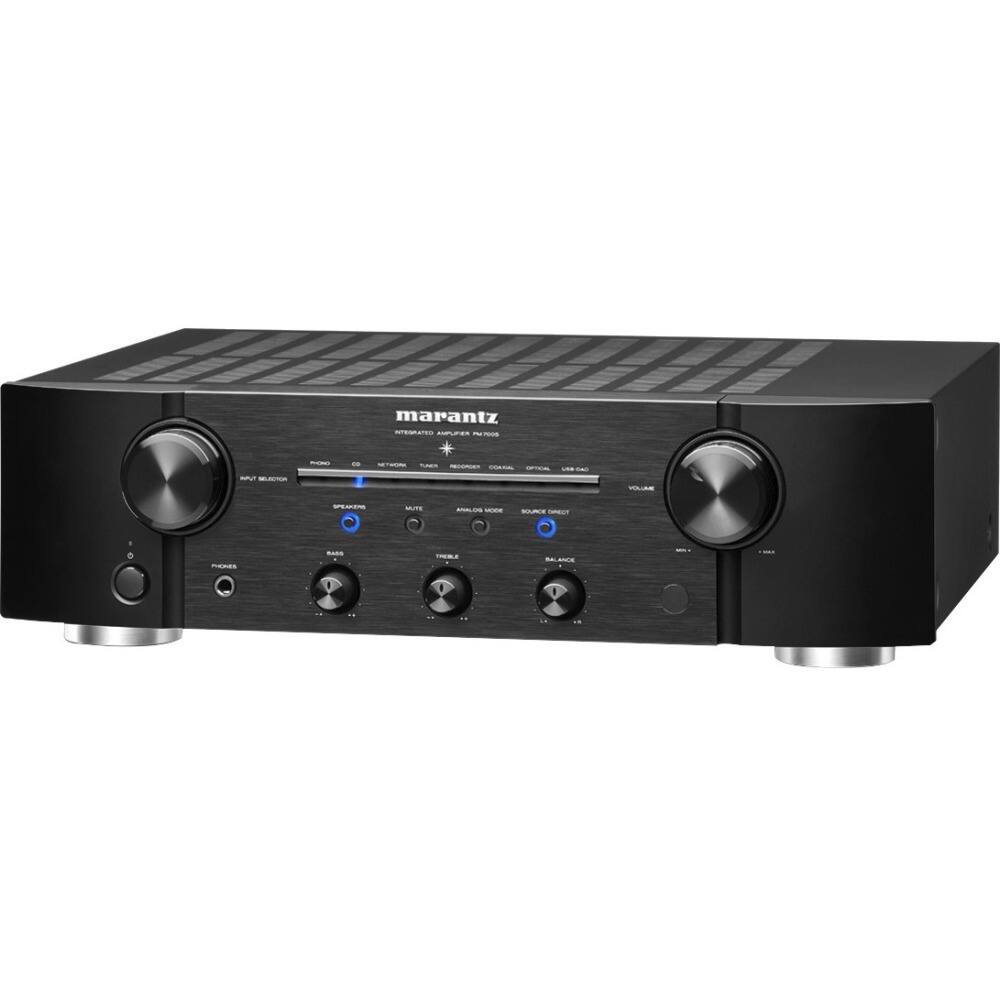

Marantz - 160W 2.0-Ch. Integrated Amplifier - Black
Model: PM7005
SKU: 4245701
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 160W (80W x 2) @ 4 ohms, 120W (60W x 2) @ 8 ohms
- General
- Product Name: 160W 2.0-Ch. Integrated Amplifier
- Brand: Marantz
- Model Number: PM7005
- Audio
- Continuous Watts x Channel @ Ohms: 160W (80W x 2) @ 4 ohms, 120W (60W x 2) @ 8 ohms
- Maximum Watts x Channel @ Ohms: 160 (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling: 160 watts (How much amplifier (amplified) power (wattage) that can be handled before damaging the product.)
- Minimum Frequency Response: 5 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.02 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 100 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Signal-to-Noise Ratio (SNR): 104 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Audio
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Inputs
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 4.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.32 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.92 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 22.05 pounds (The out of box weight of the item.)
- Other
- UPC: 699927130954
Boost your audio setup with this Marantz PM7005 integrated amplifier, which delivers up to 160W (80W x 2) RMS output. USB-DAC functionality ensures both high-quality sound and versatile operation.
- High-speed instantaneous-current power supply: With high-current-type Schottky diode delivers 160W (80W x 2) RMS output @ 4 ohms or 120W (60W x 2) RMS output @ 8 ohms for robust audio.
- USB-DAC functionality: Offers both crisp, clear sound and flexible operation. A signal isolator allows DAC mode operation, and a USB Type-B input allows PCM 192kHz/24-bit and DSD 2.8MHz and 5.6MHz audio streaming.
- HDAM SA3 and SA2 circuits: Enhance sound quality for realistic reproduction.
- Analog amp mode: Switches off the digital section for pure analog listening.
- Aluminum extrusion heat sink: Dissipates heat to keep components cool.
- Phono equalizer: Provides MM compatibility, so you can hook up your record player and listen to your favorite vinyl.
- System remote: Lets you control the amplifier, plus your CD player and network player (not included).
- Gold-plated brass speaker terminals: Along with digital optical and coaxial inputs with 192kHz/24-bit DAC offer a clear, reliable signal.
Whats Included
- 160W 2.0-Ch. Integrated Amplifier
- System remote
- Owner's manual
