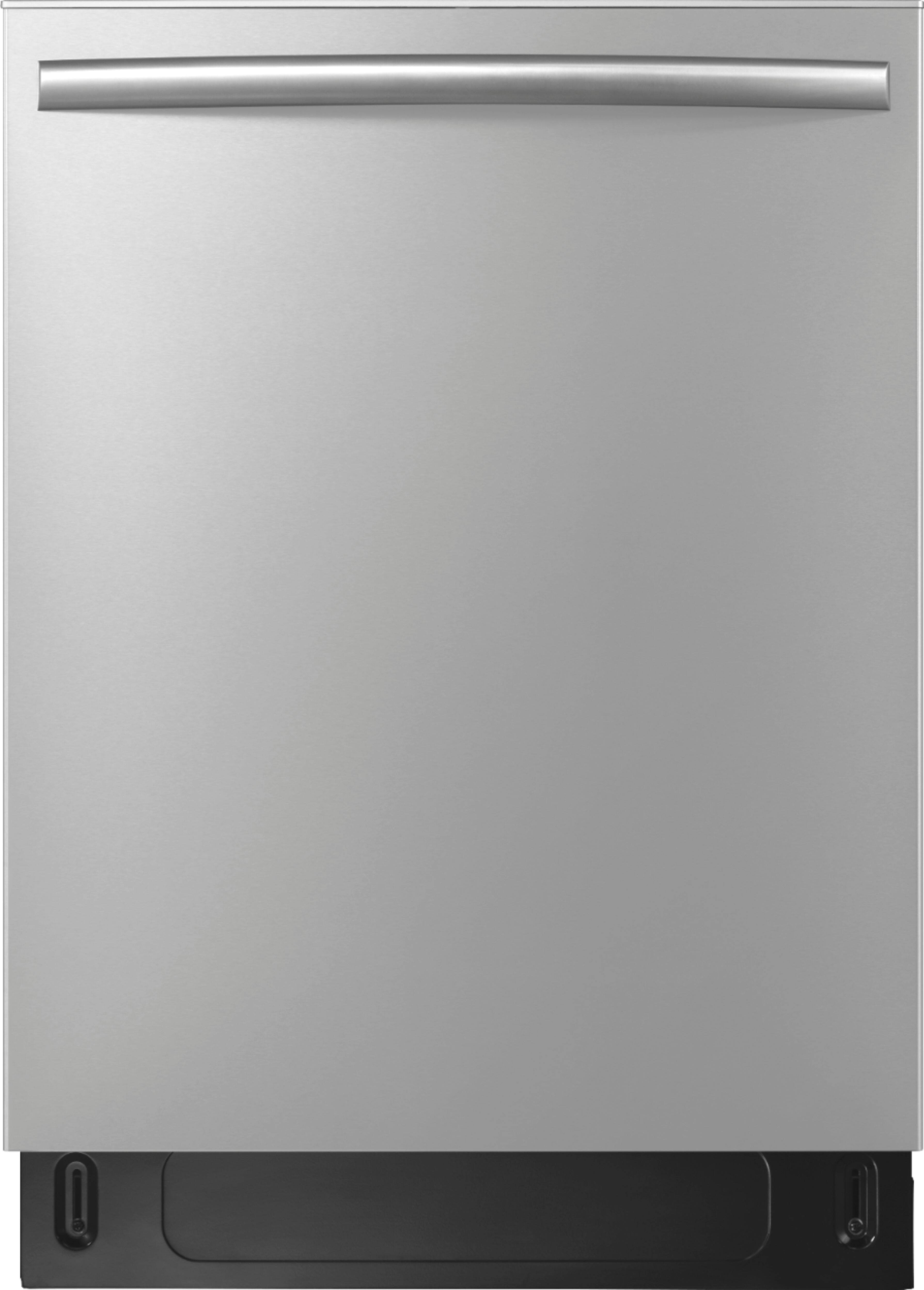

Insignia™ - 24" Top Control Built-In Dishwasher with Tub - Stainless Steel
Model: NS-DWH1SS9
SKU: 6257190
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 51 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Insignia™
- Model Number: NS-DWH1SS9
- Product Name: 24" Top Control Built-In Dishwasher with Stainless Steel Tub
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 33 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 4/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 49 3/5 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 86.6 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 51 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 4 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: Energy save, normal, pots and pans, quick rinse, NSF certified sanitize option, heat dry option
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 2
- Rack Material: Plastic
- Design
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Place Setting Capacity: 14 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Electrical Specification
- Estimated Annual Electricity Use: 249 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 35 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 8.4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603231148
Make kitchen cleanup easier with this 24-inch Insignia built-in dishwasher. Its soil sensor and three wash settings provide optimal cleaning for dinnerware and cookware, and its delay function lets you set its timer up to 24 hours in advance. Disinfect plates and utensils with the sanitize option of this stainless steel Insignia built-in dishwasher.
- Simple setting navigation: Electronic controls allow ease of use.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 14 place settings: Generous interior space means more clean dishes, fewer loads.
- NSF Certified sanitization option: Ensures hygienic results.
- Heated dry option: Choose between heated dry or energy saver (no heat) dry option.
- Uses less than 3.5 gal. per cycle: To minimize water use.
- Free delivery on appliance orders $399 and up: Dishwashers require special installation, which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
- Simple setting navigation: Electronic controls allow ease of use.
- 24-hour delay-start: Lets you set the dishwasher to start running while you're working, sleeping or running errands.
- Accommodates up to 14 place settings: Generous interior space means more clean dishes, fewer loads.
- NSF Certified sanitization option: Ensures hygienic results.
- Heated dry option: Choose between heated dry or energy saver (no heat) dry option.
- Uses less than 3.5 gal. per cycle: To minimize water use.
- Free delivery on appliance orders $399 and up: Dishwashers require special installation, which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
- Required parts sold separately: Find essential parts for installation in the accessories section on this page.
- Need more information?: See what's included with home delivery and installation.
Whats Included
- Insignia 24" Top Control Built-In Dishwasher with Stainless Steel Tub
- Insignia 24" Top Control Built-In Dishwasher with Stainless Steel Tub
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: We need door seal for this model #ns-dwh1ss9. Where can we obtain parts?
A: It will not fix the leak,throw dishwasher away and replace with a quality one.we had the entire door replaced and still leaked.geeksquad took over 8 months to issue a replacement order.go with maytag!
Q: What does top control mean?
A: The controls are on the top flat edge of the door and can only be accessed when the door is open.
A: The full depth of the unit with the handle is 26.5 inches.
