Thermador Masterpiece - 36 inches - Convertible & Recirculating - Telescopic Downdraft Range Hood - Stainless Steel
Delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Specifications
- Color FinishStainless steelProduct Height47 3/8 inchesProduct Width37 inchesProduct Depth2 3/4 inchesExhaust Vent LocationRearVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 47 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 37 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Thermador
- Model Number: UCVP36XS
- Product Name: Masterpiece Series Deluxe 36" Telescopic Downdraft System
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 47 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 37 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 47 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 8 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted, Ductless
- Vent Style: Convertible, Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Telescoping: true (Make the most of your space with a range hood that can raise up for operation and then retract when not in use.)
- Range Hood Type: Downdraft
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: true (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: true
- Remote Control: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Filter Info
- Filter Material: Aluminum
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical Specification
- Amperage: 10 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): cULus (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 825225960904

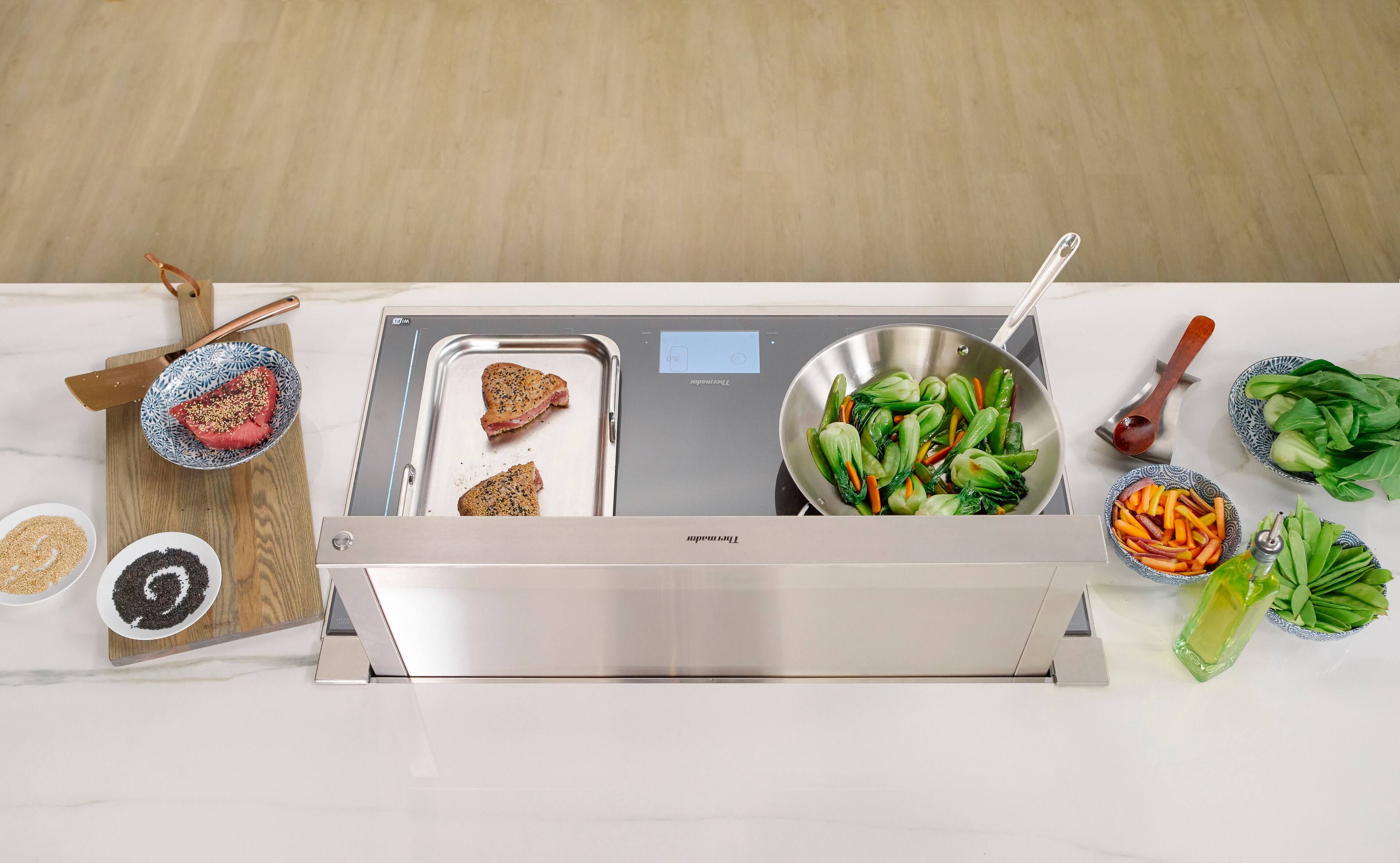

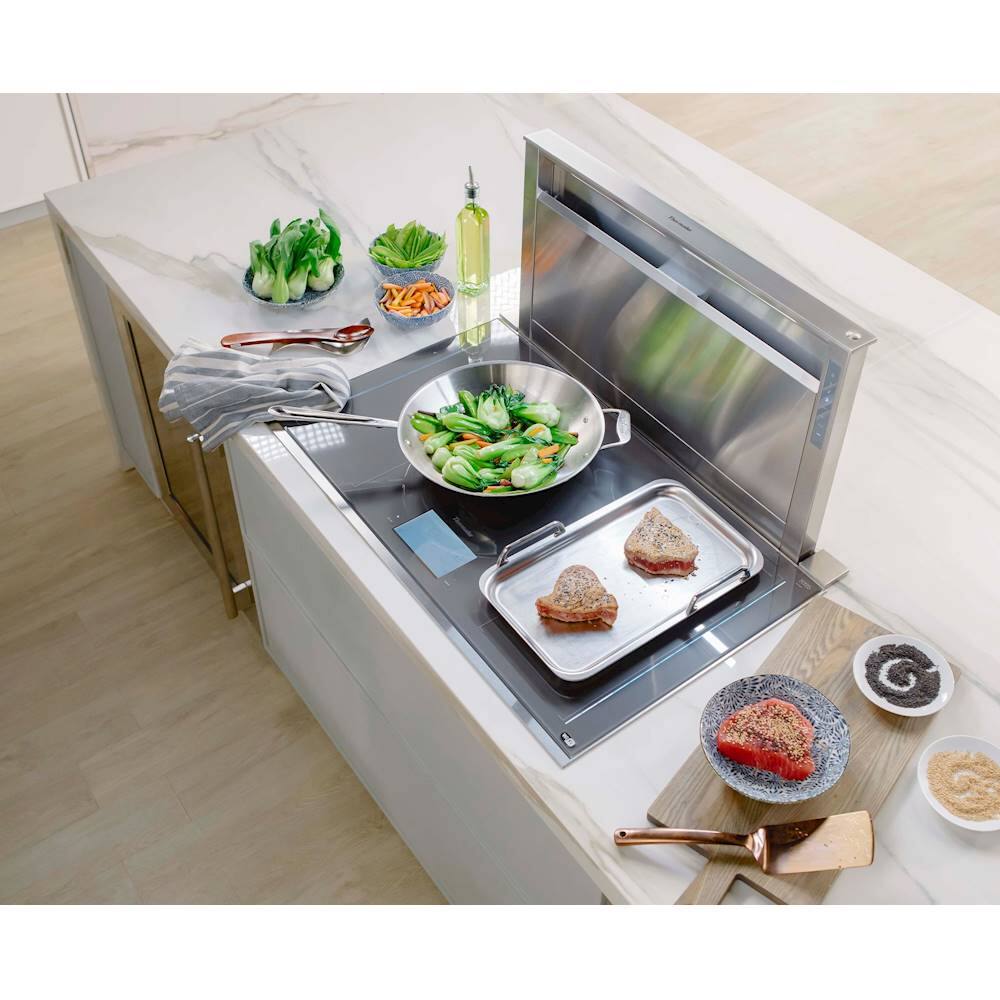

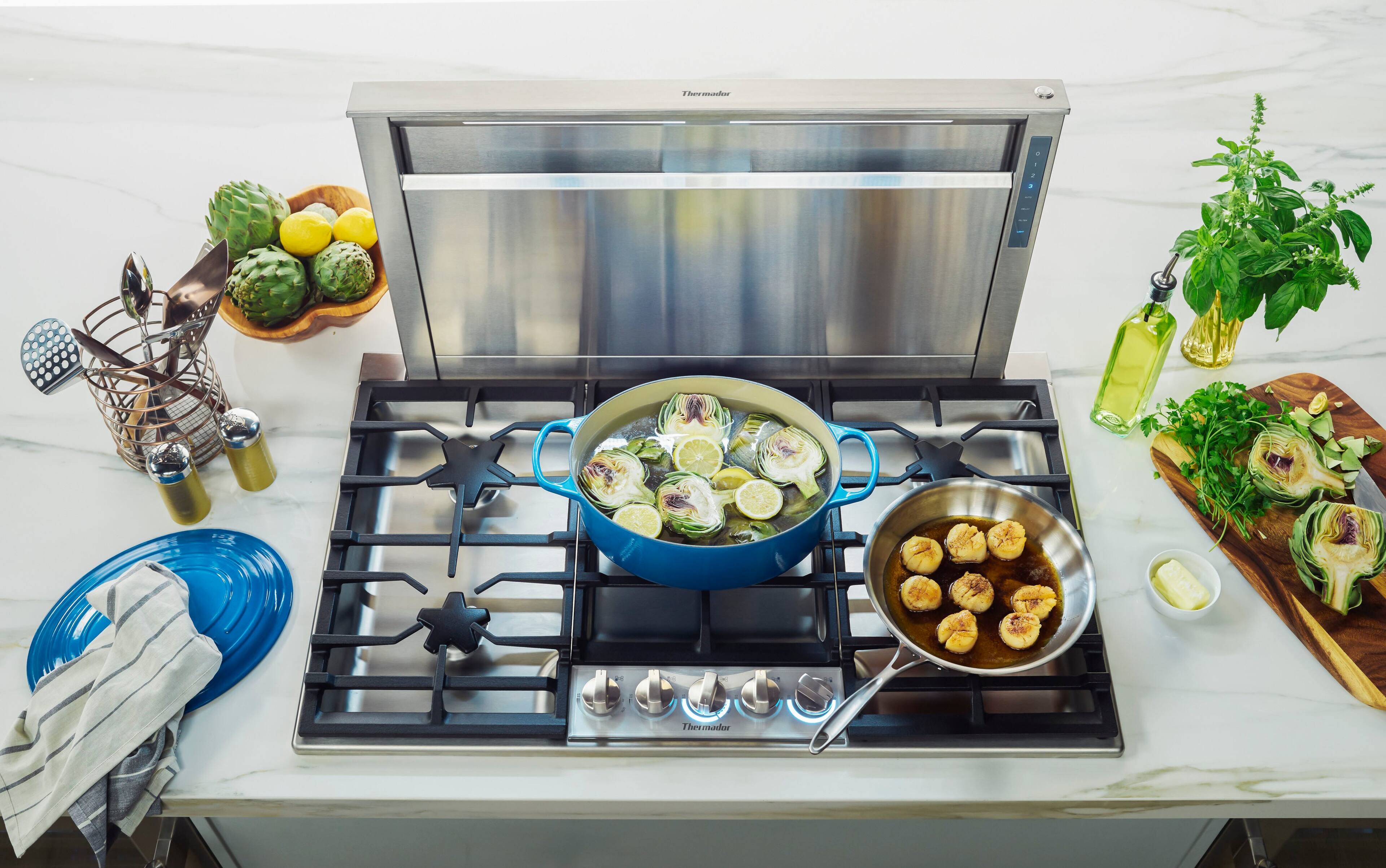

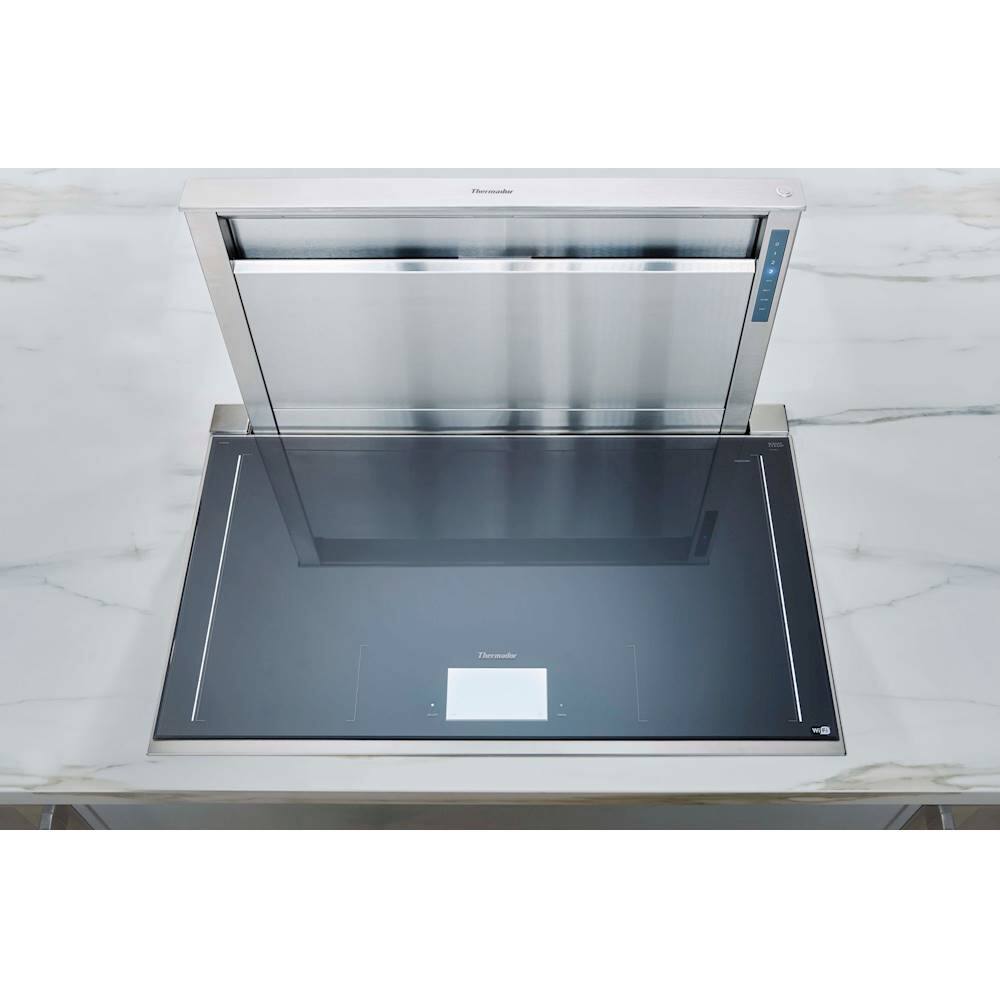

Enhance your Thermador cooktop experience with this 36-inch Masterpiece downdraft ventilation. It blends seamlessly into the countertop and is the perfect space-saving solution equipped with easy-to-remove, dishwasher-safe filters. Capture heat, smoke, grease, and steam with the Masterpiece 18-inch telescopic rise, and discharge using one of six different options. The heat sensing functionality automatically adjusts the fan speeds for you, while Powerfully Quiet technology keeps the blower noise to a minimum.
- Blends seamlessly into countertop: Blends seamlessly into the countertop and is the perfect space-saving solution. The Downdraft disappears into the counter when not in use without compromising performance.
- 18-inch Telescopic Design: 18-inch telescopic design rises to capture heat, smoke, grease, and steam and retreats for a sleek unobstructed kitchen view.
- The light of the party with LED: Set the mood for a memorable culinary experience with vivid, multi-level LED lighting built directly into your Downdraft.
- Easy-to-remove, dishwasher-safe filters: Dishwasher-Safe Filters combine the elements of a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting Downdraft range airflow.
- Personalization options with flexible discharge connections: Personalization options available with six discharge connections, including front, side, rear and downward exhaust options, as well as recirculation—so you are not limited by kitchen design or pre-determined space.
- Powerfully Quiet: Powerfully Quiet system accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
- 3 Fan speeds for the perfect air flow for any cooking situation: 3 fan speeds that lets you choose the perfect air flow power for any cooking situation and can handle high-power cooking.
- Recirculation Kit available: Recirculation Kit is available for use with induction/electric cooktops only.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
- Blends seamlessly into countertop: Blends seamlessly into the countertop and is the perfect space-saving solution. The Downdraft disappears into the counter when not in use without compromising performance.
- 18-inch Telescopic Design: 18-inch telescopic design rises to capture heat, smoke, grease, and steam and retreats for a sleek unobstructed kitchen view.
- The light of the party with LED: Set the mood for a memorable culinary experience with vivid, multi-level LED lighting built directly into your Downdraft.
- Easy-to-remove, dishwasher-safe filters: Dishwasher-Safe Filters combine the elements of a filter with a splatter shield in one easy-to-remove, dishwasher-safe element. These filters maximize grease capture without affecting Downdraft range airflow.
- Personalization options with flexible discharge connections: Personalization options available with six discharge connections, including front, side, rear and downward exhaust options, as well as recirculation—so you are not limited by kitchen design or pre-determined space.
- Powerfully Quiet: Powerfully Quiet system accepts integral, inline, and remote blowers so you can choose the installation that is best and reduce noise while hood is in use. Ventilation should be seen, not heard.
- 3 Fan speeds for the perfect air flow for any cooking situation: 3 fan speeds that lets you choose the perfect air flow power for any cooking situation and can handle high-power cooking.
- Recirculation Kit available: Recirculation Kit is available for use with induction/electric cooktops only.
- Grease filter reminder: The filter button will illuminate when dishwasher safe grease filter needs to be cleaned to ensure optimal performance.
Whats Included
- Thermador Masterpiece Series Deluxe 36" Telescopic Downdraft System
- Owner's manual
- Thermador Masterpiece Series Deluxe 36" Telescopic Downdraft System
- Owner's manual
Product Manuals
Disclaimers
- Blower sold separately
- Blower sold separately
Q: Are the filters on this Thermador downdraft dishwasher safe?
A: Yes, the filters are dishwasher-safe for easy cleaning.
Q: Does this downdraft have a light?
A: Yes, this model has built-in LED lighting.
Q: How many fan speeds does this Thermador downdraft have?
A: This downdraft ventilation offers 3 fan speeds to choose from.
Q: Why is this downdraft called telescopic?
A: It's called telescopic because it rises 18 inches from the countertop to capture smoke and steam while cooking, and then retracts for a streamlined look when not in use.
Q: What type of controls does this downdraft use?
A: This model uses sleek touch controls.
Q: What kind of finish does this downdraft have?
A: It has a stainless steel finish.
Q: What is the maximum duct diameter for this downdraft?
A: This downdraft system uses an 8-inch round duct.
Q: Does this unit come with a blower? If not what blower is recommended?
A: No it does Not, and by the way if you buy this appliance from Best Buy you are crazy. Their customer service is nonexistent.
