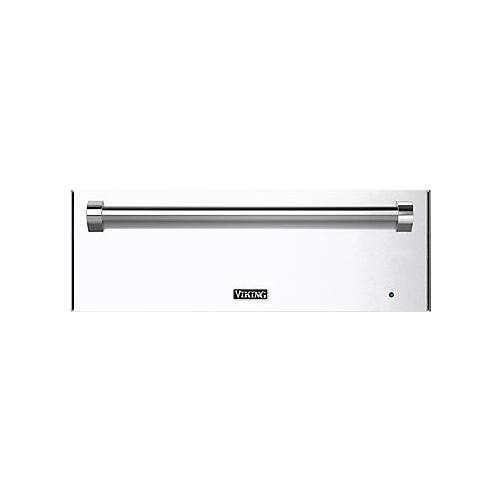

Viking - 30" Warming Drawer - White
- Key Specs
- Color Finish: White
- Product Height: 10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Capacity: 1.6 cubic feet
- General
- Brand: Viking
- Model Number: RVEWD330WH
- Product Name: 30" Warming Drawer
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 7/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Interior Height: 6 inches
- Interior Width: 20 1/2 inches
- Interior Depth: 22 3/4 inches
- Product Weight: 90 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 9 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.6 cubic feet
- Features
- Temperature Control Type: Analog
- Hidden Control Panel: true
- Power-On Indicator Light(s): true
- Full Extension Ball Bearing Glides: true (Drawers with this hardware feature allow for smooth opening and closing and open all the way in order to provide access to the entire interior space.)
- See-Through Door: false
- Minimum Temperature: 90 degrees fahrenheit
- Maximum Temperature: 250 degrees
- Electrical Specification
- Amperage: 3.8 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Heating Element Wattage: 450 watts
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 800284003281
With the Viking Warming Drawer’s temperature settings from 90 to 250 degrees F, you can keep a plate warm, proof bread, or serve piping-hot soup. Dinner will always be the perfect temperature – no matter when you serve it.
- 1.6 cu. ft. drawer capacity: Large drawer capacity for the difference type of dishes.
- 90 to 250 degrees F temperature settings: Low setting is ideal for plate warming or bread proofing. High setting keeps soups and sauces piping hot.
- 450-watt heating element: Provide rapid heating of drawer.
- LED indicator: Power "on" indicator light cycles on and off with heating element.
- Roller-bearing glides: For smooth drawer operation.
- Two low racks and moisture cup (included): Low racks cover entire bottom of pan for the largest loads or remove one section for half coverage. Moisture cup holds water to increase interior humidity.
- Easy cleaning: Entire drawer is easily removable for cleaning
- 1.6 cu. ft. drawer capacity: Large drawer capacity for the difference type of dishes.
- 90 to 250 degrees F temperature settings: Low setting is ideal for plate warming or bread proofing. High setting keeps soups and sauces piping hot.
- 450-watt heating element: Provide rapid heating of drawer.
- LED indicator: Power "on" indicator light cycles on and off with heating element.
- Roller-bearing glides: For smooth drawer operation.
- Two low racks and moisture cup (included): Low racks cover entire bottom of pan for the largest loads or remove one section for half coverage. Moisture cup holds water to increase interior humidity.
- Easy cleaning: Entire drawer is easily removable for cleaning
Whats Included
- Viking 30" Warming Drawer
- two removable stainless steel low racks
- removable stainless steel moisture cup
- Viking 30" Warming Drawer
- two removable stainless steel low racks
- removable stainless steel moisture cup
Q: What is the lowest temperature setting on this warming drawer?
A: The lowest temperature setting on the Viking 30" Warming Drawer is 90 degrees Fahrenheit. This setting is ideal for plate warming or bread proofing.
Q: What is the maximum capacity of this warming drawer in cubic feet?
A: The maximum capacity of the Viking 30" Warming Drawer is 1.6 cubic feet. This spacious capacity can accommodate a variety of dishes, making it ideal for entertaining or everyday use.
Q: What are the required dimensions for the cut-out during installation?
A: The required dimensions for the cut-out during installation are: - Cut-Out Width: 28 1/4 inches - Cut-Out Height: 9 1/4 inches - Cut-Out Depth: 23 1/2 inches
Q: What is the heating element wattage of this warming drawer?
A: The heating element wattage of the Viking 30" Warming Drawer is 450 watts, as specified in the product specifications. This information can be found in the context under the "product specifications" section.
Q: Does this warming drawer have a see-through door?
A: No, this Viking warming drawer does not have a see-through door. The product specifications clearly state "See-Through Door: false".
Q: How much does this warming drawer weigh?
A: The Viking 30" Warming Drawer weighs 90 pounds.
Q: What is the purpose of the moisture cup included with this warming drawer?
A: The moisture cup included with the Viking 30" Warming Drawer serves to increase the interior humidity within the drawer. This helps prevent food from drying out while being kept warm, ensuring that dishes retain their moisture and freshness.
Q: What is the warranty period for this warming drawer?
A: The Viking 30" Warming Drawer comes with a 2-year warranty for both parts and labor. The warranty covers any defects in materials or workmanship under normal use.
