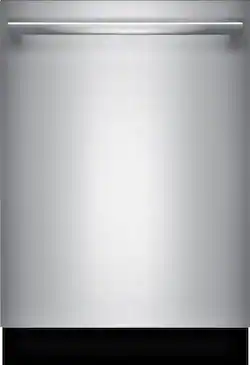

Bosch - 300 Series 24" Top Control Built-In Tub Dishwasher with 3rd Rack, 44 dBA - Stainless Steel
Model: SHXM63W55N
SKU: 5710311
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Bosch
- Model Number: SHXM63W55N
- Product Name: 300 Series 24" Top Control Built-In Stainless Steel Tub Dishwasher with 3rd Rack, 44 dBA
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 300 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 23 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 48 1/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 91 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 23 5/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Condenser drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 44 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 5 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Options and Programs: 1 Hour US, Auto US, Power Scrub Plus US, Regular US, Rinse & Hold US, Extra dry, half load, Sanitation
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3
- Third Rack Features: Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Upper Rack Features: Adjustable height, Cup shelf, Stemware holders (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Button
- Control Location: Top control
- Display Type: LED
- Handle Type: Bar handle
- Place Setting Capacity: 16 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 25 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 825225922483
Fit more and clean faster. This Bosch dishwasher is equipped with a 3 rack system that lets you position racks up to 9 ways. Plus, the Speed 60 option completes a full load in about an hour, for a spotless kitchen that much quicker.
- 24” width: There’s room for up to 16 place settings. Plus, choose from 5 wash cycles including five-level wash, 4 options like Extra Dry, and a concealed heating element.
- Speed 60: A quicker clean. Select this option to take dishes from dirty to dry in less time.
- 3 rack system: Accommodate the odd one out. Add the 3rd rack and find the right fit for deep, tall, or uniquely-shaped items in the spacious loading area.
- RackMatic: Fit it all, every time. With 3 different height levels and up to 9 possible rack positions, you can customize each load for your needs.
- 24/7 Aquastop: Protect your floors. This 4-part leak prevention system uses sensors to detect and stop leaks, and can even turn on by itself.
- 44-dBA noise level rating: Wash dishes in peace. Bosch dishwashers are so quiet, you have to check the exterior Infolight to know they’re on.
Whats Included
- 24" Bar Handle Dishwasher with Stainless Steel Tub
- Owner's manual
Documents
- Energy_Guide_PDF
A: Hi COH. Thank you for your question. The features, dimensions, capacity and technical information are the same for both dishwashers. The main difference between the two is the SHXM63W55N does have the bar handle and an InfoLight than shines on the floor to indicate that the dishwasher is running. The SHEM63W55N has front controls.
Q: Why does this dishwasher BARELY dry the dishes?
A: Hi Drying. Thank you for your question. Drying results can be affected by many factors including water hardness, the amount of plastic items in the load, the amount of edges, depressions, or lips on the dishware, use or non-use of suggested rinse aid, pre-rinsing of dishes, cycle selection, loading, etc. Following are suggestions for improving drying in dishwashers. 1.For all dishwashers, to achieve best drying results, always use a liquid rinse aid, even if your detergent contains a rinse aid or drying additive. Use of rinse aid causes sheeting action on dishware and top & sides of tub. 2. For best dishwashing results, observe the following when loading the dishwasher: ■ Do not pre-wash items with loosely attached food soil. Simply scrap off larger food items into trash and place soiled dishware into racks. See Use & Care Guide for loading suggestions. 3. With any dishwasher, when unloading the dishwasher, to prevent water from dripping onto dry dishes, unload the lower rack first. 4. Consider using Sanitize * option - Increases the temperatures and retains them for an extra long time to obtain a defined disinfecting performance. Continuous use of this function increases the hygiene status.
Q: Does the third rack look the same on the 300 and 500 series?
A: Hi there. Thank you for your question. The 3rd rack on the 300 Series Dishwasher is our Standard 3rd Rack, which is v-shaped which leaves room below for taller items. The 500 Series has our Flexible 3rd Rack which has expandable wings which easily lower to accomodate more of your deeper items, while 2 adjustable tines let you customize the rack's loading space to fit awkward or bulky items.
Q: Can you remove the filter to clean it? How easy is it to clean the filter?
A: Hello Lo, thank you for your question. The filter can be easily removed and cleaned by rinsing it out under running water at your sink.
A: Hi Rachel, thank you for your question and interest in Model:SHXM63W55N. The bottom rack on this model does not have adjustable tines. The 500 and 800 models do have flex space tines on the front right of the bottom rack.
A: Hi John. Thank you for your question. The model number for the panel ready dishwasher is #SHVM63W53N.
A: undefined
Q: When dishwasher is on does the red light on floor flash or stay steady
A: It stays steady.
