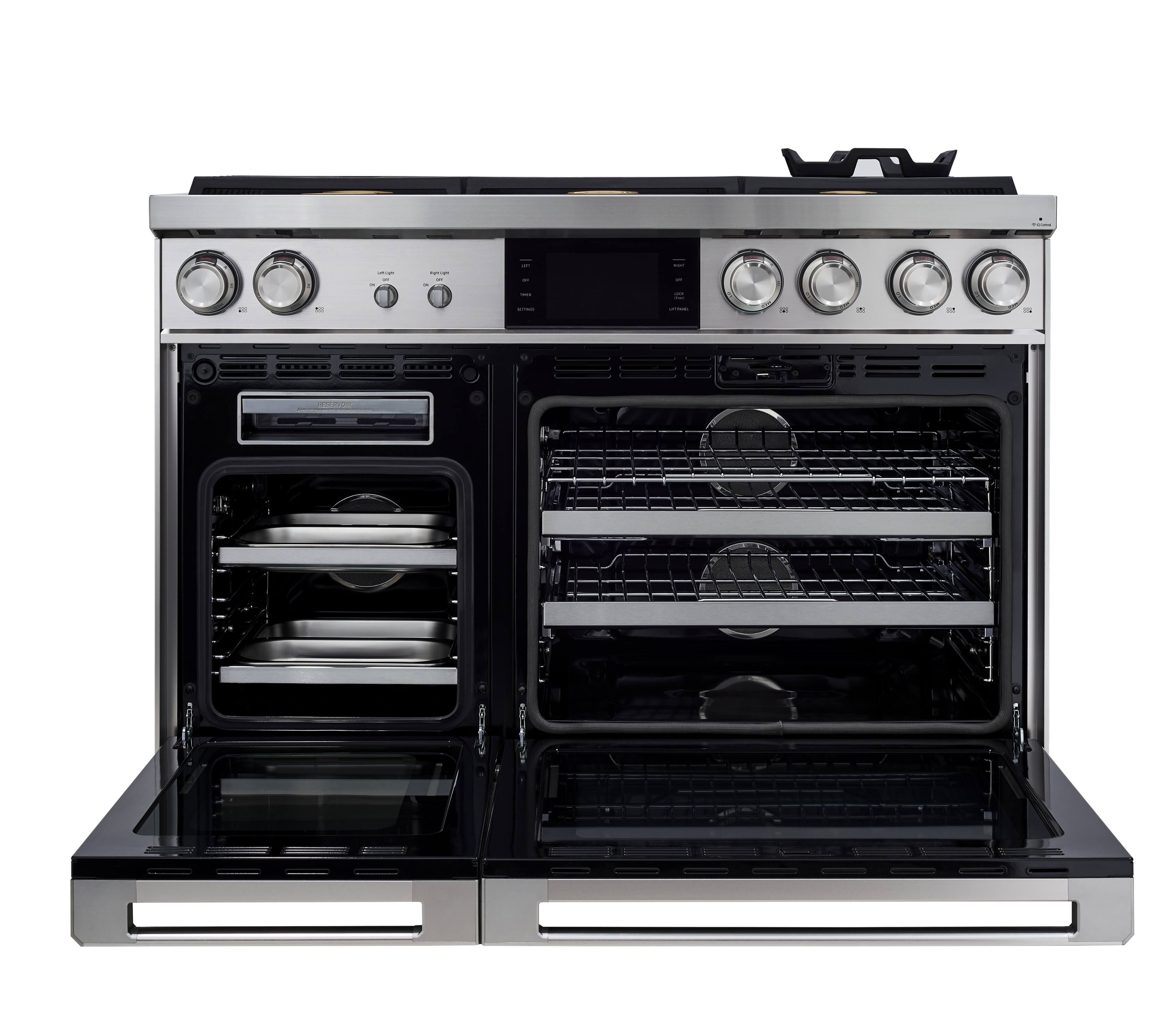

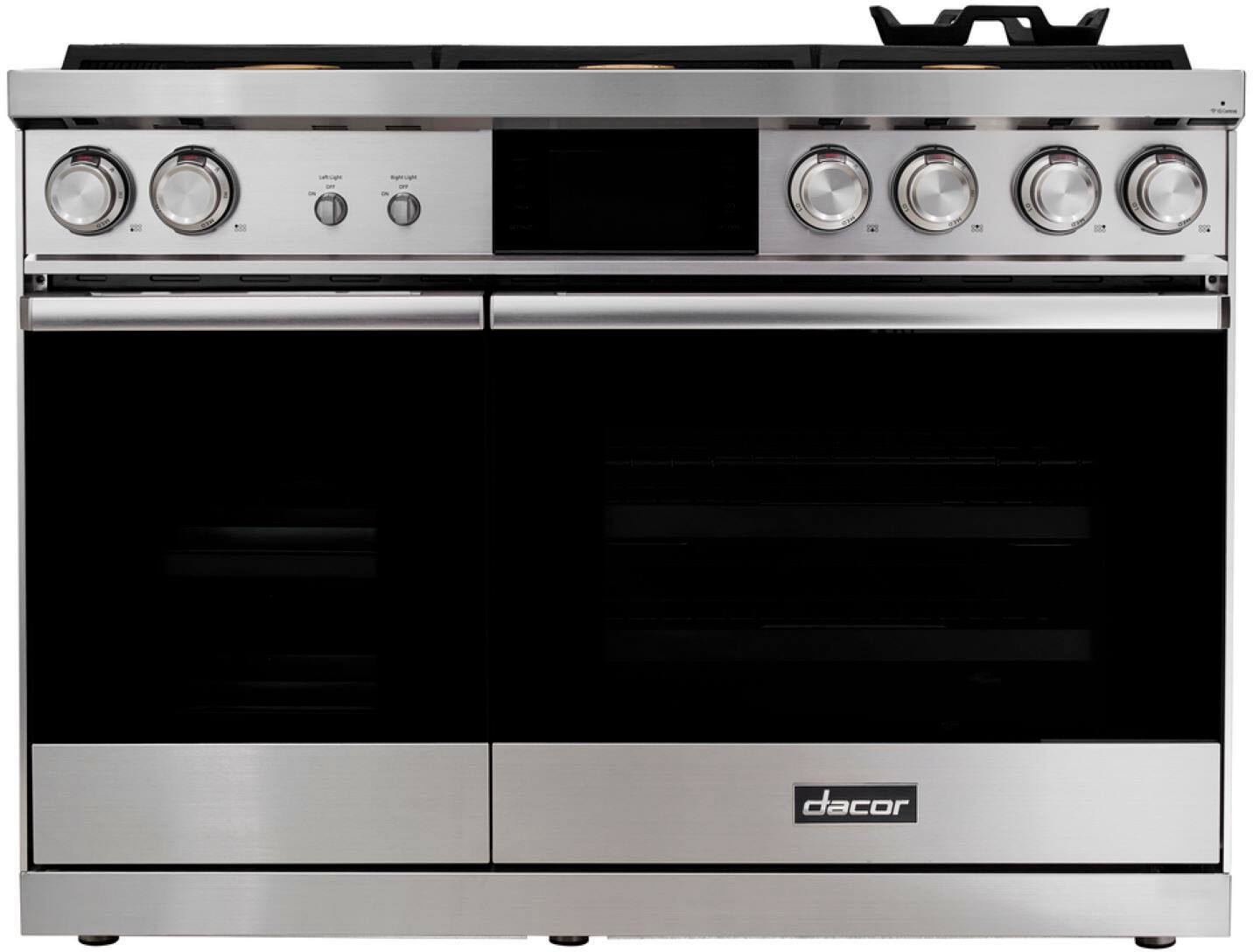

Dacor - Contemporary 6.6 Cu. Ft. Slide-In Double Oven Dual Fuel Four-Part Pure Convection Range with GreenClean and RealSteam - Silver Stainless Steel
Color
Silver Stainless SteelRelated Item
Specifications
- Color FinishStainless steelProduct Height37 7/8 inchesProduct Width47 7/8 inchesProduct Depth27 1/2 inchesRange TypeSlide-InSingle/Double OvenDouble Oven
- Key Specs
- Color Finish: Stainless steel
- Product Height: 37 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Dacor
- Model Number: DOP48C86DLS/DA
- Product Name: Contemporary 6.6 Cu. Ft. Slide-In Double Oven Dual Fuel Four-Part Pure Convection Range with GreenClean and RealSteam
- Color: Silver Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Dacor Contemporary (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 37 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 47 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 564 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 1.8 cubic feet
- Oven 2 Capacity: 4.8 cubic feet
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Gas Type: Natural gas
- Range Power Source: Dual fuel
- Ignition Type: Electric
- Soft Close Door: true
- Control Type: Backlit knob, Touchscreen
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: false
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LCD
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Bake, Broil, Convection, Roast, Proof, Dehydrate
- Oven Settings: Bake/Broil, Convection Bake/Broil/Roast, Steam Bake/Roast, Pure Convection Sear, Keep Warm, Low Proof, Proof, Stone Mode, Dehydrate, Instant Heat
- Oven Features
- Convection Type: Multi-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Induction: false (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Oven 1 Specification
- Oven 1 Location: Left
- Oven 1 Window: true
- Oven 1 Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Racks: 1
- Number of Oven 1 Rack Positions: 4
- Oven 2 Specification
- Oven 2 Location: Right
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-cleaning high heat, Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Racks: 3
- Number of Oven 2 Rack Positions: 6
- Cooktop Features
- Cooktop Surface Type: Grate (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): 2 (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 22000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 22000 british thermal units
- Burner 3 Rating: 16000 british thermal units
- Burner 4 Rating: 16000 british thermal units
- Burner 5 Rating: 16000 british thermal units
- Burner 6 Rating: 9000 british thermal units
- Total Maximum BTU Rating: 101000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Electrical Specification
- Amperage: 50 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: This product contains (Este producto contiene) one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information on PFAS or chemicals in this product, visit (Para obtener mas informacion sobre PFAS o productos quimicos en este producto, visite) https://www.dacor.com/us/professionals/california-disclosure/ (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276744131
Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.
- Wi-Fi-Enabled 7 Inch Lcd Control Panel: Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
- RealSteam Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.
- Chef Mode: Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.
- Dual Four-Part Pure Convection: Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
- SimmerSear Burners: Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
- Illumina Knobs: Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
- Luxurious Finishes: Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
- SmartThings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
- Wi-Fi-Enabled 7 Inch Lcd Control Panel: Automatically tilting, 7inch smooth touch glass panel provides a full-touch culinary command center for pre-programmed settings and step-by-step recipes.
- RealSteam Oven: For meats that are juicy on the inside, yet brown and crispy on the outside. Bake artisan bread with a light, fluffy center with a flaky crust. Healthier, faster cooking with the power of pure steam.
- Chef Mode: Receive expert cooking advice straight from the 7inch screen, guiding the user on the optimum rack setting, temperatures and timing.
- Dual Four-Part Pure Convection: Superior consistency and zero flavor transfer with Dual Four-Part Pure Convection, reducing cooking time by distributing heat evenly across the entire oven.
- SimmerSear Burners: Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all brass, Dual Valve, Dual Ring Burner.
- Illumina Knobs: Warm, sophisticated and welcoming. The glowing knobs entice participation, inspire the imagination and accentuates the beauty of the product.
- Luxurious Finishes: Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
- SmartThings Integration: Seamlessly integrate into the SmartThings connected platform, providing an exceptional foundation for an ever growing ecosystem of smart connectivity. Preheat, check the oven temperature, the cooking status and remaining time, all from the comfort of your smartphone.
Whats Included
- 48" Dual Fuel Range
- LP Conversion Kit
- Cast Iron Grates (3)
- Wire Racks (2), Glide Racks (2)
- Temperature Probe (2)
- Convection Filters (3)
- Burner Caps (brass and porcelean)
- Anti-Tip Bracket
- Steam Tray (2), Half Steam Tray (2)
- Wok Ring (1)
- 48" Dual Fuel Range
- LP Conversion Kit
- Cast Iron Grates (3)
- Wire Racks (2), Glide Racks (2)
- Temperature Probe (2)
- Convection Filters (3)
- Burner Caps (brass and porcelean)
- Anti-Tip Bracket
- Steam Tray (2), Half Steam Tray (2)
- Wok Ring (1)
Q: What is the significance of the Illumina Knobs, and how do they enhance the user experience?
A: The Illumina Knobs on the Dacor range enhance the user experience by providing a warm, sophisticated, and welcoming aesthetic to the appliance. They entice participation, inspire imagination, and accentuate the beauty of the product, making the cooking experience more enjoyable and visually pleasing.
A: The Dual Four-Part Pure Convection technology in the Dacor range utilizes a convection element and fan to uniformly circulate hot air throughout the oven, ensuring consistent cooking and eliminating flavor transfer. This advanced system reduces cooking time by efficiently distributing heat across multiple oven racks, allowing for simultaneous baking or roasting on different levels.
A: The Chef Mode on the Dacor Contemporary 6.6 Cu. Ft. Slide-In Double Oven Dual Fuel Four-Part Pure Convection Range with GreenClean and RealSteam is designed to simplify cooking for novice users, saving time and shortening the learning curve. It provides expert cooking advice straight from the 7-inch screen, guiding users on the optimal rack setting, temperatures, and timing for various dishes.
A: The Dacor range seamlessly integrates with the SmartThings connected platform, allowing users to remotely control and monitor their oven using a mobile device. This connectivity enables users to preheat the oven, check the oven temperature, monitor cooking status, and receive expert cooking advice straight from their smartphone.
Q: Can you explain the difference between the two oven capacities and their respective functions?
A: The first oven has a capacity of 1.8 cubic feet and features functions such as Bake, Convection Bake, Convection Roast, Broil, Pure Convection Sear, Convection Broil, Dual Four Part Pure Convection, Special Function, Chef Mode, Clean, and Steam Bake*. The second oven has a larger capacity of 4.8 cubic feet and includes functions such as Bake, Convection Bake, Convection Roast, Broil, Convection Broil, 4 Part Pure Convection, Steam Bake, Steam Roast, Steam, Special Function, Special Steam Cook, and Clean.
Q: How many burners does the cooktop have, and what are their BTU ratings?
A: The cooktop of this Dacor range has six burners with varying BTU ratings. The BTU ratings of the burners are as follows: - Burner 1: 22,000 BTU - Burner 2: 22,000 BTU - Burner 3: 16,000 BTU - Burner 4: 16,000 BTU - Burner 5: 16,000 BTU - Burner 6: 9,000 BTU
A: The dimensions of the range are 37 7/8 inches in height, 47 7/8 inches in width, and 27 1/2 inches in depth. For optimal performance, the range should be installed on a level, well-constructed floor that can support its weight. Synthetic flooring, such as linoleum, must withstand 180 °F (82 °C) temperatures without shrinking, warping, or discoloring. If installing over interior kitchen carpeting, a sheet of ¼ inch plywood or a similar insulator should be placed between the range and carpeting.
A: The RealSteam Oven feature contributes to healthier cooking by using the power of pure steam, which helps retain nutrients and moisture in food. It excels at cooking dishes such as meats, poultry, fish, vegetables, eggs, and grains, resulting in tender, juicy, and flavorful results.
