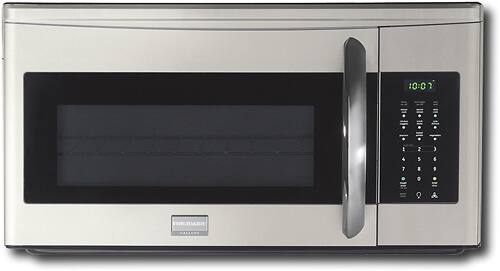

Frigidaire - Gallery 1.7 Cu. Ft. Over-the-Range Microwave - Silver Mist
- Key Specs
- Product Height: 16.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.94 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 13 inches
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: Frigidaire
- Model Number: FGMV174KM
- Product Name: Gallery 1.7 Cu. Ft. Over-the-Range Microwave
- Color: Silver Mist
- Dimensions
- Product Height: 16.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.94 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 16.19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 55 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 17 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.7 cubic feet
- Microwave Size: Full-size
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Turntable Diameter: 13 inches
- Nightlight: true
- Controls
- Sensor Cook: true (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Number of Preset Programs: 9
- Number of Fan Speeds: 2
- Turntable On/Off Option: true
- Filter Info
- Removable Filter: true
- Electrical
- Amperage: 14.2 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Other
- UPC: 012505560675
This versatile over-the-range microwave makes cooking and reheating quick and easy, thanks to the Effortless Reheat function and over 30 settings, including chicken nuggets, baked potatoes, frozen and fresh vegetables and more.
- 28 touchpad controls: For versatile, one-touch operation. Membrane pads are easy to clean after use.
- 1.7 Cu. Ft. capacity: Accommodates large food items easily.
- 1000 watts of cooking power: Lets you boil, reheat and defrost quickly.
- 5 sensor cook options: Automatically adjusts power levels for effective, thorough cooking of frozen entrees, ground meat, rice, fish or seafood and chicken breasts.
- 8 auto cook options: With 5 snack menu and 6 auto defrost options to take the guesswork out of preparing your favorite meals. Keep Warm feature keeps items warm until the whole meal is ready.
- Stoppable turntable: Provides even heating.
- Removable SpaceWise metal rack: Lets you cook 2 separate dishes at the same time.
- Interior and cooktop lights: Let you see the food you are cooking and the preparation area below.
- 2-speed fan: With ductless vent for easy installation. Dishwasher-safe grease filter keeps your kitchen clean and makes cleanup a breeze.
- Child lock: Prevents unsupervised use for safety.
Q: Does this unit vent outside or just back into the room?
A: This model of microwave oven/hood is designed for adaptation to three types of hood ventilation systems. RECIRCULATING — non-vented, ductless. Recirculating requires the use of the Charcoal Filter, which has already been installed in the oven. HORIZONTAL EXHAUST — outside ventilation. VERTICAL EXHAUST — outside ventilation.
Q: What is the minimum height it can be installed above a gas range?
A: Good Morning Anonymous, For this particular unit it is require a minimum distance of 30 inches from cooking surface to bottom edge of top cabinet. The recommended clearance for the unit to be installed above the range is a minimum height of approximately 14 5/8 inches. Specifications on clearances can be found in the Owner’s Manual. Thank you for your question.
Q: Does this unit come with all the mounting hardware to install it?
A: The mounting hardware is included with the purchase of this microwave. Thank you, Frigidaire
Q: what is the power of the exhaust fan (in CFM's) ?
A: This model is rated at 300 cfm's. Thank You, Frigidaire
A: That's only when you are venting out of the top... Their is a metal flapper that you would install for that type of installation.
Q: Microwave installation after taking down hood
A: The unit runs 14.2 Amps max. Most home recepticals are run for 15 Amps so you are at the edge of tripping the breaker. If you have something else on the circuit it could cause the breaker to trip. So you don't necessarily need a dedicated circuit, unlike your refrigerator if it stops not such a huge deal.
