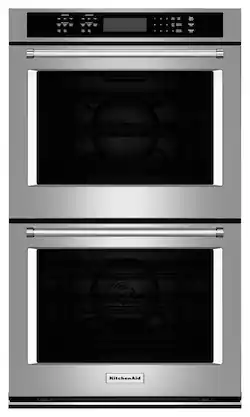

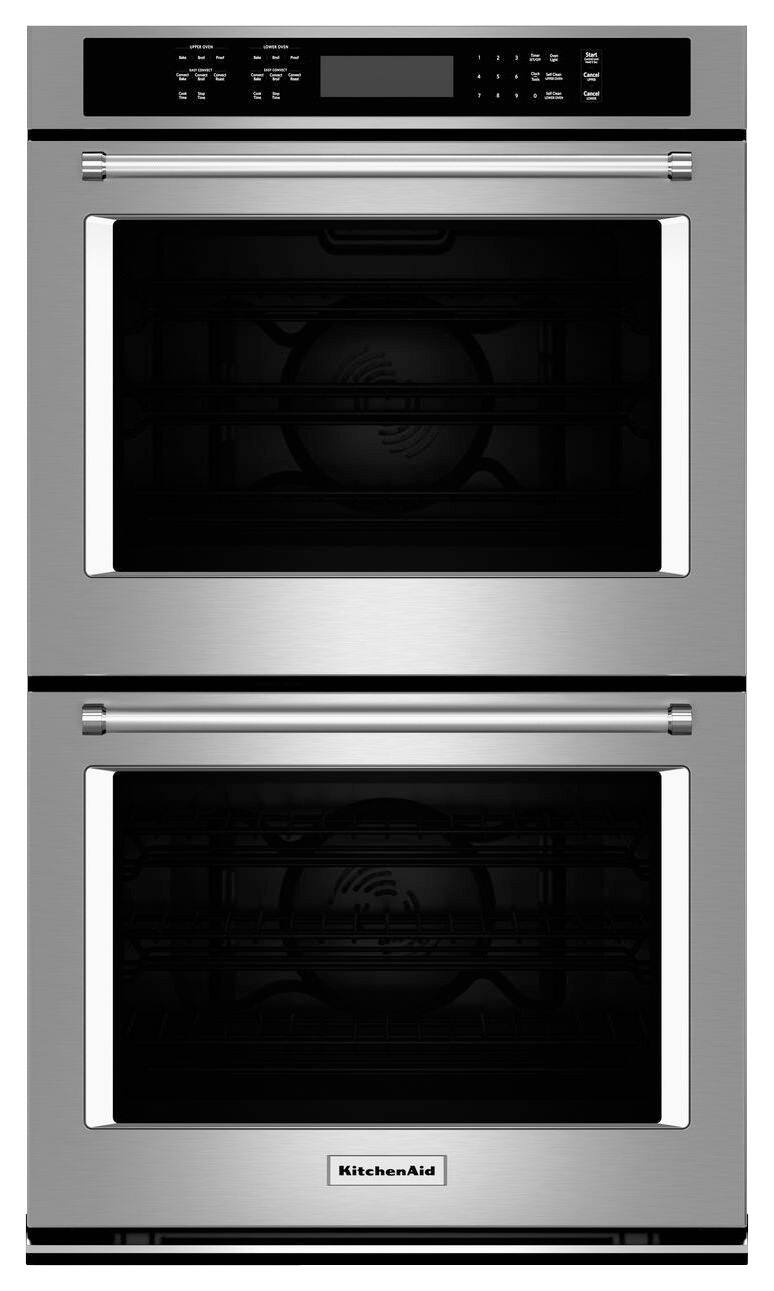

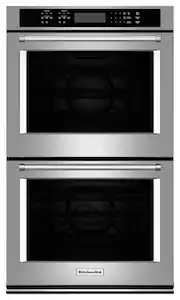

KitchenAid - 27" Built-In Double Electric Convection Wall Oven - Stainless steel
Model: KODE507ESS
SKU: 7315054
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 51 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KODE507ESS
- Product Name: 27" Built-In Double Electric Convection Wall Oven
- Color: Stainless steel
- Color Finish: Stainless steel

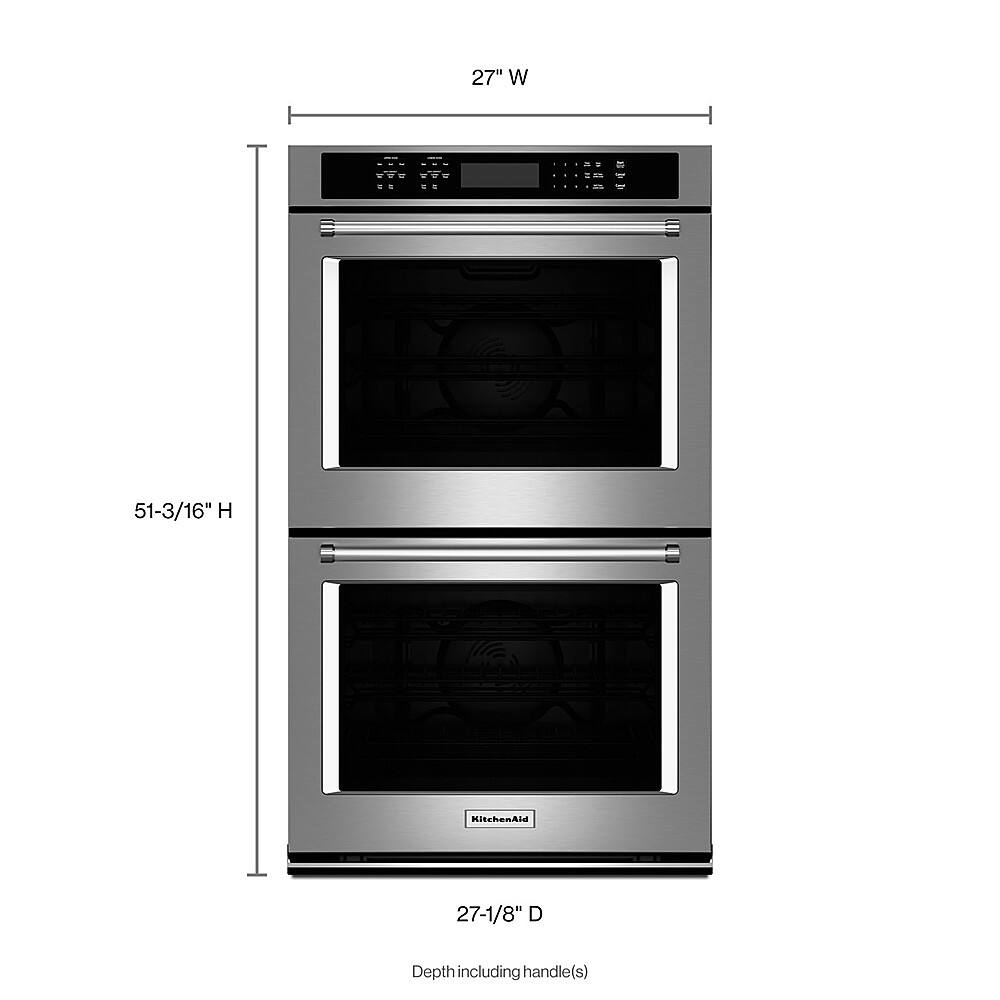

- Dimensions
- Product Height: 51 1/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 26 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 27 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth With Door 90 Degrees Open: 46 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 235 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 25 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 4.3 cubic feet
- Oven 2 Capacity: 4.3 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: false
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Control Type: Touchpad, Touchpad, Touchpad
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: None
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: false
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Lower
- Oven 1 Interior Height: 18 inches
- Oven 1 Interior Width: 22 inches
- Oven 1 Interior Depth: 19 inches
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 1 Bake Element: 2800 watts
- Oven 1 Broil Element: 4000 watts
- Oven 2 Specification
- Oven 2 Location: Upper
- Oven 2 Interior Height: 18 inches
- Oven 2 Interior Width: 22 inches
- Oven 2 Interior Depth: 19 inches
- Oven 2 Cavity Material: Porcelain
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Bake Element: 2800 watts
- Oven 2 Broil Element: 4000 watts
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Amperage At 208 Volts: true
- Amperage At 240 Volts: true
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year Limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049327365
KitchenAid double wall oven: Load and unload heavy casseroles and more with ease using the SatinGlide roll-out extension rack on this double wall oven. Even-Heat convection provides consistent heating with no cold spots for reliable results.

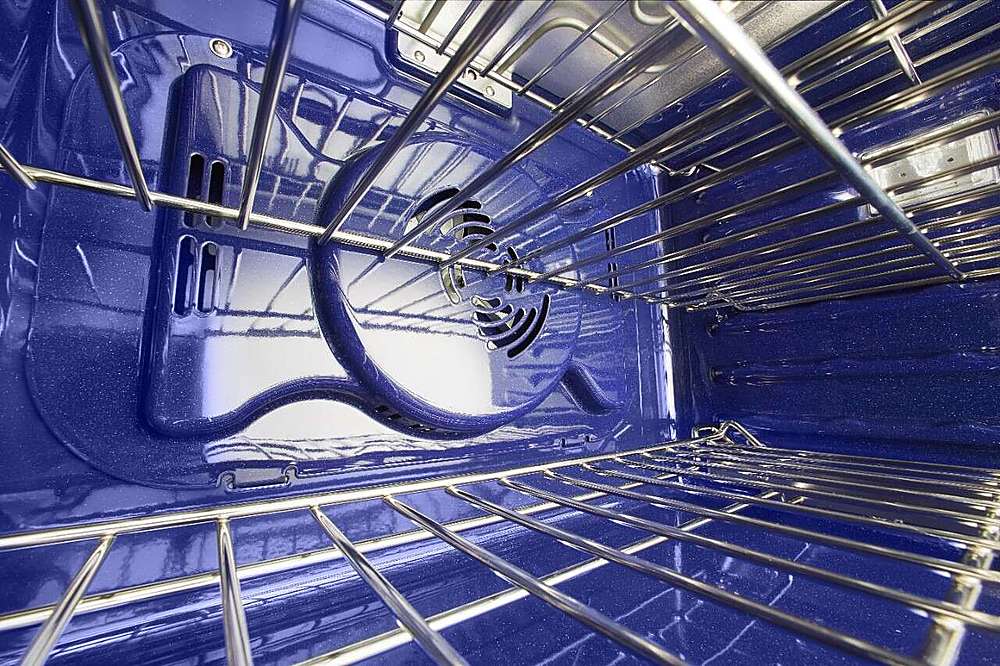

- Circulates air evenly throughout the oven: Even-Heat convection relies on the bow-tie-shape of the oven and a convection fan to ensure consistently delicious results.
- Self-cleaning cycle: Does the hard work for you, so you can spend more time with your family.
- Cook multiple dishes at different temperatures simultaneously: Two 4.3 cu. ft. ovens offer the space you need to cook for large family get-togethers and more.

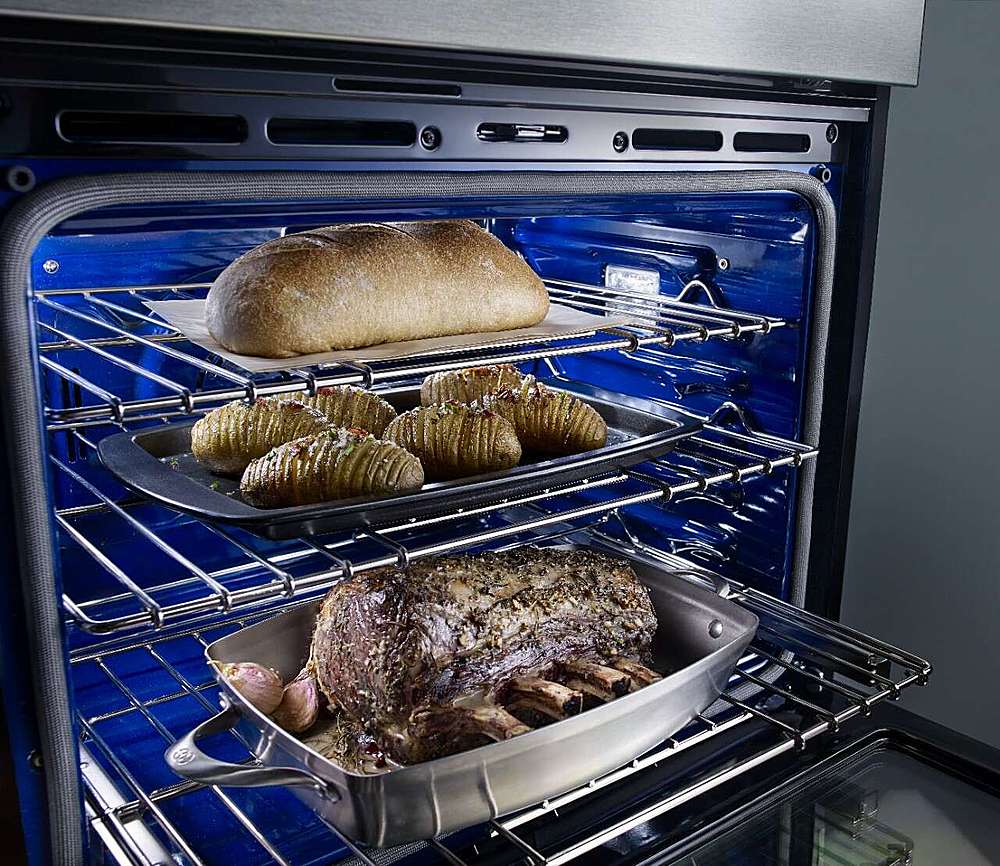

- Handles even heavy cookware: SatinGlide roll-out extension rack provides an easy-grip handle to simplify loading and unloading the oven.
- Arrive home to a freshly cooked meal: Delay-start option lets you program the oven to begin cooking before you get home.
- Auto shutoff: Timed bake turns the oven off at the end of the cycle for ease of use.
- Safely maintain a specific temperature for an extended amount of time: Sabbath mode makes it simple to comply with kosher cooking practices.
- Monitor the internal temperatures of your dishes without releasing heat: Temperature probe helps you ensure your meats, casseroles and more reach the proper temperature.
- Circulates air evenly throughout the oven: Even-Heat convection relies on the bow-tie-shape of the oven and a convection fan to ensure consistently delicious results.
- Self-cleaning cycle: Does the hard work for you, so you can spend more time with your family.
- Cook multiple dishes at different temperatures simultaneously: Two 4.3 cu. ft. ovens offer the space you need to cook for large family get-togethers and more.
- Handles even heavy cookware: SatinGlide roll-out extension rack provides an easy-grip handle to simplify loading and unloading the oven.
- Arrive home to a freshly cooked meal: Delay-start option lets you program the oven to begin cooking before you get home.
- Auto shutoff: Timed bake turns the oven off at the end of the cycle for ease of use.
- Safely maintain a specific temperature for an extended amount of time: Sabbath mode makes it simple to comply with kosher cooking practices.
- Monitor the internal temperatures of your dishes without releasing heat: Temperature probe helps you ensure your meats, casseroles and more reach the proper temperature.
Whats Included
- 27" Built-In Double Electric Convection Wall Oven
- Gliding rack x 1
- Owner's manual
- 27" Built-In Double Electric Convection Wall Oven
- Gliding rack x 1
- Owner's manual
A: An installation service is provided through an outside contractor. Best Buy sends an adviser to your home at no charge to measure, in order to estimate what the installation cost will likely be; however, the amount can vary depending on what the installers find after they remove your old ovens. In my case, even though I was replacing an old pair of ovens with the same make, the size of the space required for the new ones was not large enough to accommodate them. The installers charge by how many cuts they need to make. I had to spend more than I expected on the installation, around $350, to enlarge the space by about 1.75" in width and an inch in height. It was expensive, but they did do a very neat job. The new unit is perfectly centered.
A: How can the cutout width be 21.5" with a 27" Oven? Is the 21.5 a typo?
A: NO, it is so mild you would hardly notice it unless standing there barefoot and then a very mild feeling. One of my cats likes it.
Q: Does this over have a probe?
A: Yes. There is a removable/cleanable probe with a cord that plugs into an opening at the upper right area inside the oven near the door of each oven. I don't want to leave it in the oven all the time, so I put it in a baggie and labeled it so I don't accidentally throw it away.
Q: Can this work in a non-convection mode for baking?
A: GMan, yes this can work in a non-convection mode.
Q: What is the color of the inside of the ovens?
A: the interior of the ovens is royal blue
Q: Does this oven have a proof or proving mode
A: Yes, both upper and lower ovens have a "proof" mode (100 degrees F)
A: Hello Sunshine! The auto shutoff will automatically shut off after 12 hours. We hope this helps.
