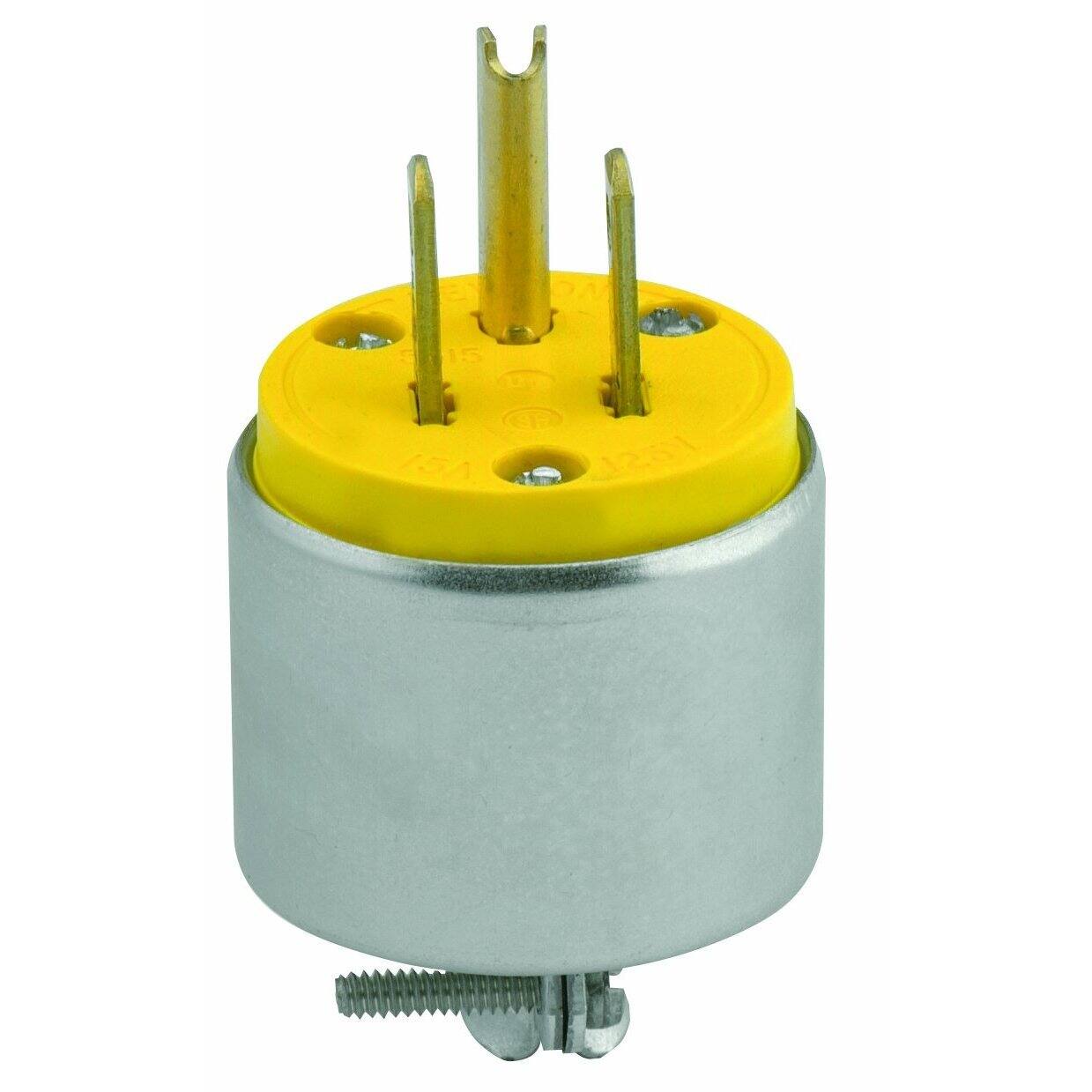

Leviton - 515PA 15 Amp 125 Volt Armored Grounding Plug - Yellow
FREE shipping to
Related Item
About This Item
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Leviton
- Model Number: 5100077
- Product Name: 515PA 15 Amp 125 Volt Armored Grounding Plug
- Color: Yellow
- Power
- Amperage: 15.0 amperes (Strength of electrical current.)
- Voltage: 125.0 volts (Amount of power needed to support an electrical current.)
- Plug Style: Straight plug
- Grounded Receptacle: Grounding

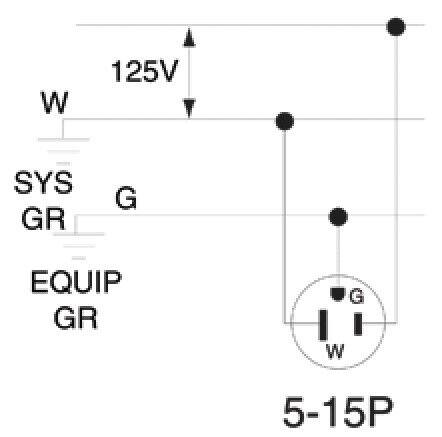

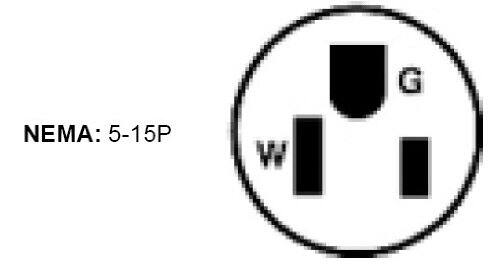

- NEMA Configuration: NEMA
- Features
- Number of Units Per Package: 1
- Material: Plastic
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Dimensions
- Product Height: 4.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 1.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.9 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Warranty
- Warranty - Labor: Warranty
- Other
- UPC: 078477841693

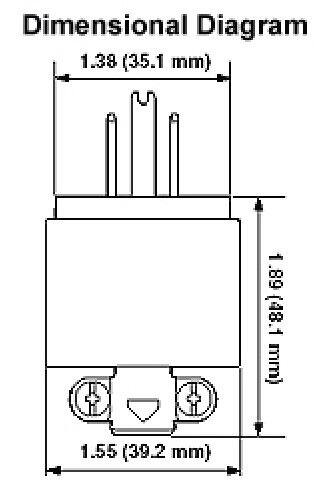

Armored grounding plug model 515PA rated 15 A, 125 V for straight-plug applications. Plastic-bodied design includes triple-drive head screws for flexible driver options, NEMA configuration and rating molded on the face for quick identification, deep-slotted backed-out terminal screws for secure backwire conductivity, keyed husk and module for proper alignment during wiring, and a built-in cord grip that accepts No. 18-3 through No. 12-3 cords. Dimensions: 1.8 inches length, 4.5 inches height, 2 inches width; weight: 0.9 lb. Includes one armored grounding plug.
- Triple-drive head screws: Triple-drive head screws accept standard, Phillips, or Robertson drivers for fast, flexible installation.
- NEMA configuration and rating: NEMA configuration number and amperage/voltage rating are molded on the face for easy identification during installation.
- Deep-slotted backed-out terminal screws: Deep-slotted backed-out terminal screws draw backwire clamps securely to maximize conductivity and reliability.
- Husk and module keyed for alignment: Husk and module are keyed to ensure correct alignment during wiring for consistent, reliable connections.
- Built-in cord grip: Built-in cord grip automatically adjusts to fit No. 18-3 through No. 12-3 cords and provides strain relief.
Whats Included
- Leviton 515PA 15 Amp, 125 Volt, Armored Grounding Plug, Yellow
