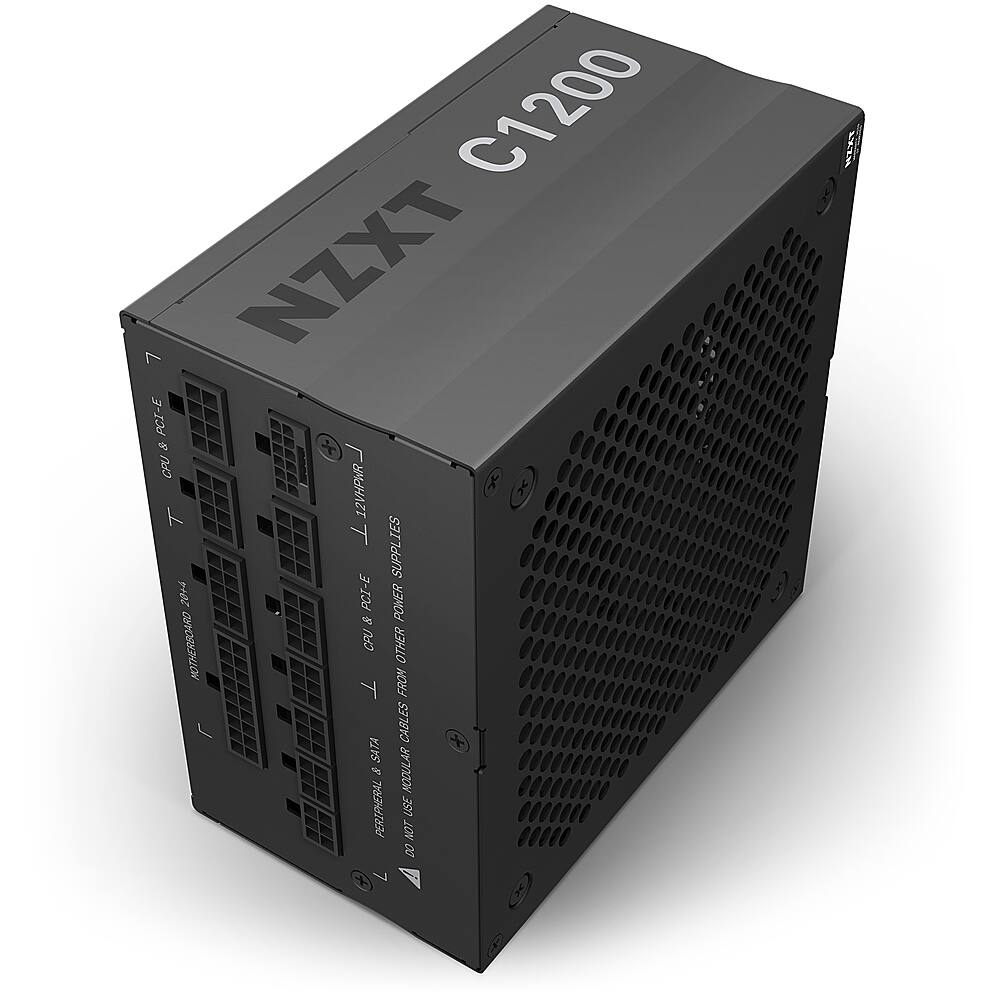

NZXT - C - 1200W ATX 3.0 80 Plus Gold Fully Modular Power Supply - Black
Model: PA-2G1BB-US
SKU: 6538048
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: ATX12V v3.0 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 8-pin (6+2) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: EPS12V v2.92 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 135 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: NZXT
- Model Number: PA-2G1BB-US
- Product Name: C - 1200W ATX 3.0 80 Plus Gold Fully Modular Power Supply
- Color: Black
- Power
- Wattage: 1200 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: ATX12V v3.0 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: No (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 8-pin (6+2) x 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: EPS12V v2.92 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 135 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 25 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 135 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 123.46 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 810074842563
Using the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.
- Next gen power: The 16-pin 12VHPWR connector can deliver up to 600 watts of power to high-end GPUs over a single cable—the new standard in modernized power.
- 90.5% efficient: High efficiency means low numbers for everything else: temperature, noise, and the monthly energy bill.
- High-end components: Made with 100% Japanese 105C capacitors to ensure outstanding power delivery and long-term durability.
- Fully modular: Use only the cables you need to stay organized and improve airflow. Comes with a full set of cables to make builds and upgrades easy.
- Peace of mind: Enjoy a 10-year warranty and excellent customer support.
A: This power supply has a fan/cooling system connector for PCI-E 6+2PIN, ATX (24 PIN), and EPS12V.
Q: What is the warranty period for the power supply?
A: The manufacturer's warranty for parts on the power supply is 10 years.
Q: What is the energy efficiency rating of the power supply?
A: The energy efficiency of this power supply is 80 PLUS Gold.
Q: What are the dimensions of the power supply?
A: The NZXT C1200 Gold power supply has a width of 25 millimeters, a height of 135 millimeters, and a length of 135 millimeters.
Q: Does the power supply have overload protection?
A: This power supply does have overload protection.
Q: How many fans are included in the power supply?
A: The power supply includes one fan.
A: The NZXT C1200 Gold power supply can provide up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable.
