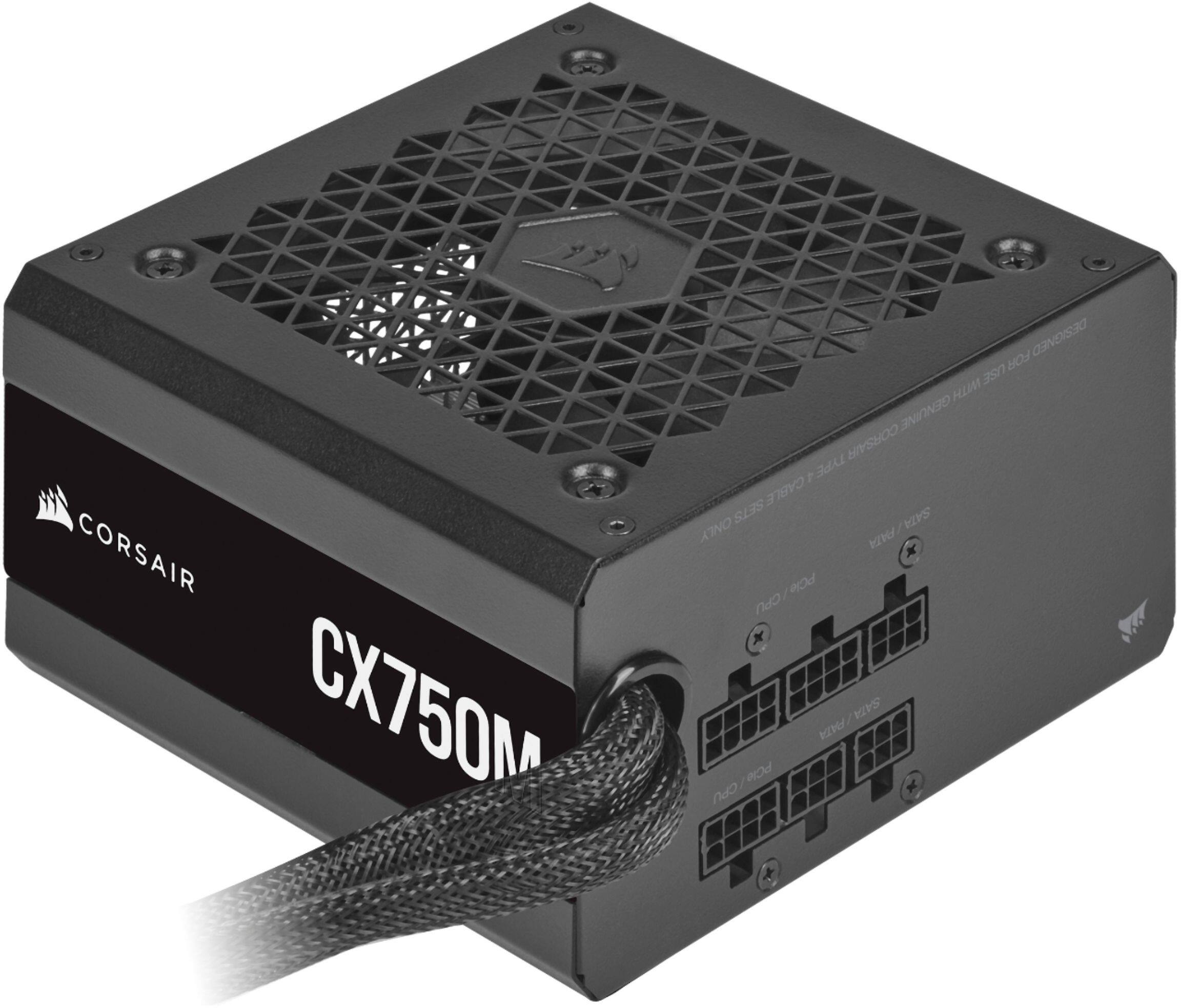

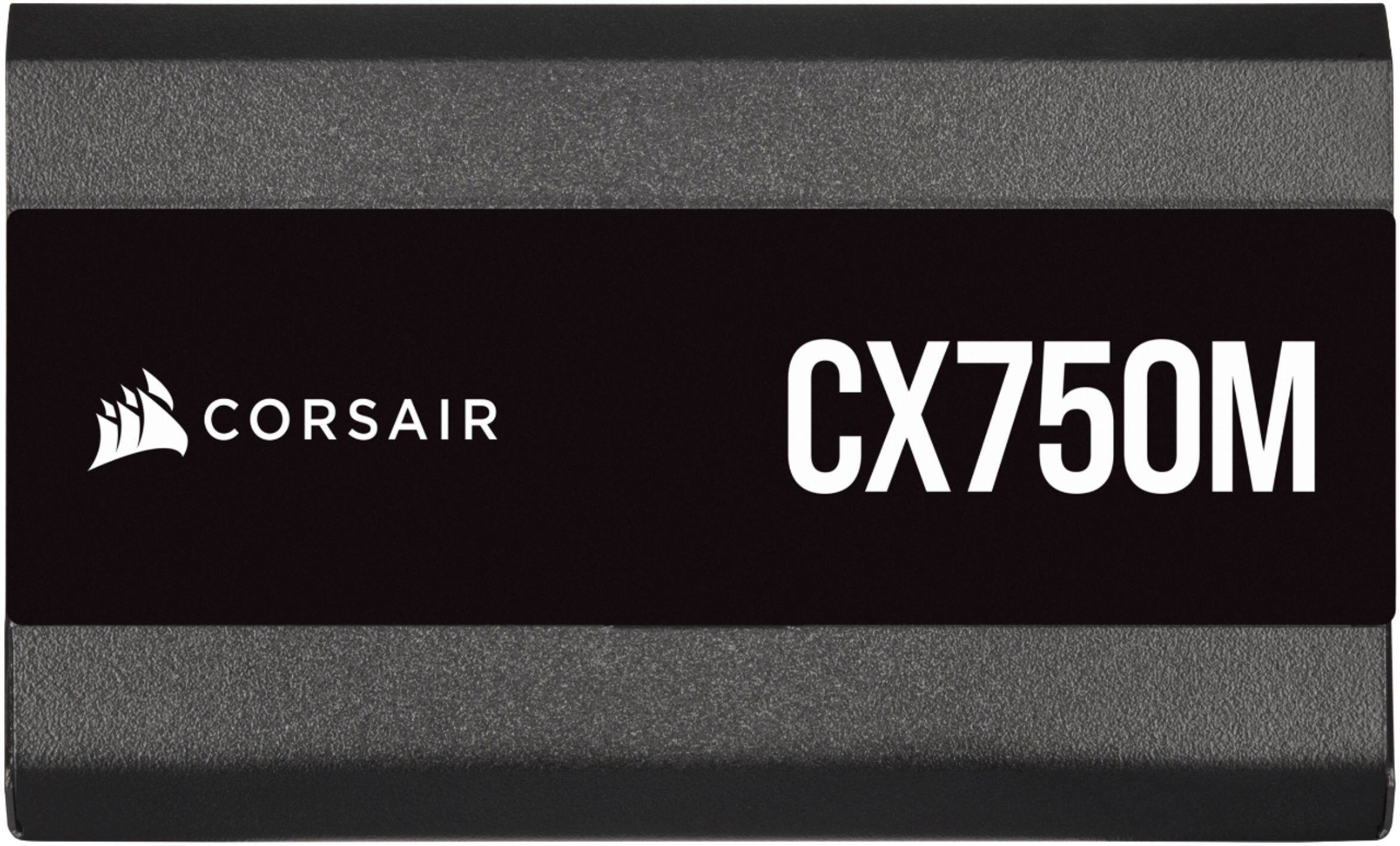

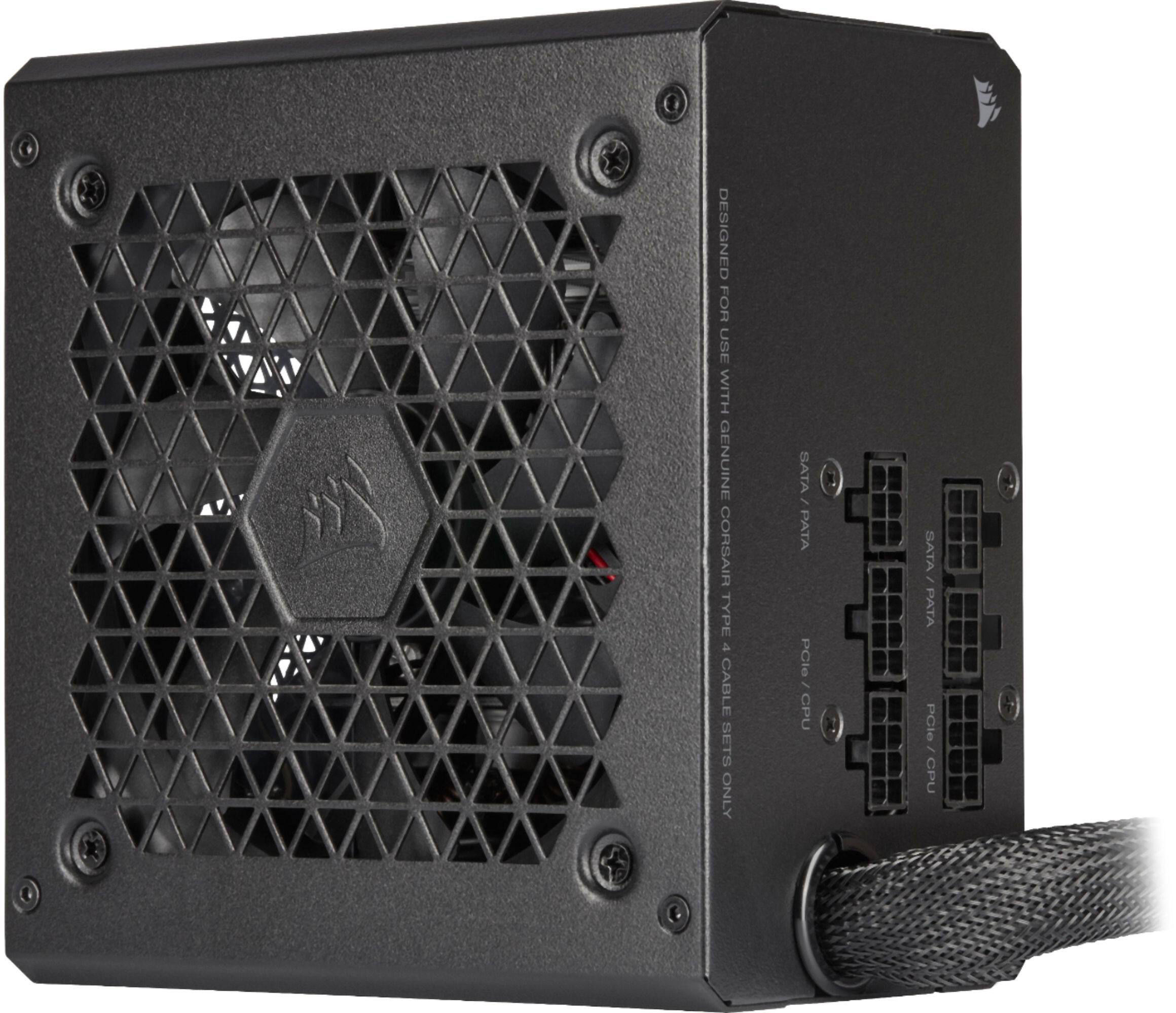

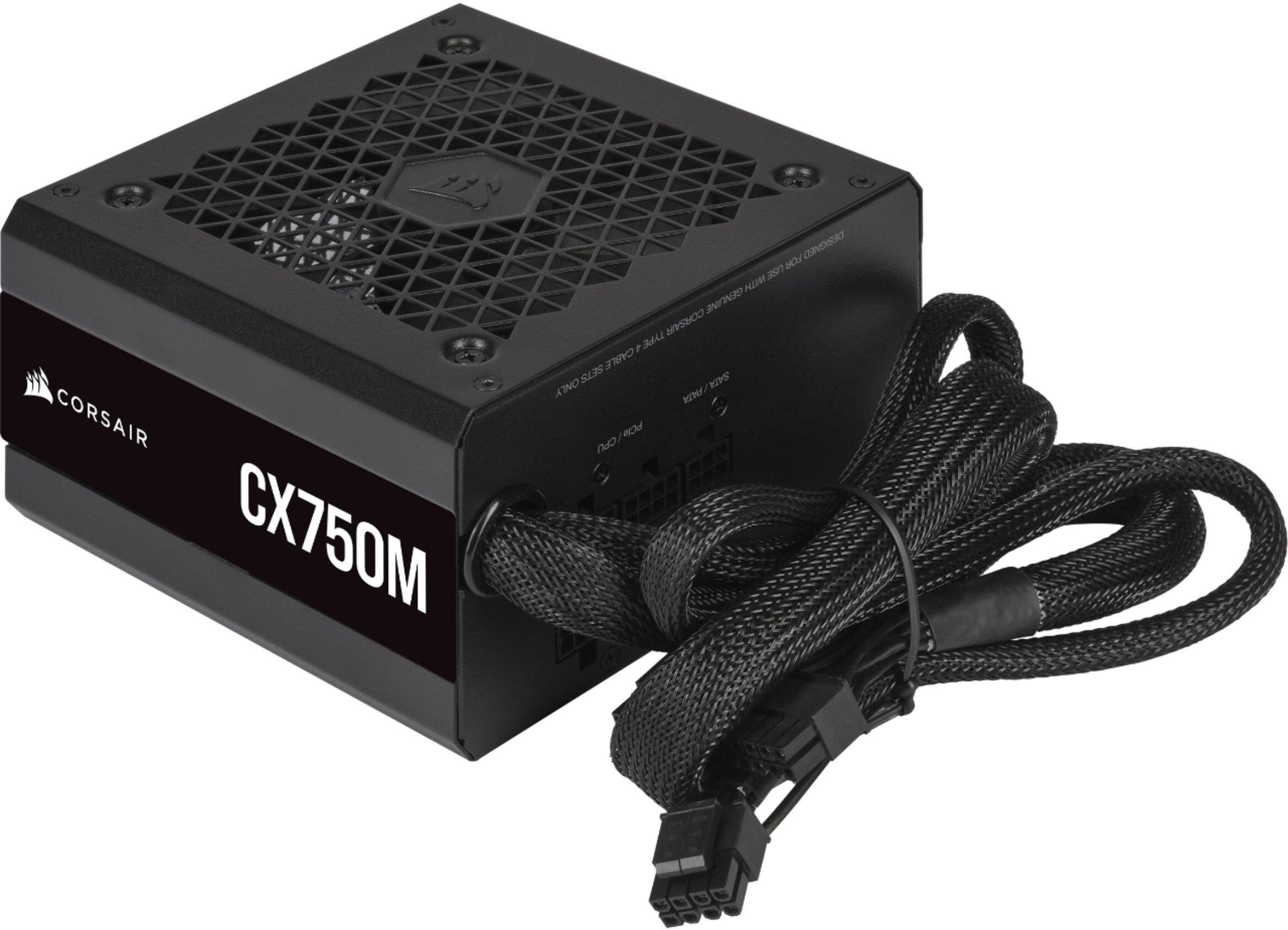

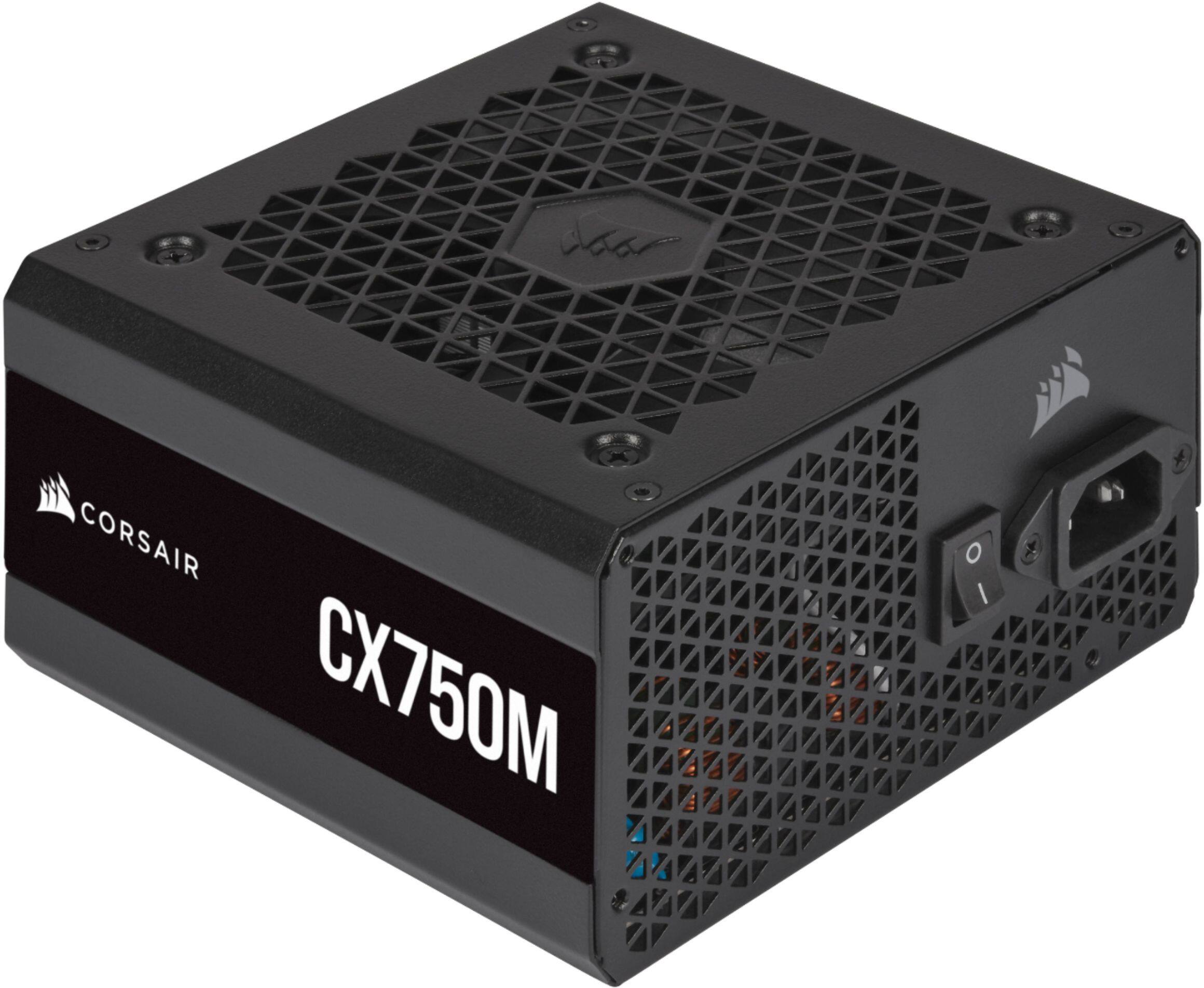

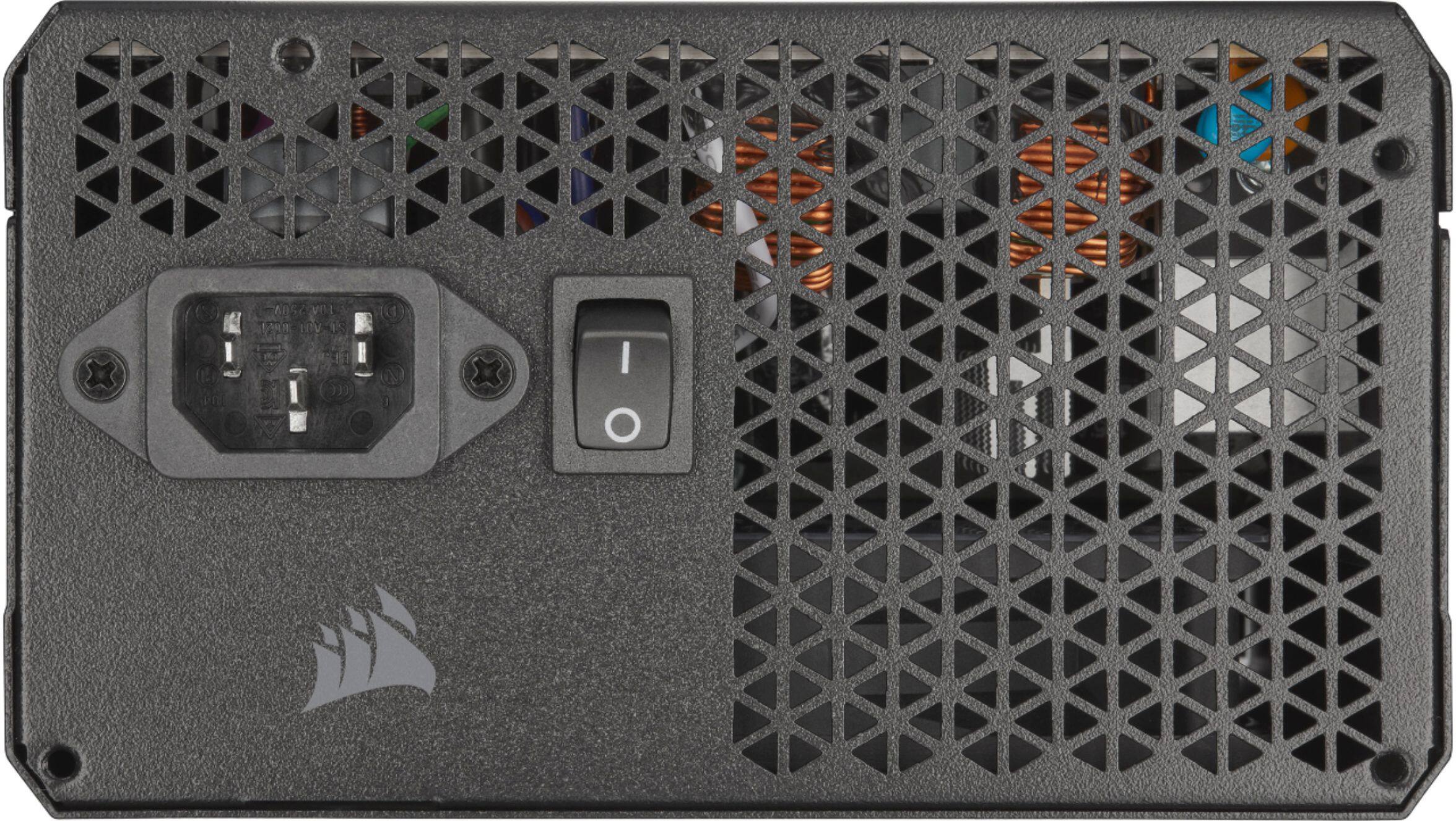

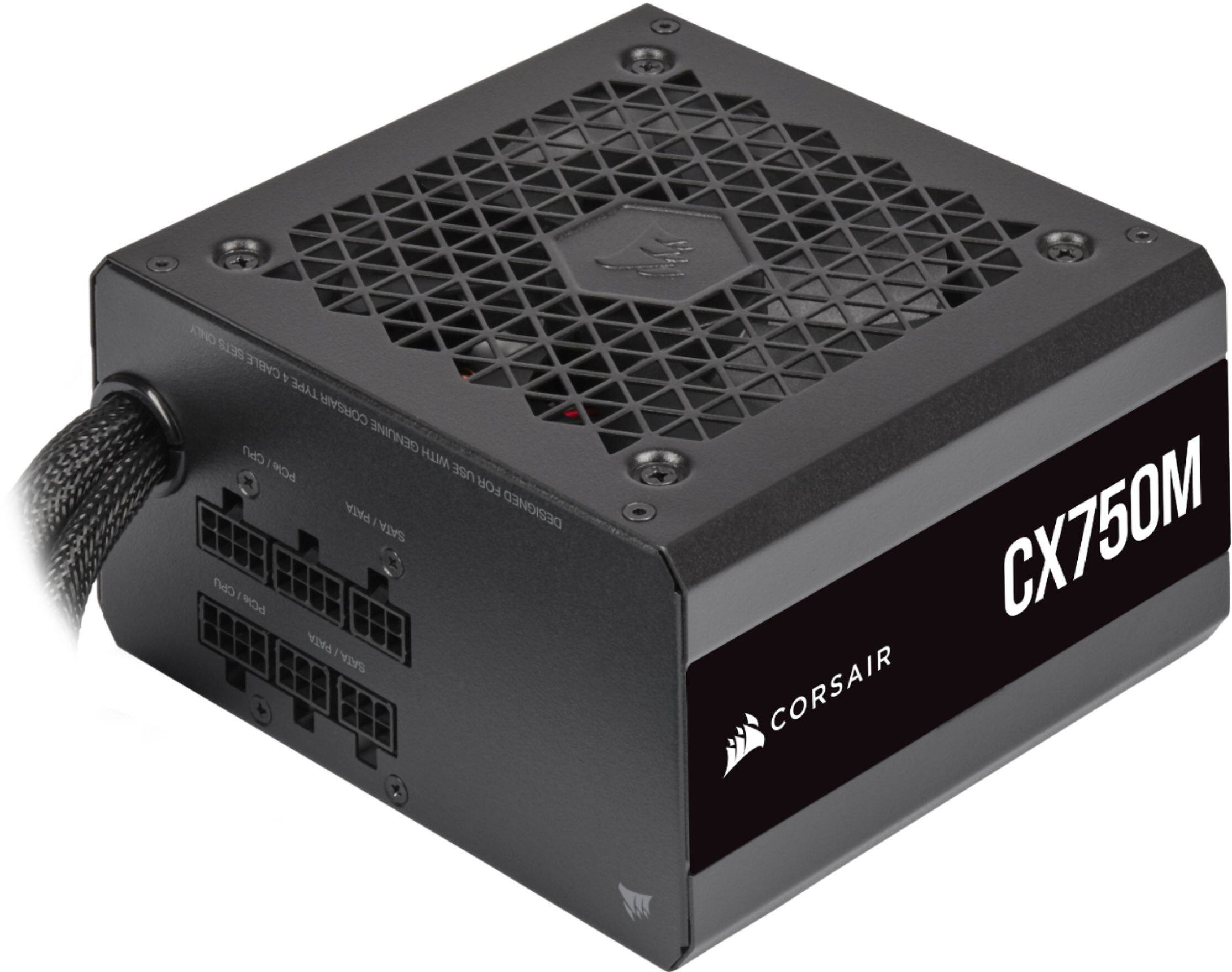

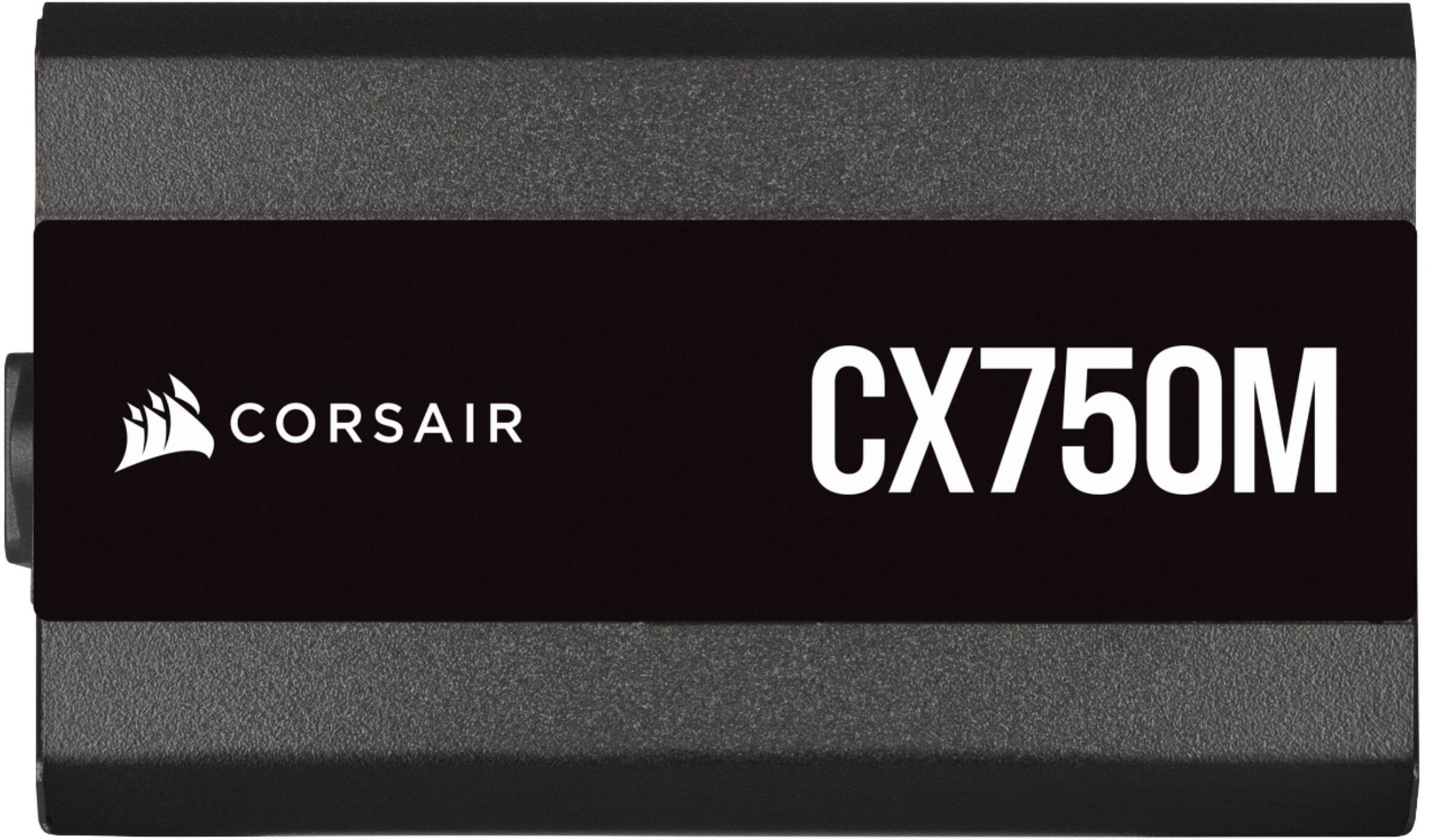

CORSAIR - CX-M Series CX750M Semi-Modular Low-Noise ATX Power Supply - Black
Wattage
750 wattsFREE shipping to
CORSAIR - TM30 Performance Thermal Paste - Black$7.99
More Buying Options
Specifications
- Wattage750 wattsModularSemi-modularEnergy EfficiencyCybenetics Silver, 80 PLUS BronzeATX Connector1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) ConnectorsPCIe Connector4x PCIe (6+2-pin)Peripheral Connector4
- Key Specs
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Semi-modular
- Energy Efficiency: Cybenetics Silver, 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 139.95 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020222-NA
- Product Name: CX-M Series CX750M Semi-Modular Low-Noise ATX Power Supply
- Color: Black
- Power
- Wattage: 750 watts (Measurement of electrical power.)
- Modular: Semi-modular
- Energy Efficiency: Cybenetics Silver, 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V v2.4, EPS12V v2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 86.11 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150.11 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 139.95 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 52.96 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 120mm Rifle Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 840006616634
CORSAIR CX-M Series Low-Noise Power Supplies offer 80 PLUS Bronze efficiency and semi-modular cabling for reliable, low-noise operation. With Dual EPS12V cables and two/four PCIe 8-pin power connectors, CX-M PSUs have all the connections needed to power today’s most demanding PC upgrades. Japanese 105°C-rated capacitors deliver superb electrical performance and reliability for your system, backed by a five-year warranty. Robust DC-DC conversion ensures clean, consistent power for all your components and peripherals. With a compact 140mm size allowing for great flexibility in build configurations, CX-M Series power supplies deliver reliable power for nearly any build.

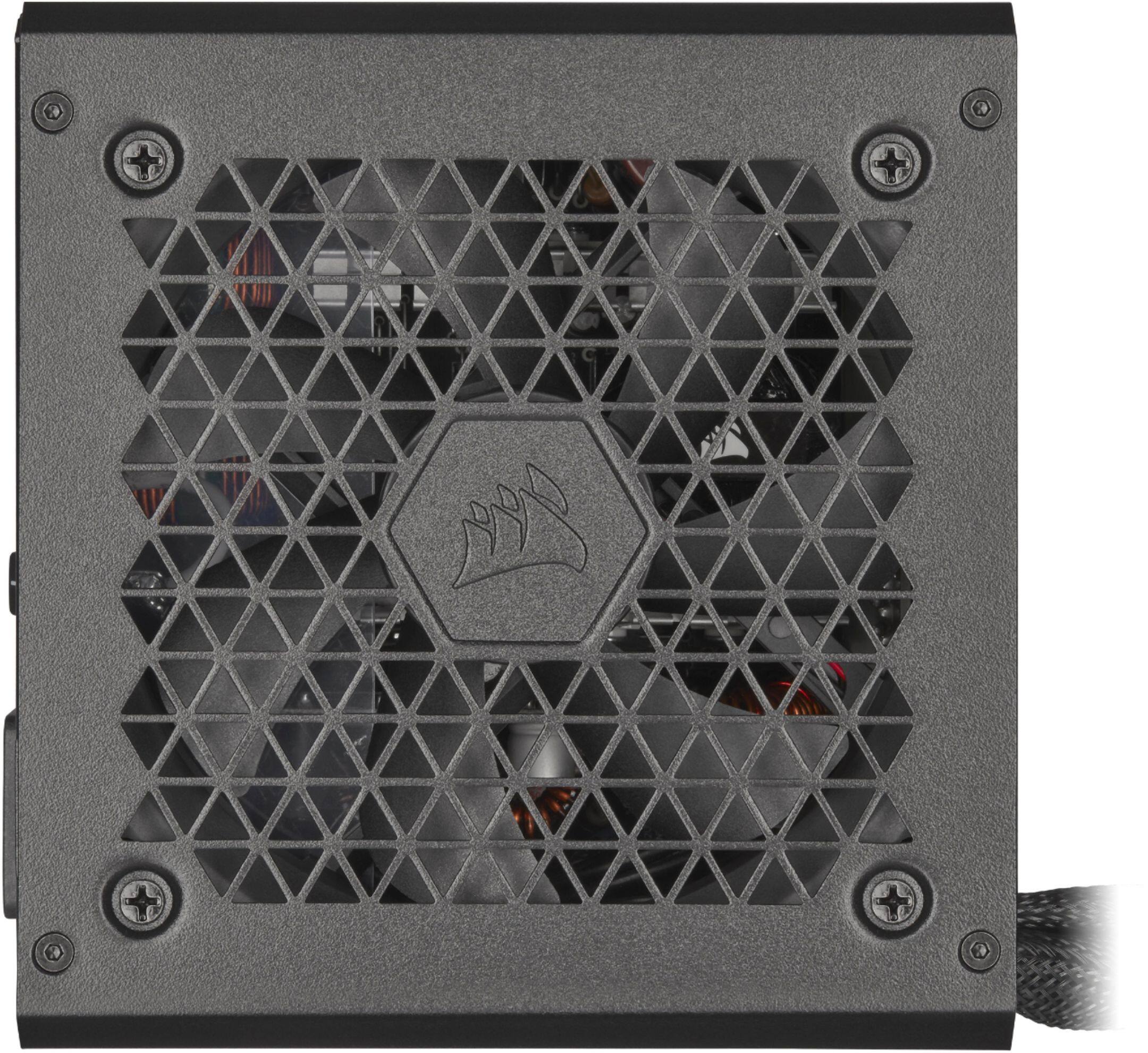

- Low-Noise Operation: A rifle bearing fan ensures longer life than conventional bearings with less noise, letting you focus more on the task at hand, whether it’s gaming or work.

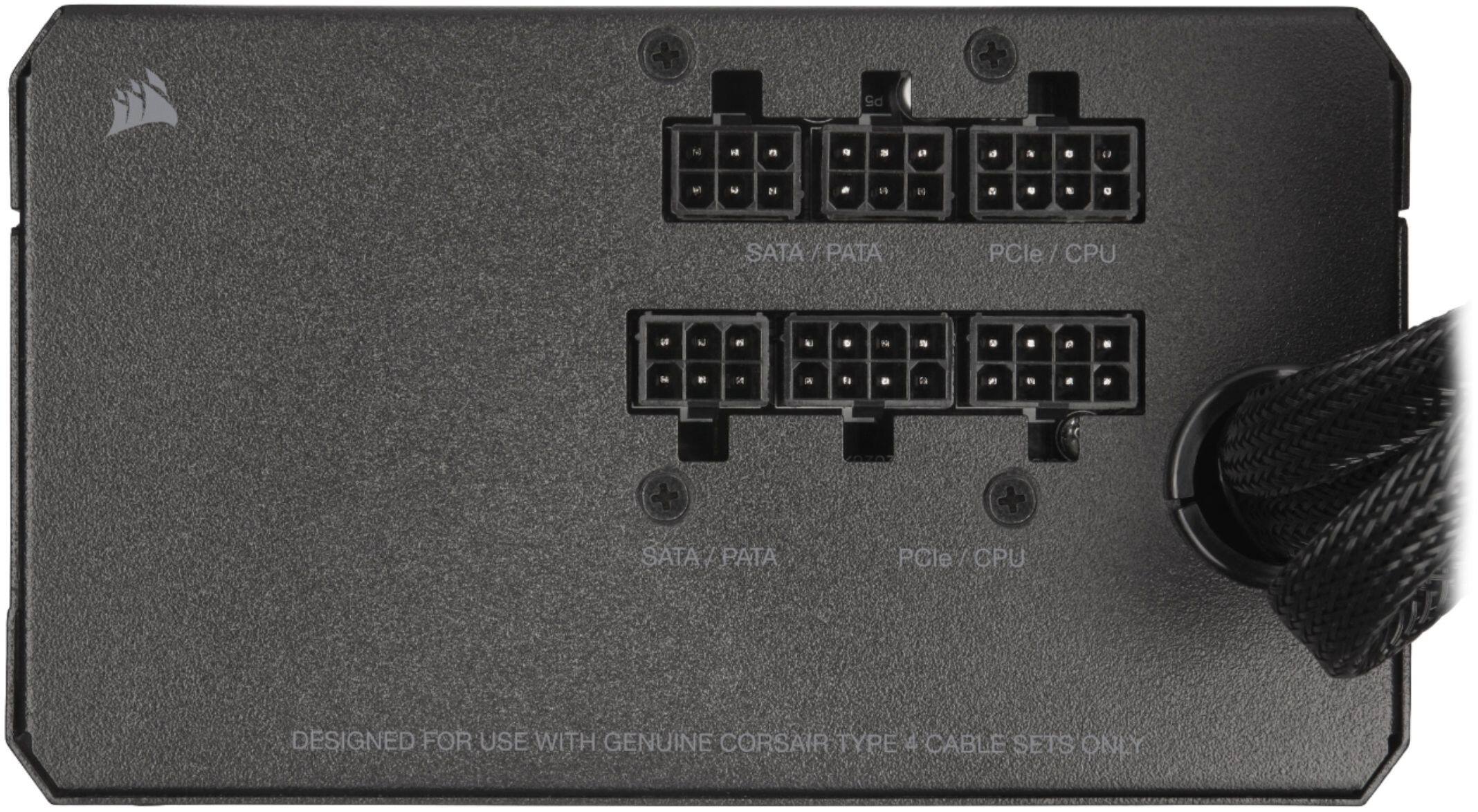

- Semi-Modular Cabling: Connect only the cables you need for a cleaner build with easy cable management, with Dual EPS12V connection.
- 105°C Japanese Primary Capacitors: Deliver consistent power and reliability
- 80 PLUS Bronze Certified: Guaranteed up to 85% efficiency for steady power usage and less heat.
- Robust DC-DC Conversion: For +3.3V and +5V, providing clean, consistent power to all components and peripherals.
- Compact Size: At just 140mm long, the CX-M series offers great flexibility in build configurations.
- Five-Year Warranty: Your guarantee of reliable operation for years to come.

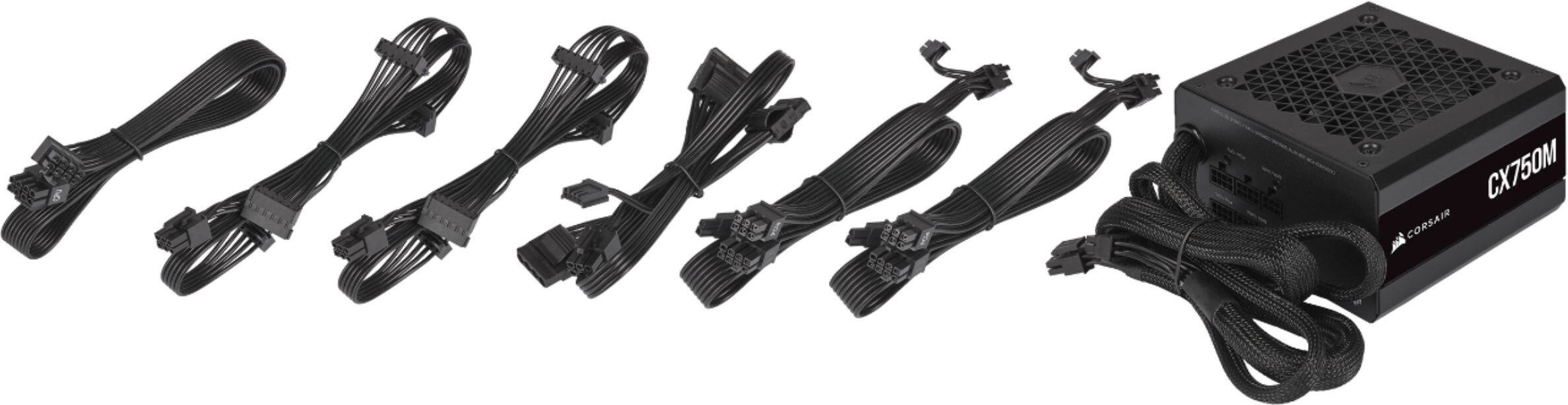

Whats Included
- CX750M
- 1x 24-pin ATX (24-pin) Connector
- 2x ATX 12V/EPS12V (4+4-pin) Connectors
- 4x PCIe (6+2) Connectors
- 8x SATA (Straight) Connectors
- 4x PATA Connectors
Q: Does this power supply have overload protection?
A: Yes, this power supply comes with overload protection.
Q: How long is the cord on this power supply?
A: The cord is 5 feet long.
Q: What kind of warranty does this power supply come with?
A: This power supply is backed by a five-year warranty.
Q: What is the wattage of this power supply?
A: This power supply has a wattage of 750 watts.
Q: What is the length of this power supply?
A: The CX-M series power supply is 140mm long.
Q: Does this come with all the needed cables?
A: Hi, The CX750M comes with the following cables: o x1 ATX Cable 24-pin (20+4) o x2 EPS/ATX12V 8-pin (4+4) o x2 PCIe 8-pin (6+2) w/ 2 connectors per cable (4 total connectors) o x2 SATA w/ 4 connectors per cable (8 total connectors) o x1 Peripheral 4-pin w/ 3 connectors per cable (4 total connectors) If you have any additional questions, please feel free to reach out to support via our website and we'll happily assist you. -Albert
Q: Will this work with an RTX 4070 Ti since it uses 2x 8 pin PCIe connectors.
A: Yes but in at least some cases you will need an adapter that should come with the card. I am using the PSU with a MSI 3070ti ventus OC. The card came with an adaptor. Make sure you push the 8 pin plugs in well, and triple cheack the fit. I am pleased with the PSU so far.
Q: Will this Power supply be enough for an i7 12700 and a RTX 3070 and one ssd?
A: Hello Nate, Quite easily would do that, yes! -Art
