MSI - MAG A850GL PCIE5 850W Full Modular ATX 3.1 Ready 80 Plus Gold Power Supply - Black
Wattage
850 wattsMore Buying Options from Best Buy and Marketplace sellers
Specifications
- Wattage850 wattsModularFully modularEnergy Efficiency80 PLUS Gold, Cybenetics PlatinumATX Connector1x ATX (24 PIN) CablePCIe Connector4Peripheral Connector4
- Key Specs
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 219.96 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: MSI
- Model Number: MAG A850GL PCIE5
- Product Name: MAG A850GL PCIE5 850W Full Modular ATX 3.1 Ready 80 Plus Gold Power Supply
- Color: Black
- Power
- Wattage: 850 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Platinum (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX 3.1
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: False (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 124.97 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 299.97 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 219.96 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 102.24 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: Fluid Dynamic Bearing
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 824142319222
The MAG A850GL PCIE 5 power supply overflows with potency, a hallmark of the MAG series that aligns with gamers' pursuit of excellence. Infused with military-inspired elements, these gaming products have evolved into symbols of resilience. Efficiency matters, impacting performance and power use. The 80 PLUS Gold certification pledges lower energy consumption and higher efficiency. Compact and efficient, the A850GL PCIE 5 optimizes space and cable organization. Unneeded connectors are eliminated, reducing clutter and simplifying builds. Unused cables find refuge in the included cable pack. Cable organization, a common woe, finds a solution. Flat cables streamline management, enhancing airflow and orderliness. The power supply's fan employs fluid dynamic bearing, balancing cooling and noise. DC to DC and Full Bridge merge for higher efficiency and stable voltage, adapting swiftly to different needs. Sufficient power reigns, as the single rail supply caters to high-performance GPUs and CPUs with 5 CPU & PCI-E slots. Safety is paramount. Protective mechanisms ensure stability, empowering worry-free operation. In essence, the A850GL PCIE 5 L epitomizes power, space-efficiency, cable harmony, and safety. A pinnacle of technology in the MAG series, empowering triumphant gaming while embodying its spirit.
- ATX 3.1 compatible: It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
- Level up your game: With native 16 PIN PCIe connector the power supply is ready for Nvidia GeForce 50/40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
- 80 Plus gold certified: The efficiency of your power supply directly influences your system's performance and your power consumption.
- All the more organized: Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
- DC TO DC & full bridge: DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
Whats Included
- A850GL PCIE5
- AC cable
- DC cable set
- Mounting screws
Product Manuals
Q: What is the energy efficiency rating of this power supply?
A: This power supply is 80 Plus Gold certified, ensuring high energy efficiency and lower power consumption.
Q: Is this power supply compatible with the latest graphics cards?
A: Yes, it has a native 16 PIN PCIe connector and is ready for Nvidia GeForce 40 Series graphics cards, supporting up to 600W of power delivery.
Q: How does this power supply handle different power demands from components?
A: It uses a combination of DC to DC and Full Bridge technology for efficient conversion, stable voltage output, and quick adjustments based on usage.
Q: How many SATA connectors does this power supply have?
A: This power supply comes equipped with 8 SATA connectors.
Q: What is the benefit of having flat cables in this power supply?
A: The flat cables make cable management easier, reduce clutter, and allow for better airflow within the computer case.
Q: What type of cooling system does the power supply use?
A: It utilizes an air cooling system with a Fluid Dynamic Bearing fan for efficient and quiet operation.
A: The A850GL PCIE 5 is compatible with the listed components.
A: The 4070Ti Super is suggested to be paired with at least a 700W power supply, so the A850GL PCIE5 will support that upgrade.
Compare similar products

The MAG A850GL PCIE 5 power supply overflows with potency, a hallmark of the MAG series that aligns with gamers' pursuit of excellence. Infused with military-inspired elements, these gaming products have evolved into symbols of resilience. Efficiency matters, impacting performance and power use. The 80 PLUS Gold certification pledges lower energy consumption and higher efficiency. Compact and efficient, the A850GL PCIE 5 optimizes space and cable organization. Unneeded connectors are eliminated, reducing clutter and simplifying builds. Unused cables find refuge in the included cable pack. Cable organization, a common woe, finds a solution. Flat cables streamline management, enhancing airflow and orderliness. The power supply's fan employs fluid dynamic bearing, balancing cooling and noise. DC to DC and Full Bridge merge for higher efficiency and stable voltage, adapting swiftly to different needs. Sufficient power reigns, as the single rail supply caters to high-performance GPUs and CPUs with 5 CPU & PCI-E slots. Safety is paramount. Protective mechanisms ensure stability, empowering worry-free operation. In essence, the A850GL PCIE 5 L epitomizes power, space-efficiency, cable harmony, and safety. A pinnacle of technology in the MAG series, empowering triumphant gaming while embodying its spirit.

The MAG gaming power supply is equipped to support the latest NVIDIA GeForce RTX 4000 Series and AMD GPUs. The efficiency of your power supply can make a world of a difference; it's why we offer a reliable 80+ Gold power proficiency PSU and a 10-year limited warranty guaranteeing a long term reliable solution for your gaming system. Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply's fully modular design, we've given you the option of what cables you'll need for your system and defeat the clutter. With that in mind we've gone with a flat black design to further help you create the most beautiful cable managed pc system around. The remaining cables can be nicely stored away in the included cable bag. The MAG gaming power supply comes in 160mm and 150mm wide dimensions to ensure a comfortable fit in more pc chassis so it can continue to maintain a comfortable space for your cable management needs.

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies provide quiet, reliable power with Cybenetics Gold efficiency to your PC. The modular cables make PC builds easy, as you connect only the cables your system requires. With ATX 3.1 and PCIe 5.1 compliance with inclusion of native 12V-2x6 connnector and cable, and an array of PCIe 8-pin power connectors, RMe PSUs have the connections needed to power today’s demanding PC hardware. Industrial-grade, 105°C-rated capacitors deliver superb electrical performance, backed by a seven-year warranty. With a 140mm-long casing that works with nearly any modern case, the CORSAIR RMe Series is steady power for your system.

CORSAIR RMx Series Fully Modular Low-Noise Power Supplies deliver quiet, dependable power with Cybenetics Gold efficiency to your PC. Fully modular, ultra-flexible embossed cables make PC builds easy, as you connect only the cables your system requires. Compliant with the ATX 3.1 power standard from Intel, RMx PSUs have the connections needed to power today’s demanding PC hardware including a native 12V-2x6 connector. 100% Japanese 105°C-rated electrolytic capacitors deliver fantastic electrical performance, while a 140mm FDB fan provides low noise cooling. Backed by a ten-year warranty, RMx PSUs are the gold standard for many years to come.
| Pros for MSI - MAG A850GL PCIE5 850W Full Modular ATX 3.1 Ready 80 Plus Gold Power Supply - Black | |||
|---|---|---|---|
| Overall Performance, Installation Ease, Cable Management, Noise Level, Modularity | Overall Performance, Installation Ease, Noise Level, Modularity, Power Supply Capacity | Overall Performance, Noise Level, Cable Management, Installation Ease, Power Capacity | Overall Performance, Power Capacity, Noise Level, Installation Ease, Fan Control |
| Cons for MSI - MAG A850GL PCIE5 850W Full Modular ATX 3.1 Ready 80 Plus Gold Power Supply - Black | |||
| There were no cons for this product— | Cable Length | There were no cons for this product— | Coil Whine |
Specs
Reviews
Rating 4.6 out of 5 stars with 224 reviews
- Overall Performance (79)
- Installation Ease (28)
- Cable Management (25)
- Noise Level (23)
- Modularity (20)

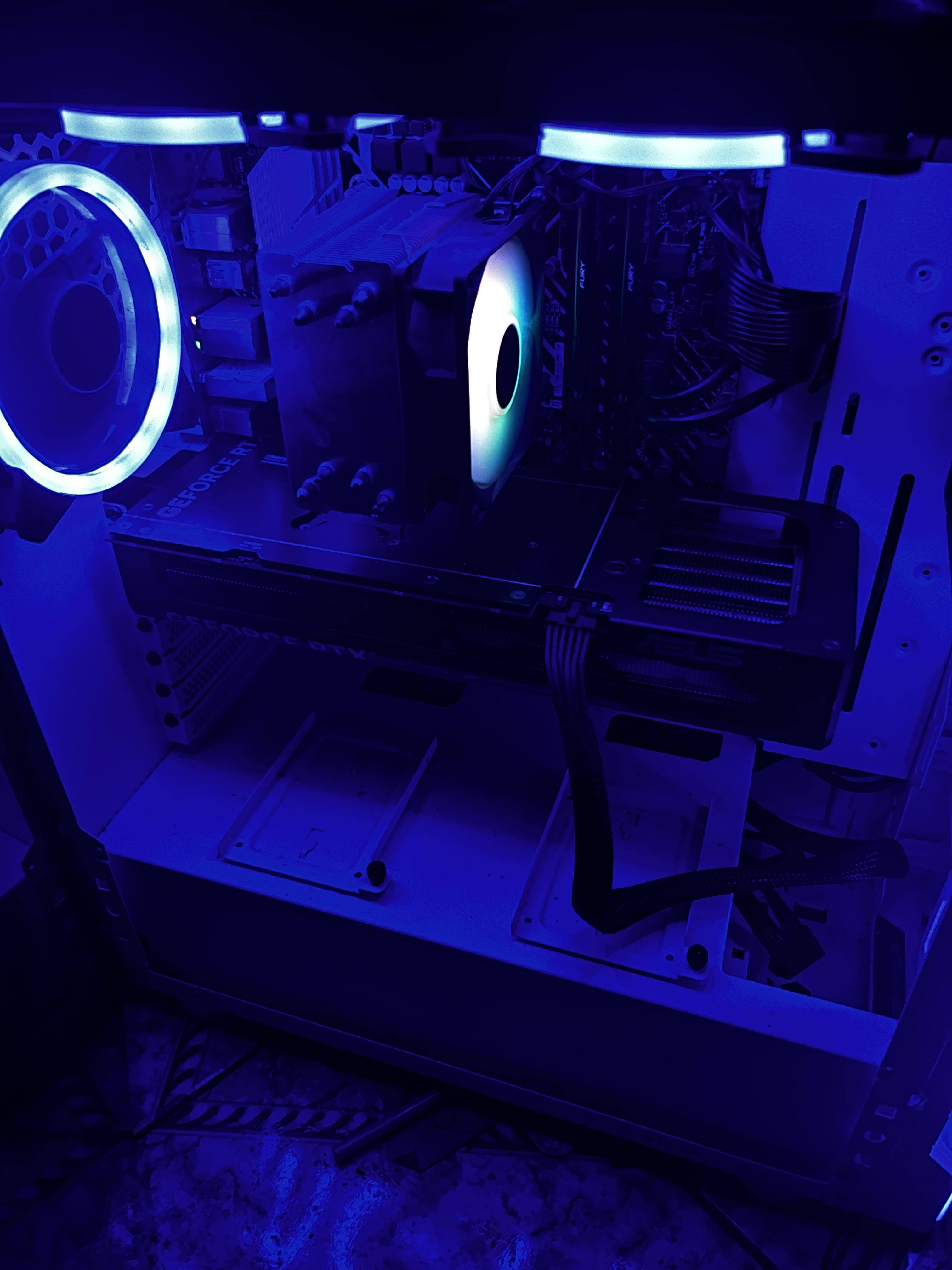

Customer Images
